IslandPath Analysis: Bacteroides thetaiotaomicron VPI-5482

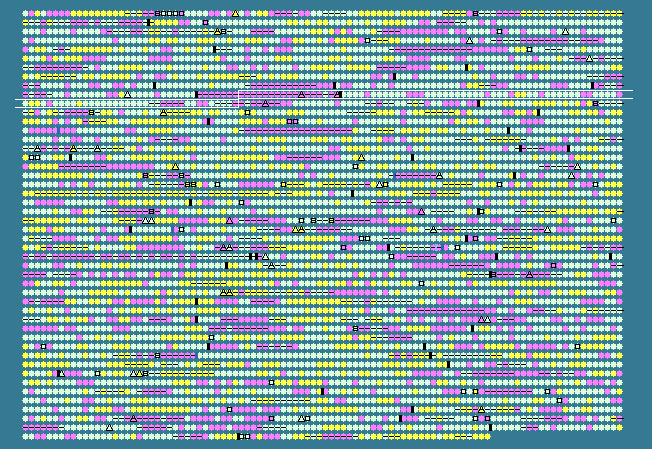

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 43.33   STD DEV: 5.15
Bacteroides thetaiotaomicron VPI-5482, complete genome - 1..6260361
4778 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
937	 30.95	-2	1148323..1148574	-	83	29346347	-	BT_0937	-	hypothetical protein
938	 33.33	-1	1148954..1149313	+	119	29346348	-	BT_0938	-	hypothetical protein
939	 33.73	-1	1149490..1149741	-	83	29346349	-	BT_0939	-	hypothetical protein
940	 31.40	-2	1149936..1150400	-	154	29346350	-	BT_0940	-	hypothetical protein
941	 31.06	-2	1150617..1150880	-	87	29346351	-	BT_0941	-	hypothetical protein
942	 36.63	-1	1151297..1152085	-	262	29346352	-	BT_0942	-	putative dinitrogenase reductase activating glycohydrolase
943	 37.32	-1	1152317..1153219	-	300	29346353	-	BT_0943	-	penicillin-binding protein 2B (PBP-2B)
944	 30.70	-2	1153416..1153757	-	113	29346354	-	BT_0944	-	hypothetical protein
945	 32.49	-2	1153770..1154243	-	157	29346355	-	BT_0945	-	hypothetical protein
946	 31.73	-2	1155235..1155981	+	248	29346356	-	BT_0946	-	hypothetical protein
947	 34.52	-1	1156037..1156624	-	195	29346357	-	BT_0947	-	integrase
948	 38.15	-1	1156970..1157986	-	338	29346358	-	BT_0948	-	hypothetical protein
949	 38.60	0	1158487..1158714	-	75	29346359	-	BT_0949	-	hypothetical protein
950	 36.68	-1	1158701..1160494	-	597	29346360	-	BT_0950	-	hypothetical protein
951	 41.88	0	1160570..1161049	-	159	29346361	-	BT_0951	-	hypothetical protein
952	 35.64	-1	1161223..1162047	-	274	29346362	-	BT_0952	-	hypothetical protein
953	 32.63	-2	1162125..1163114	-	329	29346363	-	BT_0953	-	integrase
954	 43.24	0	1164277..1165689	+	470	29346364	-	BT_0954	-	hypothetical protein
955	 45.66	0	1165696..1166685	+	329	29346365	-	BT_0955	-	hypothetical protein
956	 43.80	0	1166690..1167874	+	394	29346366	-	BT_0956	-	putative transmembrane protein
957	 42.22	0	1167858..1169027	+	389	29346367	-	BT_0957	-	hypothetical protein
958	 37.02	-1	1169220..1173209	+	1329	29346368	-	BT_0958	-	two-component system sensor histidine kinase/response regulator, hybrid ('one component system')
959	 42.94	0	1173269..1173778	-	169	29346369	-	BT_0959	-	hypothetical protein
960	 44.35	0	1173791..1175632	-	613	29346370	-	BT_0960	-	putative TonB-dependent outer membrane receptor
961	 43.68	0	1175706..1176140	-	144	29346371	-	BT_0961	-	hypothetical protein
962	 44.80	0	1176140..1177543	-	467	29346372	-	BT_0962	-	aldo/keto reductase
963	 46.52	0	1177563..1179071	-	502	29346373	-	BT_0963	-	putative ferredoxin-type protein
964	 41.16	0	1179568..1181970	-	800	29346374	-	BT_0964	-	hypothetical protein
965	 39.79	0	1182131..1183105	-	324	29346375	-	BT_0965	-	putative anti-sigma factor
966	 35.87	-1	1183169..1183720	-	183	29346376	-	BT_0966	-	RNA polymerase ECF-type sigma factor
967	 33.33	-1	1183815..1184036	-	73	29346377	-	BT_0967	-	hypothetical protein
968	 43.29	0	1184080..1187214	-	1044	29346378	-	BT_0968	-	hypothetical protein
969	 40.68	0	1187356..1188444	-	362	29346379	-	BT_0969	-	hypothetical protein
970	 42.67	0	1188745..1189365	+	206	29346380	-	BT_0970	-	haloacid dehalogenase-like hydrolase
971	 42.48	0	1189438..1190235	-	265	29346381	-	BT_0971	-	hypothetical protein
972	 44.20	0	1190382..1191191	+	269	29346382	-	BT_0972	-	putative oxidoreductase
973	 41.84	0	1191305..1192033	-	242	29346383	-	BT_0973	-	hypothetical protein
974	 44.85	0	1192047..1192541	-	164	29346384	-	BT_0974	-	putative integral membrane protein
975	 41.67	0	1192543..1193310	-	255	29346385	-	BT_0975	-	putative integral membrane protein
976	 43.30	0	1193416..1194669	+	417	29346386	-	BT_0976	-	putative transport protein
977	 40.87	0	1194776..1195027	-	83	29346387	-	BT_0977	-	hypothetical protein
978	 37.80	-1	1195110..1195601	-	163	29346388	-	BT_0978	-	ECF-type sigma factor
979	 45.99	0	1195838..1198933	-	1031	29346389	-	BT_0979	-	hypothetical protein
980	 45.87	0	1199001..1200683	-	560	29346390	-	BT_0980	-	hypothetical protein
981	 43.79	0	1200747..1205165	-	1472	29346391	-	BT_0981	-	two-component system sensor histidine kinase/response regulator, hybrid ('one component system')
982	 31.75	-2	1205423..1205674	-	83	29346392	-	BT_0982	-	hypothetical protein
983	 48.40	0	1205904..1208552	-	882	29346393	-	BT_0983	-	beta-galactosidase
984	 46.85	0	1208581..1210992	-	803	29346394	-	BT_0984	-	hypothetical protein
985	 45.82	0	1211002..1212435	-	477	29346395	-	BT_0985	-	putative sialic acid-specific acetylesterase II
986	 46.50	0	1212438..1215755	-	1105	29346396	-	BT_0986	-	putative DNA-binding protein
987	 37.69	-1	1215879..1217393	-	504	29346397	-	BT_0987	-	putative cytochrome C-type biogenesis protein
988	 42.31	0	1217557..1220208	-	883	29346398	-	BT_0988	-	Mg2+ transport ATPase protein B
989	 43.06	0	1220329..1221696	-	455	29346399	-	BT_0989	-	two-component system sensor histidine kinase
990	 41.78	0	1221693..1222379	-	228	29346400	-	BT_0990	-	two-component system response regulator
991	 40.46	0	1222442..1222918	+	158	29346401	-	BT_0991	-	hypothetical protein
992	 45.78	0	1222940..1225792	-	950	29346402	-	BT_0992	-	beta-galactosidase
993	 45.20	0	1225844..1229122	-	1092	29346403	-	BT_0993	-	beta-galactosidase
994	 39.40	0	1229478..1230977	+	499	29346404	-	BT_0994	-	two-component system histidine kinase
995	 36.64	-1	1230974..1231819	-	281	29346405	-	BT_0995	-	transcription regulator, AraC-type
996	 45.64	0	1232033..1236289	-	1418	29346406	-	BT_0996	-	beta-galactosidase
997	 46.26	0	1236402..1239023	-	873	29346407	-	BT_0997	-	hypothetical protein
998	 40.40	0	1239321..1241753	+	810	29346408	-	BT_0998	-	two-component system sensor histidine kinase
999	 44.14	0	1241793..1242338	+	181	29346409	-	BT_0999	-	putative acetyltransferase
1000	 39.81	0	1242821..1245229	-	802	29346410	-	BT_1000	-	hypothetical protein
1001	 44.43	0	1245435..1247624	-	729	29346411	-	BT_1001	-	putative alpha-rhamnosidase
1002	 49.46	+1	1247645..1249504	-	619	29346412	-	BT_1002	-	hypothetical protein
1003	 46.83	0	1249524..1251620	-	698	29346413	-	BT_1003	-	hypothetical protein
1004	 43.80	0	1251756..1252529	-	257	29346414	-	BT_1004	-	hypothetical protein
1005	 38.76	0	1252943..1253200	+	85	29346415	-	BT_1005	-	hypothetical protein
1006	 41.43	0	1253227..1253955	-	242	29346416	-	BT_1006	-	putative nitroreductase
1007	 40.15	0	1254189..1254980	-	263	29346417	-	BT_1007	-	hypothetical protein
1008	 42.33	0	1255047..1255835	-	262	29346418	-	BT_1008	-	xylanase
1009	 42.81	0	1255841..1256779	-	312	29346419	-	BT_1009	-	dihydroorotate dehydrogenase 2
1010	 47.27	0	1257062..1259536	+	824	29346420	-	BT_1010	-	hypothetical protein
1011	 45.14	0	1259550..1260752	+	400	29346421	-	BT_1011	-	hypothetical protein
1012	 45.59	0	1260789..1262240	+	483	29346422	-	BT_1012	-	hypothetical protein
1013	 46.76	0	1262233..1266105	+	1290	29346423	-	BT_1013	-	putative alpha-rhamnosidase
1014	 41.09	0	1266184..1267704	-	506	29346424	-	BT_1014	-	hypothetical protein
1015	 41.10	0	1268256..1269143	+	295	29346425	-	BT_1015	-	putative oxidoreductase
1016	 43.04	0	1269131..1269913	-	260	29346426	-	BT_1016	-	hypothetical protein
1017	 43.63	0	1270084..1272045	-	653	29346427	-	BT_1017	-	hypothetical protein
1018	 43.20	0	1272083..1273420	-	445	29346428	-	BT_1018	-	polygalacturonase (Pectinase)
1019	 44.37	0	1273457..1276228	-	923	29346429	-	BT_1019	-	putative secreted hydrolase
1020	 44.02	0	1276351..1279680	-	1109	29346430	-	BT_1020	-	hypothetical protein
1021	 42.61	0	1279732..1280583	-	283	29346431	-	BT_1021	-	arabinosidase
1022	 42.30	0	1280905..1281573	-	222	29346432	-	BT_1022	-	hypothetical protein
1023	 42.30	0	1281647..1283386	-	579	29346433	-	BT_1023	-	hypothetical protein
1024	 36.81	-1	1283613..1285910	-	765	29346434	-	BT_1024	-	hypothetical protein
1025	 36.63	-1	1285897..1289205	-	1102	29346435	-	BT_1025	-	hypothetical protein
1026	 32.50	-2	1289238..1290683	-	481	29346436	-	BT_1026	-	hypothetical protein
1027	 31.18	-2	1290776..1290961	-	61	29346437	-	BT_1027	-	hypothetical protein
1028	 43.82	0	1291332..1293506	-	724	29346438	-	BT_1028	-	hypothetical protein
1029	 40.98	0	1293560..1296868	-	1102	29346439	-	BT_1029	-	hypothetical protein
1030	 38.28	0	1296898..1298373	-	491	29346440	-	BT_1030	-	hypothetical protein
1031	 39.71	0	1298901..1299794	-	297	29346441	-	BT_1031	-	hypothetical protein
1032	 42.62	0	1300094..1302364	-	756	29346442	-	BT_1032	-	hypothetical protein
1033	 43.34	0	1302372..1303340	-	322	29346443	-	BT_1033	-	hypothetical protein
1034	 40.02	0	1303393..1304724	-	443	29346444	-	BT_1034	-	putative signal transducer
1035	 41.77	0	1304823..1307027	-	734	29346445	-	BT_1035	-	hypothetical protein
1036	 34.96	-1	1307194..1308543	-	449	29346446	-	BT_1036	-	hypothetical protein
43.33	MEAN

5.15	STD DEV
