IslandPath Analysis: Bacteroides thetaiotaomicron VPI-5482

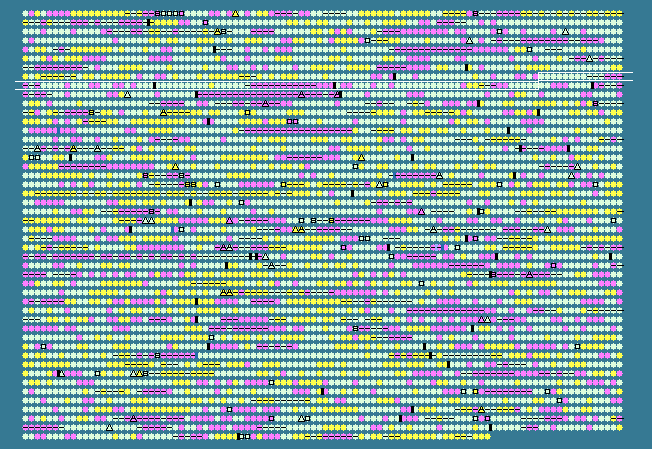

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 43.33 STD DEV: 5.15
Bacteroides thetaiotaomicron VPI-5482, complete genome - 1..6260361
4778 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
787	 46.46	0	976337..977197	-	286	29346197	-	BT_0787	-	succinyl-CoA synthetase alpha chain
788	 45.09	0	977227..978357	-	376	29346198	-	BT_0788	-	succinyl-CoA synthetase beta chain
789	 46.06	0	978557..979444	-	295	29346199	-	BT_0789	-	malonyl CoA-acyl carrier protein transacylase
790	 46.48	0	979495..980331	-	278	29346200	-	BT_0790	-	phosphomethylpyrimidine kinase
791	 41.67	0	980672..981403	+	243	29346201	-	BT_0791	-	hypothetical protein
792	 44.71	0	981492..982985	+	497	29346202	-	BT_0792	-	xylulose kinase (xylulokinase)
793	 44.57	0	982998..984314	+	438	29346203	-	BT_0793	-	xylose isomerase
794	 43.51	0	984417..985871	+	484	29346204	xylE	BT_0794	-	D-xylose transporter XylE
795	 42.03	0	986000..986620	-	206	29346205	-	BT_0795	-	hypothetical protein
796	 41.05	0	986959..988293	+	444	29346206	-	BT_0796	-	hypothetical protein
797	 41.11	0	988498..988767	+	89	29346207	-	BT_0797	-	ArsR family transcriptional regulator
798	 35.90	-1	988845..989078	+	77	29346208	-	BT_0798	-	hypothetical protein
799	 36.94	-1	989089..989532	+	147	29346209	-	BT_0799	-	hypothetical protein
800	 38.28	0	989534..990241	+	235	29346210	-	BT_0800	-	hypothetical protein
801	 36.70	-1	990273..990599	+	108	29346211	-	BT_0801	-	arsenical resistance operon trans-acting repressor
802	 41.04	0	990629..992341	+	570	29346212	-	BT_0802	-	arsenical pump-driving ATPase
803	 39.09	0	992326..993384	+	352	29346213	-	BT_0803	-	integral membrane efflux pump, putative multidrug-efflux transporter
804	 41.33	0	993527..995065	+	512	29346214	-	BT_0804	-	putative carbon-nitrogen hydrolase
805	 46.00	0	995222..996271	-	349	29346215	-	BT_0805	-	hypothetical protein
806	 44.28	0	996483..999971	+	1162	29346216	ileS	BT_0806	-	isoleucyl-tRNA synthetase
807	 44.36	0	1000008..1000388	+	126	29346217	-	BT_0807	-	DnaK suppressor protein, putative
808	 39.57	0	1000582..1001142	+	186	29346218	-	BT_0808	-	putative signal peptidase
809	 42.11	0	1001132..1002214	+	360	29346219	-	BT_0809	-	hypothetical protein
810	 40.74	0	1002219..1002596	+	125	29346220	-	BT_0810	-	hypothetical protein
811	 44.93	0	1002547..1003305	-	252	29346221	-	BT_0811	-	putative tRNA/rRNA methyltransferase
812	 36.91	-1	1003497..1003859	+	120	29346222	-	BT_0812	-	putative transcriptional regulator
813	 38.36	0	1003872..1005203	+	443	29346223	-	BT_0813	-	TonB
814	 41.01	0	1005415..1007733	+	772	29346224	-	BT_0814	-	putative outer membrane protein
815	 41.12	0	1007809..1008360	-	183	29346225	-	BT_0815	-	hypothetical protein
816	 39.27	0	1008466..1008903	-	145	29346226	-	BT_0816	-	hypothetical protein
817	 39.08	0	1009071..1009505	-	144	29346227	-	BT_0817	-	lipoprotein, function unknown
818	 40.63	0	1009677..1012403	-	908	29346228	-	BT_0818	-	two-component system sensor histidine kinase
819	 39.36	0	1012705..1012953	+	82	29346229	-	BT_0819	-	hypothetical protein
820	 41.19	0	1013065..1013484	-	139	29346230	-	BT_0820	-	hypothetical protein
821	 44.06	0	1013590..1014978	+	462	29346231	-	BT_0821	-	putative permease
822	 42.04	0	1015062..1015865	+	267	29346232	-	BT_0822	-	metallo-beta-lactamase superfamily hydrolase
823	 45.84	0	1016996..1018402	-	468	161511193	-	BT_0823	-	glucuronate isomerase
824	 44.41	0	1018641..1019669	+	342	29346234	-	BT_0824	-	LacI family transcription regulator
825	 43.75	0	1019696..1021135	+	479	29346235	-	BT_0825	-	altronate oxidoreductase
826	 43.45	0	1021253..1021786	-	177	29346236	-	BT_0826	-	hypothetical protein
827	 44.17	0	1021802..1022899	-	365	29346237	-	BT_0827	-	hypothetical protein
828	 44.44	0	1022989..1023537	+	182	29346238	-	BT_0828	-	dTDP-4-dehydrorhamnose 3,5-epimerase
829	 43.53	0	1023557..1024870	+	437	29346239	-	BT_0829	-	UDP-glucose 6-dehydrogenase
830	 39.97	0	1024908..1025705	+	265	29346240	-	BT_0830	-	hypothetical protein
831	 43.58	0	1025717..1026985	-	422	29346241	-	BT_0831	-	ATP-dependent RNA helicase
832	 47.24	0	1027033..1028262	-	409	29346242	-	BT_0832	-	putative phosphoserine phosphatase
833	 40.43	0	1028530..1029036	+	168	29346243	-	BT_0833	-	hypothetical protein
834	 42.90	0	1029215..1030312	-	365	29346244	-	BT_0834	-	hypothetical protein
835	 45.98	0	1030316..1031446	-	376	29346245	-	BT_0835	-	tRNA-guanine transglycosylase
836	 42.41	0	1031443..1031916	-	157	29346246	-	BT_0836	-	ATP-dependent protease
837	 43.70	0	1032027..1033907	-	626	29346247	-	BT_0837	-	ATP-dependent protease
838	 43.80	0	1034109..1034834	+	241	29346248	-	BT_0838	-	putative RNA methyltransferase
839	 32.61	-2	1035178..1035453	+	91	29346249	-	BT_0839	-	hypothetical protein
840	 31.35	-2	1035447..1036151	-	234	29346250	-	BT_0840	-	hypothetical protein
841	 29.49	-2	1036185..1036886	-	233	29346251	-	BT_0841	-	hypothetical protein
842	 31.75	-2	1036966..1037154	-	62	29346252	-	BT_0842	-	hypothetical protein
843	 34.17	-1	1037190..1037546	-	118	29346253	-	BT_0843	-	hypothetical protein
844	 30.42	-2	1037548..1037925	-	125	29346254	-	BT_0844	-	hypothetical protein
845	 30.57	-2	1037991..1038497	-	168	29346255	-	BT_0845	-	hypothetical protein
846	 33.89	-1	1038548..1038907	-	119	29346256	-	BT_0846	-	hypothetical protein
847	 35.90	-1	1039101..1039295	+	64	29346257	-	BT_0847	-	hypothetical protein
848	 31.51	-2	1039292..1039510	-	72	29346258	-	BT_0848	-	hypothetical protein
849	 38.83	0	1039627..1039917	+	96	29346259	-	BT_0849	-	hypothetical protein
850	 36.19	-1	1039914..1040438	+	174	29346260	-	BT_0850	-	putative transcriptional regulator
851	 38.93	0	1040515..1040889	+	124	29346261	-	BT_0851	-	hypothetical protein
852	 34.57	-1	1040886..1041128	+	80	29346262	-	BT_0852	-	hypothetical protein
853	 40.21	0	1041653..1042408	-	251	29346263	-	BT_0853	-	putative methyltransferase
854	 37.44	-1	1042538..1042732	+	64	29346264	-	BT_0854	-	hypothetical protein
855	 39.67	0	1043365..1044642	-	425	29346265	-	BT_0855	-	two-component system sensor histidine kinase
856	 43.72	0	1044639..1046015	-	458	29346266	-	BT_0856	-	two-component system response regulator
857	 43.31	0	1046230..1047702	+	490	29346267	-	BT_0857	-	outer membrane protein TolC, putative
858	 43.09	0	1047752..1049002	+	416	29346268	-	BT_0858	-	hypothetical protein
859	 37.25	-1	1049017..1051392	+	791	29346269	-	BT_0859	-	hypothetical protein
860	 43.11	0	1051442..1052116	+	224	29346270	-	BT_0860	-	putative ABC transporter ATP-binding protein
861	 41.01	0	1052134..1054479	+	781	29346271	-	BT_0861	-	putative ABC transporter permease
862	 37.40	-1	1054495..1056828	+	777	29346272	-	BT_0862	-	putative ABC-transporter permease protein
863	 41.47	0	1056852..1059260	+	802	29346273	-	BT_0863	-	hypothetical protein
864	 42.11	0	1059288..1061645	+	785	29346274	-	BT_0864	-	putative permease
865	 43.84	0	1061861..1063183	-	440	29346275	-	BT_0865	-	putative chitobiase
866	 45.97	0	1063214..1065112	-	632	29346276	-	BT_0866	-	hypothetical protein
867	 44.54	0	1065133..1068345	-	1070	29346277	-	BT_0867	-	hypothetical protein
868	 43.23	0	1069072..1069455	+	127	29346278	-	BT_0868	-	hypothetical protein
869	 42.82	0	1069481..1069828	+	115	29346279	-	BT_0869	-	hypothetical protein
870	 45.65	0	1069916..1071100	-	394	29346280	-	BT_0870	-	8-amino-7-oxononanoate synthase
871	 43.20	0	1071333..1072346	+	337	29346281	-	BT_0871	-	hypothetical protein
872	 45.98	0	1072422..1074185	+	587	29346282	aspS	BT_0872	-	aspartyl-tRNA synthetase
873	 41.78	0	1074339..1076126	+	595	29346283	-	BT_0873	-	putative sulfatase
874	 37.68	-1	1076168..1076512	+	114	29346284	-	BT_0874	-	hypothetical protein
875	 49.04	+1	1076614..1077498	-	294	29346285	-	BT_0875	-	beta-ureidopropionase
876	 48.03	0	1077535..1078650	-	371	29346286	-	BT_0876	-	hypothetical protein
877	 48.25	0	1078721..1079263	-	180	29346287	-	BT_0877	-	ferredoxin domain-containing protein
878	 44.61	0	1079350..1079970	+	206	29346288	-	BT_0878	-	ABC transporter, ATP-binding protein
879	 39.01	0	1080131..1080799	+	222	29346289	-	BT_0879	-	ABC transporter, permease protein
880	 39.43	0	1080796..1081074	+	92	29346290	-	BT_0880	-	hypothetical protein
881	 37.65	-1	1081109..1081525	-	138	29346291	-	BT_0881	-	hypothetical protein
882	 41.83	0	1081632..1082726	+	364	29346292	-	BT_0882	-	hypothetical protein
883	 41.40	0	1082732..1083562	+	276	29346293	-	BT_0883	-	hypothetical protein
884	 44.49	0	1083700..1085097	+	465	29346294	-	BT_0884	-	outer membrane efflux protein oprM precursor
885	 45.17	0	1085143..1086240	+	365	29346295	-	BT_0885	-	putative cation efflux pump
886	 45.25	0	1086323..1089469	+	1048	29346296	-	BT_0886	-	putative cation efflux pump
43.33	MEAN

5.15	STD DEV
