IslandPathversion 1.0

IslandPath Analysis: Bacteroides thetaiotaomicron VPI-5482

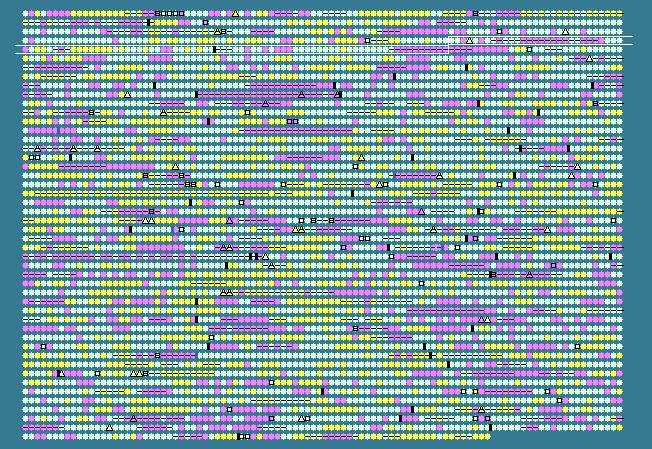

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 43.33 STD DEV: 5.15
Bacteroides thetaiotaomicron VPI-5482, complete genome - 1..6260361
4778 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
372	 46.17	0	458002..459099	-	365	29345782	-	BT_0372	-	aldose 1-epimerase precursor
373	 43.93	0	459328..460299	+	323	29345783	-	BT_0373	-	mannose-6-phosphate isomerase
374	 38.56	0	460448..461998	+	516	29345784	-	BT_0374	-	hypothetical protein
375	 46.81	0	462368..463057	+	229	29345785	-	BT_0375	-	integrase
376	 44.91	0	463409..463987	+	192	29345786	-	BT_0376	-	putative transcriptional regulator
377	 38.06	-1	463994..464353	+	119	29345787	-	BT_0377	-	hypothetical protein
378	 43.61	0	464407..466332	+	641	29345788	-	BT_0378	-	capsular polysaccharide biosynthesis protein capD
379	 40.55	0	466367..467683	+	438	29345789	-	BT_0379	-	UDP-glucose 6-dehydrogenase
380	 39.85	0	467688..468761	+	357	29345790	-	BT_0380	-	nucleotide sugar epimerase
381	 42.76	0	468796..469845	+	349	29345791	-	BT_0381	-	capsular polysaccharide biosynthesis protein capD
382	 41.46	0	469853..471058	+	401	29345792	-	BT_0382	-	capsular polysaccharide biosynthesis protein Cps4K
383	 44.22	0	471061..472254	+	397	29345793	-	BT_0383	-	putative UDP-N-acetylglucosamine 2-epimerase
384	 33.60	-1	472976..474109	+	377	29345794	-	BT_0384	-	hypothetical protein
385	 32.39	-2	474112..475272	+	386	29345795	-	BT_0385	-	hypothetical protein
386	 36.26	-1	475269..476462	+	397	29345796	-	BT_0386	-	putative F420H2-dehydrogenase
387	 31.59	-2	476462..477778	+	438	29345797	-	BT_0387	-	NADH dehydrogenase subunit 2
388	 37.34	-1	477803..478426	+	207	29345798	-	BT_0388	-	galactoside O-acetyltransferase
389	 37.00	-1	478431..478976	+	181	29345799	-	BT_0389	-	putative galactoside acetyltransferase
390	 30.84	-2	478981..480345	+	454	29345800	-	BT_0390	-	putative O-antigen export protein
391	 34.55	-1	480554..481705	+	383	29345801	-	BT_0391	-	putative protein involved in capsular polysaccharide biosynthesis
392	 40.29	0	481722..482828	+	368	29345802	-	BT_0392	-	lipopolysaccharide biosynthesis RfbU-related protein
393	 39.93	0	482830..483435	+	201	29345803	-	BT_0393	-	serine acetyltransferase
394	 39.63	0	483453..484547	+	364	29345804	-	BT_0394	-	capsular polysaccharide biosynthesis glycosyltransferase
395	 34.21	-1	484718..484945	+	75	29345805	-	BT_0395	-	hypothetical protein
396	 37.37	-1	485128..486117	+	329	29345806	-	BT_0396	-	putative UDP-GlcNAc:undecaprenylphosphate GlcNAc-1-phosphate transferase
397	 38.70	0	486123..486569	+	148	29345807	-	BT_0397	-	hypothetical protein
398	 39.87	0	486611..487405	+	264	29345808	-	BT_0398	-	polysaccharide export outer membrane protein
399	 40.14	0	487418..488563	+	381	29345809	-	BT_0399	-	tyrosine-protein kinase ptk involved in exopolysaccharide biosynthesis
400	 42.48	0	488578..489867	+	429	29345810	-	BT_0400	-	putative tyrosine-protein kinase in capsular polysaccharide biosynthesis region
401	 32.42	-2	489864..490082	-	72	29345811	-	BT_0401	-	hypothetical protein
402	 44.71	0	490334..490843	+	169	29345812	-	BT_0402	-	hypothetical protein
403	 49.80	+1	490851..491348	-	165	29345813	-	BT_0403	-	hypothetical protein
404	 48.50	+1	491607..493934	-	775	29345814	-	BT_0404	-	hypothetical protein
405	 44.72	0	494088..494447	+	119	29345815	-	BT_0405	-	hypothetical protein
406	 45.35	0	494471..494728	-	85	29345816	-	BT_0406	-	hypothetical protein
407	 37.50	-1	494737..495096	-	119	29345817	-	BT_0407	-	hypothetical protein
408	 40.48	0	495125..495334	-	69	29345818	-	BT_0408	-	hypothetical protein
409	 49.81	+1	495536..496306	+	256	29345819	-	BT_0409	-	putative short-chain dehydrogenase
410	 47.27	0	496424..496918	+	164	29345820	-	BT_0410	-	hypothetical protein
411	 47.21	0	497130..497936	+	268	29345821	-	BT_0411	-	CysQ, sulfite synthesis pathway protein
412	 47.62	0	497948..499501	+	517	29345822	-	BT_0412	-	putative Na+/sulfate symporter
413	 46.86	0	499518..500123	+	201	29345823	-	BT_0413	-	putative adenylylsulfate kinase
414	 49.17	+1	500144..501052	+	302	29345824	-	BT_0414	-	sulfate adenylyltransferase subunit 2
415	 47.46	0	501092..502549	+	485	29345825	cysN	BT_0415	-	sulfate adenylyltransferase subunit 1
416	 43.09	0	502561..503667	+	368	29345826	-	BT_0416	-	hypothetical protein
417	 46.85	0	503686..504654	+	322	29345827	-	BT_0417	-	hypothetical protein
418	 44.77	0	505000..506118	+	372	29345828	-	BT_0418	-	outer membrane porin F precursor
419	 42.69	0	506195..506611	+	138	29345829	-	BT_0419	-	Holliday junction resolvase-like protein
420	 44.32	0	506656..507210	+	184	29345830	def	BT_0420	-	peptide deformylase
421	 46.93	0	507287..509338	+	683	29345831	-	BT_0421	-	TPR repeat-containing protein
422	 45.80	0	509421..511361	+	646	29345832	-	BT_0422	-	threonyl-tRNA synthetase
423	 42.11	0	511433..511990	+	185	29345833	infC	BT_0423	-	translation initiation factor IF-3
424	 35.86	-1	512111..512308	+	65	29345834	rpmI	BT_0424	-	50S ribosomal protein L35
425	 39.32	0	512408..512758	+	116	29345835	rplT	BT_0425	-	50S ribosomal protein L20
426	 45.65	0	513117..513887	+	256	29345836	-	BT_0426	-	hypothetical protein
427	 41.88	0	513881..514453	-	190	29345837	-	BT_0427	-	xanthine phosphoribosyltransferase
428	 47.40	0	514550..515857	-	435	29345838	-	BT_0428	-	phenylacetate-coenzyme A ligase
429	 45.98	0	515869..516453	-	194	29345839	-	BT_0429	-	indolepyruvate oxidoreductase subunit B
430	 48.27	0	516457..518049	-	530	29345840	-	BT_0430	-	indolepyruvate oxidoreductase subunit iorA
431	 46.05	0	518130..519167	-	345	29345841	-	BT_0431	-	hypothetical protein
432	 44.94	0	519272..520150	-	292	29345842	-	BT_0432	-	putative endonuclease
433	 41.03	0	520419..521627	-	402	29345843	-	BT_0433	-	putative xylose repressor
434	 42.73	0	521967..523850	+	627	29345844	-	BT_0434	-	hypothetical protein
435	 40.15	0	523889..524989	+	366	29345845	-	BT_0435	-	hypothetical protein
436	 44.14	0	524995..526401	+	468	29345846	-	BT_0436	-	arabinose-proton symporter
437	 42.32	0	526439..527629	+	396	29345847	-	BT_0437	-	N-acylglucosamine 2-epimerase
438	 37.25	-1	527678..529870	+	730	29345848	-	BT_0438	-	alpha-N-acetylglucosaminidase precursor
439	 40.58	0	530005..533124	+	1039	29345849	-	BT_0439	-	hypothetical protein
440	 41.99	0	533139..535022	+	627	29345850	-	BT_0440	-	hypothetical protein
441	 38.95	0	535032..536420	+	462	29345851	-	BT_0441	-	hypothetical protein
442	 40.03	0	536438..538213	+	591	29345852	-	BT_0442	-	glycerophosphoryl diester phosphodiesterase
443	 35.53	-1	538439..538756	+	105	29345853	-	BT_0443	-	thermostable beta-glucosidase B
444	 37.63	-1	538768..540024	+	418	29345854	-	BT_0444	-	hypothetical protein
445	 39.51	0	540038..541138	+	366	29345855	-	BT_0445	-	endoglucanase E precursor (EGE)
446	 43.26	0	541795..543204	-	469	29345856	-	BT_0446	-	hypothetical protein
447	 44.48	0	543201..545855	-	884	29345857	-	BT_0447	-	S-layer related protein precursor, sialic acid-specific 9-O-acetylesterase
448	 41.28	0	545867..547300	-	477	29345858	-	BT_0448	-	hypothetical protein
449	 43.32	0	547436..548797	-	453	29345859	-	BT_0449	-	putative S-layer related protein precursor
450	 40.81	0	548886..550583	-	565	29345860	-	BT_0450	-	hypothetical protein
451	 43.26	0	550603..552264	-	553	29345861	-	BT_0451	-	hypothetical protein
452	 41.36	0	552283..555507	-	1074	29345862	-	BT_0452	-	hypothetical protein
453	 45.27	0	555562..556725	-	387	29345863	-	BT_0453	-	N-acylglucosamine 2-epimerase
454	 54.20	+2	556869..557261	-	130	29345864	-	BT_0454	-	arabinose ABC transporter
455	 44.40	0	557455..559089	+	544	29345865	-	BT_0455	-	sialidase (neuraminidase)
456	 43.27	0	559086..561098	+	670	29345866	-	BT_0456	-	beta-hexosaminidase precursor
457	 44.64	0	561110..563188	+	692	29345867	-	BT_0457	-	sialic acid-specific 9-O-acetylesterase
458	 42.89	0	563266..565860	+	864	29345868	-	BT_0458	-	beta-mannosidase precursor
459	 42.58	0	565899..568223	+	774	29345869	-	BT_0459	-	beta-hexosaminidase precursor
460	 41.23	0	568223..570298	+	691	29345870	-	BT_0460	-	beta-hexosaminidase precursor
461	 42.58	0	570314..572833	+	839	29345871	-	BT_0461	-	beta-galactosidase
462	 41.44	0	573167..573721	+	184	29345872	-	BT_0462	-	putative transcriptional regulator
463	 39.41	0	573896..574783	+	295	29345873	-	BT_0463	-	glucose-1-phosphate thymidylyltransferase
464	 36.32	-1	574814..575383	+	189	29345874	-	BT_0464	-	dTDP-4-dehydrorhamnose 3,5-epimerase
465	 32.28	-2	575387..576241	+	284	29345875	-	BT_0465	-	dTDP-4-dehydrorhamnose reductase
466	 36.48	-1	576244..577356	+	370	29345876	-	BT_0466	-	dTDP-glucose 4,6-dehydratase
467	 33.20	-1	577559..579028	+	489	29345877	-	BT_0467	-	hypothetical protein
468	 35.05	-1	579055..580221	+	388	29345878	-	BT_0468	-	putative F420H2-dehydrogenase 40 kDa subunit
469	 29.69	-2	580260..581522	+	420	29345879	-	BT_0469	-	hypothetical protein
470	 32.03	-2	581522..582751	+	409	29345880	-	BT_0470	-	hypothetical protein
471	 33.00	-2	582758..583972	+	404	29345881	-	BT_0471	-	glycosyltransferase
43.33	MEAN

5.15	STD DEV
