IslandPath Analysis: Bacteroides thetaiotaomicron VPI-5482

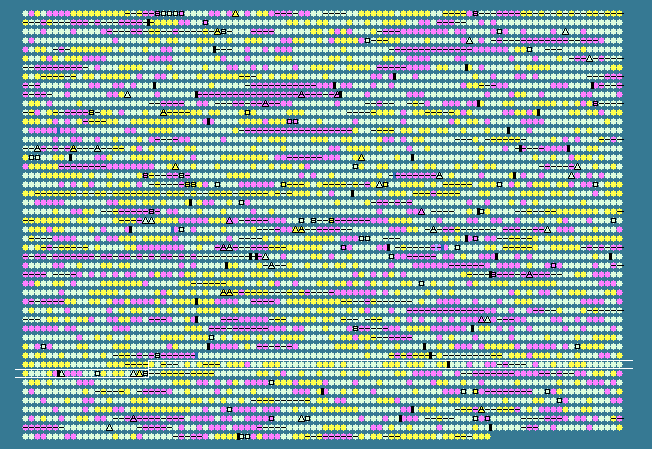

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 43.33 STD DEV: 5.15
Bacteroides thetaiotaomicron VPI-5482, complete genome - 1..6260361
4778 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3922	 49.79	+1	5097042..5099138	+	698	29349332	-	BT_3924	-	ATP-dependent DNA helicase recG
3923	 44.95	0	5099362..5099826	+	154	29349333	-	BT_3925	-	nucleoside diphosphate kinase
3924	 46.96	0	5099845..5100717	+	290	29349334	-	BT_3926	-	putative peptidase
3925	 44.20	0	5100827..5101369	+	180	29349335	-	BT_3927	-	hypothetical protein
3926	 46.80	0	5101644..5102675	+	343	29349336	-	BT_3928	-	hypothetical protein
3927	 45.85	0	5102705..5103463	+	252	29349337	tpiA	BT_3929	-	triosephosphate isomerase
3928	 47.56	0	5103590..5104039	+	149	29349338	-	BT_3930	-	hypothetical protein
3929	 44.67	0	5104047..5104637	+	196	29349339	folE	BT_3931	-	GTP cyclohydrolase I
3930	 49.11	+1	5104729..5106921	-	730	29349340	-	BT_3932	-	DNA primase
3931	 47.80	0	5107036..5107809	-	257	29349341	-	BT_3933	-	chorismate mutase/prephenate dehydratase (tyrA)
3932	 50.09	+1	5108026..5109087	-	353	29349342	-	BT_3934	-	putative phospho-2-dehydro-3-deoxyheptonate aldolase/chorismate mutase
3933	 49.24	+1	5109180..5110361	-	393	29349343	-	BT_3935	-	aminotransferase
3934	 45.94	0	5110336..5111184	-	282	29349344	-	BT_3936	-	prephenate dehydratase
3935	 48.39	0	5111535..5112497	-	320	29349345	-	BT_3937	-	TPR domain-containing protein
3936	 49.24	+1	5112537..5114441	-	634	29349346	-	BT_3938	-	ATP-dependent DNA helicase recQ
3937	 48.34	0	5114434..5116152	-	572	29349347	-	BT_3939	-	single-stranded-DNA-specific exonuclease recJ
3938	 32.37	-2	5116702..5116908	+	68	29349348	-	BT_3940	-	hypothetical protein
3939	 43.15	0	5116942..5117868	+	308	29349349	-	BT_3941	-	hypothetical protein
3940	 44.52	0	5118058..5118495	-	145	29349350	-	BT_3942	-	hypothetical protein
3941	 47.34	0	5118574..5119137	+	187	29349351	-	BT_3943	-	putative translation factor
3942	 46.97	0	5119138..5120934	+	598	29349352	-	BT_3944	-	putative chloride channel protein
3943	 48.71	+1	5120937..5121905	+	322	29349353	fmt	BT_3945	-	methionyl-tRNA formyltransferase
3944	 46.24	0	5121958..5122608	+	216	29349354	-	BT_3946	-	ribulose-phosphate 3-epimerase
3945	 44.79	0	5122617..5124719	+	700	29349355	-	BT_3947	-	competence protein
3946	 43.35	0	5124765..5125802	+	345	29349356	-	BT_3948	-	putative exopolyphosphatase-like protein
3947	 41.09	0	5125921..5126565	+	214	29349357	-	BT_3949	-	hypothetical protein
3948	 46.65	0	5126595..5127983	+	462	29349358	-	BT_3950	-	phosphoglucomutase/phosphomannomutase
3949	 42.67	0	5128179..5132153	+	1324	29349359	-	BT_3951	-	transcriptional regulator
3950	 46.95	0	5132450..5135593	+	1047	29349360	-	BT_3952	-	hypothetical protein
3951	 48.52	+1	5135654..5137549	+	631	29349361	-	BT_3953	-	putative outer membrane protein
3952	 48.16	0	5137587..5138942	+	451	29349362	-	BT_3954	-	hypothetical protein
3953	 46.49	0	5138970..5140322	+	450	29349363	-	BT_3955	-	hypothetical protein
3954	 46.91	0	5140401..5141792	+	463	29349364	-	BT_3956	-	hypothetical protein
3955	 40.07	0	5142097..5146044	+	1315	29349365	-	BT_3957	-	transcriptional regulator
3956	 42.34	0	5146676..5149828	+	1050	29349366	-	BT_3958	-	hypothetical protein
3957	 43.16	0	5149853..5151817	+	654	29349367	-	BT_3959	-	putative outer membrane protein
3958	 44.60	0	5151875..5153401	+	508	29349368	-	BT_3960	-	hypothetical protein
3959	 40.37	0	5153427..5154662	+	411	29349369	-	BT_3961	-	hypothetical protein
3960	 46.54	0	5154944..5157229	+	761	29349370	-	BT_3962	-	putative sugar hydrolase
3961	 46.88	0	5157236..5159575	+	779	29349371	-	BT_3963	-	putative sugar hydrolase
3962	 47.04	0	5159605..5160399	+	264	29349372	-	BT_3964	-	putative secretory protein
3963	 47.25	0	5160482..5162752	+	756	29349373	-	BT_3965	-	hypothetical protein
3964	 44.07	0	5162880..5163671	-	263	29349374	-	BT_3966	-	two-component system response regulator
3965	 47.12	0	5163689..5164747	-	352	29349375	-	BT_3967	-	putative two-component system sensor protein histidine kinase
3966	 50.86	+1	5164810..5165739	-	309	29349376	-	BT_3968	-	cation efflux system protein
3967	 51.96	+1	5165823..5170148	-	1441	29349377	-	BT_3969	-	cation efflux system protein, AcrB/AcrD/AcrF family protein
3968	 40.03	0	5171025..5171741	-	238	29349378	-	BT_3970	-	hypothetical protein
3969	 43.46	0	5172133..5172675	+	180	29349379	-	BT_3971	-	glutathione peroxidase
3970	 47.70	0	5172653..5173195	-	180	29349380	-	BT_3972	-	putative NTP pyrophosphohydrolase
3971	 49.30	+1	5173216..5174436	-	406	29349381	-	BT_3973	-	S-adenosylmethionine:tRNA ribosyltransferase-isomerase
3972	 40.25	0	5174933..5175727	+	264	29349382	-	BT_3974	-	hypothetical protein
3973	 46.52	0	5175851..5176912	-	353	29349383	-	BT_3975	-	3-dehydroquinate synthase
3974	 40.49	0	5176993..5177397	+	134	29349384	-	BT_3976	-	hypothetical protein
3975	 38.06	-1	5177478..5180291	+	937	29349385	-	BT_3977	-	hypothetical protein
3976	 43.61	0	5180435..5181874	+	479	29349386	-	BT_3978	-	putative cardiolipin synthetase
3977	 40.26	0	5181909..5182442	-	177	29349387	-	BT_3979	-	putative methyltransferase
3978	 38.91	0	5182433..5183203	-	256	29349388	-	BT_3980	-	hypothetical protein
3979	 37.99	-1	5183203..5183889	-	228	29349389	-	BT_3981	-	hypothetical protein
3980	 41.37	0	5183985..5185403	+	472	29349390	-	BT_3982	-	exonuclease V subunit alpha
3981	 39.76	0	5185604..5189011	+	1135	29349391	-	BT_3983	-	hypothetical protein
3982	 43.43	0	5189028..5190641	+	537	29349392	-	BT_3984	-	hypothetical protein
3983	 41.32	0	5190666..5191742	+	358	29349393	-	BT_3985	-	hypothetical protein
3984	 40.17	0	5191751..5192905	+	384	29349394	-	BT_3986	-	putative patatin-like protein
3985	 41.09	0	5192939..5194369	+	476	29349395	-	BT_3987	-	endo-beta-N-acetylglucosaminidase F1 precursor
3986	 38.73	0	5194400..5195734	+	444	29349396	-	BT_3988	-	putative peptidoglycan bound protein
3987	 40.69	0	5196004..5196438	-	144	29349397	-	BT_3989	-	hypothetical protein
3988	 46.60	0	5196633..5198900	-	755	29349398	-	BT_3990	-	putative alpha-1,2-mannosidase
3989	 50.24	+1	5198998..5201274	-	758	29349399	-	BT_3991	-	putative alpha-1,2-mannosidase
3990	 46.34	0	5201306..5202235	-	309	29349400	-	BT_3992	-	putative anti-sigma factor
3991	 45.77	0	5202354..5202908	-	184	29349401	-	BT_3993	-	RNA polymerase ECF-type sigma factor
3992	 48.79	+1	5202936..5205167	-	743	29349402	-	BT_3994	-	putative alpha-1,2-mannosidase
3993	 48.87	+1	5205400..5208018	-	872	29349403	alaS	BT_3995	-	alanyl-tRNA synthetase
3994	 47.88	0	5208126..5209094	+	322	29349404	-	BT_3996	-	putative peptidase
3995	 46.49	0	5209116..5209457	+	113	29349405	-	BT_3997	-	transcriptional regulator
3996	 45.99	0	5209459..5211702	-	747	29349406	-	BT_3998	-	GTP pyrophosphokinase
3997	 45.06	0	5211775..5213070	-	431	29349407	-	BT_3999	-	membrane-bound lytic murein transglycosylase D presursor
3998	 45.05	0	5213104..5213991	-	295	29349408	-	BT_4000	-	hypothetical protein
3999	 46.80	0	5213992..5214882	-	296	29349409	-	BT_4001	-	putative chromosome partitioning protein parB
4000	 43.46	0	5214894..5215841	-	315	29349410	-	BT_4002	-	ParaA family ATPase
4001	 47.05	0	5216019..5216798	+	259	29349411	surE	BT_4003	-	stationary phase survival protein SurE
4002	 45.03	0	5216850..5217986	+	378	29349412	-	BT_4004	-	lipid-A-disaccharide synthase
4003	 41.96	0	5218078..5218854	+	258	29349413	-	BT_4005	-	hypothetical protein
4004	 44.96	0	5218967..5219809	-	280	29349414	-	BT_4006	-	phosphatidate cytidylyltransferase
4005	 47.78	0	5219826..5221916	-	696	29349415	-	BT_4007	-	metalloprotease FtsH
4006	 39.44	0	5221980..5222339	-	119	29349416	-	BT_4008	-	hypothetical protein
4007	 41.60	0	5222847..5223959	+	370	29349417	-	BT_4009	-	integrase
4008	 33.05	-1	5224188..5225576	+	462	29349418	-	BT_4010	-	hypothetical protein
4009	 33.10	-1	5225581..5226441	+	286	29349419	-	BT_4011	-	DNA-methyltransferase
4010	 34.11	-1	5226723..5228003	+	426	29349420	-	BT_4012	-	putative ABC oligo/dipeptide transport, ATP-binding protein
4011	 44.94	0	5228099..5232097	-	1332	29349421	-	BT_4013	-	restriction endonuclease
4012	 44.74	0	5232104..5233120	-	338	29349422	-	BT_4014	-	putative type II restriction endonuclease
4013	 44.25	0	5233402..5234610	-	402	29349423	-	BT_4015	-	transposase
4014	 47.75	0	5234612..5235034	-	140	29349424	-	BT_4016	-	hypothetical protein
4015	 43.99	0	5235040..5235330	-	96	29349425	-	BT_4017	-	hypothetical protein
4016	 53.85	+2	5235315..5235782	-	155	29349426	-	BT_4018	-	hypothetical protein
4017	 48.30	0	5236440..5236880	-	146	29349427	-	BT_4019	-	hypothetical protein
4018	 42.40	0	5237118..5237492	-	124	29349428	-	BT_4020	-	hypothetical protein
4019	 46.45	0	5237521..5238732	-	403	29349429	-	BT_4021	-	integrase
4020	 46.91	0	5238754..5239983	-	409	29349430	-	BT_4022	-	integrase
4021	 41.18	0	5240134..5240490	+	118	29349431	-	BT_4023	-	transposase
43.33	MEAN

5.15	STD DEV
