IslandPathversion 1.0

IslandPath Analysis: Bacteroides thetaiotaomicron VPI-5482

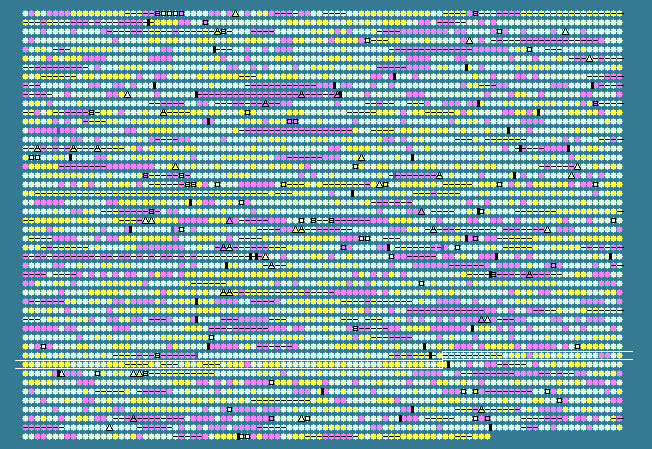

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 43.33 STD DEV: 5.15
Bacteroides thetaiotaomicron VPI-5482, complete genome - 1..6260361
4778 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3871	 44.94	0	5046657..5048060	+	467	29349281	asnC	BT_3873	-	asparaginyl-tRNA synthetase
3872	 40.04	0	5048200..5048691	+	163	29349282	-	BT_3874	-	hypothetical protein
3873	 40.04	0	5048996..5049457	+	153	29349283	rplM	BT_3875	-	50S ribosomal protein L13
3874	 45.22	0	5049464..5049850	+	128	29349284	rpsI	BT_3876	-	30S ribosomal protein S9
3875	 42.41	0	5049972..5050808	+	278	29349285	rpsB	BT_3877	-	30S ribosomal protein S2
3876	 43.40	0	5050934..5051926	+	330	29349286	tsf	BT_3878	-	elongation factor Ts
3877	 42.74	0	5051985..5052335	-	116	29349287	-	BT_3879	-	putative translation initiation factor SUI1
3878	 44.85	0	5052444..5053025	+	193	29349288	-	BT_3880	-	hypothetical protein
3879	 47.06	0	5052952..5054124	+	390	29349289	-	BT_3881	-	hypothetical protein
3880	 47.51	0	5054213..5054875	+	220	29349290	-	BT_3882	-	redox-sensing transcriptional repressor Rex
3881	 46.50	0	5054875..5055489	+	204	29349291	-	BT_3883	-	2-hydroxyhepta-2,4-diene-1,7-dioate isomerase
3882	 48.54	+1	5055529..5056008	+	159	29349292	-	BT_3884	-	2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
3883	 48.41	0	5056046..5057053	+	335	29349293	-	BT_3885	-	Icc family phosphohydrolase
3884	 48.46	0	5057028..5057906	-	292	29349294	-	BT_3886	-	hypothetical protein
3885	 33.73	-1	5058397..5058645	+	82	29349295	-	BT_3887	-	hypothetical protein
3886	 51.42	+1	5058844..5059899	+	351	29349296	-	BT_3888	-	putative tRNA (5-methylaminomethyl-2-thiouridylate) methyltransferase
3887	 51.18	+1	5059924..5061279	+	451	29349297	-	BT_3889	-	subtilisin-like serine protease
3888	 52.71	+1	5061369..5062622	+	417	29349298	xseA	BT_3890	-	exodeoxyribonuclease VII large subunit
3889	 41.06	0	5062634..5062840	+	68	29349299	-	BT_3891	-	hypothetical protein
3890	 48.14	0	5062892..5063911	+	339	29349300	-	BT_3892	-	branched-chain amino acid aminotransferase
3891	 42.95	0	5063952..5064575	+	207	29349301	-	BT_3893	-	hypothetical protein
3892	 44.48	0	5064602..5065444	+	280	29349302	trmB	BT_3894	-	tRNA (guanine-N(7))-methyltransferase
3893	 48.54	+1	5065533..5066630	+	365	29349303	-	BT_3895	-	Mrp/Nbp35 family ATP-binding protein
3894	 42.89	0	5066699..5067556	-	285	29349304	-	BT_3896	-	TonB
3895	 42.36	0	5067604..5069508	-	634	29349305	-	BT_3897	-	putative thiol:disulfide interchange protein DsbE
3896	 45.30	0	5069671..5071500	-	609	29349306	-	BT_3898	-	TonB
3897	 38.80	0	5071518..5071883	-	121	29349307	-	BT_3899	-	transcriptional regulator
3898	 33.76	-1	5071882..5072115	+	77	29349308	-	BT_3900	-	hypothetical protein
3899	 41.40	0	5072231..5072887	-	218	29349309	-	BT_3901	-	hypothetical protein
3900	 46.90	0	5073009..5074268	-	419	29349310	-	BT_3902	-	hypothetical protein
3901	 47.04	0	5074268..5075449	-	393	29349311	-	BT_3903	-	hypothetical protein
3902	 47.53	0	5075452..5076444	-	330	29349312	-	BT_3904	-	hypothetical protein
3903	 46.17	0	5076523..5077986	-	487	29349313	-	BT_3905	-	putative alkaline protease aprF
3904	 47.40	0	5078223..5079551	+	442	29349314	-	BT_3906	-	hypothetical protein
3905	 47.29	0	5079538..5081013	+	491	29349315	-	BT_3907	-	hypothetical protein
3906	 48.98	+1	5081032..5082111	+	359	29349316	-	BT_3908	-	hypothetical protein
3907	 50.92	+1	5082126..5084354	+	742	29349317	-	BT_3909	-	hypothetical protein
3908	 50.22	+1	5084365..5085495	+	376	29349318	-	BT_3910	-	hypothetical protein
3909	 45.22	0	5085583..5086524	-	313	29349319	-	BT_3911	-	malate dehydrogenase
3910	 42.84	0	5086708..5087580	+	290	29349320	-	BT_3912	-	hypothetical protein
3911	 41.07	0	5087683..5088264	+	193	29349321	-	BT_3913	-	hypothetical protein
3912	 40.75	0	5088276..5089178	+	300	29349322	-	BT_3914	-	hypothetical protein
3913	 41.98	0	5089576..5089818	+	80	29349323	-	BT_3915	-	hypothetical protein
3914	 43.22	0	5089961..5090911	+	316	29349324	-	BT_3916	-	site-specific recombinase IntIA
3915	 50.72	+1	5091961..5092869	-	302	29349325	ppnK	BT_3917	-	inorganic polyphosphate/ATP-NAD kinase
3916	 48.74	+1	5092982..5093695	+	237	29349326	-	BT_3918	-	pyridoxal phosphate biosynthetic protein PdxJ
3917	 48.61	+1	5093695..5094414	+	239	29349327	-	BT_3919	-	putative biopolymer transport protein
3918	 50.30	+1	5094547..5094876	+	109	29349328	-	BT_3920	-	hypothetical protein
3919	 54.61	+2	5094919..5095797	+	292	29349329	-	BT_3921	-	hypothetical protein
3920	 48.01	0	5095823..5096374	+	183	29349330	-	BT_3922	-	ThiJ family intracellular protease/amidase
3921	 50.61	+1	5096382..5097041	+	219	29349331	ispD	BT_3923	-	2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase
3922	 49.79	+1	5097042..5099138	+	698	29349332	-	BT_3924	-	ATP-dependent DNA helicase recG
3923	 44.95	0	5099362..5099826	+	154	29349333	-	BT_3925	-	nucleoside diphosphate kinase
3924	 46.96	0	5099845..5100717	+	290	29349334	-	BT_3926	-	putative peptidase
3925	 44.20	0	5100827..5101369	+	180	29349335	-	BT_3927	-	hypothetical protein
3926	 46.80	0	5101644..5102675	+	343	29349336	-	BT_3928	-	hypothetical protein
3927	 45.85	0	5102705..5103463	+	252	29349337	tpiA	BT_3929	-	triosephosphate isomerase
3928	 47.56	0	5103590..5104039	+	149	29349338	-	BT_3930	-	hypothetical protein
3929	 44.67	0	5104047..5104637	+	196	29349339	folE	BT_3931	-	GTP cyclohydrolase I
3930	 49.11	+1	5104729..5106921	-	730	29349340	-	BT_3932	-	DNA primase
3931	 47.80	0	5107036..5107809	-	257	29349341	-	BT_3933	-	chorismate mutase/prephenate dehydratase (tyrA)
3932	 50.09	+1	5108026..5109087	-	353	29349342	-	BT_3934	-	putative phospho-2-dehydro-3-deoxyheptonate aldolase/chorismate mutase
3933	 49.24	+1	5109180..5110361	-	393	29349343	-	BT_3935	-	aminotransferase
3934	 45.94	0	5110336..5111184	-	282	29349344	-	BT_3936	-	prephenate dehydratase
3935	 48.39	0	5111535..5112497	-	320	29349345	-	BT_3937	-	TPR domain-containing protein
3936	 49.24	+1	5112537..5114441	-	634	29349346	-	BT_3938	-	ATP-dependent DNA helicase recQ
3937	 48.34	0	5114434..5116152	-	572	29349347	-	BT_3939	-	single-stranded-DNA-specific exonuclease recJ
3938	 32.37	-2	5116702..5116908	+	68	29349348	-	BT_3940	-	hypothetical protein
3939	 43.15	0	5116942..5117868	+	308	29349349	-	BT_3941	-	hypothetical protein
3940	 44.52	0	5118058..5118495	-	145	29349350	-	BT_3942	-	hypothetical protein
3941	 47.34	0	5118574..5119137	+	187	29349351	-	BT_3943	-	putative translation factor
3942	 46.97	0	5119138..5120934	+	598	29349352	-	BT_3944	-	putative chloride channel protein
3943	 48.71	+1	5120937..5121905	+	322	29349353	fmt	BT_3945	-	methionyl-tRNA formyltransferase
3944	 46.24	0	5121958..5122608	+	216	29349354	-	BT_3946	-	ribulose-phosphate 3-epimerase
3945	 44.79	0	5122617..5124719	+	700	29349355	-	BT_3947	-	competence protein
3946	 43.35	0	5124765..5125802	+	345	29349356	-	BT_3948	-	putative exopolyphosphatase-like protein
3947	 41.09	0	5125921..5126565	+	214	29349357	-	BT_3949	-	hypothetical protein
3948	 46.65	0	5126595..5127983	+	462	29349358	-	BT_3950	-	phosphoglucomutase/phosphomannomutase
3949	 42.67	0	5128179..5132153	+	1324	29349359	-	BT_3951	-	transcriptional regulator
3950	 46.95	0	5132450..5135593	+	1047	29349360	-	BT_3952	-	hypothetical protein
3951	 48.52	+1	5135654..5137549	+	631	29349361	-	BT_3953	-	putative outer membrane protein
3952	 48.16	0	5137587..5138942	+	451	29349362	-	BT_3954	-	hypothetical protein
3953	 46.49	0	5138970..5140322	+	450	29349363	-	BT_3955	-	hypothetical protein
3954	 46.91	0	5140401..5141792	+	463	29349364	-	BT_3956	-	hypothetical protein
3955	 40.07	0	5142097..5146044	+	1315	29349365	-	BT_3957	-	transcriptional regulator
3956	 42.34	0	5146676..5149828	+	1050	29349366	-	BT_3958	-	hypothetical protein
3957	 43.16	0	5149853..5151817	+	654	29349367	-	BT_3959	-	putative outer membrane protein
3958	 44.60	0	5151875..5153401	+	508	29349368	-	BT_3960	-	hypothetical protein
3959	 40.37	0	5153427..5154662	+	411	29349369	-	BT_3961	-	hypothetical protein
3960	 46.54	0	5154944..5157229	+	761	29349370	-	BT_3962	-	putative sugar hydrolase
3961	 46.88	0	5157236..5159575	+	779	29349371	-	BT_3963	-	putative sugar hydrolase
3962	 47.04	0	5159605..5160399	+	264	29349372	-	BT_3964	-	putative secretory protein
3963	 47.25	0	5160482..5162752	+	756	29349373	-	BT_3965	-	hypothetical protein
3964	 44.07	0	5162880..5163671	-	263	29349374	-	BT_3966	-	two-component system response regulator
3965	 47.12	0	5163689..5164747	-	352	29349375	-	BT_3967	-	putative two-component system sensor protein histidine kinase
3966	 50.86	+1	5164810..5165739	-	309	29349376	-	BT_3968	-	cation efflux system protein
3967	 51.96	+1	5165823..5170148	-	1441	29349377	-	BT_3969	-	cation efflux system protein, AcrB/AcrD/AcrF family protein
3968	 40.03	0	5171025..5171741	-	238	29349378	-	BT_3970	-	hypothetical protein
3969	 43.46	0	5172133..5172675	+	180	29349379	-	BT_3971	-	glutathione peroxidase
3970	 47.70	0	5172653..5173195	-	180	29349380	-	BT_3972	-	putative NTP pyrophosphohydrolase
43.33	MEAN

5.15	STD DEV
