IslandPath Analysis: Bacteroides thetaiotaomicron VPI-5482

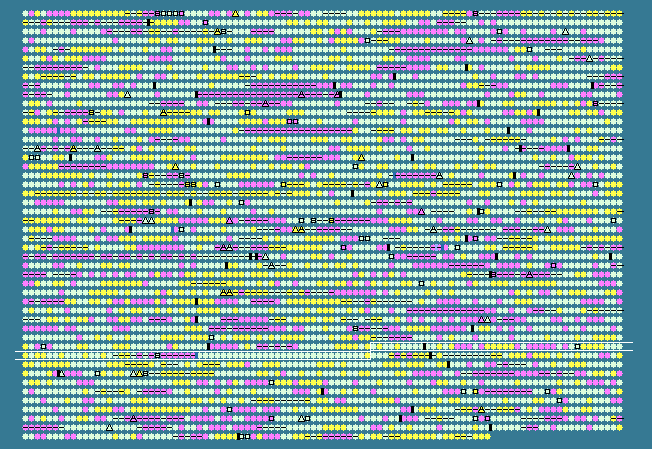

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 43.33 STD DEV: 5.15
Bacteroides thetaiotaomicron VPI-5482, complete genome - 1..6260361
4778 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3759	 46.29	0	4881796..4882374	-	192	29349169	-	BT_3761	-	hypothetical protein
3760	 47.05	0	4882400..4882873	-	157	29349170	-	BT_3762	-	arginine repressor, transcriptional regulator of arginine metabolism
3761	 46.50	0	4883107..4884564	+	485	29349171	-	BT_3763	-	rhamnulose kinase/L-fuculose kinase
3762	 45.51	0	4884624..4885880	+	418	29349172	-	BT_3764	-	L-rhamnose isomerase
3763	 47.45	0	4885884..4886903	+	339	29349173	-	BT_3765	-	rhamnose-proton symporter
3764	 44.69	0	4886916..4887725	+	269	29349174	-	BT_3766	-	rhamnulose-1-phosphate aldolase
3765	 46.23	0	4887821..4888975	+	384	29349175	-	BT_3767	-	L-1,2-propanediol oxidoreductase
3766	 42.67	0	4889117..4890016	+	299	29349176	-	BT_3768	-	transcriptional regulator
3767	 43.29	0	4890141..4890572	+	143	29349177	-	BT_3769	-	hypothetical protein
3768	 41.12	0	4891205..4891795	+	196	29349178	-	BT_3770	-	transcriptional regulator
3769	 46.72	0	4891812..4892558	+	248	29349179	-	BT_3771	-	3-oxoacyl-[acyl-carrier protein] reductase
3770	 47.02	0	4892568..4893239	+	223	29349180	-	BT_3772	-	ribosomal large subunit pseudouridine synthase D
3771	 44.43	0	4893415..4895676	+	753	29349181	-	BT_3773	-	hypothetical protein
3772	 47.73	0	4895941..4899537	-	1198	29349182	-	BT_3774	-	alpha-mannosidase
3773	 37.19	-1	4900133..4900807	-	224	29349183	-	BT_3775	-	hypothetical protein
3774	 38.60	0	4900829..4901530	-	233	29349184	-	BT_3776	-	hypothetical protein
3775	 33.33	-1	4901536..4902336	-	266	29349185	-	BT_3777	-	hypothetical protein
3776	 40.95	0	4902420..4903364	-	314	29349186	-	BT_3778	-	hypothetical protein
3777	 32.98	-2	4903448..4904869	-	473	29349187	-	BT_3779	-	hypothetical protein
3778	 49.57	+1	4905117..4906268	-	383	29349188	-	BT_3780	-	hypothetical protein
3779	 50.00	+1	4906719..4908164	-	481	29349189	-	BT_3781	-	hypothetical protein
3780	 49.83	+1	4908210..4909373	-	387	29349190	-	BT_3782	-	putative hydrolase
3781	 49.37	+1	4909408..4910355	-	315	29349191	-	BT_3783	-	hypothetical protein
3782	 48.71	+1	4910414..4912696	-	760	29349192	-	BT_3784	-	putative alpha-1,2-mannosidase
3783	 35.56	-1	4912693..4912917	-	74	29349193	-	BT_3785	-	hypothetical protein
3784	 41.75	0	4912906..4916943	+	1345	29349194	-	BT_3786	-	two-component system sensor histidine kinase/response regulator, hybrid ('one-component system')
3785	 39.15	0	4917462..4918820	+	452	29349195	-	BT_3787	-	hypothetical protein
3786	 37.59	-1	4918843..4921944	+	1033	29349196	-	BT_3788	-	hypothetical protein
3787	 38.33	0	4921964..4923943	+	659	29349197	-	BT_3789	-	hypothetical protein
3788	 31.18	-2	4923962..4924936	+	324	29349198	-	BT_3790	-	hypothetical protein
3789	 38.89	0	4925007..4926644	+	545	29349199	-	BT_3791	-	hypothetical protein
3790	 45.50	0	4926664..4928241	+	525	29349200	-	BT_3792	-	putative alpha-1,6-mannanase
3791	 29.42	-2	4928333..4929226	-	297	29349201	-	BT_3793	-	hypothetical protein
3792	 43.30	0	4929692..4930042	+	116	29349202	-	BT_3794	-	hypothetical protein
3793	 39.96	0	4930851..4931846	+	331	29349203	-	BT_3795	-	transposase
3794	 49.39	+1	4932050..4933606	-	518	29349204	-	BT_3796	-	putative secreted sulfatase ydeN precursor
3795	 48.03	0	4933624..4935705	-	693	29349205	-	BT_3797	-	hypothetical protein
3796	 50.18	+1	4935716..4937098	-	460	29349206	-	BT_3798	-	hypothetical protein
3797	 47.28	0	4937104..4938573	-	489	29349207	-	BT_3799	-	putative sulfatase yidJ
3798	 44.43	0	4938906..4942907	+	1333	29349208	-	BT_3800	-	two-component system sensor histidine kinase/response regulator, hybrid ('one-component system')
3799	 46.51	0	4942909..4944282	-	457	29349209	-	BT_3801	-	rteB, two-component system response regulator
3800	 44.05	0	4944371..4945210	+	279	29349210	-	BT_3802	-	peptidyl-prolyl cis-trans isomerase, cyclophilin-type
3801	 47.54	0	4945216..4946454	+	412	29349211	-	BT_3803	-	putative zinc protease
3802	 46.21	0	4946539..4947897	+	452	29349212	-	BT_3804	-	putative transport protein, multidrug efflux protein
3803	 47.88	0	4947917..4950274	+	785	29349213	-	BT_3805	-	two-component system sensor histidine kinase
3804	 48.00	0	4950670..4955109	+	1479	29349214	-	BT_3806	-	hypothetical protein
3805	 45.71	0	4955112..4957478	+	788	29349215	-	BT_3807	-	hypothetical protein
3806	 44.41	0	4957607..4958518	+	303	29349216	-	BT_3808	-	hypothetical protein
3807	 47.29	0	4958662..4960617	+	651	29349217	-	BT_3809	-	ABC transporter ATP-binding protein
3808	 45.89	0	4960631..4961275	+	214	29349218	-	BT_3810	-	putative endothelin-converting enzyme
3809	 46.50	0	4961310..4962668	+	452	29349219	-	BT_3811	-	putative endothelin-converting enzyme
3810	 45.28	0	4962820..4964343	+	507	29349220	purH	BT_3812	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
3811	 48.39	0	4964451..4965473	+	340	29349221	-	BT_3813	-	rod shape-determining protein MreB
3812	 44.13	0	4965493..4966335	+	280	29349222	-	BT_3814	-	rod shape-determining protein
3813	 45.18	0	4966335..4966832	+	165	29349223	-	BT_3815	-	hypothetical protein
3814	 47.61	0	4966835..4968697	+	620	29349224	-	BT_3816	-	penicillin-binding protein 2 (PBP-2)
3815	 46.09	0	4968678..4970135	+	485	29349225	-	BT_3817	-	rod shape-determining protein rodA
3816	 46.46	0	4970137..4970616	-	159	29349226	-	BT_3818	-	hypothetical protein
3817	 48.12	0	4970594..4972189	-	531	29349227	-	BT_3819	-	hypothetical protein
3818	 46.84	0	4972204..4973328	-	374	29349228	-	BT_3820	-	putative DNA polymerase III, delta subunit
3819	 46.23	0	4973330..4974283	-	317	29349229	-	BT_3821	-	5,10-methylenetetrahydrofolate reductase
3820	 37.66	-1	4974440..4974970	-	176	29349230	-	BT_3822	-	hypothetical protein
3821	 43.08	0	4975223..4975735	-	170	29349231	-	BT_3823	-	hypothetical protein
3822	 37.54	-1	4975761..4976045	-	94	29349232	-	BT_3824	-	hypothetical protein
3823	 44.44	0	4976742..4977461	-	239	29349233	-	BT_3825	-	transposase
3824	 39.32	0	4977635..4978018	-	127	29349234	-	BT_3826	-	hypothetical protein
3825	 32.97	-2	4978395..4980047	+	550	29349235	-	BT_3827	-	hypothetical protein
3826	 34.76	-1	4980336..4980686	+	116	29349236	-	BT_3828	-	hypothetical protein
3827	 32.68	-2	4981152..4981763	+	203	29349237	-	BT_3829	-	hypothetical protein
3828	 30.83	-2	4981879..4982556	+	225	29349238	-	BT_3830	-	methyltransferase
3829	 31.41	-2	4983071..4983382	-	103	29349239	-	BT_3831	-	hypothetical protein
3830	 41.67	0	4988838..4989377	+	179	29349240	-	BT_3832	-	hypothetical protein
3831	 41.94	0	4989390..4989575	+	61	29349241	rpmF	BT_3833	-	50S ribosomal protein L32
3832	 41.96	0	4989662..4990669	+	335	29349242	-	BT_3834	-	3-oxoacyl-(acyl carrier protein) synthase III
3833	 42.18	0	4990755..4991636	+	293	29349243	era	BT_3835	-	GTP-binding protein Era
3834	 43.61	0	4991685..4992998	+	437	29349244	engA	BT_3836	-	GTP-binding protein EngA
3835	 46.35	0	4993076..4993843	-	255	29349245	-	BT_3837	-	ABC transporter ATP-binding protein
3836	 43.55	0	4993919..4994662	+	247	29349246	-	BT_3838	-	hypothetical protein
3837	 43.32	0	4994659..4995429	+	256	29349247	-	BT_3839	-	ABC transporter ATP-binding protein
3838	 41.87	0	4995518..4995763	-	81	29349248	-	BT_3840	-	putative RNA-binding protein rbpA
3839	 41.74	0	4996162..4997517	+	451	29349249	-	BT_3841	-	FKBP-type peptidyl-prolyl cis-transisomerase (trigger factor)
3840	 45.70	0	4997661..4998323	+	220	29349250	-	BT_3842	-	ATP-dependent Clp protease proteolytic subunit 2
3841	 44.50	0	4998326..4999570	+	414	29349251	clpX	BT_3843	-	ATP-dependent protease ATP-binding subunit
3842	 43.47	0	4999740..5001920	+	726	29349252	-	BT_3844	-	ATP-dependent DNA helicase recQ
3843	 43.88	0	5002008..5003486	+	492	29349253	-	BT_3845	-	inosine-5'-monophosphate dehydrogenase
3844	 42.27	0	5003581..5005125	+	514	29349254	-	BT_3846	-	peptidyl-prolyl cis-trans isomerase
3845	 40.19	0	5005180..5006025	+	281	29349255	-	BT_3847	-	hypothetical protein
3846	 42.44	0	5006035..5007417	+	460	29349256	-	BT_3848	-	peptidyl-prolyl cis-trans isomerase
3847	 42.46	0	5007440..5009170	+	576	29349257	-	BT_3849	-	hypothetical protein
3848	 41.91	0	5009172..5009474	+	100	29349258	-	BT_3850	-	hypothetical protein
3849	 44.98	0	5009489..5011411	+	640	29349259	-	BT_3851	-	DNA mismatch repair protein mutL
3850	 44.64	0	5011514..5012698	+	394	29349260	-	BT_3852	-	major outer membrane protein OmpA
3851	 40.52	0	5012915..5015488	+	857	29349261	-	BT_3853	-	hypothetical protein
3852	 45.57	0	5016050..5019088	+	1012	29349262	-	BT_3854	-	hypothetical protein
3853	 44.62	0	5019100..5021031	+	643	29349263	-	BT_3855	-	putative outer membrane protein
3854	 42.82	0	5021060..5021755	+	231	29349264	-	BT_3856	-	hypothetical protein
3855	 46.38	0	5021774..5023681	+	635	29349265	-	BT_3857	-	hypothetical protein
3856	 46.69	0	5023713..5025980	+	755	29349266	-	BT_3858	-	hypothetical protein
3857	 45.42	0	5026019..5027995	+	658	29349267	-	BT_3859	-	hypothetical protein
3858	 48.10	0	5028029..5029159	+	376	29349268	-	BT_3860	-	hypothetical protein
43.33	MEAN

5.15	STD DEV
