IslandPath Analysis: Bacteroides thetaiotaomicron VPI-5482

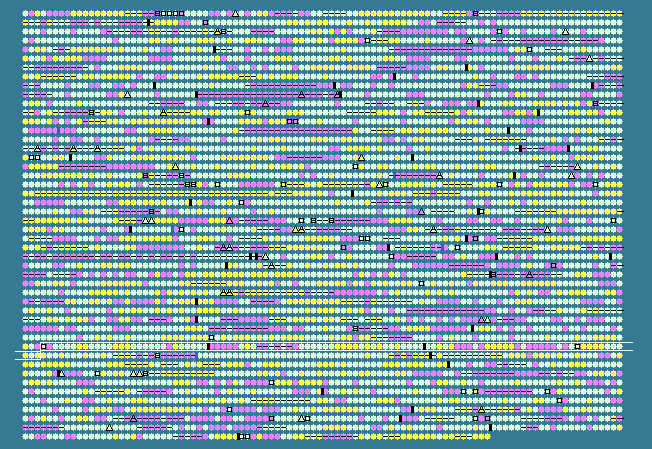

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 43.33 STD DEV: 5.15
Bacteroides thetaiotaomicron VPI-5482, complete genome - 1..6260361
4778 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3704	 44.44	0	4817149..4817868	-	239	29349114	-	BT_3706	-	transposase
3705	 39.32	0	4818042..4818425	-	127	29349115	-	BT_3707	-	hypothetical protein
3706	 46.58	0	4818649..4820052	-	467	29349116	-	BT_3708	-	alkaline phosphatase III precursor
3707	 43.39	0	4820156..4820722	-	188	29349117	-	BT_3709	-	elongation factor P
3708	 43.83	0	4820915..4821076	+	53	29349118	rpmH	BT_3710	-	50S ribosomal protein L34
3709	 45.47	0	4821489..4822139	+	216	29349119	-	BT_3711	-	hypothetical protein
3710	 48.42	0	4822165..4823238	+	357	29349120	-	BT_3712	-	ribosomal large subunit pseudouridine synthase D
3711	 47.28	0	4823235..4824209	+	324	29349121	ddl	BT_3713	-	D-alanyl-alanine synthetase A
3712	 45.95	0	4824304..4825452	+	382	29349122	-	BT_3714	-	hypothetical protein
3713	 45.10	0	4825449..4826162	+	237	29349123	-	BT_3715	-	hypothetical protein
3714	 40.71	0	4826177..4826569	+	130	29349124	-	BT_3716	-	hypothetical protein
3715	 46.19	0	4826816..4827772	-	318	29349125	-	BT_3717	-	ornithine carbamoyltransferase
3716	 48.96	+1	4827826..4829079	-	417	29349126	-	BT_3718	-	gamma-glutamyl phosphate reductase
3717	 48.66	+1	4829106..4830188	-	360	29349127	-	BT_3719	-	gamma-glutamyl kinase
3718	 48.52	+1	4830294..4831445	+	383	29349128	-	BT_3720	-	aspartate aminotransferase
3719	 44.44	0	4831414..4831647	-	77	29349129	-	BT_3721	-	hypothetical protein
3720	 46.50	0	4831721..4832563	-	280	29349130	-	BT_3722	-	glutamate racemase
3721	 41.77	0	4832670..4833143	-	157	29349131	-	BT_3723	-	putative outer membrane protein OmpH
3722	 41.86	0	4833241..4833756	-	171	29349132	-	BT_3724	-	cationic outer membrane protein precursor
3723	 42.85	0	4833780..4836437	-	885	29349133	-	BT_3725	-	putative outer membrane protein
3724	 43.27	0	4836468..4837202	-	244	29349134	-	BT_3726	-	undecaprenyl pyrophosphate synthetase
3725	 38.53	0	4837239..4838720	-	493	29349135	-	BT_3727	-	hypothetical protein
3726	 47.25	0	4838863..4839882	-	339	29349136	-	BT_3728	-	riboflavin biosynthesis protein ribD
3727	 45.76	0	4839954..4840790	+	278	29349137	-	BT_3729	-	putative protoporphyrinogen oxidase
3728	 44.31	0	4840787..4841269	+	160	29349138	-	BT_3730	-	putative regulatory protein
3729	 44.91	0	4841347..4841985	+	212	29349139	pyrE	BT_3731	-	orotate phosphoribosyltransferase
3730	 42.34	0	4842083..4842493	+	136	29349140	-	BT_3732	-	hypothetical protein
3731	 44.22	0	4842595..4843935	+	446	29349141	-	BT_3733	-	argininosuccinate lyase
3732	 38.24	0	4844709..4845932	+	407	29349142	-	BT_3734	-	oxidoreductase
3733	 38.76	0	4846002..4846259	-	85	29349143	-	BT_3735	-	hypothetical protein
3734	 34.02	-1	4846330..4846620	-	96	29349144	-	BT_3736	-	hypothetical protein
3735	 39.39	0	4846918..4847214	-	98	29349145	-	BT_3737	-	hypothetical protein
3736	 38.57	0	4848077..4852069	+	1330	29349146	-	BT_3738	-	two-component system sensor histidine kinase/response regulator, hybrid ('one-component system')
3737	 43.17	0	4852219..4853733	-	504	29349147	-	BT_3739	-	Na+/dicarboxylate or sulfate symporter
3738	 47.09	0	4853949..4855838	+	629	29349148	-	BT_3740	-	hypothetical protein
3739	 44.17	0	4855851..4857659	+	602	29349149	-	BT_3741	-	hypothetical protein
3740	 36.43	-1	4858327..4859844	+	505	29349150	-	BT_3742	-	hypothetical protein
3741	 34.79	-1	4860127..4861641	+	504	29349151	-	BT_3743	-	hypothetical protein
3742	 39.95	0	4861762..4862547	-	261	29349152	-	BT_3744	-	hypothetical protein
3743	 37.33	-1	4862560..4863684	-	374	29349153	-	BT_3745	-	hypothetical protein
3744	 40.58	0	4865027..4865440	+	137	29349154	-	BT_3746	-	hypothetical protein
3745	 37.31	-1	4865562..4865762	-	66	29349155	-	BT_3747	-	hypothetical protein
3746	 37.57	-1	4866087..4866629	+	180	29349156	-	BT_3748	-	RNA polymerase ECF-type sigma factor
3747	 43.55	0	4866784..4867752	+	322	29349157	-	BT_3749	-	putative anti-sigma factor
3748	 44.68	0	4867933..4870533	+	866	29349158	-	BT_3750	-	hypothetical protein
3749	 45.24	0	4870595..4871266	+	223	29349159	-	BT_3751	-	outer membrane protein
3750	 46.30	0	4871280..4872845	+	521	29349160	-	BT_3752	-	hypothetical protein
3751	 42.21	0	4872869..4873972	+	367	29349161	-	BT_3753	-	endo-beta-N-acetylglucosaminidase F2 precursor (mannosyl-glycoprotein endo-beta-N-acetyl-glucosaminidase F2)
3752	 40.89	0	4874003..4875193	+	396	29349162	-	BT_3754	-	hypothetical protein
3753	 50.72	+1	4875308..4876963	-	551	29349163	-	BT_3755	-	acetyl-coenzyme A synthetase
3754	 48.29	0	4876971..4877525	-	184	29349164	-	BT_3756	-	transcriptional regulator
3755	 51.42	+1	4877565..4878338	-	257	29349165	-	BT_3757	-	pyrroline-5-carboxylate reductase
3756	 49.64	+1	4878474..4879595	-	373	29349166	-	BT_3758	-	acetylornithine aminotransferase
3757	 46.44	0	4879609..4880577	-	322	29349167	argC	BT_3759	-	N-acetyl-gamma-glutamyl-phosphate reductase
3758	 48.06	0	4880574..4881782	-	402	29349168	-	BT_3760	-	argininosuccinate synthase
3759	 46.29	0	4881796..4882374	-	192	29349169	-	BT_3761	-	hypothetical protein
3760	 47.05	0	4882400..4882873	-	157	29349170	-	BT_3762	-	arginine repressor, transcriptional regulator of arginine metabolism
3761	 46.50	0	4883107..4884564	+	485	29349171	-	BT_3763	-	rhamnulose kinase/L-fuculose kinase
3762	 45.51	0	4884624..4885880	+	418	29349172	-	BT_3764	-	L-rhamnose isomerase
3763	 47.45	0	4885884..4886903	+	339	29349173	-	BT_3765	-	rhamnose-proton symporter
3764	 44.69	0	4886916..4887725	+	269	29349174	-	BT_3766	-	rhamnulose-1-phosphate aldolase
3765	 46.23	0	4887821..4888975	+	384	29349175	-	BT_3767	-	L-1,2-propanediol oxidoreductase
3766	 42.67	0	4889117..4890016	+	299	29349176	-	BT_3768	-	transcriptional regulator
3767	 43.29	0	4890141..4890572	+	143	29349177	-	BT_3769	-	hypothetical protein
3768	 41.12	0	4891205..4891795	+	196	29349178	-	BT_3770	-	transcriptional regulator
3769	 46.72	0	4891812..4892558	+	248	29349179	-	BT_3771	-	3-oxoacyl-[acyl-carrier protein] reductase
3770	 47.02	0	4892568..4893239	+	223	29349180	-	BT_3772	-	ribosomal large subunit pseudouridine synthase D
3771	 44.43	0	4893415..4895676	+	753	29349181	-	BT_3773	-	hypothetical protein
3772	 47.73	0	4895941..4899537	-	1198	29349182	-	BT_3774	-	alpha-mannosidase
3773	 37.19	-1	4900133..4900807	-	224	29349183	-	BT_3775	-	hypothetical protein
3774	 38.60	0	4900829..4901530	-	233	29349184	-	BT_3776	-	hypothetical protein
3775	 33.33	-1	4901536..4902336	-	266	29349185	-	BT_3777	-	hypothetical protein
3776	 40.95	0	4902420..4903364	-	314	29349186	-	BT_3778	-	hypothetical protein
3777	 32.98	-2	4903448..4904869	-	473	29349187	-	BT_3779	-	hypothetical protein
3778	 49.57	+1	4905117..4906268	-	383	29349188	-	BT_3780	-	hypothetical protein
3779	 50.00	+1	4906719..4908164	-	481	29349189	-	BT_3781	-	hypothetical protein
3780	 49.83	+1	4908210..4909373	-	387	29349190	-	BT_3782	-	putative hydrolase
3781	 49.37	+1	4909408..4910355	-	315	29349191	-	BT_3783	-	hypothetical protein
3782	 48.71	+1	4910414..4912696	-	760	29349192	-	BT_3784	-	putative alpha-1,2-mannosidase
3783	 35.56	-1	4912693..4912917	-	74	29349193	-	BT_3785	-	hypothetical protein
3784	 41.75	0	4912906..4916943	+	1345	29349194	-	BT_3786	-	two-component system sensor histidine kinase/response regulator, hybrid ('one-component system')
3785	 39.15	0	4917462..4918820	+	452	29349195	-	BT_3787	-	hypothetical protein
3786	 37.59	-1	4918843..4921944	+	1033	29349196	-	BT_3788	-	hypothetical protein
3787	 38.33	0	4921964..4923943	+	659	29349197	-	BT_3789	-	hypothetical protein
3788	 31.18	-2	4923962..4924936	+	324	29349198	-	BT_3790	-	hypothetical protein
3789	 38.89	0	4925007..4926644	+	545	29349199	-	BT_3791	-	hypothetical protein
3790	 45.50	0	4926664..4928241	+	525	29349200	-	BT_3792	-	putative alpha-1,6-mannanase
3791	 29.42	-2	4928333..4929226	-	297	29349201	-	BT_3793	-	hypothetical protein
3792	 43.30	0	4929692..4930042	+	116	29349202	-	BT_3794	-	hypothetical protein
3793	 39.96	0	4930851..4931846	+	331	29349203	-	BT_3795	-	transposase
3794	 49.39	+1	4932050..4933606	-	518	29349204	-	BT_3796	-	putative secreted sulfatase ydeN precursor
3795	 48.03	0	4933624..4935705	-	693	29349205	-	BT_3797	-	hypothetical protein
3796	 50.18	+1	4935716..4937098	-	460	29349206	-	BT_3798	-	hypothetical protein
3797	 47.28	0	4937104..4938573	-	489	29349207	-	BT_3799	-	putative sulfatase yidJ
3798	 44.43	0	4938906..4942907	+	1333	29349208	-	BT_3800	-	two-component system sensor histidine kinase/response regulator, hybrid ('one-component system')
3799	 46.51	0	4942909..4944282	-	457	29349209	-	BT_3801	-	rteB, two-component system response regulator
3800	 44.05	0	4944371..4945210	+	279	29349210	-	BT_3802	-	peptidyl-prolyl cis-trans isomerase, cyclophilin-type
3801	 47.54	0	4945216..4946454	+	412	29349211	-	BT_3803	-	putative zinc protease
3802	 46.21	0	4946539..4947897	+	452	29349212	-	BT_3804	-	putative transport protein, multidrug efflux protein
3803	 47.88	0	4947917..4950274	+	785	29349213	-	BT_3805	-	two-component system sensor histidine kinase
43.33	MEAN

5.15	STD DEV
