IslandPath Analysis: Bacteroides thetaiotaomicron VPI-5482

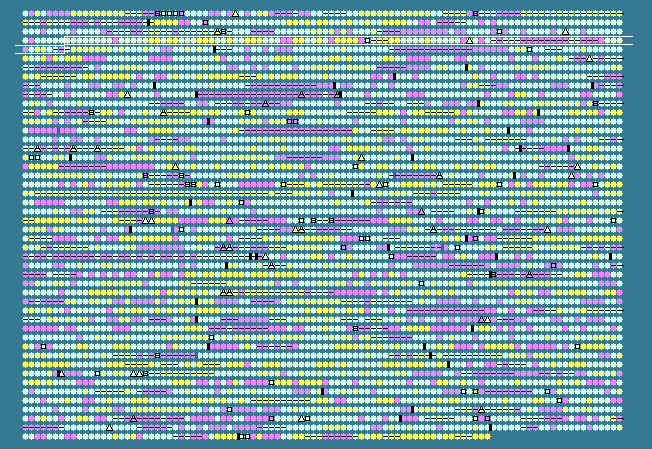

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 43.33 STD DEV: 5.15
Bacteroides thetaiotaomicron VPI-5482, complete genome - 1..6260361
4778 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
308	 40.43	0	370710..371414	+	234	29345718	-	BT_0308	-	putative glycosyl hydrolase
309	 43.30	0	371489..372832	+	447	29345719	-	BT_0309	-	dihydrolipoamide dehydrogenase
310	 41.94	0	372816..373535	+	239	29345720	-	BT_0310	-	lipoate-protein ligase A
311	 45.44	0	373622..374992	+	456	29345721	-	BT_0311	-	lipoamide acyltransferase component of branched-chain alpha-keto acid dehydrogenase complex
312	 45.41	0	375030..377066	+	678	29345722	-	BT_0312	-	2-oxoisovalerate dehydrogenase beta subunit
313	 44.19	0	377091..377606	+	171	29345723	-	BT_0313	-	flavodoxin FldA
314	 43.42	0	377857..378699	-	280	29345724	prmA	BT_0314	-	ribosomal protein L11 methyltransferase
315	 45.89	0	378905..380194	+	429	29345725	-	BT_0315	-	hypothetical protein
316	 35.33	-1	380228..381832	+	534	29345726	-	BT_0316	-	putative hemin receptor
317	 42.18	0	382145..385333	+	1062	29345727	-	BT_0317	-	hypothetical protein
318	 43.79	0	385353..386567	+	404	29345728	-	BT_0318	-	hypothetical protein
319	 40.32	0	386576..386947	+	123	29345729	-	BT_0319	-	hypothetical protein
320	 45.52	0	387094..387897	-	267	29345730	-	BT_0320	-	hypothetical protein
321	 44.59	0	387935..388405	-	156	29345731	-	BT_0321	-	cytidine/deoxycytidylate deaminase
322	 48.10	0	388527..389501	-	324	29345732	-	BT_0322	-	putative oxidoreductase
323	 49.61	+1	389627..390529	-	300	29345733	-	BT_0323	-	hypothetical protein
324	 45.56	0	390553..391002	-	149	29345734	-	BT_0324	-	hypothetical protein
325	 48.92	+1	391028..391489	-	153	29345735	-	BT_0325	-	hypothetical protein
326	 50.19	+1	391486..392007	-	173	29345736	-	BT_0326	-	putative RNA polymerase ECF-type sigma factor
327	 43.93	0	392450..393289	-	279	29345737	-	BT_0327	-	glutamine ABC transporter, periplasmic glutamine-binding protein (glnH)
328	 42.63	0	393307..395349	-	680	29345738	-	BT_0328	-	hypothetical protein
329	 44.57	0	395470..396012	-	180	29345739	-	BT_0329	-	ketoisovalerate oxidoreductase subunit vorA
330	 48.73	+1	396032..396739	-	235	29345740	-	BT_0330	-	ketoisovalerate oxidoreductase subunit vorA
331	 48.31	0	396996..397883	-	295	29345741	-	BT_0331	-	2-oxoglutarate ferredoxin oxidoreductase
332	 50.00	+1	397900..398079	-	59	29345742	-	BT_0332	-	2-oxoisovalerate oxidoreductase beta subunit
333	 43.86	0	398092..398319	-	75	29345743	-	BT_0333	-	hypothetical protein
334	 41.49	0	398354..398635	-	93	29345744	-	BT_0334	-	hypothetical protein
335	 47.49	0	398928..400481	+	517	29345745	-	BT_0335	-	putative ATPase
336	 46.29	0	400471..401913	+	480	29345746	-	BT_0336	-	hypothetical protein
337	 43.48	0	401991..402473	+	160	29345747	-	BT_0337	-	hypothetical protein
338	 50.08	+1	403243..405093	+	616	29345748	-	BT_0338	-	hypothetical protein
339	 49.27	+1	405215..407461	+	748	29345749	-	BT_0339	-	alpha-glucosidase
340	 47.54	0	407471..409279	+	602	29345750	-	BT_0340	-	trimethylamine corrinoid protein 2 (TCP 2)
341	 46.06	0	409308..410879	+	523	29345751	-	BT_0341	-	Na+/glucose cotransporter
342	 43.80	0	411093..411866	-	257	29345752	-	BT_0342	-	hypothetical protein
343	 44.35	0	411895..412911	-	338	29345753	-	BT_0343	-	methylcobamide:CoM methyltransferase mtbA
344	 32.03	-2	413304..414149	+	281	29345754	-	BT_0344	-	hypothetical protein
345	 34.04	-1	414202..414912	+	236	29345755	-	BT_0345	-	hypothetical protein
346	 48.28	0	415102..415536	-	144	29345756	-	BT_0346	-	ribose 5-phosphate isomerase B
347	 47.41	0	415536..417545	-	669	29345757	-	BT_0347	-	transketolase
348	 44.53	0	417722..419266	-	514	29345758	-	BT_0348	-	alpha-L-arabinofuranosidase
349	 46.49	0	419336..421744	-	802	29345759	-	BT_0349	-	hypothetical protein
350	 47.43	0	421849..423444	-	531	29345760	-	BT_0350	-	xylulose kinase (xylulokinase)
351	 46.01	0	423634..425163	-	509	29345761	-	BT_0351	-	L-arabinose isomerase
352	 33.88	-1	425244..425606	-	120	29345762	-	BT_0352	-	hypothetical protein
353	 47.37	0	425643..426326	-	227	29345763	araD	BT_0353	-	L-ribulose-5-phosphate 4-epimerase
354	 47.35	0	426332..427009	-	225	29345764	-	BT_0354	-	hypothetical protein
355	 48.14	0	427031..428725	-	564	29345765	-	BT_0355	-	Na+/glucose cotransporter
356	 47.81	0	428751..429890	-	379	29345766	-	BT_0356	-	aldose 1-epimerase precursor
357	 35.74	-1	430226..430474	+	82	29345767	-	BT_0357	-	hypothetical protein
358	 45.41	0	430495..431388	-	297	29345768	-	BT_0358	-	transposase
359	 41.67	0	431421..431768	-	115	29345769	-	BT_0359	-	hypothetical protein
360	 50.26	+1	432012..433937	-	641	29345770	-	BT_0360	-	putative arabinan endo-1,5-alpha-L-arabinosidase
361	 51.05	+1	433972..435777	-	601	29345771	-	BT_0361	-	hypothetical protein
362	 49.08	+1	435803..438952	-	1049	29345772	-	BT_0362	-	hypothetical protein
363	 49.83	+1	438957..440732	-	591	29345773	-	BT_0363	-	putative outer membrane protein
364	 46.50	0	440745..443828	-	1027	29345774	-	BT_0364	-	hypothetical protein
365	 45.53	0	443848..446127	-	759	29345775	-	BT_0365	-	hypothetical protein
366	 43.61	0	446387..450649	-	1420	29345776	-	BT_0366	-	two-component system sensor histidine kinase/response regulator, hybrid ('one component system')
367	 46.17	0	450805..452346	+	513	29345777	-	BT_0367	-	putative endo-arabinase
368	 47.35	0	452372..454354	+	660	29345778	-	BT_0368	-	alpha-L-arabinofuranosidase A precursor
369	 45.34	0	454356..455321	+	321	29345779	-	BT_0369	-	endo-1,4-beta-xylanase D precursor
370	 44.59	0	455441..456595	-	384	29345780	-	BT_0370	-	galactokinase
371	 44.85	0	456639..457949	-	436	29345781	-	BT_0371	-	glucose/galactose transporter
372	 46.17	0	458002..459099	-	365	29345782	-	BT_0372	-	aldose 1-epimerase precursor
373	 43.93	0	459328..460299	+	323	29345783	-	BT_0373	-	mannose-6-phosphate isomerase
374	 38.56	0	460448..461998	+	516	29345784	-	BT_0374	-	hypothetical protein
375	 46.81	0	462368..463057	+	229	29345785	-	BT_0375	-	integrase
376	 44.91	0	463409..463987	+	192	29345786	-	BT_0376	-	putative transcriptional regulator
377	 38.06	-1	463994..464353	+	119	29345787	-	BT_0377	-	hypothetical protein
378	 43.61	0	464407..466332	+	641	29345788	-	BT_0378	-	capsular polysaccharide biosynthesis protein capD
379	 40.55	0	466367..467683	+	438	29345789	-	BT_0379	-	UDP-glucose 6-dehydrogenase
380	 39.85	0	467688..468761	+	357	29345790	-	BT_0380	-	nucleotide sugar epimerase
381	 42.76	0	468796..469845	+	349	29345791	-	BT_0381	-	capsular polysaccharide biosynthesis protein capD
382	 41.46	0	469853..471058	+	401	29345792	-	BT_0382	-	capsular polysaccharide biosynthesis protein Cps4K
383	 44.22	0	471061..472254	+	397	29345793	-	BT_0383	-	putative UDP-N-acetylglucosamine 2-epimerase
384	 33.60	-1	472976..474109	+	377	29345794	-	BT_0384	-	hypothetical protein
385	 32.39	-2	474112..475272	+	386	29345795	-	BT_0385	-	hypothetical protein
386	 36.26	-1	475269..476462	+	397	29345796	-	BT_0386	-	putative F420H2-dehydrogenase
387	 31.59	-2	476462..477778	+	438	29345797	-	BT_0387	-	NADH dehydrogenase subunit 2
388	 37.34	-1	477803..478426	+	207	29345798	-	BT_0388	-	galactoside O-acetyltransferase
389	 37.00	-1	478431..478976	+	181	29345799	-	BT_0389	-	putative galactoside acetyltransferase
390	 30.84	-2	478981..480345	+	454	29345800	-	BT_0390	-	putative O-antigen export protein
391	 34.55	-1	480554..481705	+	383	29345801	-	BT_0391	-	putative protein involved in capsular polysaccharide biosynthesis
392	 40.29	0	481722..482828	+	368	29345802	-	BT_0392	-	lipopolysaccharide biosynthesis RfbU-related protein
393	 39.93	0	482830..483435	+	201	29345803	-	BT_0393	-	serine acetyltransferase
394	 39.63	0	483453..484547	+	364	29345804	-	BT_0394	-	capsular polysaccharide biosynthesis glycosyltransferase
395	 34.21	-1	484718..484945	+	75	29345805	-	BT_0395	-	hypothetical protein
396	 37.37	-1	485128..486117	+	329	29345806	-	BT_0396	-	putative UDP-GlcNAc:undecaprenylphosphate GlcNAc-1-phosphate transferase
397	 38.70	0	486123..486569	+	148	29345807	-	BT_0397	-	hypothetical protein
398	 39.87	0	486611..487405	+	264	29345808	-	BT_0398	-	polysaccharide export outer membrane protein
399	 40.14	0	487418..488563	+	381	29345809	-	BT_0399	-	tyrosine-protein kinase ptk involved in exopolysaccharide biosynthesis
400	 42.48	0	488578..489867	+	429	29345810	-	BT_0400	-	putative tyrosine-protein kinase in capsular polysaccharide biosynthesis region
401	 32.42	-2	489864..490082	-	72	29345811	-	BT_0401	-	hypothetical protein
402	 44.71	0	490334..490843	+	169	29345812	-	BT_0402	-	hypothetical protein
403	 49.80	+1	490851..491348	-	165	29345813	-	BT_0403	-	hypothetical protein
404	 48.50	+1	491607..493934	-	775	29345814	-	BT_0404	-	hypothetical protein
405	 44.72	0	494088..494447	+	119	29345815	-	BT_0405	-	hypothetical protein
406	 45.35	0	494471..494728	-	85	29345816	-	BT_0406	-	hypothetical protein
407	 37.50	-1	494737..495096	-	119	29345817	-	BT_0407	-	hypothetical protein
43.33	MEAN

5.15	STD DEV
