IslandPath Analysis: Bacteroides thetaiotaomicron VPI-5482

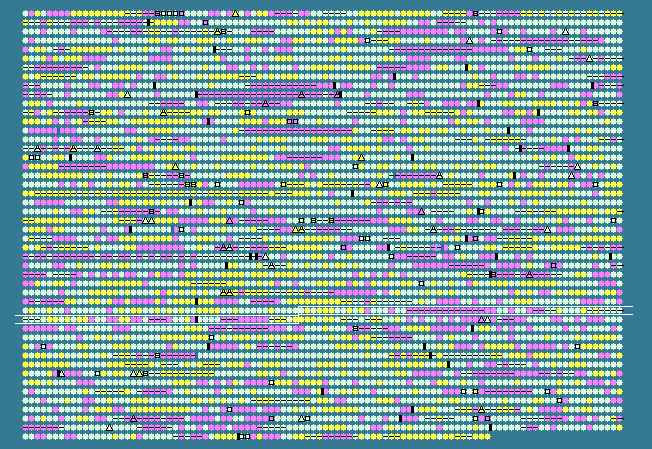

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 43.33 STD DEV: 5.15
Bacteroides thetaiotaomicron VPI-5482, complete genome - 1..6260361
4778 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3347	 45.64	0	4316255..4317457	+	400	29348757	-	BT_3348	-	putative unsaturated glucuronyl hydrolase
3348	 48.20	0	4317564..4319090	+	508	29348758	-	BT_3349	-	putative sulfatase yidJ
3349	 46.75	0	4319229..4322090	+	953	29348759	-	BT_3350	-	putative chondroitinase (chondroitin lyase)
3350	 47.57	0	4322214..4323695	-	493	29348760	cysS	BT_3351	-	cysteinyl-tRNA synthetase
3351	 48.34	0	4323799..4324611	-	270	29348761	-	BT_3352	-	haloacid dehalogenase-like hydrolase
3352	 47.76	0	4324727..4327810	-	1027	29348762	-	BT_3353	-	Snf2 family helicase
3353	 46.18	0	4327863..4328975	+	370	29348763	-	BT_3354	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
3354	 46.03	0	4329182..4330693	-	503	29348764	-	BT_3355	-	putative auxin-regulated protein
3355	 48.27	0	4330831..4331841	+	336	29348765	pfkA	BT_3356	-	6-phosphofructokinase
3356	 46.15	0	4331885..4332859	-	324	29348766	-	BT_3357	-	ribonuclease III
3357	 47.27	0	4332825..4334087	-	420	29348767	-	BT_3358	-	3-oxoacyl-[acyl-carrier-protein] synthase II
3358	 37.97	-1	4334106..4334342	-	78	29348768	-	BT_3359	-	acyl carrier protein
3359	 44.02	0	4334441..4335067	+	208	29348769	-	BT_3360	-	phosphoribosylglycinamide formyltransferase
3360	 46.70	0	4335140..4336186	-	348	29348770	-	BT_3361	-	erythronate-4-phosphate dehydrogenase
3361	 45.54	0	4336913..4337944	+	343	29348771	-	BT_3362	-	heptosyltransferase
3362	 39.28	0	4337976..4338950	+	324	29348772	-	BT_3363	-	lipopolysaccharide core biosynthesis protein LpsA
3363	 40.86	0	4338991..4339734	+	247	29348773	-	BT_3364	-	hypothetical protein
3364	 42.35	0	4339755..4341794	+	679	29348774	-	BT_3365	-	putative glycosyltransferase
3365	 39.37	0	4341957..4342967	+	336	29348775	-	BT_3366	-	putative glycosyltransferase yibD
3366	 36.77	-1	4343047..4344210	+	387	29348776	-	BT_3367	-	putative glycosyltransferase
3367	 36.43	-1	4344314..4345477	+	387	29348777	-	BT_3368	-	putative glycosyltransferase
3368	 32.93	-2	4345482..4346723	-	413	29348778	-	BT_3369	-	putative glycosyltransferase
3369	 31.72	-2	4346856..4347845	+	329	29348779	-	BT_3370	-	putative glycosyltransferase yibD
3370	 34.55	-1	4347835..4348824	+	329	29348780	-	BT_3371	-	putative glycosyltransferase yibD
3371	 34.25	-1	4348877..4349857	-	326	29348781	-	BT_3372	-	glycosyltransferase
3372	 34.01	-1	4349864..4350307	-	147	29348782	-	BT_3373	-	spermidine n1-acetyltransferase
3373	 38.57	0	4350311..4351495	-	394	29348783	-	BT_3374	-	putative carbamoyl-phosphate-synthetase
3374	 36.61	-1	4351512..4352672	-	386	29348784	-	BT_3375	-	aspartate aminotransferase
3375	 37.93	-1	4352674..4353783	-	369	29348785	-	BT_3376	-	nucleotide sugar transaminase
3376	 34.37	-1	4353938..4354906	+	322	29348786	-	BT_3377	-	putative glycosyltransferase
3377	 33.33	-1	4355126..4355506	+	126	29348787	-	BT_3378	-	hypothetical protein
3378	 39.21	0	4355503..4356438	+	311	29348788	-	BT_3379	-	putative glycosyltransferase
3379	 38.51	0	4356447..4357778	+	443	29348789	-	BT_3380	-	hypothetical protein
3380	 40.10	0	4357940..4359667	+	575	29348790	-	BT_3381	-	hypothetical protein
3381	 40.54	0	4359698..4361446	+	582	29348791	-	BT_3382	-	hypothetical protein
3382	 39.67	0	4361466..4361891	+	141	29348792	-	BT_3383	-	hypothetical protein
3383	 46.41	0	4362121..4362732	-	203	29348793	-	BT_3384	-	hypothetical protein
3384	 46.01	0	4363373..4365463	+	696	29348794	-	BT_3385	-	hypothetical protein
3385	 39.27	0	4365599..4367434	+	611	29348795	-	BT_3386	-	ABC transporter, ATP-binding protein
3386	 39.29	0	4367495..4368283	+	262	29348796	-	BT_3387	-	putative polysaccharide deacetylase
3387	 35.33	-1	4368280..4370181	+	633	29348797	-	BT_3388	-	hypothetical protein
3388	 39.97	0	4370166..4371326	+	386	29348798	-	BT_3389	-	hypothetical protein
3389	 40.97	0	4371376..4371807	+	143	29348799	-	BT_3390	-	hypothetical protein
3390	 49.53	+1	4371820..4372455	-	211	29348800	-	BT_3391	-	ribonuclease H-related protein
3391	 45.27	0	4372594..4373196	+	200	29348801	-	BT_3392	-	nitroreductase
3392	 46.21	0	4373257..4373784	+	175	29348802	-	BT_3393	-	shikimate kinase
3393	 45.48	0	4373902..4375794	+	630	29348803	-	BT_3394	-	arginine decarboxylase
3394	 47.16	0	4375854..4376627	+	257	29348804	-	BT_3395	-	putative acetylglutamate kinase
3395	 43.33	0	4376689..4377198	+	169	29348805	-	BT_3396	-	RNA polymerase ECF-type sigma factor
3396	 47.59	0	4377188..4377664	+	158	29348806	-	BT_3397	-	hypothetical protein
3397	 46.31	0	4377840..4378625	-	261	29348807	-	BT_3398	-	hypothetical protein
3398	 46.64	0	4378761..4379459	+	232	29348808	-	BT_3399	-	putative zinc protease
3399	 42.68	0	4379499..4379894	-	131	29348809	-	BT_3400	-	hypothetical protein
3400	 43.28	0	4380147..4381292	+	381	29348810	-	BT_3401	-	hypothetical protein
3401	 44.02	0	4381447..4381914	+	155	29348811	-	BT_3402	-	hypothetical protein
3402	 44.70	0	4381917..4383236	+	439	29348812	nusA	BT_3403	-	transcription elongation factor NusA
3403	 46.43	0	4383289..4386411	+	1040	29348813	infB	BT_3404	-	translation initiation factor IF-2
3404	 43.13	0	4386491..4387021	+	176	29348814	-	BT_3405	-	hypothetical protein
3405	 46.87	0	4386999..4388453	+	484	29348815	-	BT_3406	-	cysteine desulfurase activator complex subunit SufB
3406	 47.14	0	4388469..4389221	+	250	29348816	-	BT_3407	-	ABC transporter ATP-binding protein
3407	 46.80	0	4389224..4390567	+	447	29348817	-	BT_3408	-	ABC transporter permease
3408	 48.76	+1	4390580..4391791	+	403	29348818	-	BT_3409	-	aminotransferase, putative cysteine desulfurase
3409	 44.75	0	4392098..4392421	+	107	29348819	-	BT_3410	-	hypothetical protein
3410	 51.25	+1	4393181..4395385	+	734	29348820	hppA	BT_3411	-	membrane-bound proton-translocating pyrophosphatase
3411	 48.42	0	4395851..4396453	+	200	29348821	rnhB	BT_3412	-	ribonuclease HII
3412	 38.27	0	4396626..4398083	+	485	29348822	-	BT_3413	-	hypothetical protein
3413	 46.45	0	4398259..4399188	-	309	29348823	-	BT_3414	-	Mg2+/Co2+ transporter
3414	 41.67	0	4399393..4399692	+	99	29348824	-	BT_3415	-	hypothetical protein
3415	 36.01	-1	4399783..4400976	+	397	29348825	-	BT_3416	-	putative receptor protein
3416	 36.43	-1	4400971..4401228	-	85	29348826	-	BT_3417	-	hypothetical protein
3417	 48.38	0	4401633..4404104	-	823	29348827	-	BT_3418	-	putative thiol:disulfide interchange protein
3418	 47.85	0	4404279..4405793	+	504	29348828	-	BT_3419	-	phosphoglyceromutase
3419	 37.72	-1	4406065..4407591	+	508	29348829	-	BT_3420	-	hypothetical protein
3420	 34.50	-1	4407616..4408902	+	428	29348830	-	BT_3421	-	hypothetical protein
3421	 40.10	0	4408915..4411632	+	905	29348831	-	BT_3422	-	hypothetical protein
3422	 34.78	-1	4411771..4412463	+	230	29348832	-	BT_3423	-	hypothetical protein
3423	 39.47	0	4412650..4415388	+	912	29348833	-	BT_3424	-	hypothetical protein
3424	 34.20	-1	4415440..4417050	+	536	29348834	-	BT_3425	-	hypothetical protein
3425	 32.50	-2	4417105..4417344	+	79	29348835	-	BT_3426	-	hypothetical protein
3426	 46.22	0	4417355..4417936	+	193	29348836	-	BT_3427	-	hypothetical protein
3427	 41.37	0	4417913..4418161	-	82	29348837	-	BT_3428	-	hypothetical protein
3428	 47.30	0	4418315..4420276	-	653	29348838	-	BT_3429	-	DNA gyrase subunit B
3429	 36.08	-1	4420476..4420730	-	84	29348839	rpsT	BT_3430	-	30S ribosomal protein S20
3430	 44.72	0	4421450..4422178	+	242	29348840	-	BT_3431	-	DNA repair protein
3431	 41.03	0	4422183..4423922	-	579	29348841	-	BT_3432	-	hypothetical protein
3432	 41.56	0	4424060..4425007	+	315	29348842	-	BT_3433	-	hypothetical protein
3433	 43.85	0	4425004..4426239	+	411	29348843	-	BT_3434	-	hypothetical protein
3434	 27.36	-2	4426284..4426601	-	105	29348844	-	BT_3435	-	hypothetical protein
3435	 37.24	-1	4427127..4427561	-	144	29348845	-	BT_3436	-	hypothetical protein
3436	 32.01	-2	4427720..4429381	-	553	29348846	-	BT_3437	-	hypothetical protein
3437	 30.26	-2	4429534..4429956	-	140	29348847	-	BT_3438	-	hypothetical protein
3438	 35.12	-1	4430054..4431730	-	558	29348848	-	BT_3439	-	hypothetical protein
3439	 37.91	-1	4431743..4433074	-	443	29348849	-	BT_3440	-	hypothetical protein
3440	 37.04	-1	4433147..4433470	-	107	29348850	-	BT_3441	-	hypothetical protein
3441	 33.22	-1	4433680..4435371	-	563	29348851	-	BT_3442	-	hypothetical protein
3442	 45.59	0	4436008..4436415	-	135	29348852	-	BT_3443	-	hypothetical protein
3443	 51.38	+1	4436513..4437820	-	435	29348853	-	BT_3444	-	cell division protein FtsZ
3444	 51.52	+1	4437838..4439289	-	483	29348854	-	BT_3445	-	cell division protein FtsA
3445	 46.05	0	4439359..4440105	-	248	29348855	-	BT_3446	-	cell division protein FtsQ
3446	 48.72	+1	4440190..4441593	-	467	29348856	murC	BT_3447	-	UDP-N-acetylmuramate--L-alanine ligase
43.33	MEAN

5.15	STD DEV
