IslandPath Analysis: Bacteroides thetaiotaomicron VPI-5482

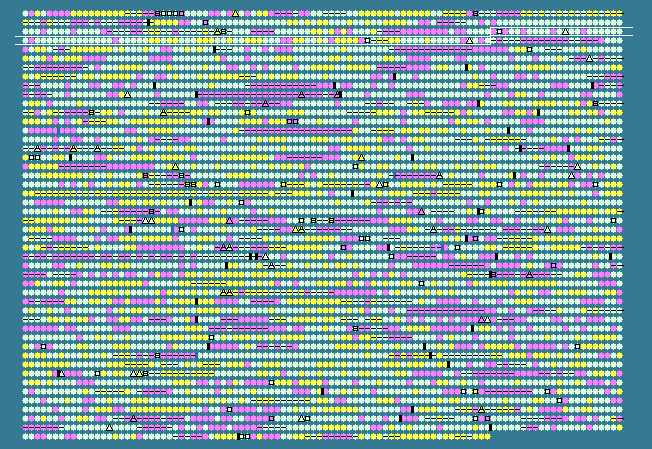

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 43.33 STD DEV: 5.15
Bacteroides thetaiotaomicron VPI-5482, complete genome - 1..6260361
4778 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
279	 33.20	-1	323675..324427	+	250	29345689	-	BT_0279	-	hypothetical protein
280	 45.24	0	324541..325758	+	405	29345690	-	BT_0280	-	transposase for insertion sequence element ISRM3
281	 39.25	0	326008..326649	-	213	29345691	-	BT_0281	-	putative DNA-binding protein
282	 43.36	0	326951..328246	+	431	29345692	-	BT_0282	-	hypothetical protein
283	 40.86	0	328262..328447	+	61	29345693	-	BT_0283	-	hypothetical protein
284	 33.54	-1	328493..329944	+	483	29345694	-	BT_0284	-	peptidoglycan binding protein
285	 42.57	0	330174..331592	+	472	29345695	-	BT_0285	-	putative tolQ-type transport protein
286	 43.40	0	331576..332022	+	148	29345696	-	BT_0286	-	hypothetical protein
287	 40.85	0	332027..332452	+	141	29345697	-	BT_0287	-	putative biopolymer transmembrane protein
288	 46.78	0	332427..333950	+	507	29345698	-	BT_0288	-	hypothetical protein
289	 38.13	-1	334208..336898	-	896	29345699	-	BT_0289	-	hypothetical protein
290	 42.99	0	337216..339555	+	779	29345700	-	BT_0290	-	beta-galactosidase precursor
291	 41.10	0	339758..340723	+	321	29345701	-	BT_0291	-	integrase
292	 42.00	0	341115..341864	+	249	29345702	-	BT_0292	-	hypothetical protein
293	 42.25	0	341869..343101	+	410	29345703	-	BT_0293	-	hypothetical protein
294	 39.48	0	343140..344570	+	476	29345704	-	BT_0294	-	hypothetical protein
295	 43.29	0	344839..345732	+	297	29345705	-	BT_0295	-	ABC transporter ATP-binding protein
296	 41.59	0	345748..349053	+	1101	29345706	-	BT_0296	-	putative xanthan lyase XalB precursor
297	 41.02	0	349074..350570	+	498	29345707	-	BT_0297	-	putative outer membrane lipoprotein silC precursor
298	 40.49	0	350578..351639	+	353	29345708	-	BT_0298	-	cation efflux system protein (outer membrane protein)
299	 44.37	0	351688..354804	+	1038	29345709	-	BT_0299	-	AcrB/AcrD/AcrF family cation efflux protein
300	 44.60	0	354807..358001	+	1064	29345710	-	BT_0300	-	AcrB/AcrD/AcrF family cation efflux protein
301	 43.92	0	358006..359517	+	503	29345711	-	BT_0301	-	ATP-binding transport protein natA (Na+ ABC transporter)
302	 39.17	0	359533..360234	+	233	29345712	-	BT_0302	-	hypothetical protein
303	 44.93	0	360384..362600	-	738	29345713	-	BT_0303	-	putative patatin-like phospholipase
304	 45.39	0	362872..364107	+	411	29345714	-	BT_0304	-	acriflavine resistance protein A precursor
305	 46.57	0	364111..367215	+	1034	29345715	-	BT_0305	-	putative aminoglycoside efflux pump (acriflavine resistance protein)
306	 46.36	0	367215..368588	+	457	29345716	-	BT_0306	-	outer membrane protein oprM precursor
307	 46.08	0	368717..370363	+	548	29345717	-	BT_0307	-	diphosphate--fructose-6-phosphate 1-phosphotransferase
308	 40.43	0	370710..371414	+	234	29345718	-	BT_0308	-	putative glycosyl hydrolase
309	 43.30	0	371489..372832	+	447	29345719	-	BT_0309	-	dihydrolipoamide dehydrogenase
310	 41.94	0	372816..373535	+	239	29345720	-	BT_0310	-	lipoate-protein ligase A
311	 45.44	0	373622..374992	+	456	29345721	-	BT_0311	-	lipoamide acyltransferase component of branched-chain alpha-keto acid dehydrogenase complex
312	 45.41	0	375030..377066	+	678	29345722	-	BT_0312	-	2-oxoisovalerate dehydrogenase beta subunit
313	 44.19	0	377091..377606	+	171	29345723	-	BT_0313	-	flavodoxin FldA
314	 43.42	0	377857..378699	-	280	29345724	prmA	BT_0314	-	ribosomal protein L11 methyltransferase
315	 45.89	0	378905..380194	+	429	29345725	-	BT_0315	-	hypothetical protein
316	 35.33	-1	380228..381832	+	534	29345726	-	BT_0316	-	putative hemin receptor
317	 42.18	0	382145..385333	+	1062	29345727	-	BT_0317	-	hypothetical protein
318	 43.79	0	385353..386567	+	404	29345728	-	BT_0318	-	hypothetical protein
319	 40.32	0	386576..386947	+	123	29345729	-	BT_0319	-	hypothetical protein
320	 45.52	0	387094..387897	-	267	29345730	-	BT_0320	-	hypothetical protein
321	 44.59	0	387935..388405	-	156	29345731	-	BT_0321	-	cytidine/deoxycytidylate deaminase
322	 48.10	0	388527..389501	-	324	29345732	-	BT_0322	-	putative oxidoreductase
323	 49.61	+1	389627..390529	-	300	29345733	-	BT_0323	-	hypothetical protein
324	 45.56	0	390553..391002	-	149	29345734	-	BT_0324	-	hypothetical protein
325	 48.92	+1	391028..391489	-	153	29345735	-	BT_0325	-	hypothetical protein
326	 50.19	+1	391486..392007	-	173	29345736	-	BT_0326	-	putative RNA polymerase ECF-type sigma factor
327	 43.93	0	392450..393289	-	279	29345737	-	BT_0327	-	glutamine ABC transporter, periplasmic glutamine-binding protein (glnH)
328	 42.63	0	393307..395349	-	680	29345738	-	BT_0328	-	hypothetical protein
329	 44.57	0	395470..396012	-	180	29345739	-	BT_0329	-	ketoisovalerate oxidoreductase subunit vorA
330	 48.73	+1	396032..396739	-	235	29345740	-	BT_0330	-	ketoisovalerate oxidoreductase subunit vorA
331	 48.31	0	396996..397883	-	295	29345741	-	BT_0331	-	2-oxoglutarate ferredoxin oxidoreductase
332	 50.00	+1	397900..398079	-	59	29345742	-	BT_0332	-	2-oxoisovalerate oxidoreductase beta subunit
333	 43.86	0	398092..398319	-	75	29345743	-	BT_0333	-	hypothetical protein
334	 41.49	0	398354..398635	-	93	29345744	-	BT_0334	-	hypothetical protein
335	 47.49	0	398928..400481	+	517	29345745	-	BT_0335	-	putative ATPase
336	 46.29	0	400471..401913	+	480	29345746	-	BT_0336	-	hypothetical protein
337	 43.48	0	401991..402473	+	160	29345747	-	BT_0337	-	hypothetical protein
338	 50.08	+1	403243..405093	+	616	29345748	-	BT_0338	-	hypothetical protein
339	 49.27	+1	405215..407461	+	748	29345749	-	BT_0339	-	alpha-glucosidase
340	 47.54	0	407471..409279	+	602	29345750	-	BT_0340	-	trimethylamine corrinoid protein 2 (TCP 2)
341	 46.06	0	409308..410879	+	523	29345751	-	BT_0341	-	Na+/glucose cotransporter
342	 43.80	0	411093..411866	-	257	29345752	-	BT_0342	-	hypothetical protein
343	 44.35	0	411895..412911	-	338	29345753	-	BT_0343	-	methylcobamide:CoM methyltransferase mtbA
344	 32.03	-2	413304..414149	+	281	29345754	-	BT_0344	-	hypothetical protein
345	 34.04	-1	414202..414912	+	236	29345755	-	BT_0345	-	hypothetical protein
346	 48.28	0	415102..415536	-	144	29345756	-	BT_0346	-	ribose 5-phosphate isomerase B
347	 47.41	0	415536..417545	-	669	29345757	-	BT_0347	-	transketolase
348	 44.53	0	417722..419266	-	514	29345758	-	BT_0348	-	alpha-L-arabinofuranosidase
349	 46.49	0	419336..421744	-	802	29345759	-	BT_0349	-	hypothetical protein
350	 47.43	0	421849..423444	-	531	29345760	-	BT_0350	-	xylulose kinase (xylulokinase)
351	 46.01	0	423634..425163	-	509	29345761	-	BT_0351	-	L-arabinose isomerase
352	 33.88	-1	425244..425606	-	120	29345762	-	BT_0352	-	hypothetical protein
353	 47.37	0	425643..426326	-	227	29345763	araD	BT_0353	-	L-ribulose-5-phosphate 4-epimerase
354	 47.35	0	426332..427009	-	225	29345764	-	BT_0354	-	hypothetical protein
355	 48.14	0	427031..428725	-	564	29345765	-	BT_0355	-	Na+/glucose cotransporter
356	 47.81	0	428751..429890	-	379	29345766	-	BT_0356	-	aldose 1-epimerase precursor
357	 35.74	-1	430226..430474	+	82	29345767	-	BT_0357	-	hypothetical protein
358	 45.41	0	430495..431388	-	297	29345768	-	BT_0358	-	transposase
359	 41.67	0	431421..431768	-	115	29345769	-	BT_0359	-	hypothetical protein
360	 50.26	+1	432012..433937	-	641	29345770	-	BT_0360	-	putative arabinan endo-1,5-alpha-L-arabinosidase
361	 51.05	+1	433972..435777	-	601	29345771	-	BT_0361	-	hypothetical protein
362	 49.08	+1	435803..438952	-	1049	29345772	-	BT_0362	-	hypothetical protein
363	 49.83	+1	438957..440732	-	591	29345773	-	BT_0363	-	putative outer membrane protein
364	 46.50	0	440745..443828	-	1027	29345774	-	BT_0364	-	hypothetical protein
365	 45.53	0	443848..446127	-	759	29345775	-	BT_0365	-	hypothetical protein
366	 43.61	0	446387..450649	-	1420	29345776	-	BT_0366	-	two-component system sensor histidine kinase/response regulator, hybrid ('one component system')
367	 46.17	0	450805..452346	+	513	29345777	-	BT_0367	-	putative endo-arabinase
368	 47.35	0	452372..454354	+	660	29345778	-	BT_0368	-	alpha-L-arabinofuranosidase A precursor
369	 45.34	0	454356..455321	+	321	29345779	-	BT_0369	-	endo-1,4-beta-xylanase D precursor
370	 44.59	0	455441..456595	-	384	29345780	-	BT_0370	-	galactokinase
371	 44.85	0	456639..457949	-	436	29345781	-	BT_0371	-	glucose/galactose transporter
372	 46.17	0	458002..459099	-	365	29345782	-	BT_0372	-	aldose 1-epimerase precursor
373	 43.93	0	459328..460299	+	323	29345783	-	BT_0373	-	mannose-6-phosphate isomerase
374	 38.56	0	460448..461998	+	516	29345784	-	BT_0374	-	hypothetical protein
375	 46.81	0	462368..463057	+	229	29345785	-	BT_0375	-	integrase
376	 44.91	0	463409..463987	+	192	29345786	-	BT_0376	-	putative transcriptional regulator
377	 38.06	-1	463994..464353	+	119	29345787	-	BT_0377	-	hypothetical protein
378	 43.61	0	464407..466332	+	641	29345788	-	BT_0378	-	capsular polysaccharide biosynthesis protein capD
43.33	MEAN

5.15	STD DEV
