IslandPath Analysis: Bacteroides thetaiotaomicron VPI-5482

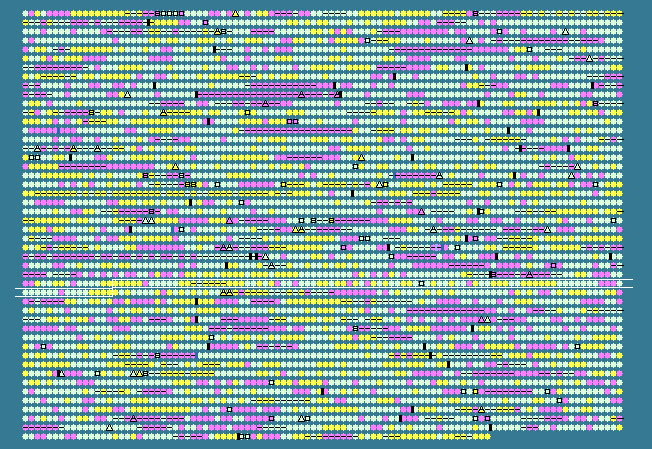

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 43.33 STD DEV: 5.15
Bacteroides thetaiotaomicron VPI-5482, complete genome - 1..6260361
4778 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3016	 48.23	0	3815152..3816084	+	310	29348426	-	BT_3017	-	acid phosphatase
3017	 46.95	0	3816241..3818091	-	616	29348427	-	BT_3018	-	putative mechano-sensitive ion channel
3018	 48.53	+1	3818218..3819204	+	328	29348428	-	BT_3019	-	putative Na+/Ca2+ exchanger protein, cation antiporter
3019	 46.82	0	3819286..3820827	-	513	29348429	-	BT_3020	-	hypothetical protein
3020	 48.41	0	3820972..3822324	+	450	29348430	-	BT_3021	-	hypothetical protein
3021	 31.25	-2	3822399..3822590	-	63	29348431	-	BT_3022	-	hypothetical protein
3022	 45.64	0	3822979..3823896	+	305	29348432	-	BT_3023	-	hypothetical protein
3023	 43.02	0	3824416..3827481	+	1021	29348433	-	BT_3024	-	hypothetical protein
3024	 43.36	0	3827521..3829146	+	541	29348434	-	BT_3025	-	hypothetical protein
3025	 43.19	0	3829182..3830744	+	520	29348435	-	BT_3026	-	glycosylhydrolase, putative xylanase
3026	 40.40	0	3830761..3831948	+	395	29348436	-	BT_3027	-	hypothetical protein
3027	 48.61	+1	3832138..3833328	+	396	29348437	-	BT_3028	-	hypothetical protein
3028	 47.55	0	3833579..3835456	+	625	29348438	-	BT_3029	-	Na+/glucose symporter
3029	 47.68	0	3835587..3838061	+	824	29348439	-	BT_3030	-	hypothetical protein
3030	 41.63	0	3838075..3838701	-	208	29348440	-	BT_3031	-	hypothetical protein
3031	 47.32	0	3838872..3840008	+	378	29348441	-	BT_3032	-	hypothetical protein
3032	 50.75	+1	3840014..3841891	+	625	29348442	-	BT_3033	-	DNA topoisomerase IV subunit B
3033	 46.93	0	3841888..3842343	+	151	29348443	coaD	BT_3034	-	phosphopantetheine adenylyltransferase
3034	 51.45	+1	3842449..3844038	+	529	29348444	-	BT_3035	-	carboxy-terminal processing protease precursor
3035	 51.96	+1	3844119..3846701	+	860	29348445	-	BT_3036	-	hypothetical protein
3036	 51.18	+1	3846909..3847418	+	169	29348446	-	BT_3037	-	RNA polymerase ECF-type sigma factor
3037	 50.43	+1	3847435..3848475	+	346	29348447	-	BT_3038	-	putative anti-sigma factor
3038	 43.36	0	3848661..3849089	-	142	29348448	-	BT_3039	-	hypothetical protein
3039	 43.66	0	3849918..3850934	+	338	29348449	-	BT_3040	-	hypothetical protein
3040	 47.73	0	3850953..3851591	+	212	29348450	-	BT_3041	-	hypothetical protein
3041	 40.48	0	3851512..3851889	-	125	29348451	-	BT_3042	-	hypothetical protein
3042	 50.35	+1	3852033..3853619	-	528	29348452	-	BT_3043	-	putative xylanase
3043	 39.19	0	3853871..3854758	-	295	29348453	-	BT_3044	-	hypothetical protein
3044	 43.62	0	3854807..3856789	-	660	29348454	-	BT_3045	-	hypothetical protein
3045	 42.18	0	3856829..3859924	-	1031	29348455	-	BT_3046	-	hypothetical protein
3046	 38.79	0	3859947..3861248	-	433	29348456	-	BT_3047	-	hypothetical protein
3047	 43.75	0	3861603..3864290	-	895	29348457	-	BT_3048	-	hypothetical protein
3048	 44.73	0	3864475..3868605	+	1376	29348458	-	BT_3049	-	two-component system sensor histidine kinase/response regulator, hybrid ('one-component system')
3049	 45.86	0	3868574..3869539	-	321	29348459	-	BT_3050	-	chitinase precursor
3050	 52.99	+1	3869864..3871420	+	518	29348460	-	BT_3051	-	mucin-desulfating sulfatase
3051	 48.16	0	3872096..3873046	+	316	29348461	-	BT_3052	-	transcriptional regulator
3052	 46.81	0	3873167..3873871	+	234	29348462	-	BT_3053	-	putative cytochrome B subunit
3053	 49.09	+1	3873909..3875888	+	659	29348463	sdhA	BT_3054	-	succinate dehydrogenase flavoprotein subunit
3054	 50.13	+1	3875925..3876680	+	251	29348464	-	BT_3055	-	succinate dehydrogenase/fumarate reductase iron-sulfur subunit
3055	 38.46	0	3876841..3878070	+	409	29348465	-	BT_3056	-	hypothetical protein
3056	 47.61	0	3878142..3879668	-	508	29348466	-	BT_3057	-	N-acetylgalactosamine-6-sulfatase precursor
3057	 39.86	0	3879903..3880745	-	280	29348467	-	BT_3058	-	transcriptional regulator
3058	 39.08	0	3880944..3881918	-	324	29348468	-	BT_3059	-	hypothetical protein
3059	 46.99	0	3881969..3882883	-	304	29348469	-	BT_3060	-	hypothetical protein
3060	 44.60	0	3882939..3884216	-	425	29348470	-	BT_3061	-	hypothetical protein
3061	 47.79	0	3884488..3884985	-	165	29348471	-	BT_3062	-	hypothetical protein
3062	 42.35	0	3885199..3885453	+	84	29348472	-	BT_3063	-	hypothetical protein
3063	 41.89	0	3885945..3886166	-	73	29348473	-	BT_3064	-	hypothetical protein
3064	 47.22	0	3886637..3888148	-	503	29348474	-	BT_3065	-	alpha-galactosidase precursor
3065	 47.37	0	3888256..3890364	+	702	29348475	-	BT_3066	-	hypothetical protein
3066	 43.56	0	3890378..3891433	+	351	29348476	-	BT_3067	-	hypothetical protein
3067	 39.96	0	3891725..3892720	+	331	29348477	-	BT_3068	-	transposase, invertase
3068	 45.88	0	3892910..3894160	-	416	29348478	-	BT_3069	-	putative disulphide-isomerase
3069	 48.47	0	3894190..3895266	-	358	29348479	-	BT_3070	-	Smf protein DNA processing chain A
3070	 43.95	0	3895308..3895712	-	134	29348480	-	BT_3071	-	hypothetical protein
3071	 46.81	0	3895716..3896999	-	427	29348481	-	BT_3072	-	collagenase precursor
3072	 48.14	0	3897137..3898129	+	330	29348482	-	BT_3073	-	dehydrogenase
3073	 43.06	0	3898132..3899097	-	321	29348483	-	BT_3074	-	hypothetical protein
3074	 41.47	0	3899088..3900095	-	335	29348484	-	BT_3075	-	NAD-dependent epimerase/dehydratase family protein
3075	 28.21	-2	3900205..3900399	-	64	29348485	-	BT_3076	-	hypothetical protein
3076	 47.61	0	3900359..3902515	+	718	29348486	-	BT_3077	-	ribonuclease R
3077	 45.00	0	3902664..3903143	+	159	29348487	-	BT_3078	-	5-nitroimidazole antibiotic resistance protein
3078	 40.15	0	3903322..3905082	-	586	29348488	-	BT_3079	-	hypothetical protein
3079	 51.05	+1	3905175..3906122	-	315	29348489	-	BT_3080	-	cysteine synthase A
3080	 50.00	+1	3906250..3906591	-	113	29348490	-	BT_3081	-	putative pectin degradation protein
3081	 48.76	+1	3906644..3908290	-	548	29348491	-	BT_3082	-	2,6-beta-D-fructofuranosidase precursor
3082	 41.33	0	3908453..3909778	-	441	29348492	-	BT_3083	-	putative ATPase
3083	 45.99	0	3909889..3910710	-	273	29348493	-	BT_3084	-	lipase, putative
3084	 48.20	0	3910956..3913094	+	712	29348494	-	BT_3085	-	alpha-xylosidase
3085	 50.70	+1	3913435..3915939	-	834	29348495	-	BT_3086	-	alpha-glucosidase II
3086	 50.93	+1	3915974..3917752	-	592	29348496	-	BT_3087	-	cycloisomaltooligosaccharide glucanotransferase
3087	 49.83	+1	3917766..3919280	-	504	29348497	-	BT_3088	-	hypothetical protein
3088	 50.30	+1	3919317..3920807	-	496	29348498	-	BT_3089	-	hypothetical protein
3089	 49.50	+1	3920823..3923822	-	999	29348499	-	BT_3090	-	hypothetical protein
3090	 46.28	0	3924010..3925662	-	550	29348500	-	BT_3091	-	putative regulatory protein
3091	 43.72	0	3925763..3927967	-	734	29348501	-	BT_3092	-	beta-galactosidase
3092	 43.25	0	3928001..3929623	-	540	29348502	-	BT_3093	-	arylsulfatase (aryl-sulfate sulphohydrolase)
3093	 44.47	0	3929665..3930795	-	376	29348503	-	BT_3094	-	putative secreted xylosidase
3094	 43.71	0	3930901..3932451	-	516	29348504	-	BT_3095	-	putative sulfatase
3095	 41.78	0	3932466..3934595	-	709	29348505	-	BT_3096	-	alpha-L-arabinofuranosidase A precursor
3096	 40.13	0	3934719..3938750	+	1343	29348506	-	BT_3097	-	two-component system sensor histidine kinase/response regulator, hybrid ('one-component system')
3097	 34.05	-1	3938812..3939369	+	185	29348507	-	BT_3098	-	hypothetical protein
3098	 34.56	-1	3939476..3940045	+	189	29348508	-	BT_3099	-	hypothetical protein
3099	 34.59	-1	3940823..3941698	-	291	29348509	-	BT_3100	-	lipase, putative esterase
3100	 42.40	0	3941875..3943242	-	455	29348510	-	BT_3101	-	N-sulphoglucosamine sulphohydrolase precursor
3101	 42.27	0	3943289..3944989	-	566	29348511	-	BT_3102	-	hypothetical protein
3102	 42.69	0	3945008..3948193	-	1061	29348512	-	BT_3103	-	hypothetical protein
3103	 44.05	0	3948207..3949400	-	397	29348513	-	BT_3104	-	hypothetical protein
3104	 42.83	0	3949447..3950478	-	343	29348514	-	BT_3105	-	hypothetical protein
3105	 40.59	0	3950514..3952166	-	550	29348515	-	BT_3106	-	arylsulfatase (aryl-sulfate sulphohydrolase)
3106	 41.05	0	3952176..3953795	-	539	29348516	-	BT_3107	-	arylsulfatase (aryl-sulfate sulphohydrolase)
3107	 37.88	-1	3953822..3954811	-	329	29348517	-	BT_3108	-	putative beta-xylosidase
3108	 43.03	0	3955003..3956529	-	508	29348518	-	BT_3109	-	arylsulfatase A precursor
3109	 44.83	0	3956915..3957940	+	341	29348519	-	BT_3110	-	hypothetical protein
3110	 45.51	0	3957937..3960318	+	793	29348520	-	BT_3111	-	hypothetical protein
3111	 44.71	0	3960342..3961748	+	468	29348521	-	BT_3112	-	hypothetical protein
3112	 50.39	+1	3961873..3963015	+	380	29348522	-	BT_3113	-	protein AraJ
3113	 48.35	0	3963269..3966670	+	1133	29348523	-	BT_3114	-	beta-galactosidase
3114	 51.55	+1	3967116..3970436	+	1106	29348524	-	BT_3115	-	putative proline dehydrogenase/delta-1-pyrroline-5-carboxylate dehydraogenase
3115	 50.00	+1	3971214..3972317	+	367	29348525	-	BT_3116	-	translation-associated GTPase
43.33	MEAN

5.15	STD DEV
