IslandPath Analysis: Bacteroides thetaiotaomicron VPI-5482

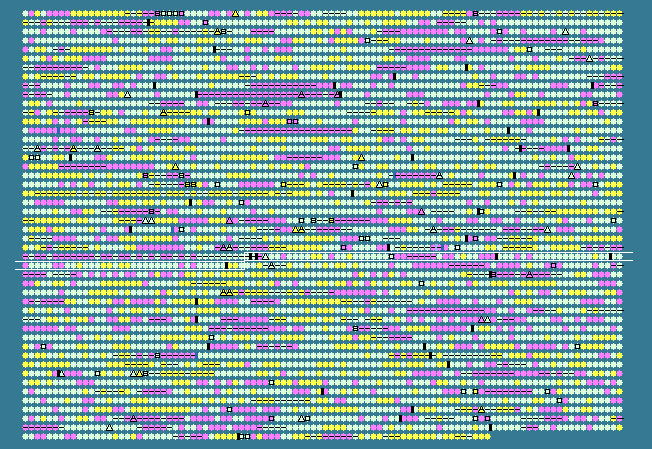

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 43.33 STD DEV: 5.15
Bacteroides thetaiotaomicron VPI-5482, complete genome - 1..6260361
4778 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2738	 41.80	0	3393029..3393571	-	180	29348148	-	BT_2739	-	transcription anti-termination protein
2739	 44.89	0	3393922..3395106	-	394	29348149	tuf	BT_2740	-	elongation factor Tu
2740	 36.67	-1	3395754..3396053	-	99	29348150	-	BT_2741	-	sigma-54 modulation protein
2741	 40.48	0	3396070..3396951	-	293	29348151	-	BT_2742	-	integrase, site-specific recombinase
2742	 45.62	0	3397408..3399189	+	593	29348152	-	BT_2743	-	putative aminopeptidase
2743	 44.05	0	3399339..3399851	+	170	29348153	-	BT_2744	-	acetyltransferase
2744	 38.85	0	3400447..3401661	+	404	29348154	-	BT_2745	-	thiol:disulfide interchange protein
2745	 41.07	0	3401658..3403286	+	542	29348155	-	BT_2746	-	thiol:disulfide interchange protein tlpA
2746	 43.87	0	3403559..3404782	-	407	29348156	-	BT_2747	-	3-deoxy-D-manno-octulosonic-acid transferase
2747	 46.60	0	3404799..3406313	-	504	29348157	gltX	BT_2748	-	glutamyl-tRNA synthetase
2748	 43.70	0	3406408..3408480	+	690	29348158	-	BT_2749	-	membrane-associated HD superfamily hydrolase
2749	 48.20	0	3408455..3408925	-	156	29348159	-	BT_2750	-	putative protein-tyrosine-phosphatase
2750	 46.97	0	3408968..3410764	-	598	29348160	-	BT_2751	-	hypothetical protein
2751	 45.50	0	3410820..3413276	-	818	29348161	-	BT_2752	-	primosomal protein N' (replication factor Y)
2752	 39.76	0	3413478..3414068	-	196	29348162	-	BT_2753	-	hypothetical protein
2753	 44.75	0	3414127..3415107	-	326	29348163	-	BT_2754	-	hypothetical protein
2754	 45.45	0	3415335..3416795	-	486	29348164	aspA	BT_2755	-	aspartate ammonia-lyase
2755	 47.22	0	3416948..3418258	+	436	29348165	-	BT_2756	-	anaerobic C4-dicarboxylate transporter
2756	 45.04	0	3418288..3419346	+	352	29348166	ansB	BT_2757	-	L-asparaginase II
2757	 44.19	0	3419362..3420531	+	389	29348167	-	BT_2758	-	hypothetical protein
2758	 41.89	0	3420612..3420833	-	73	29348168	-	BT_2759	-	hypothetical protein
2759	 44.15	0	3420898..3421461	-	187	29348169	-	BT_2760	-	hypothetical protein
2760	 42.72	0	3421513..3422151	-	212	29348170	-	BT_2761	-	hypothetical protein
2761	 42.84	0	3422246..3422929	-	227	29348171	-	BT_2762	-	TonB
2762	 45.24	0	3423675..3424892	-	405	29348172	-	BT_2763	-	transposase
2763	 32.44	-2	3424923..3425258	-	111	29348173	-	BT_2764	-	hypothetical protein
2764	 30.98	-2	3425399..3425950	-	183	29348174	-	BT_2765	-	hypothetical protein
2765	 29.77	-2	3426219..3426527	-	102	29348175	-	BT_2766	-	hypothetical protein
2766	 32.20	-2	3426618..3427235	-	205	29348176	-	BT_2767	-	hypothetical protein
2767	 34.07	-1	3427358..3428308	-	316	29348177	-	BT_2768	-	hypothetical protein
2768	 35.97	-1	3428346..3432137	-	1263	29348178	-	BT_2769	-	putative serine/threonine-protein kinase pknB
2769	 38.07	-1	3432150..3432677	-	175	29348179	-	BT_2770	-	hypothetical protein
2770	 40.59	0	3432674..3434038	-	454	29348180	-	BT_2771	-	putative serine/threonine-protein kinase pknB
2771	 37.76	-1	3434041..3435690	-	549	29348181	-	BT_2772	-	putative protein phosphatase
2772	 39.58	0	3435706..3436281	-	191	29348182	-	BT_2773	-	hypothetical protein
2773	 40.15	0	3436305..3437786	-	493	29348183	-	BT_2774	-	putative adenylate cyclase
2774	 47.46	0	3438939..3441047	+	702	29348184	-	BT_2775	-	putative helicase
2775	 44.10	0	3441171..3442340	-	389	29348185	-	BT_2776	-	hypothetical protein
2776	 41.01	0	3442351..3444303	-	650	29348186	-	BT_2777	-	hypothetical protein
2777	 37.82	-1	3444566..3446215	+	549	29348187	-	BT_2778	-	RNA polymerase ECF-type sigma factor
2778	 35.26	-1	3446294..3447070	+	258	29348188	-	BT_2779	-	3-demethylubiquinone-9 3-methyltransferase
2779	 39.31	0	3447271..3448458	+	395	29348189	-	BT_2780	-	putative membrane-associated protein
2780	 43.49	0	3448893..3449975	+	360	29348190	-	BT_2781	-	putative mannose-1-phosphate guanylyltransferase
2781	 44.36	0	3450064..3451713	-	549	29348191	-	BT_2782	-	acyl-CoA synthetase
2782	 43.40	0	3451747..3452322	-	191	29348192	-	BT_2783	-	transcriptional regulator
2783	 38.39	0	3452594..3453463	+	289	29348193	-	BT_2784	-	hypothetical protein
2784	 41.68	0	3453478..3456102	+	874	29348194	-	BT_2785	-	hypothetical protein
2785	 39.26	0	3456177..3456446	-	89	29348195	rpsO	BT_2786	-	30S ribosomal protein S15
2786	 45.11	0	3456602..3458401	+	599	29348196	-	BT_2787	-	GTP-binding elongation factor family protein TypA/BipA
2787	 43.81	0	3458531..3459055	-	174	29348197	-	BT_2788	-	chromate transport protein
2788	 41.22	0	3459052..3459609	-	185	29348198	-	BT_2789	-	chromate transport protein
2789	 42.85	0	3459741..3461348	-	535	29348199	-	BT_2790	-	phosphoenolpyruvate carboxykinase
2790	 45.41	0	3461630..3462283	+	217	29348200	upp	BT_2791	-	uracil phosphoribosyltransferase
2791	 42.90	0	3462290..3463042	-	250	29348201	-	BT_2792	-	AraC family transcription regulator
2792	 44.87	0	3463202..3464839	-	545	29348202	-	BT_2793	-	putative MFS transporter
2793	 45.42	0	3464845..3465936	-	363	29348203	-	BT_2794	-	putative multidrug resistance protein
2794	 42.21	0	3465961..3467346	-	461	29348204	-	BT_2795	-	outer membrane efflux protein precursor
2795	 43.33	0	3467624..3470155	-	843	29348205	-	BT_2796	-	hypothetical protein
2796	 47.38	0	3470274..3471704	-	476	29348206	-	BT_2797	-	S-adenosyl-L-homocysteine hydrolase
2797	 44.23	0	3471884..3473581	-	565	29348207	-	BT_2798	-	carboxy-terminal processing protease precursor
2798	 42.22	0	3473626..3474615	-	329	29348208	-	BT_2799	-	PfkB family carbohydrate kinase
2799	 43.36	0	3475292..3475999	-	235	29348209	-	BT_2800	-	putative amidophosphoribosyl-transferase
2800	 44.03	0	3476031..3476834	-	267	29348210	-	BT_2801	-	inositol-1-monophosphatase
2801	 37.35	-1	3477149..3478690	+	513	29348211	-	BT_2802	-	hypothetical protein
2802	 43.48	0	3478877..3479842	+	321	29348212	-	BT_2803	-	ribokinase
2803	 41.88	0	3479882..3480817	+	311	29348213	-	BT_2804	-	ribokinase
2804	 41.11	0	3480830..3484081	+	1083	29348214	-	BT_2805	-	hypothetical protein
2805	 39.93	0	3484094..3486094	+	666	29348215	-	BT_2806	-	hypothetical protein
2806	 36.36	-1	3486128..3487747	+	539	29348216	-	BT_2807	-	hypothetical protein
2807	 37.76	-1	3487759..3488775	+	338	29348217	-	BT_2808	-	putative inosine-uridine preferring nucleoside hydrolase
2808	 44.48	0	3488795..3489799	+	334	29348218	-	BT_2809	-	putative integral membrane protein
2809	 43.85	0	3489922..3491757	-	611	29348219	-	BT_2810	-	hypothetical protein
2810	 47.07	0	3491839..3493410	-	523	29348220	-	BT_2811	-	alkyl hydroperoxide reductase subunit F
2811	 45.50	0	3493475..3494041	-	188	29348221	-	BT_2812	-	alkyl hydroperoxide reductase C22 protein
2812	 45.44	0	3494224..3495693	-	489	29348222	-	BT_2813	-	sodium-dependent multivitamin transporter
2813	 45.59	0	3495718..3496647	-	309	29348223	-	BT_2814	-	dihydrodipicolinate synthase
2814	 47.43	0	3496796..3497320	+	174	29348224	-	BT_2815	-	putative mutT family protein
2815	 47.41	0	3497612..3500623	+	1003	29348225	-	BT_2816	-	TPR domain-containing protein
2816	 46.75	0	3500636..3502357	+	573	29348226	-	BT_2817	-	putative TonB-dependent receptor
2817	 47.86	0	3502745..3505918	+	1057	29348227	-	BT_2818	-	hypothetical protein
2818	 48.12	0	3505930..3507687	+	585	29348228	-	BT_2819	-	hypothetical protein
2819	 46.28	0	3507717..3510497	+	926	29348229	-	BT_2820	-	hypothetical protein
2820	 45.47	0	3510520..3512241	+	573	29348230	-	BT_2821	-	hypothetical protein
2821	 43.07	0	3512273..3513751	+	492	29348231	-	BT_2822	-	hypothetical protein
2822	 46.07	0	3513779..3515254	+	491	29348232	-	BT_2823	-	hypothetical protein
2823	 45.04	0	3515351..3516469	+	372	29348233	-	BT_2824	-	beta-glucanase precursor
2824	 43.10	0	3516595..3517638	+	347	29348234	-	BT_2825	-	chitinase
2825	 41.53	0	3518178..3522095	-	1305	29348235	-	BT_2826	-	two-component system sensor histidine kinase/response regulator, hybrid ('one component system')
2826	 44.91	0	3522354..3524702	+	782	29348236	-	BT_2827	-	DNA topoisomerase I
2827	 39.20	0	3524908..3526920	+	670	29348237	-	BT_2828	-	hypothetical protein
2828	 44.54	0	3527081..3528874	-	597	29348238	argS	BT_2829	-	arginyl-tRNA synthetase
2829	 39.19	0	3528957..3529229	-	90	29348239	-	BT_2830	-	DNA-binding protein HU-beta
2830	 41.78	0	3529445..3530119	+	224	29348240	-	BT_2831	-	rhomboid family protein
2831	 46.07	0	3530100..3531002	+	300	29348241	-	BT_2832	-	rhomboid family protein
2832	 44.11	0	3531006..3532091	+	361	29348242	-	BT_2833	-	hypothetical protein
2833	 46.33	0	3532119..3534203	+	694	29348243	-	BT_2834	-	peptidyl-dipeptidase
2834	 45.73	0	3534369..3537401	+	1010	29348244	-	BT_2835	-	bifunctional preprotein translocase subunit SecD/SecF
2835	 49.76	+1	3537850..3539700	+	616	29348245	-	BT_2836	-	2-oxoglutarate synthase subunit korA
2836	 48.66	+1	3539704..3540714	+	336	29348246	-	BT_2837	-	2-oxoglutarate ferredoxin oxidoreductase subunit beta
2837	 43.44	0	3540896..3542122	-	408	29348247	-	BT_2838	-	hypothetical protein
43.33	MEAN

5.15	STD DEV
