IslandPath Analysis: Bacteroides thetaiotaomicron VPI-5482

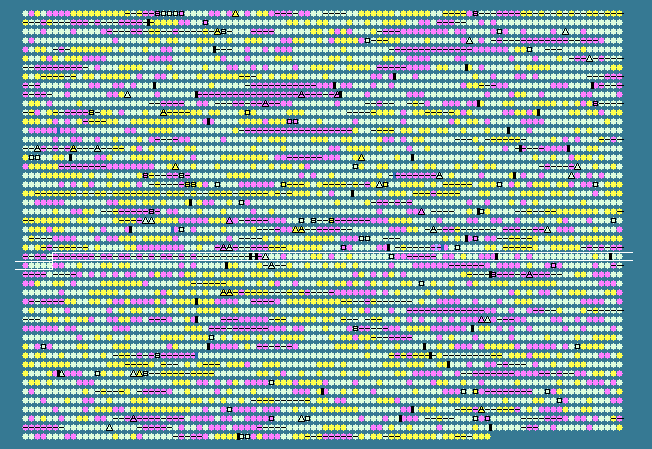

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 43.33 STD DEV: 5.15
Bacteroides thetaiotaomicron VPI-5482, complete genome - 1..6260361
4778 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2706	 37.65	-1	3368070..3369413	-	447	29348116	secY	BT_2707	-	preprotein translocase subunit SecY
2707	 39.37	0	3369418..3369864	-	148	29348117	rplO	BT_2708	-	50S ribosomal protein L15
2708	 37.85	-1	3369896..3370072	-	58	29348118	rpmD	BT_2709	-	50S ribosomal protein L30
2709	 39.50	0	3370082..3370600	-	172	29348119	rpsE	BT_2710	-	30S ribosomal protein S5
2710	 38.26	0	3370606..3370950	-	114	29348120	rplR	BT_2711	-	50S ribosomal protein L18
2711	 39.47	0	3370972..3371541	-	189	29348121	rplF	BT_2712	-	50S ribosomal protein L6
2712	 37.12	-1	3371559..3371954	-	131	29348122	rpsH	BT_2713	-	30S ribosomal protein S8
2713	 45.00	0	3372007..3372306	-	99	29348123	rpsN	BT_2714	-	30S ribosomal protein S14
2714	 36.74	-1	3372313..3372870	-	185	29348124	rplE	BT_2715	-	50S ribosomal protein L5
2715	 39.31	0	3372873..3373190	-	105	29348125	rplX	BT_2716	-	50S ribosomal protein L24
2716	 40.98	0	3373211..3373576	-	121	29348126	rplN	BT_2717	-	50S ribosomal protein L14
2717	 35.19	-1	3373579..3373848	-	89	29348127	rpsQ	BT_2718	-	30S ribosomal protein S17
2718	 32.32	-2	3373845..3374042	-	65	29348128	rpmC	BT_2719	-	50S ribosomal protein L29
2719	 42.07	0	3374048..3374482	-	144	29348129	rplP	BT_2720	-	50S ribosomal protein L16
2720	 39.48	0	3374506..3375237	-	243	29348130	rpsC	BT_2721	-	30S ribosomal protein S3
2721	 40.15	0	3375243..3375653	-	136	29348131	rplV	BT_2722	-	50S ribosomal protein L22
2722	 37.04	-1	3375689..3375958	-	89	29348132	rpsS	BT_2723	-	30S ribosomal protein S19
2723	 43.52	0	3375979..3376803	-	274	29348133	rplB	BT_2724	-	50S ribosomal protein L2
2724	 32.99	-2	3376809..3377099	-	96	29348134	rplW	BT_2725	-	50S ribosomal protein L23
2725	 39.39	0	3377116..3377742	-	208	29348135	rplD	BT_2726	-	50S ribosomal protein L4
2726	 42.56	0	3377742..3378359	-	205	29348136	rplC	BT_2727	-	50S ribosomal protein L3
2727	 39.54	0	3378378..3378683	-	101	29348137	rpsJ	BT_2728	-	30S ribosomal protein S10
2728	 41.60	0	3378768..3380885	-	705	29348138	-	BT_2729	-	elongation factor G
2729	 38.99	0	3380941..3381417	-	158	29348139	-	BT_2730	-	30S ribosomal protein S7
2730	 45.77	0	3381561..3381962	-	133	29348140	rpsL	BT_2731	-	30S ribosomal protein S12
2731	 43.14	0	3382099..3382404	-	101	29348141	-	BT_2732	-	hypothetical protein
2732	 43.51	0	3382547..3386830	-	1427	29348142	-	BT_2733	-	DNA-directed RNA polymerase subunit beta'
2733	 42.85	0	3386937..3390749	-	1270	29348143	rpoB	BT_2734	-	DNA-directed RNA polymerase subunit beta
2734	 41.87	0	3390854..3391228	-	124	29348144	rplL	BT_2735	-	50S ribosomal protein L7/L12
2735	 41.04	0	3391276..3391794	-	172	29348145	rplJ	BT_2736	-	50S ribosomal protein L10
2736	 40.06	0	3391810..3392508	-	232	29348146	rplA	BT_2737	-	50S ribosomal protein L1
2737	 42.79	0	3392524..3392967	-	147	29348147	rplK	BT_2738	-	50S ribosomal protein L11
2738	 41.80	0	3393029..3393571	-	180	29348148	-	BT_2739	-	transcription anti-termination protein
2739	 44.89	0	3393922..3395106	-	394	29348149	tuf	BT_2740	-	elongation factor Tu
2740	 36.67	-1	3395754..3396053	-	99	29348150	-	BT_2741	-	sigma-54 modulation protein
2741	 40.48	0	3396070..3396951	-	293	29348151	-	BT_2742	-	integrase, site-specific recombinase
2742	 45.62	0	3397408..3399189	+	593	29348152	-	BT_2743	-	putative aminopeptidase
2743	 44.05	0	3399339..3399851	+	170	29348153	-	BT_2744	-	acetyltransferase
2744	 38.85	0	3400447..3401661	+	404	29348154	-	BT_2745	-	thiol:disulfide interchange protein
2745	 41.07	0	3401658..3403286	+	542	29348155	-	BT_2746	-	thiol:disulfide interchange protein tlpA
2746	 43.87	0	3403559..3404782	-	407	29348156	-	BT_2747	-	3-deoxy-D-manno-octulosonic-acid transferase
2747	 46.60	0	3404799..3406313	-	504	29348157	gltX	BT_2748	-	glutamyl-tRNA synthetase
2748	 43.70	0	3406408..3408480	+	690	29348158	-	BT_2749	-	membrane-associated HD superfamily hydrolase
2749	 48.20	0	3408455..3408925	-	156	29348159	-	BT_2750	-	putative protein-tyrosine-phosphatase
2750	 46.97	0	3408968..3410764	-	598	29348160	-	BT_2751	-	hypothetical protein
2751	 45.50	0	3410820..3413276	-	818	29348161	-	BT_2752	-	primosomal protein N' (replication factor Y)
2752	 39.76	0	3413478..3414068	-	196	29348162	-	BT_2753	-	hypothetical protein
2753	 44.75	0	3414127..3415107	-	326	29348163	-	BT_2754	-	hypothetical protein
2754	 45.45	0	3415335..3416795	-	486	29348164	aspA	BT_2755	-	aspartate ammonia-lyase
2755	 47.22	0	3416948..3418258	+	436	29348165	-	BT_2756	-	anaerobic C4-dicarboxylate transporter
2756	 45.04	0	3418288..3419346	+	352	29348166	ansB	BT_2757	-	L-asparaginase II
2757	 44.19	0	3419362..3420531	+	389	29348167	-	BT_2758	-	hypothetical protein
2758	 41.89	0	3420612..3420833	-	73	29348168	-	BT_2759	-	hypothetical protein
2759	 44.15	0	3420898..3421461	-	187	29348169	-	BT_2760	-	hypothetical protein
2760	 42.72	0	3421513..3422151	-	212	29348170	-	BT_2761	-	hypothetical protein
2761	 42.84	0	3422246..3422929	-	227	29348171	-	BT_2762	-	TonB
2762	 45.24	0	3423675..3424892	-	405	29348172	-	BT_2763	-	transposase
2763	 32.44	-2	3424923..3425258	-	111	29348173	-	BT_2764	-	hypothetical protein
2764	 30.98	-2	3425399..3425950	-	183	29348174	-	BT_2765	-	hypothetical protein
2765	 29.77	-2	3426219..3426527	-	102	29348175	-	BT_2766	-	hypothetical protein
2766	 32.20	-2	3426618..3427235	-	205	29348176	-	BT_2767	-	hypothetical protein
2767	 34.07	-1	3427358..3428308	-	316	29348177	-	BT_2768	-	hypothetical protein
2768	 35.97	-1	3428346..3432137	-	1263	29348178	-	BT_2769	-	putative serine/threonine-protein kinase pknB
2769	 38.07	-1	3432150..3432677	-	175	29348179	-	BT_2770	-	hypothetical protein
2770	 40.59	0	3432674..3434038	-	454	29348180	-	BT_2771	-	putative serine/threonine-protein kinase pknB
2771	 37.76	-1	3434041..3435690	-	549	29348181	-	BT_2772	-	putative protein phosphatase
2772	 39.58	0	3435706..3436281	-	191	29348182	-	BT_2773	-	hypothetical protein
2773	 40.15	0	3436305..3437786	-	493	29348183	-	BT_2774	-	putative adenylate cyclase
2774	 47.46	0	3438939..3441047	+	702	29348184	-	BT_2775	-	putative helicase
2775	 44.10	0	3441171..3442340	-	389	29348185	-	BT_2776	-	hypothetical protein
2776	 41.01	0	3442351..3444303	-	650	29348186	-	BT_2777	-	hypothetical protein
2777	 37.82	-1	3444566..3446215	+	549	29348187	-	BT_2778	-	RNA polymerase ECF-type sigma factor
2778	 35.26	-1	3446294..3447070	+	258	29348188	-	BT_2779	-	3-demethylubiquinone-9 3-methyltransferase
2779	 39.31	0	3447271..3448458	+	395	29348189	-	BT_2780	-	putative membrane-associated protein
2780	 43.49	0	3448893..3449975	+	360	29348190	-	BT_2781	-	putative mannose-1-phosphate guanylyltransferase
2781	 44.36	0	3450064..3451713	-	549	29348191	-	BT_2782	-	acyl-CoA synthetase
2782	 43.40	0	3451747..3452322	-	191	29348192	-	BT_2783	-	transcriptional regulator
2783	 38.39	0	3452594..3453463	+	289	29348193	-	BT_2784	-	hypothetical protein
2784	 41.68	0	3453478..3456102	+	874	29348194	-	BT_2785	-	hypothetical protein
2785	 39.26	0	3456177..3456446	-	89	29348195	rpsO	BT_2786	-	30S ribosomal protein S15
2786	 45.11	0	3456602..3458401	+	599	29348196	-	BT_2787	-	GTP-binding elongation factor family protein TypA/BipA
2787	 43.81	0	3458531..3459055	-	174	29348197	-	BT_2788	-	chromate transport protein
2788	 41.22	0	3459052..3459609	-	185	29348198	-	BT_2789	-	chromate transport protein
2789	 42.85	0	3459741..3461348	-	535	29348199	-	BT_2790	-	phosphoenolpyruvate carboxykinase
2790	 45.41	0	3461630..3462283	+	217	29348200	upp	BT_2791	-	uracil phosphoribosyltransferase
2791	 42.90	0	3462290..3463042	-	250	29348201	-	BT_2792	-	AraC family transcription regulator
2792	 44.87	0	3463202..3464839	-	545	29348202	-	BT_2793	-	putative MFS transporter
2793	 45.42	0	3464845..3465936	-	363	29348203	-	BT_2794	-	putative multidrug resistance protein
2794	 42.21	0	3465961..3467346	-	461	29348204	-	BT_2795	-	outer membrane efflux protein precursor
2795	 43.33	0	3467624..3470155	-	843	29348205	-	BT_2796	-	hypothetical protein
2796	 47.38	0	3470274..3471704	-	476	29348206	-	BT_2797	-	S-adenosyl-L-homocysteine hydrolase
2797	 44.23	0	3471884..3473581	-	565	29348207	-	BT_2798	-	carboxy-terminal processing protease precursor
2798	 42.22	0	3473626..3474615	-	329	29348208	-	BT_2799	-	PfkB family carbohydrate kinase
2799	 43.36	0	3475292..3475999	-	235	29348209	-	BT_2800	-	putative amidophosphoribosyl-transferase
2800	 44.03	0	3476031..3476834	-	267	29348210	-	BT_2801	-	inositol-1-monophosphatase
2801	 37.35	-1	3477149..3478690	+	513	29348211	-	BT_2802	-	hypothetical protein
2802	 43.48	0	3478877..3479842	+	321	29348212	-	BT_2803	-	ribokinase
2803	 41.88	0	3479882..3480817	+	311	29348213	-	BT_2804	-	ribokinase
2804	 41.11	0	3480830..3484081	+	1083	29348214	-	BT_2805	-	hypothetical protein
2805	 39.93	0	3484094..3486094	+	666	29348215	-	BT_2806	-	hypothetical protein
43.33	MEAN

5.15	STD DEV
