IslandPath Analysis: Bacteroides thetaiotaomicron VPI-5482

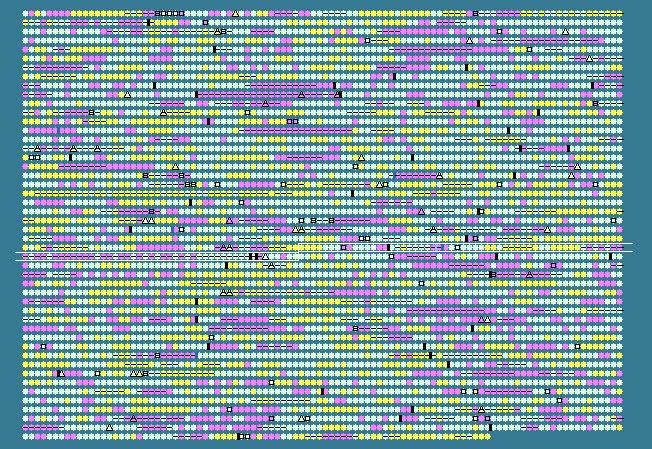

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 43.33 STD DEV: 5.15
Bacteroides thetaiotaomicron VPI-5482, complete genome - 1..6260361
4778 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2647	 51.85	+1	3299935..3301041	+	368	29348057	-	BT_2647	-	hypothetical protein
2648	 51.28	+1	3301054..3301755	+	233	29348058	-	BT_2648	-	hypothetical protein
2649	 51.88	+1	3301752..3302549	+	265	29348059	-	BT_2649	-	ThiF family protein, ubiquitin-activating enzyme
2650	 48.43	0	3302647..3303348	-	233	29348060	-	BT_2650	-	hypothetical protein
2651	 45.58	0	3303406..3303699	-	97	29348061	-	BT_2651	-	hypothetical protein
2652	 43.40	0	3304047..3304334	+	95	29348062	-	BT_2652	-	hypothetical protein
2653	 45.92	0	3304345..3304638	+	97	29348063	-	BT_2653	-	hypothetical protein
2654	 37.29	-1	3305330..3306541	+	403	29348064	-	BT_2654	-	transposase
2655	 39.47	0	3306623..3309850	-	1075	29348065	-	BT_2655	-	hypothetical protein
2656	 40.22	0	3309896..3310984	-	362	29348066	-	BT_2656	-	hypothetical protein
2657	 41.00	0	3310981..3311997	-	338	29348067	-	BT_2657	-	hypothetical protein
2658	 41.46	0	3312008..3314026	-	672	29348068	-	BT_2658	-	hypothetical protein
2659	 43.03	0	3314081..3315421	-	446	29348069	-	BT_2659	-	hypothetical protein
2660	 39.76	0	3315518..3316108	-	196	29348070	-	BT_2660	-	hypothetical protein
2661	 28.21	-2	3316490..3316684	-	64	29348071	-	BT_2661	-	hypothetical protein
2662	 46.19	0	3317305..3318828	+	507	29348072	-	BT_2662	-	alpha-galactosidase precursor
2663	 43.66	0	3318924..3320375	-	483	29348073	-	BT_2663	-	TPR repeat-containing protein
2664	 46.98	0	3320412..3321356	-	314	29348074	-	BT_2664	-	putative phosphate ABC transporter, phosphate-binding component
2665	 46.13	0	3321358..3322170	-	270	29348075	-	BT_2665	-	TonB
2666	 41.90	0	3322197..3322850	-	217	29348076	-	BT_2666	-	hypothetical protein
2667	 43.23	0	3322866..3323471	-	201	29348077	-	BT_2667	-	hypothetical protein
2668	 42.23	0	3323501..3324298	-	265	29348078	-	BT_2668	-	MotA/TolQ/ExbB proton channel
2669	 35.14	-1	3324451..3324894	-	147	29348079	-	BT_2669	-	hypothetical protein
2670	 35.47	-1	3325360..3325593	+	77	29348080	-	BT_2671	-	hypothetical protein
2671	 32.04	-2	3330488..3330796	+	102	29348081	-	BT_2672	-	hypothetical protein
2672	 41.32	0	3331584..3331946	+	120	29348082	-	BT_2673	-	hypothetical protein
2673	 45.41	0	3331979..3332872	+	297	29348083	-	BT_2674	-	transposase
2674	 40.08	0	3334148..3334873	-	241	29348084	-	BT_2675	-	hypothetical protein
2675	 43.60	0	3334970..3335602	-	210	29348085	-	BT_2676	-	hypothetical protein
2676	 41.98	0	3335869..3336192	+	107	29348086	-	BT_2677	-	hypothetical protein
2677	 45.93	0	3336270..3336674	-	134	29348087	-	BT_2678	-	hypothetical protein
2678	 47.32	0	3336916..3337923	-	335	29348088	-	BT_2679	-	putative ion-channel protein, putative oxidoreductase
2679	 47.31	0	3338137..3341142	-	1001	29348089	-	BT_2680	-	beta-galactosidase
2680	 45.90	0	3341531..3343018	-	495	29348090	-	BT_2681	-	alginate O-acetylation protein
2681	 50.52	+1	3343005..3343871	-	288	29348091	-	BT_2682	-	putative periplasmic protein
2682	 47.67	0	3343900..3345294	-	464	29348092	-	BT_2683	-	putative periplasmic protein
2683	 48.26	0	3345319..3345519	+	66	29348093	-	BT_2684	-	hypothetical protein
2684	 48.64	+1	3345516..3345809	-	97	29348094	-	BT_2685	-	hypothetical protein
2685	 48.37	0	3345822..3348980	-	1052	29348095	-	BT_2686	-	putative cation efflux transporter
2686	 48.28	0	3349011..3350027	-	338	29348096	-	BT_2687	-	cation efflux system protein
2687	 45.06	0	3350059..3351405	-	448	29348097	-	BT_2688	-	outer membrane efflux protein
2688	 41.98	0	3351455..3352102	-	215	29348098	-	BT_2689	-	hypothetical protein
2689	 49.80	+1	3352437..3353936	-	499	29348099	-	BT_2690	-	histidine ammonia-lyase
2690	 50.16	+1	3353933..3354562	-	209	29348100	-	BT_2691	-	methenyltetrahydrofolate cyclohydrolase
2691	 50.56	+1	3354584..3355837	-	417	29348101	-	BT_2692	-	imidazolonepropionase
2692	 50.28	+1	3355935..3356837	-	300	29348102	-	BT_2693	-	formiminotransferase-cyclodeaminase
2693	 50.30	+1	3356866..3358857	-	663	29348103	-	BT_2694	-	urocanate hydratase
2694	 44.99	0	3358978..3359646	-	222	29348104	-	BT_2695	-	hypothetical protein
2695	 38.97	0	3359698..3359892	+	64	29348105	-	BT_2696	-	hypothetical protein
2696	 43.64	0	3360681..3362495	+	604	29348106	-	BT_2697	-	DNA mismatch repair protein mutS
2697	 38.70	0	3362686..3363225	-	179	29348107	-	BT_2698	-	hypothetical protein
2698	 41.16	0	3363332..3363727	-	131	29348108	-	BT_2699	-	hypothetical protein
2699	 39.84	0	3363875..3364366	-	163	29348109	rplQ	BT_2700	-	50S ribosomal protein L17
2700	 38.97	0	3364370..3365362	-	330	29348110	-	BT_2701	-	DNA-directed RNA polymerase subunit alpha
2701	 39.60	0	3365374..3365979	-	201	29348111	rpsD	BT_2702	-	30S ribosomal protein S4
2702	 41.79	0	3366096..3366485	-	129	29348112	-	BT_2703	-	30S ribosomal protein S11
2703	 37.80	-1	3366497..3366877	-	126	29348113	rpsM	BT_2704	-	30S ribosomal protein S13
2704	 36.07	-1	3367037..3367255	-	72	29348114	infA	BT_2705	-	translation initiation factor IF-1
2705	 41.35	0	3367257..3368054	-	265	29348115	-	BT_2706	-	methionine aminopeptidase
2706	 37.65	-1	3368070..3369413	-	447	29348116	secY	BT_2707	-	preprotein translocase subunit SecY
2707	 39.37	0	3369418..3369864	-	148	29348117	rplO	BT_2708	-	50S ribosomal protein L15
2708	 37.85	-1	3369896..3370072	-	58	29348118	rpmD	BT_2709	-	50S ribosomal protein L30
2709	 39.50	0	3370082..3370600	-	172	29348119	rpsE	BT_2710	-	30S ribosomal protein S5
2710	 38.26	0	3370606..3370950	-	114	29348120	rplR	BT_2711	-	50S ribosomal protein L18
2711	 39.47	0	3370972..3371541	-	189	29348121	rplF	BT_2712	-	50S ribosomal protein L6
2712	 37.12	-1	3371559..3371954	-	131	29348122	rpsH	BT_2713	-	30S ribosomal protein S8
2713	 45.00	0	3372007..3372306	-	99	29348123	rpsN	BT_2714	-	30S ribosomal protein S14
2714	 36.74	-1	3372313..3372870	-	185	29348124	rplE	BT_2715	-	50S ribosomal protein L5
2715	 39.31	0	3372873..3373190	-	105	29348125	rplX	BT_2716	-	50S ribosomal protein L24
2716	 40.98	0	3373211..3373576	-	121	29348126	rplN	BT_2717	-	50S ribosomal protein L14
2717	 35.19	-1	3373579..3373848	-	89	29348127	rpsQ	BT_2718	-	30S ribosomal protein S17
2718	 32.32	-2	3373845..3374042	-	65	29348128	rpmC	BT_2719	-	50S ribosomal protein L29
2719	 42.07	0	3374048..3374482	-	144	29348129	rplP	BT_2720	-	50S ribosomal protein L16
2720	 39.48	0	3374506..3375237	-	243	29348130	rpsC	BT_2721	-	30S ribosomal protein S3
2721	 40.15	0	3375243..3375653	-	136	29348131	rplV	BT_2722	-	50S ribosomal protein L22
2722	 37.04	-1	3375689..3375958	-	89	29348132	rpsS	BT_2723	-	30S ribosomal protein S19
2723	 43.52	0	3375979..3376803	-	274	29348133	rplB	BT_2724	-	50S ribosomal protein L2
2724	 32.99	-2	3376809..3377099	-	96	29348134	rplW	BT_2725	-	50S ribosomal protein L23
2725	 39.39	0	3377116..3377742	-	208	29348135	rplD	BT_2726	-	50S ribosomal protein L4
2726	 42.56	0	3377742..3378359	-	205	29348136	rplC	BT_2727	-	50S ribosomal protein L3
2727	 39.54	0	3378378..3378683	-	101	29348137	rpsJ	BT_2728	-	30S ribosomal protein S10
2728	 41.60	0	3378768..3380885	-	705	29348138	-	BT_2729	-	elongation factor G
2729	 38.99	0	3380941..3381417	-	158	29348139	-	BT_2730	-	30S ribosomal protein S7
2730	 45.77	0	3381561..3381962	-	133	29348140	rpsL	BT_2731	-	30S ribosomal protein S12
2731	 43.14	0	3382099..3382404	-	101	29348141	-	BT_2732	-	hypothetical protein
2732	 43.51	0	3382547..3386830	-	1427	29348142	-	BT_2733	-	DNA-directed RNA polymerase subunit beta'
2733	 42.85	0	3386937..3390749	-	1270	29348143	rpoB	BT_2734	-	DNA-directed RNA polymerase subunit beta
2734	 41.87	0	3390854..3391228	-	124	29348144	rplL	BT_2735	-	50S ribosomal protein L7/L12
2735	 41.04	0	3391276..3391794	-	172	29348145	rplJ	BT_2736	-	50S ribosomal protein L10
2736	 40.06	0	3391810..3392508	-	232	29348146	rplA	BT_2737	-	50S ribosomal protein L1
2737	 42.79	0	3392524..3392967	-	147	29348147	rplK	BT_2738	-	50S ribosomal protein L11
2738	 41.80	0	3393029..3393571	-	180	29348148	-	BT_2739	-	transcription anti-termination protein
2739	 44.89	0	3393922..3395106	-	394	29348149	tuf	BT_2740	-	elongation factor Tu
2740	 36.67	-1	3395754..3396053	-	99	29348150	-	BT_2741	-	sigma-54 modulation protein
2741	 40.48	0	3396070..3396951	-	293	29348151	-	BT_2742	-	integrase, site-specific recombinase
2742	 45.62	0	3397408..3399189	+	593	29348152	-	BT_2743	-	putative aminopeptidase
2743	 44.05	0	3399339..3399851	+	170	29348153	-	BT_2744	-	acetyltransferase
2744	 38.85	0	3400447..3401661	+	404	29348154	-	BT_2745	-	thiol:disulfide interchange protein
2745	 41.07	0	3401658..3403286	+	542	29348155	-	BT_2746	-	thiol:disulfide interchange protein tlpA
2746	 43.87	0	3403559..3404782	-	407	29348156	-	BT_2747	-	3-deoxy-D-manno-octulosonic-acid transferase
43.33	MEAN

5.15	STD DEV
