IslandPath Analysis: Bacteroides thetaiotaomicron VPI-5482

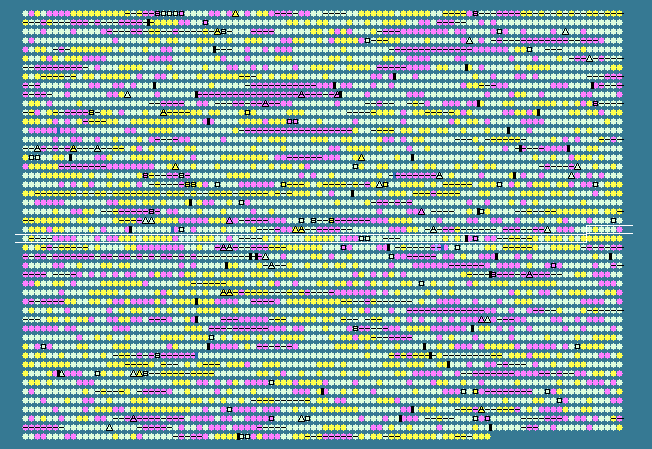

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 43.33 STD DEV: 5.15
Bacteroides thetaiotaomicron VPI-5482, complete genome - 1..6260361
4778 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2495	 45.95	0	3117358..3118617	+	419	29347905	-	BT_2495	-	ABC transporter, putative permease
2496	 49.19	+1	3118623..3119864	+	413	29347906	-	BT_2496	-	putative ABC transporter, ATP-binding protein
2497	 43.05	0	3119920..3121020	+	366	29347907	-	BT_2497	-	membrane fusion efflux protein
2498	 42.97	0	3121031..3122368	+	445	29347908	-	BT_2498	-	putative outer membrane efflux protein
2499	 43.34	0	3122545..3123573	+	342	29347909	-	BT_2499	-	bifunctional methionine sulfoxide reductase A/B protein
2500	 36.99	-1	3123705..3124223	-	172	29347910	-	BT_2500	-	hypothetical protein
2501	 42.77	0	3124539..3126488	+	649	29347911	-	BT_2501	-	penicillin-binding protein
2502	 47.00	0	3126511..3127710	-	399	29347912	-	BT_2502	-	hypothetical protein
2503	 42.48	0	3127725..3128741	-	338	29347913	-	BT_2503	-	hypothetical protein
2504	 43.17	0	3128774..3129454	-	226	29347914	-	BT_2504	-	hypothetical protein
2505	 44.64	0	3129568..3130407	-	279	29347915	-	BT_2505	-	hypothetical protein
2506	 31.21	-2	3131263..3131781	+	172	29347916	-	BT_2506	-	hypothetical protein
2507	 32.21	-2	3131786..3132496	+	236	29347917	-	BT_2507	-	hypothetical protein
2508	 35.30	-1	3132478..3133086	+	202	29347918	-	BT_2508	-	hypothetical protein
2509	 33.00	-2	3133120..3134022	+	300	29347919	-	BT_2509	-	putative transcriptional regulator
2510	 46.31	0	3134337..3135338	+	333	29347920	-	BT_2510	-	malate dehydrogenase
2511	 42.14	0	3135438..3135857	-	139	29347921	-	BT_2511	-	putative transcription regulator
2512	 44.92	0	3135864..3137822	-	652	29347922	-	BT_2512	-	cation-transporting ATPase, P-type, putative zinc-transporting ATPase
2513	 39.65	0	3137994..3139433	+	479	29347923	-	BT_2513	-	hypothetical protein
2514	 42.93	0	3139477..3139674	-	65	29347924	-	BT_2514	-	hypothetical protein
2515	 39.33	0	3139814..3139963	-	49	29347925	-	BT_2515	-	hypothetical protein
2516	 39.83	0	3140032..3140724	+	230	29347926	-	BT_2516	-	hypothetical protein
2517	 49.89	+1	3141356..3143197	-	613	29347927	-	BT_2517	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
2518	 49.22	+1	3143198..3143713	-	171	29347928	-	BT_2518	-	phosphoribosylaminoimidazole carboxylase
2519	 48.29	0	3143795..3144175	-	126	29347929	-	BT_2519	-	glycine cleavage system protein H
2520	 45.24	0	3144206..3144877	-	223	29347930	-	BT_2520	-	hypothetical protein
2521	 48.89	+1	3144919..3146403	-	494	29347931	-	BT_2521	-	RNA polymerase sigma-54
2522	 48.91	+1	3146542..3147915	+	457	29347932	-	BT_2522	-	Xaa-Pro aminopeptidase
2523	 48.11	0	3148116..3151574	+	1152	29347933	-	BT_2523	-	alpha-rhamnosidase
2524	 48.79	+1	3151580..3154225	+	881	29347934	-	BT_2524	-	alpha-rhamnosidase
2525	 47.46	0	3154308..3155666	+	452	29347935	-	BT_2525	-	cephalosporin-C deacetylase
2526	 37.09	-1	3155836..3156234	-	132	29347936	-	BT_2526	-	hypothetical protein
2527	 45.34	0	3156436..3158109	-	557	29347937	-	BT_2527	-	uridine kinase (uridine monophosphokinase)
2528	 46.70	0	3158197..3159894	+	565	29347938	-	BT_2528	-	putative Na+-dependent phosphate transporter
2529	 46.22	0	3160255..3161325	+	356	29347939	-	BT_2529	-	hypothetical protein
2530	 50.45	+1	3161409..3162734	+	441	29347940	-	BT_2530	-	hypothetical protein
2531	 49.25	+1	3162750..3165878	+	1042	29347941	-	BT_2531	-	hypothetical protein
2532	 51.63	+1	3165906..3167933	+	675	29347942	-	BT_2532	-	hypothetical protein
2533	 44.96	0	3167954..3168856	+	300	29347943	-	BT_2533	-	hypothetical protein
2534	 45.81	0	3169083..3169691	+	202	29347944	-	BT_2534	-	hypothetical protein
2535	 33.04	-1	3169871..3170206	+	111	29347945	-	BT_2535	-	hypothetical protein
2536	 40.49	0	3170262..3170750	+	162	29347946	-	BT_2536	-	hypothetical protein
2537	 42.45	0	3170856..3171239	-	127	29347947	-	BT_2537	-	hypothetical protein
2538	 45.34	0	3171579..3172061	+	160	29347948	-	BT_2538	-	hypothetical protein
2539	 46.06	0	3172165..3172329	-	54	29347949	-	BT_2539	-	rubredoxin
2540	 46.00	0	3172551..3173726	+	391	29347950	-	BT_2540	-	two-component system sensor histidine kinase
2541	 49.76	+1	3173813..3176503	+	896	29347951	-	BT_2541	-	putative calcium-transporting ATPase
2542	 44.71	0	3176511..3177134	+	207	29347952	-	BT_2542	-	putative haloacid dehalogenase-like hydrolase
2543	 48.91	+1	3177145..3178107	+	320	29347953	-	BT_2543	-	riboflavin biosynthesis protein ribF, putative riboflavin kinase
2544	 46.14	0	3178471..3179274	+	267	29347954	-	BT_2544	-	putative metal-dependent membrane protease
2545	 45.66	0	3179287..3179943	+	218	29347955	-	BT_2545	-	hypothetical protein
2546	 44.91	0	3179966..3180181	+	71	29347956	-	BT_2546	-	transcriptional regulator
2547	 42.96	0	3180300..3180725	-	141	29347957	-	BT_2547	-	hypothetical protein
2548	 46.89	0	3180756..3181751	-	331	29347958	-	BT_2548	-	leucine aminopeptidase precursor
2549	 47.08	0	3181823..3182731	-	302	29347959	-	BT_2549	-	putative carboxypeptidase
2550	 47.34	0	3182742..3183548	-	268	29347960	-	BT_2550	-	beta-glucanase precursor
2551	 50.90	+1	3183728..3184672	+	314	29347961	-	BT_2551	-	phosphate butyryltransferase
2552	 48.78	+1	3184703..3185764	+	353	29347962	-	BT_2552	-	butyrate kinase
2553	 40.07	0	3186074..3187825	-	583	29347963	-	BT_2553	-	hypothetical protein
2554	 38.29	0	3187855..3188298	-	147	29347964	-	BT_2554	-	hypothetical protein
2555	 30.79	-2	3188509..3188823	+	104	29347965	-	BT_2555	-	hypothetical protein
2556	 39.32	0	3189062..3189445	+	127	29347966	-	BT_2556	-	hypothetical protein
2557	 44.44	0	3189619..3190338	+	239	29347967	-	BT_2557	-	transposase
2558	 41.65	0	3191097..3192419	+	440	29347968	-	BT_2558	-	transposase
2559	 44.34	0	3192720..3194363	-	547	29347969	-	BT_2559	-	hypothetical protein
2560	 45.11	0	3194382..3197684	-	1100	29347970	-	BT_2560	-	hypothetical protein
2561	 45.47	0	3197963..3198901	-	312	29347971	-	BT_2561	-	putative anti-sigma factor
2562	 44.13	0	3199007..3199432	-	141	29347972	-	BT_2562	-	putative RNA polymerase ECF-type sigma factor
2563	 46.12	0	3199710..3201836	-	708	29347973	-	BT_2563	-	polynucleotide phosphorylase/polyadenylase
2564	 46.61	0	3202032..3203183	+	383	29347974	-	BT_2564	-	hypothetical protein
2565	 41.94	0	3203364..3203828	+	154	29347975	-	BT_2565	-	transcription elongation factor greA
2566	 42.75	0	3203881..3204273	+	130	29347976	-	BT_2566	-	HIT family protein
2567	 46.15	0	3204350..3205270	-	306	29347977	-	BT_2567	-	putative permease
2568	 45.50	0	3205277..3206509	-	410	29347978	-	BT_2568	-	putative sugar transporter
2569	 43.06	0	3206763..3207266	+	167	29347979	-	BT_2569	-	RNA polymerase ECF-type sigma factor
2570	 46.20	0	3207526..3208971	+	481	29347980	-	BT_2570	-	glutamate decarboxylase
2571	 49.59	+1	3208980..3209945	+	321	29347981	-	BT_2571	-	glutaminase
2572	 44.81	0	3210215..3210946	-	243	29347982	-	BT_2572	-	putative potassium channel subunit
2573	 47.87	0	3211163..3212875	+	570	29347983	-	BT_2573	-	glutamate/gamma-aminobutyrate anti-porter
2574	 40.79	0	3212942..3214201	-	419	29347984	-	BT_2574	-	two-component system sensor histidine kinase
2575	 29.73	-2	3214717..3214938	+	73	29347985	-	BT_2575	-	hypothetical protein
2576	 39.64	0	3214935..3216170	+	411	29347986	-	BT_2576	-	transposase
2577	 41.17	0	3216518..3220741	-	1407	29347987	-	BT_2577	-	hypothetical protein
2578	 38.69	0	3220722..3221915	-	397	29347988	-	BT_2578	-	hypothetical protein
2579	 34.75	-1	3222805..3223650	-	281	29347989	-	BT_2579	-	hypothetical protein
2580	 45.66	0	3224933..3225151	-	72	29347990	-	BT_2580	-	hypothetical protein
2581	 45.24	0	3225213..3225716	+	167	29347991	-	BT_2581	-	hypothetical protein
2582	 49.82	+1	3225821..3226372	+	183	29347992	-	BT_2582	-	hypothetical protein
2583	 46.93	0	3226384..3227310	+	308	29347993	-	BT_2583	-	hypothetical protein
2584	 46.18	0	3227303..3228127	+	274	29347994	-	BT_2584	-	hypothetical protein
2585	 50.34	+1	3228139..3228432	+	97	29347995	-	BT_2585	-	hypothetical protein
2586	 49.60	+1	3228445..3228948	+	167	29347996	-	BT_2586	-	hypothetical protein
2587	 45.65	0	3229181..3230146	+	321	29347997	-	BT_2587	-	hypothetical protein
2588	 48.26	0	3230392..3231195	+	267	29347998	-	BT_2588	-	hypothetical protein
2589	 50.71	+1	3231198..3231968	+	256	29347999	-	BT_2589	-	type I restriction enzyme, M subunit
2590	 52.25	+1	3232093..3233250	+	385	29348000	-	BT_2590	-	hypothetical protein
2591	 41.87	0	3233613..3233975	+	120	29348001	-	BT_2591	-	hypothetical protein
2592	 47.35	0	3234077..3234811	+	244	29348002	-	BT_2592	-	hypothetical protein
2593	 45.68	0	3234756..3235241	-	161	29348003	-	BT_2593	-	protein found in conjugate transposon
2594	 47.11	0	3235241..3235828	-	195	29348004	-	BT_2594	-	protein found in conjugate transposon
43.33	MEAN

5.15	STD DEV
