IslandPathversion 1.0

IslandPath Analysis: Bacteroides thetaiotaomicron VPI-5482

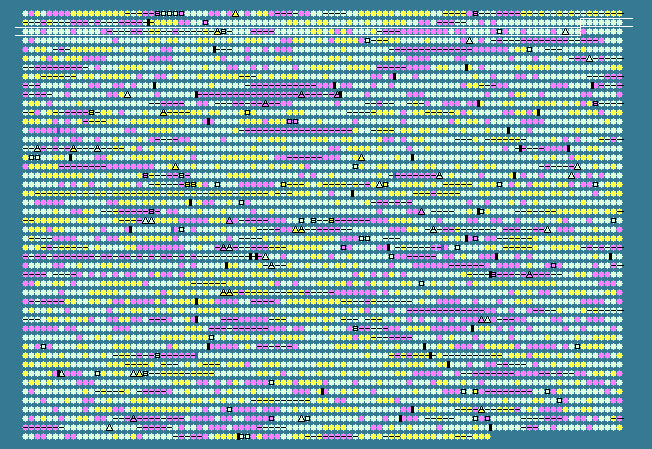

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 43.33 STD DEV: 5.15
Bacteroides thetaiotaomicron VPI-5482, complete genome - 1..6260361
4778 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
194	 40.51	0	207864..208922	+	352	29345604	-	BT_0194	-	hypothetical protein
195	 40.00	0	208943..209842	+	299	29345605	-	BT_0195	-	glycerophosphoryl diester phosphodiesterase
196	 43.36	0	209855..211201	+	448	29345606	-	BT_0196	-	putative hexose phosphate transport protein
197	 40.33	0	211460..212059	+	199	29345607	-	BT_0197	-	hypothetical protein
198	 40.63	0	212369..214273	+	634	29345608	-	BT_0198	-	hypothetical protein
199	 40.85	0	214349..214840	+	163	29345609	-	BT_0199	-	hypothetical protein
200	 41.55	0	215094..215945	+	283	29345610	hisG	BT_0200	-	ATP phosphoribosyltransferase
201	 46.31	0	215955..217241	+	428	29345611	-	BT_0201	-	histidinol dehydrogenase
202	 42.75	0	217238..218278	+	346	29345612	-	BT_0202	-	histidinol-phosphate aminotransferase
203	 43.64	0	218282..219406	+	374	29345613	-	BT_0203	-	imidazole glycerol-phosphate dehydratase/histidinol phosphatase
204	 39.22	0	219497..220006	+	169	29345614	-	BT_0204	-	hypothetical protein
205	 43.77	0	220121..222046	-	641	29345615	nadE	BT_0205	-	NAD synthetase
206	 44.38	0	222704..225646	+	980	29345616	-	BT_0206	-	hypothetical protein
207	 42.38	0	225665..227200	+	511	29345617	-	BT_0207	-	hypothetical protein
208	 41.00	0	227218..228117	+	299	29345618	-	BT_0208	-	hypothetical protein
209	 39.78	0	228135..230087	+	650	29345619	-	BT_0209	-	hypothetical protein
210	 40.63	0	230133..232847	+	904	29345620	-	BT_0210	-	leucine-rich repeat-containing protein
211	 40.85	0	232865..234847	+	660	29345621	-	BT_0211	-	hypothetical protein
212	 44.78	0	234898..236985	+	695	29345622	-	BT_0212	-	protease
213	 43.14	0	236998..237813	+	271	29345623	-	BT_0213	-	hypothetical protein
214	 36.90	-1	237835..238311	+	158	29345624	-	BT_0214	-	hypothetical protein
215	 38.23	0	238500..238928	+	142	29345625	-	BT_0215	-	iron uptake regulatory protein
216	 41.53	0	238951..239511	+	186	29345626	-	BT_0216	-	putative rubrerythrin
217	 43.12	0	239643..240245	+	200	29345627	-	BT_0217	-	hypothetical protein
218	 40.00	0	240357..240821	-	154	29345628	-	BT_0218	-	thioredoxin (TRX)
219	 36.67	-1	240836..241135	-	99	29345629	-	BT_0219	-	thioredoxin C-2
220	 36.56	-1	241421..241606	-	61	29345630	-	BT_0220	-	hypothetical protein
221	 41.83	0	241657..242916	+	419	29345631	-	BT_0221	-	hypothetical protein
222	 48.83	+1	242935..243960	+	341	29345632	-	BT_0222	-	two-component system sensor
223	 49.93	+1	244031..244723	+	230	29345633	-	BT_0223	-	two-component system response regulator
224	 44.94	0	244852..245256	-	134	29345634	-	BT_0224	-	hypothetical protein
225	 44.11	0	245298..245891	-	197	29345635	-	BT_0225	-	hypothetical protein
226	 33.70	-1	245914..246459	-	181	29345636	-	BT_0226	-	hypothetical protein
227	 41.27	0	246480..247109	-	209	29345637	-	BT_0227	-	hypothetical protein
228	 45.62	0	247354..249387	-	677	29345638	-	BT_0228	-	putative protein involved in recombination
229	 45.03	0	249577..250602	-	341	29345639	-	BT_0229	-	hypothetical protein
230	 44.67	0	250714..252072	-	452	29345640	-	BT_0230	-	hypothetical protein
231	 48.92	+1	252110..252481	-	123	29345641	-	BT_0231	-	excisionase
232	 41.54	0	252590..253357	-	255	29345642	-	BT_0232	-	putative protein involved in transposition
233	 48.40	0	253724..254845	-	373	29345643	-	BT_0233	-	integrase
234	 45.64	0	254974..255924	-	316	29345644	-	BT_0234	-	putative transposase
235	 41.93	0	256382..257509	+	375	29345645	-	BT_0235	-	hypothetical protein
236	 43.14	0	257778..259826	-	682	29345646	-	BT_0236	-	hypothetical protein
237	 41.86	0	259935..262022	-	695	29345647	-	BT_0237	-	hypothetical protein
238	 42.97	0	262126..263370	-	414	29345648	-	BT_0238	-	anaerobic sulfatase-maturase
239	 37.96	-1	263528..264262	+	244	29345649	-	BT_0239	-	hypothetical protein
240	 33.62	-1	264306..266060	+	584	29345650	-	BT_0240	-	hypothetical protein
241	 39.58	0	266226..266609	+	127	29345651	-	BT_0241	-	hypothetical protein
242	 36.27	-1	266639..267115	+	158	29345652	-	BT_0242	-	putative polysaccharide deacetylase
243	 40.10	0	267194..268021	-	275	29345653	-	BT_0243	-	putative 1-acyl-sn-glycerol-3-phosphate acyltransferase
244	 46.20	0	268072..269322	+	416	29345654	-	BT_0244	-	putative exonuclease
245	 45.20	0	269319..272183	+	954	29345655	-	BT_0245	-	ATP-dependent exonuclease sbcC
246	 45.42	0	272167..273333	-	388	29345656	-	BT_0246	-	calcineurin-like phosphoesterase domain-containing protein
247	 44.39	0	273387..273965	-	192	29345657	-	BT_0247	-	hypothetical protein
248	 42.94	0	273972..274481	-	169	29345658	-	BT_0248	-	RNA polymerase ECF-type sigma factor
249	 48.28	0	274551..275453	-	300	29345659	-	BT_0249	-	5-methyltetrahydrofolate--homocysteine methyltransferase or methionine synthase
250	 46.94	0	275479..276816	-	445	29345660	-	BT_0250	-	dihydroorotase
251	 45.70	0	276813..277556	-	247	29345661	-	BT_0251	-	dolichol-phosphate mannosyltransferase
252	 48.26	0	277801..281184	+	1127	29345662	-	BT_0252	-	transcription-repair coupling factor
253	 36.05	-1	281298..282143	+	281	29345663	-	BT_0253	-	hypothetical protein
254	 47.61	0	282585..284447	-	620	29345664	-	BT_0254	-	hypothetical protein
255	 39.56	0	284532..284756	-	74	29345665	-	BT_0255	-	hypothetical protein
256	 42.77	0	284756..285073	-	105	29345666	-	BT_0256	-	hypothetical protein
257	 45.66	0	285198..288110	-	970	29345667	-	BT_0257	-	xanthan lyase
258	 45.43	0	288339..290330	-	663	29345668	-	BT_0258	-	glucosamine-6-phosphate deaminase-like protein
259	 47.46	0	290470..291255	-	261	29345669	-	BT_0259	-	putative amidohydrolase
260	 40.00	0	291378..291932	-	184	29345670	-	BT_0260	-	acyltransferase family protein
261	 38.52	0	291941..292210	-	89	29345671	-	BT_0261	-	hypothetical protein
262	 35.85	-1	292568..293203	+	211	29345672	-	BT_0262	-	hypothetical protein
263	 36.52	-1	293299..294711	+	470	29345673	-	BT_0263	-	hypothetical protein
264	 39.22	0	294837..296585	-	582	29345674	-	BT_0264	-	hypothetical protein
265	 37.85	-1	296627..298108	-	493	29345675	-	BT_0265	-	hypothetical protein
266	 37.17	-1	298121..299581	-	486	29345676	-	BT_0266	-	hypothetical protein
267	 32.12	-2	299864..303976	+	1370	29345677	-	BT_0267	-	two-component system sensor histidine kinase/response regulator, hybrid ('one component system')
268	 39.16	0	304251..307184	+	977	29345678	-	BT_0268	-	hypothetical protein
269	 39.57	0	307218..308756	+	512	29345679	-	BT_0269	-	hypothetical protein
270	 34.84	-1	308770..309564	+	264	29345680	-	BT_0270	-	hypothetical protein
271	 36.99	-1	309707..310582	+	291	29345681	-	BT_0271	-	hypothetical protein
272	 40.08	0	310606..313776	+	1056	29345682	-	BT_0272	-	hypothetical protein
273	 39.55	0	313801..315312	+	503	29345683	-	BT_0273	-	hypothetical protein
274	 36.79	-1	315339..316061	+	240	29345684	-	BT_0274	-	hypothetical protein
275	 40.21	0	316082..317767	+	561	29345685	-	BT_0275	-	hypothetical protein
276	 41.03	0	317808..319613	+	601	29345686	-	BT_0276	-	hypothetical protein
277	 41.60	0	319627..321744	+	705	29345687	-	BT_0277	-	hypothetical protein
278	 40.50	0	321756..323528	+	590	29345688	-	BT_0278	-	hypothetical protein
279	 33.20	-1	323675..324427	+	250	29345689	-	BT_0279	-	hypothetical protein
280	 45.24	0	324541..325758	+	405	29345690	-	BT_0280	-	transposase for insertion sequence element ISRM3
281	 39.25	0	326008..326649	-	213	29345691	-	BT_0281	-	putative DNA-binding protein
282	 43.36	0	326951..328246	+	431	29345692	-	BT_0282	-	hypothetical protein
283	 40.86	0	328262..328447	+	61	29345693	-	BT_0283	-	hypothetical protein
284	 33.54	-1	328493..329944	+	483	29345694	-	BT_0284	-	peptidoglycan binding protein
285	 42.57	0	330174..331592	+	472	29345695	-	BT_0285	-	putative tolQ-type transport protein
286	 43.40	0	331576..332022	+	148	29345696	-	BT_0286	-	hypothetical protein
287	 40.85	0	332027..332452	+	141	29345697	-	BT_0287	-	putative biopolymer transmembrane protein
288	 46.78	0	332427..333950	+	507	29345698	-	BT_0288	-	hypothetical protein
289	 38.13	-1	334208..336898	-	896	29345699	-	BT_0289	-	hypothetical protein
290	 42.99	0	337216..339555	+	779	29345700	-	BT_0290	-	beta-galactosidase precursor
291	 41.10	0	339758..340723	+	321	29345701	-	BT_0291	-	integrase
292	 42.00	0	341115..341864	+	249	29345702	-	BT_0292	-	hypothetical protein
293	 42.25	0	341869..343101	+	410	29345703	-	BT_0293	-	hypothetical protein
43.33	MEAN

5.15	STD DEV
