IslandPath Analysis: Bacteroides thetaiotaomicron VPI-5482

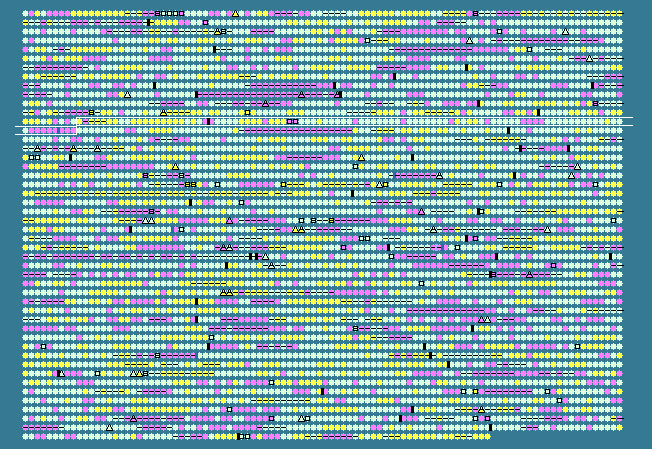

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 43.33 STD DEV: 5.15
Bacteroides thetaiotaomicron VPI-5482, complete genome - 1..6260361
4778 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1210	 48.24	0	1506320..1507882	-	520	29346620	-	BT_1210	-	cytochrome D ubiquinol oxidase subunit I
1211	 39.66	0	1507903..1508139	-	78	29346621	-	BT_1211	-	hypothetical protein
1212	 48.99	+1	1508365..1509756	+	463	29346622	-	BT_1212	-	outer membrane efflux protein
1213	 49.19	+1	1509808..1511037	+	409	29346623	-	BT_1213	-	periplasmic component of efflux system
1214	 52.55	+1	1511044..1511787	+	247	29346624	-	BT_1214	-	putative ABC transporter ATP-binding protein
1215	 51.27	+1	1511877..1513097	+	406	29346625	-	BT_1215	-	ABC transporter, permease protein
1216	 48.14	0	1513116..1514189	+	357	29346626	-	BT_1216	-	two-component system sensor
1217	 44.21	0	1514260..1514958	+	232	29346627	-	BT_1217	-	two-component system response regulator
1218	 45.78	0	1515380..1516078	+	232	29346628	-	BT_1218	-	hypothetical protein
1219	 47.53	0	1516364..1517314	-	316	29346629	-	BT_1219	-	hypothetical protein
1220	 49.71	+1	1517499..1518188	-	229	29346630	-	BT_1220	-	6-phosphogluconolactonase
1221	 48.90	+1	1518212..1519708	-	498	29346631	-	BT_1221	-	glucose-6-phosphate 1-dehydrogenase
1222	 49.46	+1	1520053..1521528	-	491	29346632	-	BT_1222	-	6-phosphogluconate dehydrogenase
1223	 53.33	+1	1521638..1522807	+	389	29346633	-	BT_1223	-	Na+/H+-dicarboxylate symporter
1224	 50.70	+1	1522884..1523954	+	356	29346634	-	BT_1224	-	GDP-mannose 4,6-dehydratase
1225	 49.21	+1	1524058..1525128	+	356	29346635	-	BT_1225	-	GDP-fucose synthetase
1226	 48.04	0	1525735..1527393	+	552	29346636	-	BT_1226	-	putative long-chain-fatty-acid--CoA ligase
1227	 48.83	+1	1527457..1528605	+	382	29346637	-	BT_1227	-	hypothetical protein
1228	 45.21	0	1528929..1530923	-	664	29346638	-	BT_1228	-	fructose-1,6-bisphosphatase
1229	 48.32	0	1531038..1532705	-	555	29346639	-	BT_1229	-	hypothetical protein
1230	 41.32	0	1532823..1533323	+	166	29346640	-	BT_1230	-	hypothetical protein
1231	 28.92	-2	1533844..1534047	-	67	29346641	-	BT_1231	-	hypothetical protein
1232	 31.40	-2	1534435..1534641	+	68	29346642	-	BT_1232	-	hypothetical protein
1233	 42.86	0	1534811..1535545	-	244	29346643	-	BT_1233	-	hypothetical protein
1234	 44.27	0	1535646..1536230	+	194	29346644	-	BT_1234	-	hypothetical protein
1235	 42.19	0	1536248..1537150	-	300	29346645	-	BT_1235	-	AraC-type transcription regulator
1236	 43.43	0	1537247..1538989	-	580	29346646	-	BT_1236	-	2',3'-cyclic-nucleotide 2'-phosphodiesterase precursor
1237	 48.18	0	1538986..1540911	-	641	29346647	-	BT_1237	-	two-component system sensor histidine kinase
1238	 52.74	+1	1540987..1543161	+	724	29346648	-	BT_1238	-	RNA-binding protein
1239	 49.39	+1	1543133..1544029	-	298	29346649	-	BT_1239	-	putative metal-dependent membrane protease
1240	 47.71	0	1544133..1545182	+	349	29346650	-	BT_1240	-	hypothetical protein
1241	 38.89	0	1545787..1546056	+	89	29346651	-	BT_1241	-	hypothetical protein
1242	 49.57	+1	1546314..1547933	-	539	29346652	-	BT_1242	-	ABC transporter ATP-binding protein
1243	 48.80	+1	1548137..1548718	+	193	29346653	-	BT_1243	-	GrpE protein (Hsp-70 cofactor)
1244	 51.72	+1	1548746..1549936	+	396	29346654	-	BT_1244	-	chaperone protein dnaJ
1245	 39.67	0	1550160..1550585	-	141	29346655	-	BT_1245	-	transposase
1246	 39.35	0	1550476..1551156	-	226	29346656	-	BT_1246	-	transposase
1247	 44.48	0	1551404..1553995	-	863	29346657	-	BT_1247	-	hypothetical protein
1248	 42.29	0	1554128..1555723	-	531	29346658	-	BT_1248	-	putative transport protein
1249	 45.09	0	1555729..1556757	-	342	29346659	-	BT_1249	-	putative multidrug resistance protein
1250	 48.03	0	1556809..1558128	-	439	29346660	-	BT_1250	-	putative outer membrane efflux protein
1251	 44.59	0	1558109..1558552	-	147	29346661	-	BT_1251	-	MarR family transcriptional regulator
1252	 43.48	0	1558801..1559352	+	183	29346662	-	BT_1252	-	hypothetical protein
1253	 44.44	0	1559353..1559649	+	98	29346663	-	BT_1253	-	hypothetical protein
1254	 42.48	0	1559674..1561029	+	451	29346664	-	BT_1254	-	hypothetical protein
1255	 42.56	0	1561154..1561738	-	194	29346665	-	BT_1255	-	hypothetical protein
1256	 39.36	0	1561738..1562019	-	93	29346666	-	BT_1256	-	hypothetical protein
1257	 41.45	0	1562224..1562691	+	155	29346667	-	BT_1257	-	hypothetical protein
1258	 40.99	0	1563229..1563672	-	147	29346668	-	BT_1258	-	putative acetyltransferase
1259	 46.08	0	1563925..1564905	+	326	29346669	-	BT_1259	-	choloylglycine hydrolase
1260	 43.57	0	1565228..1565872	+	214	29346670	-	BT_1260	-	putative peptidase
1261	 43.56	0	1565893..1567437	+	514	29346671	-	BT_1261	-	peptidase
1262	 42.53	0	1567483..1567830	-	115	29346672	-	BT_1262	-	putative transcriptional regulator
1263	 40.34	0	1567998..1568525	+	175	29346673	-	BT_1263	-	putative protease I
1264	 38.01	-1	1568994..1572113	+	1039	29346674	-	BT_1264	-	two-component system sensor histidine kinase
1265	 41.95	0	1572150..1572950	-	266	29346675	-	BT_1265	-	two-component system response regulator
1266	 41.19	0	1572943..1573998	-	351	29346676	-	BT_1266	-	two-component system sensor
1267	 44.67	0	1574015..1575319	-	434	29346677	-	BT_1267	-	outer membrane protein
1268	 45.37	0	1575322..1578354	-	1010	29346678	-	BT_1268	-	AcrB/AcrD/AcrF family transporter
1269	 43.23	0	1578365..1579435	-	356	29346679	-	BT_1269	-	component of multidrug efflux system
1270	 46.39	0	1579631..1580932	+	433	29346680	-	BT_1270	-	putative Na+/H+ antiporter
1271	 44.14	0	1581041..1581595	+	184	29346681	rpsP	BT_1271	-	30S ribosomal protein S16
1272	 39.56	0	1581772..1582767	+	331	29346682	-	BT_1272	-	FucR
1273	 48.25	0	1582840..1584615	+	591	29346683	fucI	BT_1273	-	L-fucose isomerase
1274	 46.01	0	1584725..1585363	+	212	29346684	-	BT_1274	-	L-fuculose-1-phosphate aldolase
1275	 48.36	0	1585379..1586809	+	476	29346685	-	BT_1275	-	L-fuculose kinase
1276	 48.09	0	1586817..1587209	+	130	29346686	-	BT_1276	-	hypothetical protein
1277	 45.25	0	1587227..1588543	+	438	29346687	-	BT_1277	-	L-fucose permease
1278	 35.69	-1	1588730..1589281	+	183	29346688	-	BT_1278	-	RNA polymerase ECF-type sigma factor
1279	 40.02	0	1589341..1590327	+	328	29346689	-	BT_1279	-	putative anti-sigma factor
1280	 42.72	0	1590525..1593857	+	1110	29346690	-	BT_1280	-	hypothetical protein
1281	 45.30	0	1593871..1595466	+	531	29346691	-	BT_1281	-	hypothetical protein
1282	 44.41	0	1595490..1596473	+	327	29346692	-	BT_1282	-	hypothetical protein
1283	 43.54	0	1596492..1597814	+	440	29346693	-	BT_1283	-	hypothetical protein
1284	 36.28	-1	1597842..1599368	+	508	29346694	-	BT_1284	-	putative endo-beta-N-acetylglucosaminidase F1 precursor (mannosyl-glycoprotein endo-beta-N-acetyl-glucosaminidase F1)
1285	 38.11	-1	1599565..1600485	+	306	29346695	-	BT_1285	-	endo-beta-N-acetylglucosaminidase
1286	 36.39	-1	1601915..1603615	+	566	29346696	-	BT_1286	-	putative two-component system response regulator
1287	 38.65	0	1603811..1604449	+	212	29346697	-	BT_1287	-	hypothetical protein
1288	 44.67	0	1604650..1605999	-	449	29346698	-	BT_1288	-	spermidine/putrescine ABC transporter
1289	 45.99	0	1606023..1606820	-	265	29346699	-	BT_1289	-	putrescine transport system permease protein potI
1290	 45.69	0	1606814..1607590	-	258	29346700	-	BT_1290	-	putrescine transport system permease protein potH
1291	 45.26	0	1607626..1609017	-	463	29346701	-	BT_1291	-	spermidine/putrescine transport ATP-binding protein
1292	 43.23	0	1609157..1610257	+	366	29346702	-	BT_1292	-	thiol:disulfide interchange protein
1293	 44.68	0	1610593..1613157	-	854	29346703	-	BT_1293	-	alpha-glucan phosphorylase
1294	 44.46	0	1613195..1614856	-	553	29346704	-	BT_1294	-	glycogen [starch] synthase, glycosyltransferase
1295	 46.32	0	1615062..1615523	-	153	29346705	-	BT_1295	-	V-type sodium ATP synthase subunit K
1296	 45.92	0	1615576..1617387	-	603	29346706	-	BT_1296	-	V-type ATP synthase subunit I
1297	 45.05	0	1617396..1618001	-	201	29346707	-	BT_1297	-	V-type ATP synthase subunit D
1298	 47.06	0	1618044..1619369	-	441	29346708	-	BT_1298	-	V-type ATP synthase subunit B
1299	 44.77	0	1619403..1621160	-	585	29346709	-	BT_1299	-	V-type ATP synthase subunit A
1300	 41.04	0	1621178..1622020	-	280	29346710	-	BT_1300	-	hypothetical protein
1301	 41.96	0	1622032..1622622	-	196	29346711	-	BT_1301	-	ATP synthase subunit E
1302	 37.36	-1	1622847..1623293	-	148	29346712	-	BT_1302	-	hypothetical protein
1303	 37.58	-1	1623311..1624111	-	266	29346713	-	BT_1303	-	hypothetical protein
1304	 36.29	-1	1624126..1624497	-	123	29346714	-	BT_1304	-	putative transcriptional regulator
1305	 34.07	-1	1624513..1625328	-	271	29346715	-	BT_1305	-	hypothetical protein
1306	 36.04	-1	1625332..1626180	-	282	29346716	-	BT_1306	-	putative ABC transporter ATP-binding protein
1307	 36.56	-1	1631849..1632034	-	61	29346717	-	BT_1307	-	hypothetical protein
1308	 36.42	-1	1632401..1633600	-	399	29346718	-	BT_1308	-	clostripain-related protein
1309	 37.31	-1	1633682..1634083	-	133	29346719	-	BT_1309	-	hypothetical protein
43.33	MEAN

5.15	STD DEV
