IslandPath Analysis: Bacteroides thetaiotaomicron VPI-5482

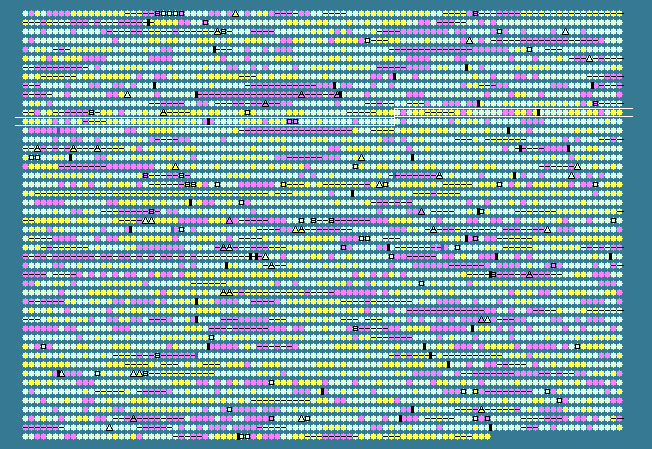

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 43.33 STD DEV: 5.15
Bacteroides thetaiotaomicron VPI-5482, complete genome - 1..6260361
4778 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1163	 41.20	0	1450246..1450995	+	249	29346573	-	BT_1163	-	hypothetical protein
1164	 38.31	0	1451006..1453234	+	742	29346574	-	BT_1164	-	hypothetical protein
1165	 40.94	0	1453338..1454705	+	455	29346575	-	BT_1165	-	hypothetical protein
1166	 47.78	0	1454709..1455608	+	299	29346576	-	BT_1166	-	putative glycosyltransferase
1167	 46.97	0	1455628..1456815	+	395	29346577	-	BT_1167	-	hypothetical protein
1168	 54.28	+2	1456971..1457414	-	147	29346578	-	BT_1168	-	N-acetylmuramoyl-L-alanine amidase
1169	 49.89	+1	1457353..1458240	+	295	29346579	-	BT_1169	-	hypothetical protein
1170	 50.39	+1	1458526..1458783	+	85	29346580	-	BT_1170	-	hypothetical protein
1171	 45.50	0	1459074..1459517	-	147	29346581	-	BT_1171	-	hypothetical protein
1172	 55.28	+2	1459791..1461590	-	599	29346582	-	BT_1172	-	DNA primase/helicase
1173	 49.65	+1	1461856..1462842	-	328	29346583	-	BT_1173	-	hypothetical protein
1174	 39.64	0	1462856..1463299	+	147	29346584	-	BT_1174	-	hypothetical protein
1175	 49.87	+1	1463435..1464553	+	372	29346585	-	BT_1175	-	hypothetical protein
1176	 41.70	0	1464684..1465544	+	286	29346586	-	BT_1176	-	putative glycosyltransferase
1177	 42.34	0	1465568..1467043	+	491	29346587	-	BT_1177	-	putative polysaccharide biosynthesis protein
1178	 41.11	0	1467040..1468170	+	376	29346588	-	BT_1178	-	hypothetical protein
1179	 45.18	0	1468183..1469094	+	303	29346589	-	BT_1179	-	glycosyl transferase family protein
1180	 40.78	0	1469098..1470252	+	384	29346590	-	BT_1180	-	putative glycosyltransferase
1181	 39.20	0	1470264..1471115	+	283	29346591	-	BT_1181	-	glycosyltransferase involved in cell wall biogenesis
1182	 37.06	-1	1471140..1472642	+	500	29346592	-	BT_1182	-	hypothetical protein
1183	 49.26	+1	1472680..1476690	+	1336	29346593	-	BT_1183	-	two-component system sensor histidine kinase/response regulator, hybrid ('one component system')
1184	 46.90	0	1476692..1477804	+	370	29346594	-	BT_1184	-	hypothetical protein
1185	 35.90	-1	1477919..1481191	-	1090	29346595	-	BT_1185	-	OmpA-related protein
1186	 47.01	0	1481408..1483096	-	562	29346596	-	BT_1186	-	putative ABC transporter ATP-binding protein
1187	 43.55	0	1483624..1484181	+	185	29346597	-	BT_1187	-	transcriptional regulator
1188	 45.51	0	1484444..1484755	+	103	29346598	-	BT_1188	-	putative transcription regulator
1189	 41.83	0	1484776..1485246	+	156	29346599	-	BT_1189	-	hypothetical protein
1190	 42.60	0	1485359..1486426	-	355	29346600	-	BT_1190	-	putative ATP GTP-binding protein
1191	 42.67	0	1486710..1487480	-	256	29346601	-	BT_1191	-	hypothetical protein
1192	 47.41	0	1487562..1488953	-	463	29346602	-	BT_1192	-	putative xylanase
1193	 51.47	+1	1489045..1490400	+	451	29346603	-	BT_1193	-	hypothetical protein
1194	 46.07	0	1490462..1491262	+	266	29346604	-	BT_1194	-	OmpA family outer membrane protein
1195	 46.85	0	1491240..1491986	+	248	29346605	mtgA	BT_1195	-	monofunctional biosynthetic peptidoglycan transglycosylase
1196	 48.42	0	1492071..1493846	-	591	29346606	-	BT_1196	-	pyruvate carboxylase subunit B)
1197	 39.68	0	1494056..1494559	-	167	29346607	-	BT_1197	-	RNA polymerase ECF-type sigma factor
1198	 45.28	0	1494802..1495362	+	186	29346608	-	BT_1198	-	LemA protein
1199	 49.22	+1	1495375..1496337	+	320	29346609	-	BT_1199	-	putative protease
1200	 47.47	0	1496433..1496927	+	164	29346610	-	BT_1200	-	hypothetical protein
1201	 48.57	+1	1496933..1497562	-	209	29346611	-	BT_1201	-	hypothetical protein
1202	 52.20	+1	1497645..1498121	+	158	29346612	-	BT_1202	-	UDP-N-acetylglucosamine 2-epimerase
1203	 50.00	+1	1498100..1498729	+	209	29346613	-	BT_1203	-	putative UDP-N-acetylglucosamine 2-epimerase
1204	 45.91	0	1499145..1501721	+	858	29346614	-	BT_1204	-	putative outer membrane protein
1205	 49.01	+1	1501726..1502994	+	422	29346615	-	BT_1205	-	recombination factor protein RarA
1206	 28.65	-2	1503031..1503393	+	120	29346616	-	BT_1206	-	hypothetical protein
1207	 45.77	0	1503427..1504383	+	318	29346617	-	BT_1207	-	glycerate dehydrogenase
1208	 32.28	-2	1504511..1504891	+	126	29346618	-	BT_1208	-	hypothetical protein
1209	 41.29	0	1505065..1506207	-	380	29346619	-	BT_1209	-	cytochrome D ubiquinol oxidase subunit II
1210	 48.24	0	1506320..1507882	-	520	29346620	-	BT_1210	-	cytochrome D ubiquinol oxidase subunit I
1211	 39.66	0	1507903..1508139	-	78	29346621	-	BT_1211	-	hypothetical protein
1212	 48.99	+1	1508365..1509756	+	463	29346622	-	BT_1212	-	outer membrane efflux protein
1213	 49.19	+1	1509808..1511037	+	409	29346623	-	BT_1213	-	periplasmic component of efflux system
1214	 52.55	+1	1511044..1511787	+	247	29346624	-	BT_1214	-	putative ABC transporter ATP-binding protein
1215	 51.27	+1	1511877..1513097	+	406	29346625	-	BT_1215	-	ABC transporter, permease protein
1216	 48.14	0	1513116..1514189	+	357	29346626	-	BT_1216	-	two-component system sensor
1217	 44.21	0	1514260..1514958	+	232	29346627	-	BT_1217	-	two-component system response regulator
1218	 45.78	0	1515380..1516078	+	232	29346628	-	BT_1218	-	hypothetical protein
1219	 47.53	0	1516364..1517314	-	316	29346629	-	BT_1219	-	hypothetical protein
1220	 49.71	+1	1517499..1518188	-	229	29346630	-	BT_1220	-	6-phosphogluconolactonase
1221	 48.90	+1	1518212..1519708	-	498	29346631	-	BT_1221	-	glucose-6-phosphate 1-dehydrogenase
1222	 49.46	+1	1520053..1521528	-	491	29346632	-	BT_1222	-	6-phosphogluconate dehydrogenase
1223	 53.33	+1	1521638..1522807	+	389	29346633	-	BT_1223	-	Na+/H+-dicarboxylate symporter
1224	 50.70	+1	1522884..1523954	+	356	29346634	-	BT_1224	-	GDP-mannose 4,6-dehydratase
1225	 49.21	+1	1524058..1525128	+	356	29346635	-	BT_1225	-	GDP-fucose synthetase
1226	 48.04	0	1525735..1527393	+	552	29346636	-	BT_1226	-	putative long-chain-fatty-acid--CoA ligase
1227	 48.83	+1	1527457..1528605	+	382	29346637	-	BT_1227	-	hypothetical protein
1228	 45.21	0	1528929..1530923	-	664	29346638	-	BT_1228	-	fructose-1,6-bisphosphatase
1229	 48.32	0	1531038..1532705	-	555	29346639	-	BT_1229	-	hypothetical protein
1230	 41.32	0	1532823..1533323	+	166	29346640	-	BT_1230	-	hypothetical protein
1231	 28.92	-2	1533844..1534047	-	67	29346641	-	BT_1231	-	hypothetical protein
1232	 31.40	-2	1534435..1534641	+	68	29346642	-	BT_1232	-	hypothetical protein
1233	 42.86	0	1534811..1535545	-	244	29346643	-	BT_1233	-	hypothetical protein
1234	 44.27	0	1535646..1536230	+	194	29346644	-	BT_1234	-	hypothetical protein
1235	 42.19	0	1536248..1537150	-	300	29346645	-	BT_1235	-	AraC-type transcription regulator
1236	 43.43	0	1537247..1538989	-	580	29346646	-	BT_1236	-	2',3'-cyclic-nucleotide 2'-phosphodiesterase precursor
1237	 48.18	0	1538986..1540911	-	641	29346647	-	BT_1237	-	two-component system sensor histidine kinase
1238	 52.74	+1	1540987..1543161	+	724	29346648	-	BT_1238	-	RNA-binding protein
1239	 49.39	+1	1543133..1544029	-	298	29346649	-	BT_1239	-	putative metal-dependent membrane protease
1240	 47.71	0	1544133..1545182	+	349	29346650	-	BT_1240	-	hypothetical protein
1241	 38.89	0	1545787..1546056	+	89	29346651	-	BT_1241	-	hypothetical protein
1242	 49.57	+1	1546314..1547933	-	539	29346652	-	BT_1242	-	ABC transporter ATP-binding protein
1243	 48.80	+1	1548137..1548718	+	193	29346653	-	BT_1243	-	GrpE protein (Hsp-70 cofactor)
1244	 51.72	+1	1548746..1549936	+	396	29346654	-	BT_1244	-	chaperone protein dnaJ
1245	 39.67	0	1550160..1550585	-	141	29346655	-	BT_1245	-	transposase
1246	 39.35	0	1550476..1551156	-	226	29346656	-	BT_1246	-	transposase
1247	 44.48	0	1551404..1553995	-	863	29346657	-	BT_1247	-	hypothetical protein
1248	 42.29	0	1554128..1555723	-	531	29346658	-	BT_1248	-	putative transport protein
1249	 45.09	0	1555729..1556757	-	342	29346659	-	BT_1249	-	putative multidrug resistance protein
1250	 48.03	0	1556809..1558128	-	439	29346660	-	BT_1250	-	putative outer membrane efflux protein
1251	 44.59	0	1558109..1558552	-	147	29346661	-	BT_1251	-	MarR family transcriptional regulator
1252	 43.48	0	1558801..1559352	+	183	29346662	-	BT_1252	-	hypothetical protein
1253	 44.44	0	1559353..1559649	+	98	29346663	-	BT_1253	-	hypothetical protein
1254	 42.48	0	1559674..1561029	+	451	29346664	-	BT_1254	-	hypothetical protein
1255	 42.56	0	1561154..1561738	-	194	29346665	-	BT_1255	-	hypothetical protein
1256	 39.36	0	1561738..1562019	-	93	29346666	-	BT_1256	-	hypothetical protein
1257	 41.45	0	1562224..1562691	+	155	29346667	-	BT_1257	-	hypothetical protein
1258	 40.99	0	1563229..1563672	-	147	29346668	-	BT_1258	-	putative acetyltransferase
1259	 46.08	0	1563925..1564905	+	326	29346669	-	BT_1259	-	choloylglycine hydrolase
1260	 43.57	0	1565228..1565872	+	214	29346670	-	BT_1260	-	putative peptidase
1261	 43.56	0	1565893..1567437	+	514	29346671	-	BT_1261	-	peptidase
1262	 42.53	0	1567483..1567830	-	115	29346672	-	BT_1262	-	putative transcriptional regulator
43.33	MEAN

5.15	STD DEV
