IslandPathversion 1.0

IslandPath Analysis: Bacillus subtilis subsp. subtilis str. 168

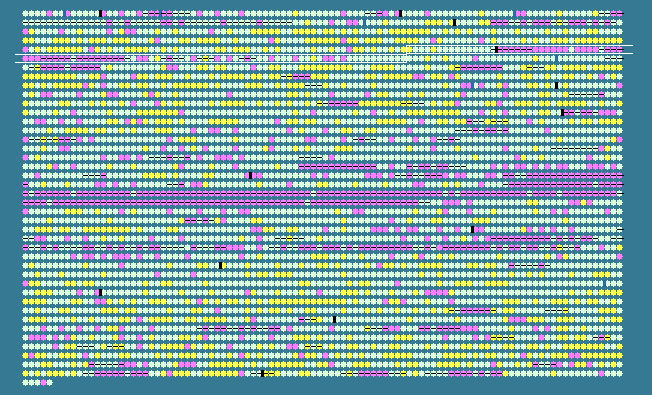

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 43.31 STD DEV: 4.61
Bacillus subtilis subsp. subtilis str. 168, complete genome - 1..4214630
4105 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
465	 47.52	0	518218..518499	+	93	16077532	ydcD	BSU04650	-	hypothetical protein
466	 42.45	0	518504..518854	+	116	16077533	ydcE	BSU04660	-	hypothetical protein
467	 43.27	0	518969..519793	+	274	16077534	rsbR	BSU04670	-	positive regulation of sigma-B activity in response to salt and heat stress
468	 44.26	0	519798..520163	+	121	16077535	rsbS	BSU04680	-	antagonist of RsbT
469	 48.01	+1	520167..520568	+	133	16077536	rsbT	BSU04690	-	switch protein/serine-threonine kinase
470	 42.56	0	520580..521587	+	335	16077537	rsbU	BSU04700	-	serine phosphatase
471	 41.21	0	521649..521978	+	109	16077538	rsbV	BSU04710	-	anti-anti-sigma factor (antagonist of RsbW)
472	 44.31	0	521975..522457	+	160	16077539	rsbW	BSU04720	-	serine-protein kinase RsbW
473	 45.28	0	522417..523211	+	264	16077540	sigB	BSU04730	-	RNA polymerase sigma factor SigB
474	 41.83	0	523211..523810	+	199	16077541	rsbX	BSU04740	-	serine phosphatase
475	 42.18	0	524053..524346	+	97	16077542	ydcF	BSU04750	-	hypothetical protein
476	 41.04	0	524343..524783	+	146	16077543	ydcG	BSU04760	-	hypothetical protein
477	 44.37	0	524767..525210	+	147	16077544	ydcH	BSU04770	-	hypothetical protein
478	 45.74	0	525304..527463	+	719	50812188	ydcI	BSU04780	-	hypothetical protein
479	 41.94	0	527690..528142	+	150	16077546	ydcK	BSU04790	-	hypothetical protein
480	 31.26	-2	529066..530172	-	368	16077547	ydcL	BSU04800	-	hypothetical protein
481	 31.57	-2	530185..530694	-	169	16077548	ydcM	BSU04810	-	hypothetical protein
482	 33.33	-2	530691..531074	-	127	16077549	ydcN	BSU04820	-	hypothetical protein
483	 34.87	-1	531348..531542	+	64	16077550	sacV	BSU04830	-	transcriptional regulator
484	 33.72	-2	531853..532113	+	86	16077551	ydcO	BSU04840	-	hypothetical protein
485	 38.58	-1	532483..532863	+	126	16077552	ydcP	BSU04850	-	hypothetical protein
486	 39.43	0	532899..534341	+	480	16077553	ydcQ	BSU04860	-	hypothetical protein
487	 38.62	-1	534334..535392	+	352	16077554	ydcR	BSU04870	-	hypothetical protein
488	 32.59	-2	535657..535926	+	89	16077555	ydcS	BSU04880	-	hypothetical protein
489	 36.70	-1	535965..536231	+	88	16077556	ydcT	BSU04890	-	hypothetical protein
490	 35.92	-1	536248..536556	+	102	16077557	yddA	BSU04900	-	hypothetical protein
491	 35.68	-1	536546..537610	+	354	16077558	yddB	BSU04910	-	hypothetical protein
492	 40.56	0	537622..537870	+	82	16077559	yddC	BSU04920	-	hypothetical protein
493	 36.76	-1	537883..538407	+	174	16077560	yddD	BSU04930	-	hypothetical protein
494	 39.02	0	538295..540790	+	831	16077561	yddE	BSU04940	-	hypothetical protein
495	 34.56	-1	540809..541135	+	108	16077562	yddF	BSU04950	-	hypothetical protein
496	 38.52	-1	541139..543586	+	815	16077563	yddG	BSU04960	-	hypothetical protein
497	 41.31	0	543583..544572	+	329	16077564	yddH	BSU04970	-	hypothetical protein
498	 34.32	-1	544587..545093	+	168	16077565	yddI	BSU04980	-	hypothetical protein
499	 33.60	-2	545156..545536	+	126	16077566	yddJ	BSU04990	-	hypothetical protein
500	 29.71	-2	545727..546527	-	266	16077567	yddK	BSU05000	-	hypothetical protein
501	 30.78	-2	546867..548042	+	391	16077568	rapI	BSU05010	-	response regulator aspartate phosphatase
502	 35.83	-1	547999..548118	+	39	16077569	phrI	BSU05020	-	regulator of the activity of phosphatase RapI
503	 29.62	-2	548271..549212	+	313	16077570	yddM	BSU05030	-	hypothetical protein
504	 38.33	-1	549783..550802	-	339	16077571	yddN	BSU05040	-	hypothetical protein
505	 29.68	-2	551062..551472	+	136	16077572	lrpA	BSU05050	-	AsnC/Lrp family transcriptional regulator
506	 31.56	-2	551595..552044	-	149	16077573	lrpB	BSU05060	-	AsnC/Lrp family transcriptional regulator
507	 37.57	-1	552159..552701	+	180	16077574	yddQ	BSU05070	-	hypothetical protein
508	 34.64	-1	553254..554018	+	254	16077575	yddR	BSU05080	-	hypothetical protein
509	 40.12	0	554212..555522	+	436	16077576	yddS	BSU05090	-	hypothetical protein
510	 35.37	-1	556306..556992	+	228	16077577	yddT	BSU05100	-	hypothetical protein
511	 32.15	-2	557952..558545	+	197	16077578	ydeA	BSU05110	-	hypothetical protein
512	 39.80	0	558808..559008	+	66	16077579	cspC	BSU05120	-	cold-shock protein
513	 32.47	-2	559695..560156	-	153	16077580	ydeB	BSU05130	-	hypothetical protein
514	 37.55	-1	560724..560960	-	78	16077581	ydzE	BSU05140	-	hypothetical protein
515	 34.47	-1	561058..561933	-	291	16077582	ydeC	BSU05150	-	hypothetical protein
516	 39.58	0	562046..563005	+	319	16077583	ydeD	BSU05160	-	hypothetical protein
517	 37.92	-1	563158..564030	-	290	16077584	ydeE	BSU05170	-	hypothetical protein
518	 40.92	0	564248..565645	+	465	16077585	ydeF	BSU05180	-	hypothetical protein
519	 44.08	0	565755..567047	+	430	16077586	ydeG	BSU05190	-	hypothetical protein
520	 34.45	-1	567206..567652	+	148	16077587	ydeH	BSU05200	-	hypothetical protein
521	 36.36	-1	567889..568482	+	197	16077588	ydeI	BSU05210	-	hypothetical protein
522	 41.36	0	568834..569493	-	219	16077589	ydeJ	BSU05220	-	hypothetical protein
523	 53.36	+2	569915..570778	-	287	16077590	ydeK	BSU05230	-	hypothetical protein
524	 41.81	0	570933..572324	+	463	16077591	ydeL	BSU05240	-	hypothetical protein
525	 34.74	-1	572518..572943	+	141	16077592	ydeM	BSU05250	-	hypothetical protein
526	 41.54	0	572996..573568	-	190	16077593	ydeN	BSU05260	-	hypothetical protein
527	 44.55	0	573650..573979	-	109	16077594	ydzF	BSU05270	-	hypothetical protein
528	 40.78	0	574234..575106	+	290	16077595	ydeO	BSU05280	-	hypothetical protein
529	 39.53	0	575256..575642	-	128	16077596	ydeP	BSU05290	-	hypothetical protein
530	 42.42	0	575753..576346	+	197	16077597	ydeQ	BSU05300	-	hypothetical protein
531	 46.97	0	576490..577677	-	395	16077598	ydeR	BSU05310	-	hypothetical protein
532	 46.40	0	577881..578477	+	198	16077599	ydeS	BSU05320	-	hypothetical protein
533	 37.80	-1	579085..579420	+	111	16077600	ydeT	BSU05330	-	hypothetical protein
534	 40.52	0	579433..580740	+	435	16077601	ydfA	BSU05340	-	hypothetical protein
535	 36.51	-1	581238..582023	+	261	16077602	ydfB	BSU05350	-	hypothetical protein
536	 41.37	0	582080..583000	-	306	16077603	ydfC	BSU05360	-	hypothetical protein
537	 40.17	0	583133..584581	+	482	16077604	ydfD	BSU05370	-	hypothetical protein
538	 39.58	0	584699..585322	-	207	16077605	ydfE	BSU05380	-	hypothetical protein
539	 42.58	0	585412..586092	+	226	16077606	ydfF	BSU05390	-	hypothetical protein
540	 40.77	0	586172..586615	-	147	16077607	ydfG	BSU05400	-	hypothetical protein
541	 40.69	0	587288..588511	+	407	16077608	ydfH	BSU05410	-	hypothetical protein
542	 39.25	0	588504..589145	+	213	16077609	ydfI	BSU05420	-	hypothetical protein
543	 42.44	0	589261..591435	+	724	16077610	ydfJ	BSU05430	-	hypothetical protein
544	 42.64	0	591847..592749	-	300	16077611	nap	BSU05440	-	carboxylesterase Na
545	 41.45	0	592951..593640	-	229	16077612	ydfK	BSU05450	-	hypothetical protein
546	 36.65	-1	593730..594542	-	270	16077613	ydfL	BSU05460	-	hypothetical protein
547	 42.84	0	594653..595546	-	297	16077614	ydfM	BSU05470	-	hypothetical protein
548	 41.87	0	596022..596642	+	206	16077615	ydfN	BSU05480	-	hypothetical protein
549	 47.18	0	596658..597596	+	312	16077616	ydfO	BSU05490	-	hypothetical protein
550	 44.36	0	597698..598087	+	129	16077617	ydfP	BSU05500	-	hypothetical protein
551	 38.64	-1	598273..598611	+	112	16077618	ydfQ	BSU05510	-	hypothetical protein
552	 37.13	-1	598651..598887	-	78	16077619	ydzH	BSU05520	-	hypothetical protein
553	 40.12	0	599773..600450	-	225	16077620	ydfR	BSU05530	-	hypothetical protein
554	 37.99	-1	600563..601270	+	235	16077621	ydfS	BSU05540	-	hypothetical protein
555	 40.05	0	601285..601716	-	143	16077622	cotP	BSU05550	-	spore coat protein
556	 39.92	0	601729..601971	-	80	16077623	ydgA	BSU05560	-	hypothetical protein
557	 39.93	0	601985..602257	-	90	16077624	ydgB	BSU05570	-	hypothetical protein
558	 41.67	0	602556..603143	+	195	16077625	ydgC	BSU05580	-	hypothetical protein
559	 43.19	0	603140..603484	+	114	16077626	ydgD	BSU05590	-	hypothetical protein
560	 45.15	0	603647..604120	+	157	16077627	ydgE	BSU05600	-	hypothetical protein
561	 43.98	0	604280..605923	-	547	16077628	expZ	BSU05610	-	ATP-binding transport protein
562	 44.30	0	606243..607619	-	458	16077629	ydgF	BSU05620	-	hypothetical protein
563	 41.81	0	607791..608309	-	172	16077630	dinB	BSU05630	-	nuclease inhibitor
564	 41.61	0	608478..608936	+	152	16077631	ydgG	BSU05640	-	hypothetical protein
43.31	MEAN

4.61	STD DEV
