IslandPath Analysis: Bacillus subtilis subsp. subtilis str. 168

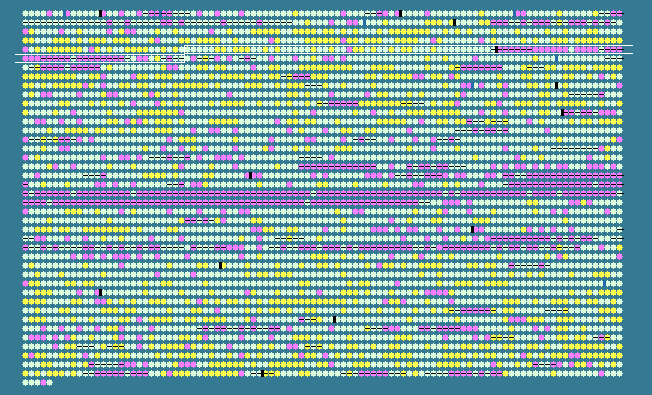

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 43.31 STD DEV: 4.61
Bacillus subtilis subsp. subtilis str. 168, complete genome - 1..4214630
4105 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
428	 44.84	0	479570..480421	+	283	16077495	ydaK	BSU04280	-	hypothetical protein
429	 46.08	0	480432..482141	+	569	16077496	ydaL	BSU04290	-	hypothetical protein
430	 45.21	0	482134..483396	+	420	16077497	ydaM	BSU04300	-	hypothetical protein
431	 45.83	0	483402..485513	+	703	16077498	ydaN	BSU04310	-	hypothetical protein
432	 46.33	0	485989..487812	+	607	16077499	ydaO	BSU04320	-	hypothetical protein
433	 49.78	+1	487871..488320	+	149	16077500	mutT	BSU04330	-	mutator protein
434	 50.20	+1	488387..490111	+	574	16077501	ydaP	BSU04340	-	pyruvate oxidase
435	 41.58	0	490288..490578	+	96	16077502	ydaQ	BSU04350	-	hypothetical protein
436	 48.28	+1	490702..491979	-	425	16077503	mntH	BSU04360	-	manganese transport protein MntH
437	 54.26	+2	492209..492466	-	85	16077504	ydaS	BSU04370	-	hypothetical protein
438	 46.80	0	492544..492996	-	150	16077505	ydaT	BSU04380	-	hypothetical protein
439	 46.76	0	493114..493932	+	272	16077506	ydbA	BSU04390	-	hypothetical protein
440	 42.20	0	494061..494432	+	123	16077507	gsiB	BSU04400	-	general stress protein
441	 48.25	+1	494564..494905	+	113	16077508	ydbB	BSU04410	-	hypothetical protein
442	 45.28	0	494899..495258	+	119	16077509	ydbC	BSU04420	-	hypothetical protein
443	 49.15	+1	495295..496116	-	273	16077510	ydbD	BSU04430	-	hypothetical protein
444	 43.78	0	496207..497259	-	350	16077511	dctB	BSU04440	-	C4-dicarboxylate binding protein
445	 46.58	0	497329..498936	+	535	16077512	dctS	BSU04450	-	two-component sensor histidine kinase
446	 46.70	0	498926..499606	+	226	16077513	dctR	BSU04460	-	two-component response regulator
447	 45.97	0	499727..500992	+	421	16077514	dctP	BSU04470	-	C4-dicarboxylate transporter DctA
448	 43.78	0	501140..502192	+	350	16077515	ydbI	BSU04480	-	hypothetical protein
449	 47.03	0	502469..503395	+	308	16077516	ydbJ	BSU04490	-	hypothetical protein
450	 41.97	0	503415..504155	+	246	16077517	ydbK	BSU04500	-	hypothetical protein
451	 43.15	0	504250..504585	+	111	16077518	ydbL	BSU04510	-	hypothetical protein
452	 50.26	+1	504713..505858	+	381	16077519	ydbM	BSU04520	-	hypothetical protein
453	 43.33	0	505883..506062	-	59	16077520	ydbN	BSU04530	-	hypothetical protein
454	 45.70	0	506427..507299	+	290	16077521	ydbO	BSU04540	-	hypothetical protein
455	 38.63	-1	507314..507634	-	106	16077522	ydbP	BSU04550	-	hypothetical protein
456	 46.85	0	507809..508873	+	354	16077523	ddl	BSU04560	-	D-alanyl-alanine synthetase A
457	 47.02	0	508945..510318	+	457	16077524	murF	BSU04570	-	UDP-N-acetylmuramoylalanyl-D-glutamyl-2,6- diaminopimelate-D-alanyl-D-alanine ligase
458	 45.44	0	510667..512202	+	511	16077525	ydbR	BSU04580	-	hypothetical protein
459	 47.08	0	512375..512854	+	159	16077526	ydbS	BSU04590	-	hypothetical protein
460	 44.13	0	512844..514325	+	493	16077527	ydbT	BSU04600	-	hypothetical protein
461	 45.50	0	514577..515176	-	199	16077528	ydcA	BSU04610	-	hypothetical protein
462	 48.63	+1	515271..515636	+	121	16077529	acpS	BSU04620	-	4'-phosphopantetheinyl transferase
463	 41.71	0	515697..516818	+	373	16077530	ydcC	BSU04630	-	hypothetical protein
464	 47.86	0	516933..518102	+	389	16077531	alr	BSU04640	-	D-alanine racemase
465	 47.52	0	518218..518499	+	93	16077532	ydcD	BSU04650	-	hypothetical protein
466	 42.45	0	518504..518854	+	116	16077533	ydcE	BSU04660	-	hypothetical protein
467	 43.27	0	518969..519793	+	274	16077534	rsbR	BSU04670	-	positive regulation of sigma-B activity in response to salt and heat stress
468	 44.26	0	519798..520163	+	121	16077535	rsbS	BSU04680	-	antagonist of RsbT
469	 48.01	+1	520167..520568	+	133	16077536	rsbT	BSU04690	-	switch protein/serine-threonine kinase
470	 42.56	0	520580..521587	+	335	16077537	rsbU	BSU04700	-	serine phosphatase
471	 41.21	0	521649..521978	+	109	16077538	rsbV	BSU04710	-	anti-anti-sigma factor (antagonist of RsbW)
472	 44.31	0	521975..522457	+	160	16077539	rsbW	BSU04720	-	serine-protein kinase RsbW
473	 45.28	0	522417..523211	+	264	16077540	sigB	BSU04730	-	RNA polymerase sigma factor SigB
474	 41.83	0	523211..523810	+	199	16077541	rsbX	BSU04740	-	serine phosphatase
475	 42.18	0	524053..524346	+	97	16077542	ydcF	BSU04750	-	hypothetical protein
476	 41.04	0	524343..524783	+	146	16077543	ydcG	BSU04760	-	hypothetical protein
477	 44.37	0	524767..525210	+	147	16077544	ydcH	BSU04770	-	hypothetical protein
478	 45.74	0	525304..527463	+	719	50812188	ydcI	BSU04780	-	hypothetical protein
479	 41.94	0	527690..528142	+	150	16077546	ydcK	BSU04790	-	hypothetical protein
480	 31.26	-2	529066..530172	-	368	16077547	ydcL	BSU04800	-	hypothetical protein
481	 31.57	-2	530185..530694	-	169	16077548	ydcM	BSU04810	-	hypothetical protein
482	 33.33	-2	530691..531074	-	127	16077549	ydcN	BSU04820	-	hypothetical protein
483	 34.87	-1	531348..531542	+	64	16077550	sacV	BSU04830	-	transcriptional regulator
484	 33.72	-2	531853..532113	+	86	16077551	ydcO	BSU04840	-	hypothetical protein
485	 38.58	-1	532483..532863	+	126	16077552	ydcP	BSU04850	-	hypothetical protein
486	 39.43	0	532899..534341	+	480	16077553	ydcQ	BSU04860	-	hypothetical protein
487	 38.62	-1	534334..535392	+	352	16077554	ydcR	BSU04870	-	hypothetical protein
488	 32.59	-2	535657..535926	+	89	16077555	ydcS	BSU04880	-	hypothetical protein
489	 36.70	-1	535965..536231	+	88	16077556	ydcT	BSU04890	-	hypothetical protein
490	 35.92	-1	536248..536556	+	102	16077557	yddA	BSU04900	-	hypothetical protein
491	 35.68	-1	536546..537610	+	354	16077558	yddB	BSU04910	-	hypothetical protein
492	 40.56	0	537622..537870	+	82	16077559	yddC	BSU04920	-	hypothetical protein
493	 36.76	-1	537883..538407	+	174	16077560	yddD	BSU04930	-	hypothetical protein
494	 39.02	0	538295..540790	+	831	16077561	yddE	BSU04940	-	hypothetical protein
495	 34.56	-1	540809..541135	+	108	16077562	yddF	BSU04950	-	hypothetical protein
496	 38.52	-1	541139..543586	+	815	16077563	yddG	BSU04960	-	hypothetical protein
497	 41.31	0	543583..544572	+	329	16077564	yddH	BSU04970	-	hypothetical protein
498	 34.32	-1	544587..545093	+	168	16077565	yddI	BSU04980	-	hypothetical protein
499	 33.60	-2	545156..545536	+	126	16077566	yddJ	BSU04990	-	hypothetical protein
500	 29.71	-2	545727..546527	-	266	16077567	yddK	BSU05000	-	hypothetical protein
501	 30.78	-2	546867..548042	+	391	16077568	rapI	BSU05010	-	response regulator aspartate phosphatase
502	 35.83	-1	547999..548118	+	39	16077569	phrI	BSU05020	-	regulator of the activity of phosphatase RapI
503	 29.62	-2	548271..549212	+	313	16077570	yddM	BSU05030	-	hypothetical protein
504	 38.33	-1	549783..550802	-	339	16077571	yddN	BSU05040	-	hypothetical protein
505	 29.68	-2	551062..551472	+	136	16077572	lrpA	BSU05050	-	AsnC/Lrp family transcriptional regulator
506	 31.56	-2	551595..552044	-	149	16077573	lrpB	BSU05060	-	AsnC/Lrp family transcriptional regulator
507	 37.57	-1	552159..552701	+	180	16077574	yddQ	BSU05070	-	hypothetical protein
508	 34.64	-1	553254..554018	+	254	16077575	yddR	BSU05080	-	hypothetical protein
509	 40.12	0	554212..555522	+	436	16077576	yddS	BSU05090	-	hypothetical protein
510	 35.37	-1	556306..556992	+	228	16077577	yddT	BSU05100	-	hypothetical protein
511	 32.15	-2	557952..558545	+	197	16077578	ydeA	BSU05110	-	hypothetical protein
512	 39.80	0	558808..559008	+	66	16077579	cspC	BSU05120	-	cold-shock protein
513	 32.47	-2	559695..560156	-	153	16077580	ydeB	BSU05130	-	hypothetical protein
514	 37.55	-1	560724..560960	-	78	16077581	ydzE	BSU05140	-	hypothetical protein
515	 34.47	-1	561058..561933	-	291	16077582	ydeC	BSU05150	-	hypothetical protein
516	 39.58	0	562046..563005	+	319	16077583	ydeD	BSU05160	-	hypothetical protein
517	 37.92	-1	563158..564030	-	290	16077584	ydeE	BSU05170	-	hypothetical protein
518	 40.92	0	564248..565645	+	465	16077585	ydeF	BSU05180	-	hypothetical protein
519	 44.08	0	565755..567047	+	430	16077586	ydeG	BSU05190	-	hypothetical protein
520	 34.45	-1	567206..567652	+	148	16077587	ydeH	BSU05200	-	hypothetical protein
521	 36.36	-1	567889..568482	+	197	16077588	ydeI	BSU05210	-	hypothetical protein
522	 41.36	0	568834..569493	-	219	16077589	ydeJ	BSU05220	-	hypothetical protein
523	 53.36	+2	569915..570778	-	287	16077590	ydeK	BSU05230	-	hypothetical protein
524	 41.81	0	570933..572324	+	463	16077591	ydeL	BSU05240	-	hypothetical protein
525	 34.74	-1	572518..572943	+	141	16077592	ydeM	BSU05250	-	hypothetical protein
526	 41.54	0	572996..573568	-	190	16077593	ydeN	BSU05260	-	hypothetical protein
527	 44.55	0	573650..573979	-	109	16077594	ydzF	BSU05270	-	hypothetical protein
43.31	MEAN

4.61	STD DEV
