IslandPath Analysis: Bacillus subtilis subsp. subtilis str. 168

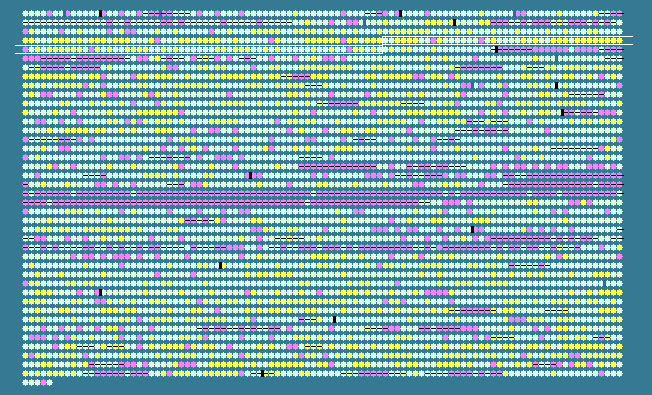

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 43.31 STD DEV: 4.61
Bacillus subtilis subsp. subtilis str. 168, complete genome - 1..4214630
4105 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
361	 41.64	0	410225..411031	-	268	16077429	yckK	BSU03610	-	hypothetical protein
362	 45.82	0	411146..412018	-	290	16077430	yclA	BSU03620	-	hypothetical protein
363	 48.94	+1	412108..412722	+	204	16077431	yclB	BSU03630	-	aromatic acid decarboxylase
364	 47.82	0	412725..414146	+	473	16077432	yclC	BSU03640	-	hypothetical protein
365	 48.26	+1	414163..414852	+	229	16077433	yclD	BSU03650	-	hypothetical protein
366	 46.93	0	414918..415763	+	281	16077434	yclE	BSU03660	-	hypothetical protein
367	 46.11	0	415803..417281	-	492	16077435	yclF	BSU03670	-	hypothetical protein
368	 44.84	0	417561..419315	+	584	16077436	yclG	BSU03680	-	hypothetical protein
369	 35.14	-1	419331..419552	-	73	16077437	yczF	BSU03690	-	hypothetical protein
370	 47.22	0	419678..421312	+	544	16077438	gerKA	BSU03700	-	germination response to the combination of glucose, fructose, L-asparagine, and KCl
371	 44.85	0	421302..422525	+	407	16077439	gerKC	BSU03710	-	germination response to the combination of glucose, fructose, L-asparagine, and KCl
372	 42.87	0	422550..423671	+	373	16077440	gerKB	BSU03720	-	germination response to the combination of glucose, fructose, L-asparagine, and KCl
373	 44.05	0	423776..424456	-	226	16077441	yclH	BSU03730	-	hypothetical protein
374	 44.76	0	424472..425932	-	486	16077442	yclI	BSU03740	-	hypothetical protein
375	 43.27	0	426145..426828	+	227	16077443	yclJ	BSU03750	-	hypothetical protein
376	 43.67	0	426815..428236	+	473	16077444	yclK	BSU03760	-	hypothetical protein
377	 39.51	0	428399..429547	+	382	16077445	rapC	BSU03770	-	response regulator aspartate phosphatase
378	 43.09	0	429531..429653	+	40	16077446	phrC	BSU03780	-	regulator of the activity of phosphatase RapC and competence and sporulation stimulating factor (CSF)
379	 49.08	+1	430191..431555	-	454	16077447	yclM	BSU03790	-	aspartate kinase
380	 44.16	0	431940..432890	+	316	16077448	yclN	BSU03800	-	hypothetical protein
381	 43.78	0	432883..433830	+	315	16077449	yclO	BSU03810	-	hypothetical protein
382	 44.27	0	433824..434582	+	252	16077450	yclP	BSU03820	-	hypothetical protein
383	 40.67	0	434604..435557	+	317	16077451	yclQ	BSU03830	-	hypothetical protein
384	 49.68	+1	435604..437022	-	472	16077452	ycnB	BSU03840	-	hypothetical protein
385	 45.85	0	437042..437920	-	292	16077453	ycnC	BSU03850	-	hypothetical protein
386	 47.73	0	438084..438833	-	249	16077454	ycnD	BSU03860	-	hypothetical protein
387	 42.36	0	438850..439137	-	95	16077455	ycnE	BSU03870	-	hypothetical protein
388	 46.35	0	439277..439591	+	104	16077456	yczG	BSU03880	-	hypothetical protein
389	 48.96	+1	439593..441032	-	479	16077457	gabR	BSU03890	-	GntR family transcriptional regulator
390	 50.72	+1	441139..442449	+	436	16077458	gabT	BSU03900	-	4-aminobutyrate aminotransferase
391	 50.11	+1	442518..443906	+	462	16077459	gabD	BSU03910	-	succinate-semialdehyde dehydrogenase
392	 45.49	0	444029..444892	+	287	16077460	glcU	BSU03920	-	glucose uptake
393	 46.95	0	444912..445697	+	261	16077461	gdh	BSU03930	-	glucose-1-dehydrogenase
394	 47.80	0	445742..446356	-	204	16077462	ycnI	BSU03940	-	hypothetical protein
395	 48.65	+1	446369..447994	-	541	16077463	ycnJ	BSU03950	-	hypothetical protein
396	 48.17	+1	448029..448601	-	190	16077464	ycnK	BSU03960	-	hypothetical protein
397	 47.74	0	448766..449119	+	117	16077465	ycnL	BSU03970	-	hypothetical protein
398	 47.19	0	449292..451124	+	610	16077466	mtlA	BSU03980	-	phosphotransferase system (PTS) mannitol-specific enzyme IICBA component
399	 48.41	+1	451177..452277	+	366	16077467	mtlD	BSU03990	-	mannitol-1-phosphate 5-dehydrogenase
400	 49.58	+1	452385..453449	+	354	50812181	ycsA	BSU04000	-	tartrate dehydrogenase
401	 39.18	0	453584..454147	+	187	16077469	sipU	BSU04010	-	type I signal peptidase
402	 46.42	0	454257..454814	-	185	16077470	yczH	BSU04020	-	hypothetical protein
403	 47.33	0	454900..455292	+	130	50812182	ycsD	BSU04030	-	hypothetical protein
404	 46.40	0	455622..456371	+	249	16077472	ycsE	BSU04040	-	hypothetical protein
405	 48.32	+1	456576..457349	+	257	50812183	ycsF	BSU04050	-	hypothetical protein
406	 47.57	0	457364..458578	+	404	50812184	ycsG	BSU04060	-	hypothetical protein
407	 52.53	+1	458584..459375	+	263	50812185	ycsI	BSU04070	-	hypothetical protein
408	 48.96	+1	459419..460141	+	240	50812186	kipI	BSU04080	-	inhibtion of the autophosphorylation reaction of KinA
409	 51.97	+1	460144..461157	+	337	50812187	kipA	BSU04090	-	antagonist of KipI
410	 49.93	+1	461173..461913	+	246	16077477	kipR	BSU04100	-	IclR family transcriptional regulator
411	 45.02	0	461988..462629	+	213	16077478	ycsK	BSU04110	-	hypothetical protein
412	 38.62	-1	462802..463047	+	81	16077479	yczI	BSU04120	-	hypothetical protein
413	 47.22	0	463053..463340	-	95	16077480	yczJ	BSU04130	-	hypothetical protein
414	 44.59	0	463491..465497	+	668	16077481	pbpC	BSU04140	-	penicillin-binding protein 3
415	 48.62	+1	465599..466501	+	300	16077482	ycsN	BSU04150	-	hypothetical protein
416	 45.08	0	466687..468771	+	694	16077483	mtlR	BSU04160	-	transcriptional regulator
417	 44.64	0	468982..470379	+	465	16077484	ydaB	BSU04170	-	hypothetical protein
418	 47.80	0	470514..471059	-	181	16077485	ydaC	BSU04180	-	hypothetical protein
419	 48.08	+1	471267..472127	+	286	16077486	ydaD	BSU04190	-	short chain dehydrogenase
420	 49.21	+1	472143..472646	+	167	16077487	ydaE	BSU04200	-	hypothetical protein
421	 49.82	+1	472731..473282	+	183	16077488	ydaF	BSU04210	-	hypothetical protein
422	 42.79	0	473360..473782	+	140	16077489	ydaG	BSU04220	-	hypothetical protein
423	 46.05	0	474288..475097	+	269	16077490	ydaH	BSU04230	-	hypothetical protein
424	 47.77	0	475141..475431	-	96	16077491	ydzA	BSU04240	-	hypothetical protein
425	 45.29	0	475616..476050	+	144	16077492	lrpC	BSU04250	-	AsnC/Lrp family transcriptional regulator
426	 48.26	+1	476115..478298	+	727	16077493	topB	BSU04260	-	DNA topoisomerase III
427	 44.44	0	478501..479589	+	362	16077494	ydaJ	BSU04270	-	hypothetical protein
428	 44.84	0	479570..480421	+	283	16077495	ydaK	BSU04280	-	hypothetical protein
429	 46.08	0	480432..482141	+	569	16077496	ydaL	BSU04290	-	hypothetical protein
430	 45.21	0	482134..483396	+	420	16077497	ydaM	BSU04300	-	hypothetical protein
431	 45.83	0	483402..485513	+	703	16077498	ydaN	BSU04310	-	hypothetical protein
432	 46.33	0	485989..487812	+	607	16077499	ydaO	BSU04320	-	hypothetical protein
433	 49.78	+1	487871..488320	+	149	16077500	mutT	BSU04330	-	mutator protein
434	 50.20	+1	488387..490111	+	574	16077501	ydaP	BSU04340	-	pyruvate oxidase
435	 41.58	0	490288..490578	+	96	16077502	ydaQ	BSU04350	-	hypothetical protein
436	 48.28	+1	490702..491979	-	425	16077503	mntH	BSU04360	-	manganese transport protein MntH
437	 54.26	+2	492209..492466	-	85	16077504	ydaS	BSU04370	-	hypothetical protein
438	 46.80	0	492544..492996	-	150	16077505	ydaT	BSU04380	-	hypothetical protein
439	 46.76	0	493114..493932	+	272	16077506	ydbA	BSU04390	-	hypothetical protein
440	 42.20	0	494061..494432	+	123	16077507	gsiB	BSU04400	-	general stress protein
441	 48.25	+1	494564..494905	+	113	16077508	ydbB	BSU04410	-	hypothetical protein
442	 45.28	0	494899..495258	+	119	16077509	ydbC	BSU04420	-	hypothetical protein
443	 49.15	+1	495295..496116	-	273	16077510	ydbD	BSU04430	-	hypothetical protein
444	 43.78	0	496207..497259	-	350	16077511	dctB	BSU04440	-	C4-dicarboxylate binding protein
445	 46.58	0	497329..498936	+	535	16077512	dctS	BSU04450	-	two-component sensor histidine kinase
446	 46.70	0	498926..499606	+	226	16077513	dctR	BSU04460	-	two-component response regulator
447	 45.97	0	499727..500992	+	421	16077514	dctP	BSU04470	-	C4-dicarboxylate transporter DctA
448	 43.78	0	501140..502192	+	350	16077515	ydbI	BSU04480	-	hypothetical protein
449	 47.03	0	502469..503395	+	308	16077516	ydbJ	BSU04490	-	hypothetical protein
450	 41.97	0	503415..504155	+	246	16077517	ydbK	BSU04500	-	hypothetical protein
451	 43.15	0	504250..504585	+	111	16077518	ydbL	BSU04510	-	hypothetical protein
452	 50.26	+1	504713..505858	+	381	16077519	ydbM	BSU04520	-	hypothetical protein
453	 43.33	0	505883..506062	-	59	16077520	ydbN	BSU04530	-	hypothetical protein
454	 45.70	0	506427..507299	+	290	16077521	ydbO	BSU04540	-	hypothetical protein
455	 38.63	-1	507314..507634	-	106	16077522	ydbP	BSU04550	-	hypothetical protein
456	 46.85	0	507809..508873	+	354	16077523	ddl	BSU04560	-	D-alanyl-alanine synthetase A
457	 47.02	0	508945..510318	+	457	16077524	murF	BSU04570	-	UDP-N-acetylmuramoylalanyl-D-glutamyl-2,6- diaminopimelate-D-alanyl-D-alanine ligase
458	 45.44	0	510667..512202	+	511	16077525	ydbR	BSU04580	-	hypothetical protein
459	 47.08	0	512375..512854	+	159	16077526	ydbS	BSU04590	-	hypothetical protein
460	 44.13	0	512844..514325	+	493	16077527	ydbT	BSU04600	-	hypothetical protein
43.31	MEAN

4.61	STD DEV
