IslandPathversion 1.0

IslandPath Analysis: Bacillus subtilis subsp. subtilis str. 168

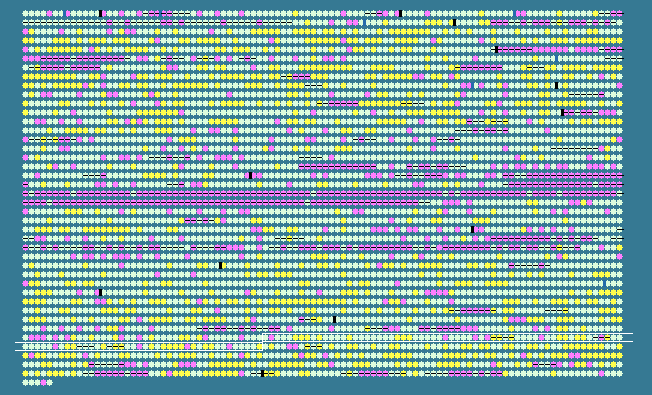

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 43.31 STD DEV: 4.61
Bacillus subtilis subsp. subtilis str. 168, complete genome - 1..4214630
4105 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3641	 40.43	0	3747443..3747724	-	93	16080695	spoIIID	BSU36420	-	transcriptional regulator
3642	 36.94	-1	3747739..3747849	-	36	16080696	usd	BSU36430	-	required for translation of spoIIID
3643	 43.00	0	3748074..3748487	+	137	16080697	ywoH	BSU36440	-	hypothetical protein
3644	 45.51	0	3748509..3749699	+	396	16080698	ywoG	BSU36450	-	hypothetical protein
3645	 43.28	0	3749790..3751196	-	468	16080699	ywoF	BSU36460	-	hypothetical protein
3646	 48.27	+1	3751302..3752774	-	490	16080700	ywoE	BSU36470	-	hypothetical protein
3647	 47.46	0	3752955..3754313	-	452	16080701	ywoD	BSU36480	-	hypothetical protein
3648	 47.19	0	3754313..3754882	-	189	16080702	ywoC	BSU36490	-	hypothetical protein
3649	 46.45	0	3755066..3755530	-	154	16080703	ywoB	BSU36500	-	hypothetical protein
3650	 50.45	+1	3755812..3757026	+	404	16080704	nrgA	BSU36510	-	ammonium transporter
3651	 43.87	0	3757038..3757388	+	116	16080705	nrgB	BSU36520	-	nitrogen-regulated PII-like protein
3652	 44.16	0	3757569..3758150	+	193	16080706	ywoA	BSU36530	-	hypothetical protein
3653	 43.74	0	3758191..3758613	-	140	16080707	ywnJ	BSU36540	-	hypothetical protein
3654	 41.08	0	3758724..3759575	-	283	16080708	spoIIQ	BSU36550	-	required for completion of engulfment
3655	 47.15	0	3759716..3760207	+	163	16080709	ywnH	BSU36560	-	hypothetical protein
3656	 45.66	0	3760204..3760722	+	172	16080710	ywnG	BSU36570	-	hypothetical protein
3657	 41.84	0	3761009..3761443	-	144	16080711	ywnF	BSU36580	-	hypothetical protein
3658	 43.06	0	3761686..3763134	+	482	16080712	ywnE	BSU36590	-	hypothetical protein
3659	 44.32	0	3763155..3763928	-	257	16080713	mta	BSU36600	-	MerR family transcriptional regulator
3660	 42.19	0	3764073..3764456	+	127	16080714	ywnC	BSU36610	-	hypothetical protein
3661	 45.79	0	3764491..3765132	-	213	16080715	ywnB	BSU36620	-	hypothetical protein
3662	 42.29	0	3765200..3765601	-	133	16080716	ywnA	BSU36630	-	hypothetical protein
3663	 50.70	+1	3765736..3767445	-	569	16080717	ureC	BSU36640	-	urease subunit alpha
3664	 50.13	+1	3767442..3767816	-	124	16080718	ureB	BSU36650	-	urease (beta subunit)
3665	 50.31	+1	3767813..3768130	-	105	16080719	ureA	BSU36660	-	urease subunit gamma
3666	 40.21	0	3769127..3769315	-	62	16080720	csbD	BSU36670	-	sigma-B-controlled gene
3667	 40.83	0	3769388..3769867	-	159	16080721	ywmF	BSU36680	-	hypothetical protein
3668	 40.12	0	3770023..3771156	-	377	16080722	rapB	BSU36690	-	response regulator aspartate phosphatase
3669	 46.30	0	3771348..3772373	-	341	16080723	moaA	BSU36700	-	molybdenum cofactor biosynthesis protein A
3670	 46.51	0	3772389..3773177	-	262	16080724	fdhD	BSU36710	-	formate dehydrogenase accessory protein
3671	 36.42	-1	3773423..3773584	-	53	16080725	ywmE	BSU36720	-	hypothetical protein
3672	 44.89	0	3773678..3774352	-	224	16080726	ywmD	BSU36730	-	hypothetical protein
3673	 42.69	0	3774676..3775359	-	227	16080727	ywmC	BSU36740	-	hypothetical protein
3674	 45.83	0	3775745..3776776	-	343	16080728	spoIID	BSU36750	-	required for complete dissolution of the asymmetric septum (stage II sporulation)
3675	 45.69	0	3776972..3778282	-	436	16080729	murAA	BSU36760	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
3676	 36.17	-1	3778316..3779056	-	246	16080730	ywmB	BSU36770	-	hypothetical protein
3677	 43.29	0	3779185..3779415	-	76	16080731	ywzB	BSU36780	-	hypothetical protein
3678	 38.40	-1	3779585..3780058	+	157	16080732	ywmA	BSU36790	-	hypothetical protein
3679	 52.63	+2	3780092..3780490	-	132	16080733	atpC	BSU36800	-	F0F1 ATP synthase subunit epsilon
3680	 47.33	0	3780514..3781935	-	473	16080734	atpD	BSU36810	-	F0F1 ATP synthase subunit beta
3681	 45.02	0	3781961..3782824	-	287	16080735	atpG	BSU36820	-	F0F1 ATP synthase subunit gamma
3682	 48.77	+1	3782901..3784409	-	502	16080736	atpA	BSU36830	-	F0F1 ATP synthase subunit alpha
3683	 43.41	0	3784426..3784971	-	181	16080737	atpH	BSU36840	-	F0F1 ATP synthase subunit delta
3684	 42.50	0	3784968..3785480	-	170	16080738	atpF	BSU36850	-	F0F1 ATP synthase subunit B
3685	 45.07	0	3785643..3785855	-	70	16080739	atpE	BSU36860	-	F0F1 ATP synthase subunit C
3686	 43.13	0	3785901..3786635	-	244	16080740	atpB	BSU36870	-	F0F1 ATP synthase subunit A
3687	 39.32	0	3786643..3787026	-	127	16080741	atpI	BSU36880	-	ATP synthase (subunit i)
3688	 44.44	0	3787449..3788078	-	209	16080742	upp	BSU36890	-	uracil phosphoribosyltransferase
3689	 45.75	0	3788213..3789460	-	415	16080743	glyA	BSU36900	-	serine hydroxymethyltransferase
3690	 52.67	+2	3789667..3790209	-	180	16080744	ywlG	BSU36910	-	hypothetical protein
3691	 48.22	+1	3790222..3790671	-	149	16080745	ywlF	BSU36920	-	ribose-5-phosphate isomerase B
3692	 45.25	0	3790828..3791280	-	150	16080746	ywlE	BSU36930	-	hypothetical protein
3693	 49.64	+1	3791356..3791913	-	185	16080747	ywlD	BSU36940	-	hypothetical protein
3694	 51.49	+1	3791992..3793032	-	346	16080748	ywlC	BSU36950	-	hypothetical protein
3695	 46.62	0	3793189..3793632	-	147	16080749	ywlB	BSU36960	-	hypothetical protein
3696	 42.07	0	3793699..3794373	-	224	16080750	spoIIR	BSU36970	-	required for processing of pro-sigma-E (extracellular signal interacting with SpoIIGA?) (stage II sporulation)
3697	 37.19	-1	3794514..3794876	+	120	16080751	ywlA	BSU36980	-	hypothetical protein
3698	 46.88	0	3794893..3795180	-	95	16080752	ywkF	BSU36990	-	hypothetical protein
3699	 45.56	0	3795240..3796106	-	288	16080753	ywkE	BSU37000	-	hypothetical protein
3700	 46.41	0	3796108..3797178	-	356	16080754	prfA	BSU37010	-	peptide chain release factor 1
3701	 46.51	0	3797304..3797690	+	128	16080755	ywkD	BSU37020	-	hypothetical protein
3702	 46.67	0	3797812..3798366	+	184	16080756	racA	BSU37030	-	polar chromosome segregation protein
3703	 43.02	0	3798400..3799359	-	319	16080757	ywkB	BSU37040	-	hypothetical protein
3704	 42.60	0	3799441..3801189	-	582	16080758	ywkA	BSU37050	-	malate dehydrogenase
3705	 46.77	0	3801428..3802015	-	195	16080759	tdk	BSU37060	-	thymidine kinase
3706	 39.80	0	3802104..3802304	-	66	16080760	rpmE	BSU37070	-	50S ribosomal protein L31
3707	 46.50	0	3802423..3803706	-	427	16080761	rho	BSU37080	-	transcription termination factor Rho
3708	 50.00	+1	3804113..3805078	-	321	16080762	glpX	BSU37090	-	fructose 1,6-bisphosphatase II
3709	 50.08	+1	3805109..3806398	-	429	16080763	murAB	BSU37100	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
3710	 46.01	0	3806777..3807415	-	212	50812299	ywjH	BSU37110	-	putative translaldolase
3711	 43.94	0	3807535..3808392	-	285	16080765	fbaA	BSU37120	-	fructose-bisphosphate aldolase
3712	 45.60	0	3808573..3808947	-	124	16080766	spo0F	BSU37130	-	two-component response regulator
3713	 46.74	0	3809113..3809634	+	173	16080767	ywjG	BSU37140	-	hypothetical protein
3714	 47.01	0	3809716..3811323	-	535	16080768	pyrG	BSU37150	-	CTP synthetase
3715	 40.61	0	3811565..3812086	-	173	16080769	rpoE	BSU37160	-	DNA-directed RNA polymerase subunit delta
3716	 48.95	+1	3812269..3813408	-	379	16080770	acdA	BSU37170	-	acyl-CoA dehydrogenase
3717	 48.87	+1	3813405..3815522	-	705	16080771	ywjF	BSU37180	-	hypothetical protein
3718	 44.19	0	3815677..3816873	+	398	16080772	ywjE	BSU37190	-	hypothetical protein
3719	 46.73	0	3816886..3817848	+	320	16080773	uvsE	BSU37200	-	putative UV damage endonuclease
3720	 37.00	-1	3817929..3818201	+	90	16080774	ywjC	BSU37210	-	hypothetical protein
3721	 43.43	0	3818243..3818767	-	174	16080775	ywjB	BSU37220	-	hypothetical protein
3722	 48.21	+1	3818777..3820504	-	575	16080776	ywjA	BSU37230	-	hypothetical protein
3723	 45.31	0	3820593..3822095	-	500	16080777	ywiE	BSU37240	-	hypothetical protein
3724	 50.15	+1	3822581..3823252	-	223	16080778	narI	BSU37250	-	nitrate reductase (gamma subunit)
3725	 48.83	+1	3823249..3823803	-	184	16080779	narJ	BSU37260	-	nitrate reductase (protein J)
3726	 48.09	+1	3823829..3825292	-	487	16080780	narH	BSU37270	-	nitrate reductase (beta subunit)
3727	 49.96	+1	3825282..3828968	-	1228	16080781	narG	BSU37280	-	nitrate reductase (alpha subunit)
3728	 39.20	0	3829164..3829640	-	158	16080782	arfM	BSU37290	-	transcriptional regulator
3729	 47.78	0	3829784..3830503	+	239	16080783	ywiC	BSU37300	-	hypothetical protein
3730	 42.82	0	3830535..3831251	-	238	16080784	fnr	BSU37310	-	Crp/Fnr family transcriptional regulator
3731	 47.22	0	3831350..3832537	-	395	16080785	narK	BSU37320	-	nitrite extrusion protein
3732	 48.59	+1	3832673..3834343	-	556	16080786	argS	BSU37330	-	arginyl-tRNA synthetase
3733	 42.19	0	3834340..3834768	-	142	16080787	ywiB	BSU37340	-	hypothetical protein
3734	 46.21	0	3835081..3835212	+	43	16080788	sboA	BSU37350	-	subtilosin A
3735	 36.60	-1	3835169..3835321	+	50	50812300	sboX	BSU37360	-	bacteriocin-like product
3736	 44.91	0	3835346..3836692	+	448	16080789	albA	BSU37370	-	antilisterial bacteriocin (subtilosin) production
3737	 43.83	0	3836705..3836866	+	53	16080790	albB	BSU37380	-	antilisterial bacteriocin (subtilosin) production
3738	 46.25	0	3836863..3837582	+	239	16080791	albC	BSU37390	-	antilisterial bacteriocin (subtilosin) production
3739	 46.68	0	3837575..3838885	+	436	16080792	albD	BSU37400	-	antilisterial bacteriocin (subtilosin) production
3740	 47.37	0	3838875..3840035	+	386	16080793	albE	BSU37410	-	antilisterial bacteriocin (subtilosin) production
43.31	MEAN

4.61	STD DEV
