IslandPathversion 1.0

IslandPath Analysis: Bacillus subtilis subsp. subtilis str. 168

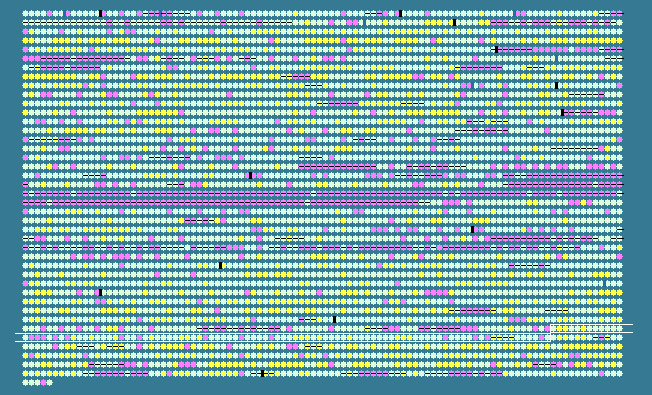

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 43.31 STD DEV: 4.61
Bacillus subtilis subsp. subtilis str. 168, complete genome - 1..4214630
4105 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3589	 43.06	0	3698473..3699654	-	393	16080643	ywsC	BSU35900	-	hypothetical protein
3590	 47.81	0	3700438..3701418	+	326	16080644	rbsR	BSU35910	-	LacI family transcription regulator
3591	 50.91	+1	3701420..3702301	+	293	16080645	rbsK	BSU35920	-	ribokinase
3592	 45.20	0	3702298..3702693	+	131	16080646	rbsD	BSU35930	-	D-ribose pyranase
3593	 46.49	0	3702709..3704190	+	493	16080647	rbsA	BSU35940	-	ribose ABC transporter ATP-binding protein
3594	 47.88	0	3704192..3705160	+	322	16080648	rbsC	BSU35950	-	ribose ABC transporter (permease)
3595	 45.53	0	3705172..3706089	+	305	16080649	rbsB	BSU35960	-	ribose ABC transporter (ribose-binding protein)
3596	 41.34	0	3706171..3706707	+	178	16080650	ywsB	BSU35970	-	hypothetical protein
3597	 42.09	0	3706863..3707159	+	98	16080651	ywsA	BSU35980	-	hypothetical protein
3598	 45.27	0	3707199..3707726	-	175	16080652	ywrO	BSU35990	-	hypothetical protein
3599	 43.36	0	3707826..3708593	-	255	16080653	alsD	BSU36000	-	alpha-acetolactate decarboxylase
3600	 45.75	0	3708655..3710370	-	571	16080654	alsS	BSU36010	-	acetolactate synthase
3601	 43.45	0	3710525..3711433	+	302	16080655	alsR	BSU36020	-	LysR family transcriptional regulator
3602	 37.77	-1	3711644..3712972	+	442	16080656	ywrK	BSU36030	-	hypothetical protein
3603	 35.99	-1	3713029..3713706	-	225	16080657	ywrJ	BSU36040	-	hypothetical protein
3604	 34.56	-1	3713766..3714908	-	380	16080658	cotB	BSU36050	-	spore coat protein (outer)
3605	 40.77	0	3715036..3716124	-	362	16080659	cotH	BSU36060	-	spore coat protein (inner)
3606	 37.59	-1	3716265..3716852	+	195	16080660	cotG	BSU36070	-	morphogenetic protein
3607	 45.95	0	3717026..3717643	+	205	16080661	ywrF	BSU36080	-	hypothetical protein
3608	 32.44	-2	3717821..3718156	+	111	16080662	ywrE	BSU36090	-	hypothetical protein
3609	 50.25	+1	3718161..3719738	-	525	16080663	ywrD	BSU36100	-	hypothetical protein
3610	 43.82	0	3719952..3720428	+	158	16080664	ywrC	BSU36110	-	hypothetical protein
3611	 46.13	0	3720442..3721035	+	197	16080665	ywrB	BSU36120	-	hypothetical protein
3612	 51.40	+1	3721032..3721568	+	178	16080666	ywrA	BSU36130	-	hypothetical protein
3613	 44.14	0	3721595..3721816	-	73	16080667	ywqO	BSU36140	-	hypothetical protein
3614	 44.51	0	3721813..3722358	-	181	16080668	ywqN	BSU36150	-	hypothetical protein
3615	 43.54	0	3722481..3723362	+	293	16080669	ywqM	BSU36160	-	hypothetical protein
3616	 47.00	0	3723447..3724163	-	238	16080670	ywqL	BSU36170	-	hypothetical protein
3617	 34.41	-1	3724173..3724637	-	154	16080671	ywqK	BSU36180	-	hypothetical protein
3618	 41.29	0	3724627..3726435	-	602	16080672	ywqJ	BSU36190	-	hypothetical protein
3619	 42.15	0	3726454..3726714	-	86	16080673	ywqI	BSU36200	-	hypothetical protein
3620	 38.77	0	3726724..3727146	-	140	16080674	ywqH	BSU36210	-	hypothetical protein
3621	 42.49	0	3727538..3728323	-	261	16080675	ywqG	BSU36220	-	hypothetical protein
3622	 47.69	0	3728515..3729837	-	440	16080676	ywqF	BSU36230	-	hypothetical protein
3623	 45.62	0	3730032..3730796	-	254	16080677	ywqE	BSU36240	-	hypothetical protein
3624	 46.22	0	3730849..3731562	-	237	16080678	ywqD	BSU36250	-	hypothetical protein
3625	 43.64	0	3731552..3732298	-	248	16080679	ywqC	BSU36260	-	hypothetical protein
3626	 45.81	0	3732879..3734489	+	536	16080680	ywqB	BSU36270	-	hypothetical protein
3627	 48.97	+1	3734476..3737244	+	922	16080681	ywqA	BSU36280	-	hypothetical protein
3628	 47.67	0	3737370..3738227	-	285	16080682	ywpJ	BSU36290	-	hypothetical protein
3629	 46.59	0	3738233..3739009	-	258	16080683	glcR	BSU36300	-	DeoR family transcriptional regulator
3630	 47.66	0	3739233..3739574	-	113	16080684	ywpH	BSU36310	-	hypothetical protein
3631	 33.85	-2	3739651..3740034	-	127	16080685	ywpG	BSU36320	-	hypothetical protein
3632	 40.15	0	3740209..3740619	+	136	16080686	ywpF	BSU36330	-	hypothetical protein
3633	 41.10	0	3740758..3741066	-	102	16080687	ywpE	BSU36340	-	hypothetical protein
3634	 40.74	0	3741410..3742246	+	278	16080688	ywpD	BSU36350	-	hypothetical protein
3635	 46.06	0	3742293..3742685	-	130	16080689	mscL	BSU36360	-	large conductance mechanosensitive channel protein
3636	 45.86	0	3742784..3743182	-	132	16080690	ywpB	BSU36370	-	hypothetical protein
3637	 38.12	-1	3743374..3744438	+	354	16080691	rapD	BSU36380	-	response regulator aspartate phosphatase
3638	 46.72	0	3744461..3745267	-	268	16080692	flhP	BSU36390	-	flagellar hook-basal body protein
3639	 44.53	0	3745301..3746113	-	270	16080693	flhO	BSU36400	-	flagellar basal-body rod protein
3640	 46.01	0	3746276..3747277	-	333	50812298	mbl	BSU36410	-	MreB-like protein
3641	 40.43	0	3747443..3747724	-	93	16080695	spoIIID	BSU36420	-	transcriptional regulator
3642	 36.94	-1	3747739..3747849	-	36	16080696	usd	BSU36430	-	required for translation of spoIIID
3643	 43.00	0	3748074..3748487	+	137	16080697	ywoH	BSU36440	-	hypothetical protein
3644	 45.51	0	3748509..3749699	+	396	16080698	ywoG	BSU36450	-	hypothetical protein
3645	 43.28	0	3749790..3751196	-	468	16080699	ywoF	BSU36460	-	hypothetical protein
3646	 48.27	+1	3751302..3752774	-	490	16080700	ywoE	BSU36470	-	hypothetical protein
3647	 47.46	0	3752955..3754313	-	452	16080701	ywoD	BSU36480	-	hypothetical protein
3648	 47.19	0	3754313..3754882	-	189	16080702	ywoC	BSU36490	-	hypothetical protein
3649	 46.45	0	3755066..3755530	-	154	16080703	ywoB	BSU36500	-	hypothetical protein
3650	 50.45	+1	3755812..3757026	+	404	16080704	nrgA	BSU36510	-	ammonium transporter
3651	 43.87	0	3757038..3757388	+	116	16080705	nrgB	BSU36520	-	nitrogen-regulated PII-like protein
3652	 44.16	0	3757569..3758150	+	193	16080706	ywoA	BSU36530	-	hypothetical protein
3653	 43.74	0	3758191..3758613	-	140	16080707	ywnJ	BSU36540	-	hypothetical protein
3654	 41.08	0	3758724..3759575	-	283	16080708	spoIIQ	BSU36550	-	required for completion of engulfment
3655	 47.15	0	3759716..3760207	+	163	16080709	ywnH	BSU36560	-	hypothetical protein
3656	 45.66	0	3760204..3760722	+	172	16080710	ywnG	BSU36570	-	hypothetical protein
3657	 41.84	0	3761009..3761443	-	144	16080711	ywnF	BSU36580	-	hypothetical protein
3658	 43.06	0	3761686..3763134	+	482	16080712	ywnE	BSU36590	-	hypothetical protein
3659	 44.32	0	3763155..3763928	-	257	16080713	mta	BSU36600	-	MerR family transcriptional regulator
3660	 42.19	0	3764073..3764456	+	127	16080714	ywnC	BSU36610	-	hypothetical protein
3661	 45.79	0	3764491..3765132	-	213	16080715	ywnB	BSU36620	-	hypothetical protein
3662	 42.29	0	3765200..3765601	-	133	16080716	ywnA	BSU36630	-	hypothetical protein
3663	 50.70	+1	3765736..3767445	-	569	16080717	ureC	BSU36640	-	urease subunit alpha
3664	 50.13	+1	3767442..3767816	-	124	16080718	ureB	BSU36650	-	urease (beta subunit)
3665	 50.31	+1	3767813..3768130	-	105	16080719	ureA	BSU36660	-	urease subunit gamma
3666	 40.21	0	3769127..3769315	-	62	16080720	csbD	BSU36670	-	sigma-B-controlled gene
3667	 40.83	0	3769388..3769867	-	159	16080721	ywmF	BSU36680	-	hypothetical protein
3668	 40.12	0	3770023..3771156	-	377	16080722	rapB	BSU36690	-	response regulator aspartate phosphatase
3669	 46.30	0	3771348..3772373	-	341	16080723	moaA	BSU36700	-	molybdenum cofactor biosynthesis protein A
3670	 46.51	0	3772389..3773177	-	262	16080724	fdhD	BSU36710	-	formate dehydrogenase accessory protein
3671	 36.42	-1	3773423..3773584	-	53	16080725	ywmE	BSU36720	-	hypothetical protein
3672	 44.89	0	3773678..3774352	-	224	16080726	ywmD	BSU36730	-	hypothetical protein
3673	 42.69	0	3774676..3775359	-	227	16080727	ywmC	BSU36740	-	hypothetical protein
3674	 45.83	0	3775745..3776776	-	343	16080728	spoIID	BSU36750	-	required for complete dissolution of the asymmetric septum (stage II sporulation)
3675	 45.69	0	3776972..3778282	-	436	16080729	murAA	BSU36760	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
3676	 36.17	-1	3778316..3779056	-	246	16080730	ywmB	BSU36770	-	hypothetical protein
3677	 43.29	0	3779185..3779415	-	76	16080731	ywzB	BSU36780	-	hypothetical protein
3678	 38.40	-1	3779585..3780058	+	157	16080732	ywmA	BSU36790	-	hypothetical protein
3679	 52.63	+2	3780092..3780490	-	132	16080733	atpC	BSU36800	-	F0F1 ATP synthase subunit epsilon
3680	 47.33	0	3780514..3781935	-	473	16080734	atpD	BSU36810	-	F0F1 ATP synthase subunit beta
3681	 45.02	0	3781961..3782824	-	287	16080735	atpG	BSU36820	-	F0F1 ATP synthase subunit gamma
3682	 48.77	+1	3782901..3784409	-	502	16080736	atpA	BSU36830	-	F0F1 ATP synthase subunit alpha
3683	 43.41	0	3784426..3784971	-	181	16080737	atpH	BSU36840	-	F0F1 ATP synthase subunit delta
3684	 42.50	0	3784968..3785480	-	170	16080738	atpF	BSU36850	-	F0F1 ATP synthase subunit B
3685	 45.07	0	3785643..3785855	-	70	16080739	atpE	BSU36860	-	F0F1 ATP synthase subunit C
3686	 43.13	0	3785901..3786635	-	244	16080740	atpB	BSU36870	-	F0F1 ATP synthase subunit A
3687	 39.32	0	3786643..3787026	-	127	16080741	atpI	BSU36880	-	ATP synthase (subunit i)
3688	 44.44	0	3787449..3788078	-	209	16080742	upp	BSU36890	-	uracil phosphoribosyltransferase
43.31	MEAN

4.61	STD DEV
