IslandPath Analysis: Bacillus subtilis subsp. subtilis str. 168

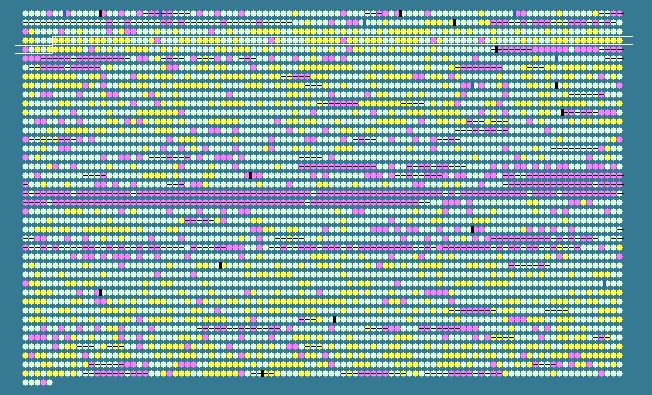

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 43.31 STD DEV: 4.61
Bacillus subtilis subsp. subtilis str. 168, complete genome - 1..4214630
4105 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
306	 49.94	+1	330325..331950	+	541	16077375	lctP	BSU03060	-	L-lactate permease
307	 47.85	0	332258..333538	-	426	16077376	mdr	BSU03070	-	multidrug-efflux transporter
308	 48.72	+1	333651..334118	+	155	16077377	ycgE	BSU03080	-	hypothetical protein
309	 45.56	0	334192..334821	+	209	16077378	ycgF	BSU03090	-	hypothetical protein
310	 47.90	0	334891..335652	+	253	16077379	ycgG	BSU03100	-	hypothetical protein
311	 46.30	0	335684..336817	-	377	16077380	ycgH	BSU03110	-	hypothetical protein
312	 46.94	0	336984..337718	+	244	50812178	ycgI	BSU03120	-	hypothetical protein
313	 48.11	+1	337848..338666	+	272	16077382	nadE	BSU03130	-	NAD synthetase
314	 47.14	0	338716..339309	-	197	16077383	tmrB	BSU03140	-	ATP-binding membrane protein
315	 40.46	0	339585..340145	+	186	16077384	aroK	BSU03150	-	shikimate kinase
316	 48.62	+1	340173..340859	-	228	16077385	ycgJ	BSU03160	-	hypothetical protein
317	 48.72	+1	341052..342026	+	324	16077386	ycgK	BSU03170	-	hypothetical protein
318	 48.59	+1	342098..343054	+	318	16077387	cah	BSU03180	-	cephalosporin C deacetylase
319	 43.93	0	343138..343920	+	260	16077388	ycgL	BSU03190	-	hypothetical protein
320	 43.42	0	344111..345022	+	303	16077389	ycgM	BSU03200	-	hypothetical protein
321	 46.45	0	345039..346586	+	515	16077390	ycgN	BSU03210	-	1-pyrroline-5-carboxylate dehydrogenase
322	 48.67	+1	346782..348131	+	449	16077391	ycgO	BSU03220	-	hypothetical protein
323	 39.81	0	348284..349519	+	411	16077392	ycgP	BSU03230	-	hypothetical protein
324	 41.14	0	349556..350413	-	285	16077393	ycgQ	BSU03240	-	hypothetical protein
325	 45.76	0	350418..351302	-	294	16077394	ycgR	BSU03250	-	hypothetical protein
326	 46.43	0	351402..352256	-	284	16077395	ycgS	BSU03260	-	hypothetical protein
327	 50.25	+1	352418..353428	+	336	16077396	ycgT	BSU03270	-	hypothetical protein
328	 49.38	+1	353460..354911	-	483	16077397	nasF	BSU03280	-	uroporphyrin-III C-methyltransferase
329	 44.55	0	354972..355292	-	106	16077398	nasE	BSU03290	-	assimilatory nitrite reductase (subunit)
330	 49.09	+1	355324..357741	-	805	16077399	nasD	BSU03300	-	assimilatory nitrite reductase (subunit)
331	 48.48	+1	357863..359995	-	710	16077400	nasC	BSU03310	-	assimilatory nitrate reductase (catalytic subunit)
332	 49.29	+1	360002..362314	-	770	16077401	nasB	BSU03320	-	assimilatory nitrate reductase (electron transfer subunit)
333	 50.63	+1	362494..363759	+	421	16077402	nasA	BSU03330	-	nitrate transporter
334	 46.19	0	363815..364732	+	305	16077403	yciA	BSU03340	-	putative GTP cyclohydrolase
335	 41.54	0	364729..365313	+	194	16077404	yciB	BSU03350	-	hypothetical protein
336	 47.07	0	365622..366815	+	397	16077405	yciC	BSU03360	-	hypothetical protein
337	 45.37	0	366864..367544	-	226	16077406	yckA	BSU03370	-	hypothetical protein
338	 45.14	0	367554..368417	-	287	16077407	yckB	BSU03380	-	hypothetical protein
339	 43.64	0	368795..369250	+	151	16077408	yckC	BSU03390	-	hypothetical protein
340	 39.94	0	369332..369664	+	110	16077409	yckD	BSU03400	-	hypothetical protein
341	 43.17	0	369818..371251	+	477	16077410	yckE	BSU03410	-	hypothetical protein
342	 39.60	0	371288..371686	-	132	16077411	nin	BSU03420	-	inhibition of the DNA degrading activity of NucA (competence)
343	 47.75	0	371713..372156	-	147	50812179	nucA	BSU03430	-	nuclease
344	 42.39	0	372330..374051	-	573	16077413	tlpC	BSU03440	-	methyl-accepting chemotaxis protein
345	 44.98	0	374162..374719	-	185	16077414	hxlB	BSU03450	-	6-phospho-3-hexuloisomerase (phi)
346	 44.55	0	374725..375357	-	210	16077415	hxlA	BSU03460	-	3-hexulose-6-phosphate synthase (HPS)
347	 41.87	0	375589..375951	+	120	16077416	hxlR	BSU03470	-	positive regulator of hxlAB expression
348	 49.68	+1	376525..387291	+	3588	16077417	srfAA	BSU03480	-	surfactin synthetase
349	 50.48	+1	387304..398067	+	3587	16077418	srfAB	BSU03490	-	surfactin synthetase
350	 50.35	+1	390440..390580	+	46	16077419	comS	BSU03500	-	regulation of genetic competence; assembly link between other regulatory components of the competence signal transduction pathway
351	 48.99	+1	398104..401928	+	1274	16077420	srfAC	BSU03510	-	surfactin synthetase
352	 50.07	+1	401957..402685	+	242	16077421	srfAD	BSU03520	-	surfactin synthetase
353	 48.94	+1	402786..404015	+	409	16077422	ycxA	BSU03530	-	hypothetical protein
354	 34.41	-1	404030..404587	-	185	16077423	ycxB	BSU03540	-	hypothetical protein
355	 47.71	0	404641..405579	-	312	16077424	ycxC	BSU03550	-	hypothetical protein
356	 47.42	0	405703..407037	+	444	16077425	ycxD	BSU03560	-	hypothetical protein
357	 45.78	0	407210..407707	-	165	50812180	sfp	BSU03570	-	phosphopantetheinyl transferase
358	 50.62	+1	407812..408459	-	215	16077426	yczE	BSU03580	-	hypothetical protein
359	 50.27	+1	408777..409520	-	247	16077427	yckI	BSU03590	-	hypothetical protein
360	 47.38	0	409534..410238	-	234	16077428	yckJ	BSU03600	-	hypothetical protein
361	 41.64	0	410225..411031	-	268	16077429	yckK	BSU03610	-	hypothetical protein
362	 45.82	0	411146..412018	-	290	16077430	yclA	BSU03620	-	hypothetical protein
363	 48.94	+1	412108..412722	+	204	16077431	yclB	BSU03630	-	aromatic acid decarboxylase
364	 47.82	0	412725..414146	+	473	16077432	yclC	BSU03640	-	hypothetical protein
365	 48.26	+1	414163..414852	+	229	16077433	yclD	BSU03650	-	hypothetical protein
366	 46.93	0	414918..415763	+	281	16077434	yclE	BSU03660	-	hypothetical protein
367	 46.11	0	415803..417281	-	492	16077435	yclF	BSU03670	-	hypothetical protein
368	 44.84	0	417561..419315	+	584	16077436	yclG	BSU03680	-	hypothetical protein
369	 35.14	-1	419331..419552	-	73	16077437	yczF	BSU03690	-	hypothetical protein
370	 47.22	0	419678..421312	+	544	16077438	gerKA	BSU03700	-	germination response to the combination of glucose, fructose, L-asparagine, and KCl
371	 44.85	0	421302..422525	+	407	16077439	gerKC	BSU03710	-	germination response to the combination of glucose, fructose, L-asparagine, and KCl
372	 42.87	0	422550..423671	+	373	16077440	gerKB	BSU03720	-	germination response to the combination of glucose, fructose, L-asparagine, and KCl
373	 44.05	0	423776..424456	-	226	16077441	yclH	BSU03730	-	hypothetical protein
374	 44.76	0	424472..425932	-	486	16077442	yclI	BSU03740	-	hypothetical protein
375	 43.27	0	426145..426828	+	227	16077443	yclJ	BSU03750	-	hypothetical protein
376	 43.67	0	426815..428236	+	473	16077444	yclK	BSU03760	-	hypothetical protein
377	 39.51	0	428399..429547	+	382	16077445	rapC	BSU03770	-	response regulator aspartate phosphatase
378	 43.09	0	429531..429653	+	40	16077446	phrC	BSU03780	-	regulator of the activity of phosphatase RapC and competence and sporulation stimulating factor (CSF)
379	 49.08	+1	430191..431555	-	454	16077447	yclM	BSU03790	-	aspartate kinase
380	 44.16	0	431940..432890	+	316	16077448	yclN	BSU03800	-	hypothetical protein
381	 43.78	0	432883..433830	+	315	16077449	yclO	BSU03810	-	hypothetical protein
382	 44.27	0	433824..434582	+	252	16077450	yclP	BSU03820	-	hypothetical protein
383	 40.67	0	434604..435557	+	317	16077451	yclQ	BSU03830	-	hypothetical protein
384	 49.68	+1	435604..437022	-	472	16077452	ycnB	BSU03840	-	hypothetical protein
385	 45.85	0	437042..437920	-	292	16077453	ycnC	BSU03850	-	hypothetical protein
386	 47.73	0	438084..438833	-	249	16077454	ycnD	BSU03860	-	hypothetical protein
387	 42.36	0	438850..439137	-	95	16077455	ycnE	BSU03870	-	hypothetical protein
388	 46.35	0	439277..439591	+	104	16077456	yczG	BSU03880	-	hypothetical protein
389	 48.96	+1	439593..441032	-	479	16077457	gabR	BSU03890	-	GntR family transcriptional regulator
390	 50.72	+1	441139..442449	+	436	16077458	gabT	BSU03900	-	4-aminobutyrate aminotransferase
391	 50.11	+1	442518..443906	+	462	16077459	gabD	BSU03910	-	succinate-semialdehyde dehydrogenase
392	 45.49	0	444029..444892	+	287	16077460	glcU	BSU03920	-	glucose uptake
393	 46.95	0	444912..445697	+	261	16077461	gdh	BSU03930	-	glucose-1-dehydrogenase
394	 47.80	0	445742..446356	-	204	16077462	ycnI	BSU03940	-	hypothetical protein
395	 48.65	+1	446369..447994	-	541	16077463	ycnJ	BSU03950	-	hypothetical protein
396	 48.17	+1	448029..448601	-	190	16077464	ycnK	BSU03960	-	hypothetical protein
397	 47.74	0	448766..449119	+	117	16077465	ycnL	BSU03970	-	hypothetical protein
398	 47.19	0	449292..451124	+	610	16077466	mtlA	BSU03980	-	phosphotransferase system (PTS) mannitol-specific enzyme IICBA component
399	 48.41	+1	451177..452277	+	366	16077467	mtlD	BSU03990	-	mannitol-1-phosphate 5-dehydrogenase
400	 49.58	+1	452385..453449	+	354	50812181	ycsA	BSU04000	-	tartrate dehydrogenase
401	 39.18	0	453584..454147	+	187	16077469	sipU	BSU04010	-	type I signal peptidase
402	 46.42	0	454257..454814	-	185	16077470	yczH	BSU04020	-	hypothetical protein
403	 47.33	0	454900..455292	+	130	50812182	ycsD	BSU04030	-	hypothetical protein
404	 46.40	0	455622..456371	+	249	16077472	ycsE	BSU04040	-	hypothetical protein
405	 48.32	+1	456576..457349	+	257	50812183	ycsF	BSU04050	-	hypothetical protein
43.31	MEAN

4.61	STD DEV
