IslandPathversion 1.0

IslandPath Analysis: Bacillus subtilis subsp. subtilis str. 168

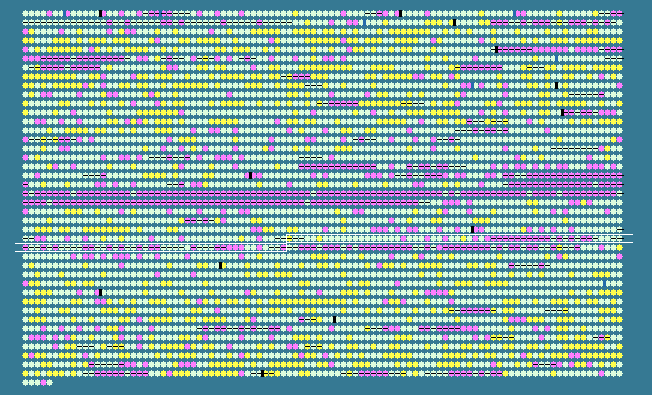

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 43.31 STD DEV: 4.61
Bacillus subtilis subsp. subtilis str. 168, complete genome - 1..4214630
4105 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2545	 47.10	0	2624017..2625135	-	372	16079600	dnaJ	BSU25460	-	heat-shock protein
2546	 44.12	0	2625335..2627170	-	611	16079601	dnaK	BSU25470	-	class I heat-shock protein (molecular chaperone)
2547	 43.09	0	2627194..2627757	-	187	16079602	grpE	BSU25480	-	heat-shock protein
2548	 41.57	0	2627829..2628860	-	343	16079603	hrcA	BSU25490	-	heat-inducible transcription repressor
2549	 42.96	0	2628980..2630080	-	366	16079604	hemN	BSU25500	-	coproporphyrinogen III oxidase
2550	 46.93	0	2630133..2631971	-	612	16079605	lepA	BSU25510	-	GTP-binding protein LepA
2551	 43.07	0	2632105..2632443	-	112	16079606	yqxA	BSU25520	-	hypothetical protein
2552	 45.52	0	2632460..2633665	-	401	16079607	spoIIP	BSU25530	-	required for dissolution of the septal cell wall (stage II sporulation)
2553	 46.07	0	2633728..2634834	-	368	16079608	gpr	BSU25540	-	germination protease
2554	 40.07	0	2635038..2635304	+	88	16079609	rpsT	BSU25550	-	30S ribosomal protein S20
2555	 41.67	0	2635319..2636362	-	347	16079610	holA	BSU25560	-	DNA polymerase III subunit delta
2556	 44.49	0	2636766..2639096	-	776	16079611	comEC	BSU25570	-	putative integral membrane protein
2557	 43.51	0	2639100..2639669	-	189	16079612	comEB	BSU25580	-	required for DNA binding and uptake (competence)
2558	 45.95	0	2639736..2640353	-	205	16079613	comEA	BSU25590	-	unspecific high-affinity DNA-binding protein
2559	 43.19	0	2640437..2641258	+	273	16079614	comER	BSU25600	-	late competence protein ComER
2560	 44.09	0	2641324..2642067	-	247	16079615	yqeM	BSU25610	-	hypothetical protein
2561	 43.70	0	2642064..2642420	-	118	16079616	yqeL	BSU25620	-	hypothetical protein
2562	 45.63	0	2642438..2642998	-	186	16079617	yqeK	BSU25630	-	hypothetical protein
2563	 42.28	0	2642988..2643557	-	189	16079618	nadD	BSU25640	-	nicotinic acid mononucleotide adenylyltransferase
2564	 39.52	0	2643569..2643859	-	96	16079619	yqeI	BSU25650	-	hypothetical protein
2565	 43.06	0	2643853..2644695	-	280	16079620	aroE	BSU25660	-	shikimate 5-dehydrogenase
2566	 42.23	0	2644713..2645813	-	366	16079621	yqeH	BSU25670	-	GTP-binding protein YqeH
2567	 42.97	0	2645817..2646335	-	172	16079622	yqeG	BSU25680	-	hypothetical protein
2568	 30.82	-2	2646679..2646837	+	52	50812270	sda	BSU25690	-	mediates a developmental checkpoint coupling initiation of sporulation (phosphorylation of Spo0A) to the function of replication initiation proteins
2569	 43.31	0	2647143..2647874	-	243	16079623	yqeF	BSU25700	-	hypothetical protein
2570	 44.22	0	2648126..2648878	-	250	16079624	cwlH	BSU25710	-	N-acetylmuramoyl-L-alanine amidase
2571	 39.55	0	2649065..2649691	+	208	16079625	yqeD	BSU25720	-	hypothetical protein
2572	 45.19	0	2649710..2650603	-	297	16079626	yqeC	BSU25730	-	6-phosphogluconate dehydrogenase-like protein
2573	 44.49	0	2650855..2651580	+	241	16079627	yqeB	BSU25740	-	hypothetical protein
2574	 51.09	+1	2651613..2652023	-	136	16079628	nucB	BSU25750	-	nuclease
2575	 40.34	0	2652219..2652689	+	156	16079629	spoIVCB	BSU25760	-	RNA polymerase sporulation-specific sigma factor (sigma-K) (N-terminal half)
2576	 37.19	-1	2652597..2654099	-	500	16079630	spoIVCA	BSU25770	-	site-specific DNA recombinase
2577	 40.48	0	2654548..2654967	-	139	16079631	arsC	BSU25780	-	arsenate reductase
2578	 36.41	-1	2654979..2656019	-	346	16079632	arsB	BSU25790	-	membrane-associated protein
2579	 36.28	-1	2656042..2656482	-	146	16079633	yqcK	BSU25800	-	hypothetical protein
2580	 33.65	-2	2656543..2656860	-	105	16079634	arsR	BSU25810	-	ArsR family transcriptional regulator
2581	 36.86	-1	2657232..2657996	-	254	16079635	yqcI	BSU25820	-	hypothetical protein
2582	 35.73	-1	2658440..2659567	+	375	16079636	rapE	BSU25830	-	response regulator aspartate phosphatase
2583	 37.04	-1	2659557..2659691	+	44	16079637	phrE	BSU25840	-	regulator of the activity of phosphatase RapE
2584	 34.59	-1	2659801..2659959	+	52	16079638	yqzI	BSU25850	-	hypothetical protein
2585	 38.60	-1	2660329..2661924	+	531	16079639	yqcG	BSU25860	-	hypothetical protein
2586	 35.41	-1	2661939..2662517	+	192	16079640	yqcF	BSU25870	-	hypothetical protein
2587	 32.78	-2	2662778..2663140	-	120	16079641	yqxJ	BSU25880	-	hypothetical protein
2588	 38.54	-1	2663156..2663635	-	159	16079642	yqxI	BSU25890	-	hypothetical protein
2589	 40.66	0	2663800..2664618	-	272	16079643	cwlA	BSU25900	-	N-acetylmuramoyl-L-alanine amidase
2590	 35.70	-1	2664663..2665085	-	140	16079644	yqxH	BSU25910	-	hypothetical protein
2591	 40.38	0	2665130..2666023	-	297	16079645	yqxG	BSU25920	-	hypothetical protein
2592	 38.79	0	2666111..2666275	-	54	16079646	yqcE	BSU25930	-	hypothetical protein
2593	 40.48	0	2666272..2666607	-	111	16079647	yqcD	BSU25940	-	hypothetical protein
2594	 38.42	-1	2666617..2667717	-	366	16079648	yqcC	BSU25950	-	hypothetical protein
2595	 37.00	-1	2667720..2667992	-	90	16079649	yqcB	BSU25960	-	hypothetical protein
2596	 44.56	0	2667989..2668567	-	192	16079650	yqcA	BSU25970	-	hypothetical protein
2597	 44.13	0	2668551..2669597	-	348	16079651	yqbT	BSU25980	-	hypothetical protein
2598	 42.49	0	2669590..2670015	-	141	16079652	yqbS	BSU25990	-	hypothetical protein
2599	 40.91	0	2670028..2670291	-	87	16079653	yqbR	BSU26000	-	hypothetical protein
2600	 42.92	0	2670288..2671268	-	326	16079654	yqbQ	BSU26010	-	hypothetical protein
2601	 38.79	0	2671281..2671940	-	219	16079655	yqbP	BSU26020	-	hypothetical protein
2602	 43.25	0	2671933..2676690	-	1585	16079656	yqbO	BSU26030	-	hypothetical protein
2603	 41.56	0	2676872..2677321	-	149	16079657	yqbN	BSU26040	-	hypothetical protein
2604	 36.11	-1	2677467..2677646	+	59	16079658	yqdB	BSU26050	-	hypothetical protein
2605	 42.12	0	2678369..2678812	-	147	16079659	yqbM	BSU26060	-	hypothetical protein
2606	 37.78	-1	2678815..2679219	-	134	16079660	yqbL	BSU26070	-	hypothetical protein
2607	 44.77	0	2679297..2680214	-	305	16079661	yqbK	BSU26080	-	hypothetical protein
2608	 42.24	0	2680403..2680840	-	145	16079662	yqbJ	BSU26090	-	hypothetical protein
2609	 45.04	0	2680853..2681356	-	167	16079663	yqbI	BSU26100	-	hypothetical protein
2610	 41.05	0	2681353..2681715	-	120	16079664	yqbH	BSU26110	-	hypothetical protein
2611	 37.88	-1	2681712..2682107	-	131	16079665	yqbG	BSU26120	-	hypothetical protein
2612	 34.94	-1	2682111..2682422	-	103	16079666	yqbF	BSU26130	-	hypothetical protein
2613	 41.03	0	2682433..2683368	-	311	16079667	yqbE	BSU26140	-	hypothetical protein
2614	 41.18	0	2683387..2684355	-	322	16079668	yqbD	BSU26150	-	hypothetical protein
2615	 29.66	-2	2684388..2685041	-	217	16079669	yqbC	BSU26160	-	hypothetical protein
2616	 42.70	0	2685082..2685999	-	305	16079670	yqbB	BSU26170	-	hypothetical protein
2617	 39.01	0	2685996..2687528	-	510	16079671	yqbA	BSU26180	-	hypothetical protein
2618	 41.36	0	2687532..2688827	-	431	16079672	yqaT	BSU26190	-	hypothetical protein
2619	 40.28	0	2688820..2689539	-	239	16079673	yqaS	BSU26200	-	hypothetical protein
2620	 27.31	-2	2689607..2690071	-	154	16079674	yqaR	BSU26210	-	hypothetical protein
2621	 40.13	0	2690215..2690670	-	151	16079675	yqaQ	BSU26220	-	hypothetical protein
2622	 32.04	-2	2690868..2691797	+	309	16079676	yqaP	BSU26230	-	hypothetical protein
2623	 39.61	0	2691871..2692077	-	68	16079677	yqaO	BSU26240	-	hypothetical protein
2624	 42.42	0	2692159..2692587	-	142	16079678	yqaN	BSU26250	-	hypothetical protein
2625	 40.13	0	2692823..2693764	-	313	16079679	yqaM	BSU26260	-	hypothetical protein
2626	 41.74	0	2693646..2694347	-	233	16079680	yqaL	BSU26270	-	hypothetical protein
2627	 40.23	0	2694399..2695253	-	284	16079681	yqaK	BSU26280	-	hypothetical protein
2628	 40.31	0	2695256..2696215	-	319	16079682	yqaJ	BSU26290	-	hypothetical protein
2629	 37.95	-1	2696321..2696515	-	64	16079683	yqaI	BSU26300	-	hypothetical protein
2630	 40.31	0	2696645..2696902	-	85	16079684	yqaH	BSU26310	-	hypothetical protein
2631	 42.81	0	2696899..2697468	-	189	16079685	yqaG	BSU26320	-	hypothetical protein
2632	 40.43	0	2697542..2697682	-	46	16079686	yqdA	BSU26330	-	hypothetical protein
2633	 35.50	-1	2697712..2697942	-	76	16079687	yqaF	BSU26340	-	hypothetical protein
2634	 35.90	-1	2698119..2698469	+	116	16079688	yqaE	BSU26350	-	hypothetical protein
2635	 21.43	-2	2698736..2698903	-	55	16079689	yqaD	BSU26360	-	hypothetical protein
2636	 37.24	-1	2699259..2699795	-	178	16079690	yqaC	BSU26370	-	hypothetical protein
2637	 35.07	-1	2700064..2700582	+	172	16079691	yqaB	BSU26380	-	hypothetical protein
2638	 42.93	0	2700564..2700980	+	138	16079692	spoIIIC	BSU26390	-	RNA polymerase sporulation-specific sigma factor (sigma-K) (C-terminal half)
2639	 41.21	0	2701205..2701369	-	54	16079693	yrkS	BSU26400	-	hypothetical protein
2640	 39.05	0	2701914..2702333	-	139	16079694	yrkR	BSU26410	-	phosphate-starvation-inducible protein PsiE
2641	 42.26	0	2702376..2703674	-	432	16079695	yrkQ	BSU26420	-	hypothetical protein
2642	 42.82	0	2703661..2704356	-	231	16079696	yrkP	BSU26430	-	hypothetical protein
2643	 44.25	0	2704624..2705841	+	405	16079697	yrkO	BSU26440	-	hypothetical protein
2644	 39.61	0	2706353..2706910	+	185	16079698	yrkN	BSU26450	-	hypothetical protein
43.31	MEAN

4.61	STD DEV
