IslandPath Analysis: Bacillus subtilis subsp. subtilis str. 168

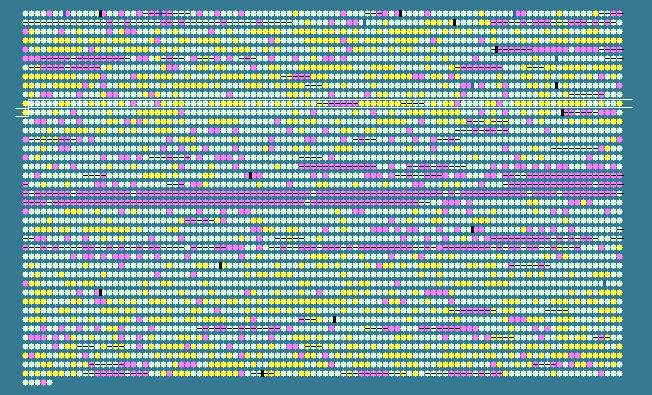

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 43.31   STD DEV: 4.61
Bacillus subtilis subsp. subtilis str. 168, complete genome - 1..4214630
4105 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1002	 45.46	0	1074594..1075673	-	359	16078066	serC	BSU10020	-	phosphoserine aminotransferase
1003	 41.78	0	1075820..1076257	-	145	16078067	hit	BSU10030	-	Hit-like protein
1004	 46.37	0	1076745..1077488	+	247	16078068	ecsA	BSU10040	-	ABC transporter ATP-binding protein
1005	 46.29	0	1077481..1078707	+	408	16078069	ecsB	BSU10050	-	ABC transporter membrane protein
1006	 44.02	0	1078727..1079437	+	236	16078070	ecsC	BSU10060	-	hypothetical protein
1007	 50.04	+1	1079455..1080645	-	396	16078071	yhaA	BSU10070	-	hypothetical protein
1008	 49.28	+1	1080718..1082109	-	463	16078072	yhfA	BSU10080	-	hypothetical protein
1009	 43.81	0	1082175..1082489	-	104	16078073	yhgB	BSU10090	-	hypothetical protein
1010	 45.31	0	1082534..1083034	-	166	16078074	yhgC	BSU10100	-	hypothetical protein
1011	 45.69	0	1083156..1085300	+	714	16078075	pbpF	BSU10110	-	penicillin-binding protein 2C
1012	 47.83	0	1085422..1086483	+	353	16078076	hemE	BSU10120	-	uroporphyrinogen decarboxylase
1013	 45.44	0	1086555..1087487	+	310	16078077	hemH	BSU10130	-	ferrochelatase
1014	 48.48	+1	1087502..1088914	+	470	16078078	hemY	BSU10140	-	protoporphyrinogen oxidase
1015	 43.92	0	1089060..1089635	+	191	16078079	yhgD	BSU10150	-	hypothetical protein
1016	 44.54	0	1089706..1092033	+	775	16078080	yhgE	BSU10160	-	hypothetical protein
1017	 47.96	+1	1092075..1093052	-	325	16078081	fabHB	BSU10170	-	3-oxoacyl-(acyl carrier protein) synthase III
1018	 45.43	0	1093178..1093954	+	258	16078082	yhfC	BSU10180	-	hypothetical protein
1019	 38.73	0	1094045..1094248	-	67	16078083	yhfD	BSU10190	-	hypothetical protein
1020	 46.59	0	1094367..1095407	+	346	16078084	yhfE	BSU10200	-	hypothetical protein
1021	 43.38	0	1095420..1095827	+	135	16078085	yhfF	BSU10210	-	hypothetical protein
1022	 44.11	0	1095864..1097153	-	429	16078086	gltT	BSU10220	-	proton/sodium-glutamate symport protein
1023	 36.17	-1	1097424..1097564	-	46	16078087	yhfH	BSU10230	-	hypothetical protein
1024	 46.80	0	1097716..1098450	+	244	16078088	yhfI	BSU10240	-	hypothetical protein
1025	 42.17	0	1098463..1099458	+	331	16078089	yhfJ	BSU10250	-	hypothetical protein
1026	 49.15	+1	1099523..1100167	+	214	16078090	yhfK	BSU10260	-	hypothetical protein
1027	 49.48	+1	1100284..1101825	+	513	16078091	yhfL	BSU10270	-	acyl-CoA synthetase
1028	 39.90	0	1101864..1102259	-	131	16078092	yhfM	BSU10280	-	hypothetical protein
1029	 44.96	0	1102408..1103688	+	426	16078093	yhfN	BSU10290	-	hypothetical protein
1030	 46.25	0	1103727..1104872	-	381	16078094	aprE	BSU10300	-	serine alkaline protease (subtilisin E)
1031	 45.33	0	1105307..1105756	+	149	16078095	yhfO	BSU10310	-	hypothetical protein
1032	 50.35	+1	1105828..1106820	+	330	16078096	yhfP	BSU10320	-	hypothetical protein
1033	 44.79	0	1106962..1108008	+	348	16078097	yhfQ	BSU10330	-	hypothetical protein
1034	 47.25	0	1108040..1108621	-	193	16078098	yhfR	BSU10340	-	hypothetical protein
1035	 52.69	+2	1108692..1109786	-	364	16078099	yhfS	BSU10350	-	acetyl-CoA acetyltransferase
1036	 49.10	+1	1109783..1111222	-	479	16078100	yhfT	BSU10360	-	acyl-CoA synthetase
1037	 47.42	0	1111229..1111789	-	186	16078101	yhfU	BSU10370	-	hypothetical protein
1038	 41.19	0	1111924..1113222	-	432	16078102	hemAT	BSU10380	-	haem-based aerotactic transducer
1039	 45.69	0	1113361..1114890	-	509	16078103	yhfW	BSU10390	-	hypothetical protein
1040	 48.02	+1	1115002..1115859	+	285	16078104	yhxC	BSU10400	-	hypothetical protein
1041	 41.03	0	1115887..1116120	-	77	16078105	yhzC	BSU10410	-	hypothetical protein
1042	 44.04	0	1116413..1116991	+	192	16078106	comK	BSU10420	-	competence transcription factor (CTF)
1043	 48.78	+1	1117038..1117937	-	299	16078107	yhxD	BSU10430	-	hypothetical protein
1044	 45.93	0	1118154..1118423	+	89	16078108	yhjA	BSU10440	-	hypothetical protein
1045	 49.80	+1	1118466..1119935	-	489	16078109	yhjB	BSU10450	-	hypothetical protein
1046	 44.78	0	1119932..1120132	-	66	16078110	yhjC	BSU10460	-	hypothetical protein
1047	 40.22	0	1120340..1120702	-	120	16078111	yhjD	BSU10470	-	hypothetical protein
1048	 47.44	0	1120855..1121478	+	207	16078112	yhjE	BSU10480	-	hypothetical protein
1049	 41.42	0	1121480..1121986	+	168	16078113	sipV	BSU10490	-	type I signal peptidase
1050	 53.33	+2	1122166..1123665	+	499	16078114	yhjG	BSU10500	-	hypothetical protein
1051	 42.80	0	1123742..1124269	+	175	16078115	yhjH	BSU10510	-	hypothetical protein
1052	 33.58	-2	1124427..1125632	-	401	16078116	glcP	BSU10520	-	glucose/mannose:H+ symporter
1053	 37.32	-1	1125704..1126756	-	350	16078117	yhjJ	BSU10530	-	hypothetical protein
1054	 35.08	-1	1126759..1127619	-	286	16078118	yhjK	BSU10540	-	hypothetical protein
1055	 34.31	-1	1127591..1128916	-	441	16078119	yhjL	BSU10550	-	hypothetical protein
1056	 35.56	-1	1129020..1130009	+	329	16078120	yhjM	BSU10560	-	hypothetical protein
1057	 50.13	+1	1130223..1131377	-	384	16078121	yhjN	BSU10570	-	hypothetical protein
1058	 48.26	+1	1131484..1132689	-	401	16078122	yhjO	BSU10580	-	hypothetical protein
1059	 47.51	0	1132803..1134530	+	575	16078123	yhjP	BSU10590	-	hypothetical protein
1060	 49.54	+1	1134560..1134886	-	108	16078124	yhjQ	BSU10600	-	hypothetical protein
1061	 47.72	0	1135004..1135441	-	145	16078125	yhjR	BSU10610	-	hypothetical protein
1062	 49.04	+1	1135625..1139125	+	1166	16078126	addB	BSU10620	-	ATP-dependent deoxyribonuclease (subunit B)
1063	 48.77	+1	1139112..1142810	+	1232	16078127	addA	BSU10630	-	ATP-dependent deoxyribonuclease (subunit A)
1064	 51.62	+1	1142882..1144057	+	391	50812209	sbcD	BSU10640	-	exonuclease SbcD-like protein
1065	 48.10	+1	1144054..1147446	+	1130	16078129	yirY	BSU10650	-	hypothetical protein
1066	 45.21	0	1147460..1147762	+	100	16078130	yisB	BSU10660	-	hypothetical protein
1067	 44.30	0	1147799..1148026	-	75	16078131	gerPF	BSU10670	-	spore germination protein
1068	 46.02	0	1148049..1148450	-	133	16078132	gerPE	BSU10680	-	spore germination protein
1069	 46.89	0	1148450..1148626	-	58	16078133	gerPD	BSU10690	-	spore germination protein
1070	 44.01	0	1148623..1149240	-	205	16078134	gerPC	BSU10700	-	spore germination protein
1071	 49.79	+1	1149263..1149505	-	80	16078135	gerPB	BSU10710	-	spore germination protein
1072	 50.45	+1	1149511..1149732	-	73	16078136	gerPA	BSU10720	-	spore germination protein
1073	 36.26	-1	1150155..1150325	-	56	16078137	yisI	BSU10730	-	hypothetical protein
1074	 45.35	0	1150471..1151394	-	307	16078138	yisJ	BSU10740	-	hypothetical protein
1075	 46.47	0	1151549..1152454	+	301	16078139	yisK	BSU10750	-	hypothetical protein
1076	 45.38	0	1152570..1152926	+	118	16078140	yisL	BSU10760	-	hypothetical protein
1077	 44.92	0	1153094..1155778	+	894	16078141	wprA	BSU10770	-	cell wall-associated protein precursor (CWBP23, CWBP52)
1078	 48.47	+1	1155809..1156396	-	195	16078142	yisN	BSU10780	-	hypothetical protein
1079	 47.53	0	1156542..1158386	+	614	50812210	asnO	BSU10790	-	asparagine synthetase
1080	 34.38	-1	1158516..1158995	-	159	50812211	yizA	BSU10800	-	hypothetical protein
1081	 46.79	0	1159227..1160051	+	274	16078144	yisP	BSU10810	-	hypothetical protein
1082	 45.39	0	1160081..1161448	-	455	16078145	yisQ	BSU10820	-	hypothetical protein
1083	 47.45	0	1161572..1162435	+	287	16078146	yisR	BSU10830	-	hypothetical protein
1084	 47.63	0	1162453..1163466	+	337	16078147	degA	BSU10840	-	LacI family transcription regulator
1085	 48.40	+1	1163675..1164703	+	342	16078148	yisS	BSU10850	-	hypothetical protein
1086	 45.88	0	1164754..1165263	-	169	50812212	yisT	BSU10860	-	hypothetical protein
1087	 47.81	0	1165313..1165975	-	220	16078150	yisU	BSU10870	-	hypothetical protein
1088	 49.97	+1	1166042..1167496	+	484	50812213	yisV	BSU10880	-	hypothetical protein
1089	 44.91	0	1167504..1168142	-	212	16078153	yisX	BSU10890	-	hypothetical protein
1090	 47.46	0	1168348..1169154	+	268	16078154	yisY	BSU10900	-	hypothetical protein
1091	 46.83	0	1169182..1169781	-	199	16078155	yisZ	BSU10910	-	hypothetical protein
1092	 50.09	+1	1169778..1170947	-	389	50812214	sat	BSU10920	-	sulfate adenylyltransferase
1093	 48.24	+1	1171060..1171770	-	236	50812215	yitB	BSU10930	-	hypothetical protein
1094	 46.87	0	1171955..1172641	+	228	16078158	yitC	BSU10940	-	hypothetical protein
1095	 42.82	0	1172638..1173396	+	252	16078159	yitD	BSU10950	-	hypothetical protein
1096	 45.87	0	1173441..1174070	-	209	16078160	yitE	BSU10960	-	hypothetical protein
1097	 50.27	+1	1174166..1175281	-	371	16078161	yitF	BSU10970	-	hypothetical protein
1098	 45.63	0	1175290..1176558	-	422	16078162	yitG	BSU10980	-	hypothetical protein
1099	 46.41	0	1176670..1177518	-	282	16078163	yitH	BSU10990	-	hypothetical protein
1100	 49.03	+1	1177523..1177987	-	154	16078164	yitI	BSU11000	-	hypothetical protein
1101	 48.29	+1	1178062..1179900	-	612	16078165	yitJ	BSU11010	-	bifunctional homocysteine S-methyltransferase/5,10-methylenetetrahydrofolate reductase protein
43.31	MEAN

4.61	STD DEV
