IslandPath Analysis: Bacillus pumilus SAFR-032

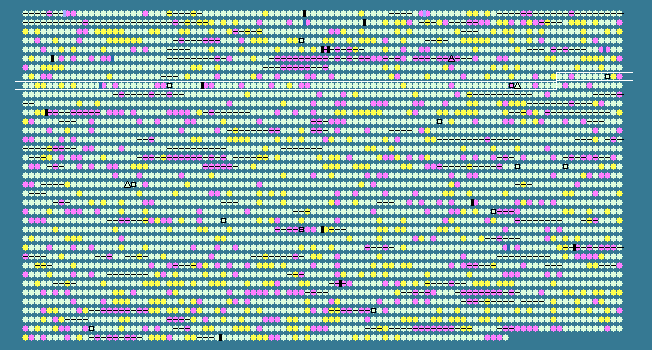

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.07 STD DEV: 3.65
Bacillus pumilus SAFR-032, complete genome - 1..3704465
3681 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
790	 41.82	0	884793..884957	-	54	157691588	-	BPUM_0806	-	hypothetical protein
791	 40.30	0	885124..885726	+	200	157691589	yvrI	BPUM_0807	-	DNA-directed RNA polymerase sigma subunit FliA
792	 37.04	-1	885680..885895	+	71	157691590	yvrH	BPUM_0808	-	response regulator
793	 43.43	0	885923..886903	-	326	157691591	yfhP	BPUM_0809	-	membrane bound metal dependent hydrolase
794	 43.87	0	887095..888195	+	366	157691592	mutY	BPUM_0810	-	adenine glycosylase
795	 42.22	0	888182..888406	-	74	157691593	yfhS	BPUM_0811	-	hypothetical protein
796	 43.56	0	888488..889240	+	250	157691594	fabL	BPUM_0812	-	enoyl-(acyl carrier protein) reductase
797	 38.79	0	889301..889465	+	54	157691595	sspE	BPUM_0813	-	small acid-soluble spore protein E
798	 38.05	0	889585..890940	-	451	157691596	-	BPUM_0814	-	transposase
799	 47.39	+1	891080..891328	-	82	157691597	-	BPUM_0815	-	hypothetical protein
800	 36.78	-1	891378..891638	+	86	157691598	-	BPUM_0816	-	hypothetical protein
801	 39.17	0	891786..892316	+	176	157691599	-	BPUM_0817	-	hypothetical protein
802	 41.88	0	892411..894153	+	580	157691600	-	BPUM_0818	-	ABC transporter ATP-binding protein
803	 44.67	0	894266..895288	+	340	157691601	appDC	BPUM_0819	-	oligopeptide ABC transporter ATP-binding protein
804	 44.58	0	895257..896234	+	325	157691602	appFC	BPUM_0820	-	oligopeptide ABC transporter ATP-binding protein
805	 42.91	0	896209..897795	+	528	157691603	-	BPUM_0821	-	peptide ABC transporter ATP-binding protein
806	 43.17	0	897812..898858	+	348	157691604	appBC	BPUM_0822	-	peptide ABC transporter membrane protein
807	 45.48	+1	898876..899772	+	298	157691605	appCC	BPUM_0823	-	oligopeptide ABC transporter membrane protein
808	 38.73	0	899802..900875	-	357	157691606	ygaE	BPUM_0824	-	hypothetical protein
809	 44.83	+1	901122..902417	-	431	157691607	gsaB	BPUM_0825	-	glutamate-1-semialdehyde aminotransferase
810	 39.96	0	902547..903014	+	155	157691608	ygaF	BPUM_0826	-	peroxiredoxin YgaF
811	 41.78	0	903173..903610	+	145	157691609	perR	BPUM_0827	-	Fur family transcriptional regulator PerR
812	 42.24	0	903645..903992	-	115	157691610	ygzB	BPUM_0828	-	hypothetical protein
813	 38.11	0	904182..905060	+	292	157691611	ygxA	BPUM_0829	-	hypothetical protein
814	 30.26	-2	911983..912438	+	151	157691612	-	BPUM_0830	-	hypothetical protein
815	 38.64	0	912848..913657	+	269	157691613	-	BPUM_0831	-	aminoglycoside phosphotransferase
816	 32.41	-2	913802..914236	+	144	157691614	-	BPUM_0832	-	hypothetical protein
817	 41.06	0	914307..915005	+	232	157691615	-	BPUM_0833	-	hypothetical protein
818	 41.76	0	915024..915581	-	185	157691616	-	BPUM_0834	-	fructose-2,6-bisphosphate 2-phosphatase
819	 43.23	0	915637..915828	-	63	157691617	-	BPUM_0835	-	hypothetical protein
820	 37.65	0	915951..916274	-	107	157691618	-	BPUM_0836	-	hypothetical protein
821	 40.58	0	916286..916975	-	229	157691619	-	BPUM_0837	-	hypothetical protein
822	 42.29	0	916994..917797	-	267	157691620	-	BPUM_0838	-	hypothetical protein
823	 36.94	-1	918331..920271	+	646	157691621	yfnI	BPUM_0839	-	phosphoglycerol transferase
824	 37.32	-1	920323..921000	+	225	157691622	sipP	BPUM_0840	-	signal peptidase 1
825	 37.87	0	921027..922460	+	477	157691623	-	BPUM_0841	-	transposase
826	 39.18	0	922570..923322	-	250	157691624	yrpD	BPUM_0842	-	hypothetical protein
827	 41.98	0	923448..923921	-	157	157691625	cspR	BPUM_0843	-	rRNA methyltransferase-like protein
828	 42.86	0	923965..924867	-	300	157691626	yhbB	BPUM_0844	-	hypothetical protein
829	 43.32	0	924929..926080	-	383	157691627	yhbA	BPUM_0845	-	hypothetical protein
830	 38.53	0	926161..926757	+	198	157691628	yhzB	BPUM_0846	-	hypothetical protein
831	 34.07	-1	927057..927737	-	226	157691629	-	BPUM_0847	-	hypothetical protein
832	 37.59	0	927818..928099	-	93	157691630	-	BPUM_0848	-	hypothetical protein
833	 40.07	0	928096..929001	-	301	157691631	-	BPUM_0849	-	hypothetical protein
834	 38.92	0	928985..930451	-	488	157691632	-	BPUM_0850	-	hypothetical protein
835	 38.02	0	930429..931196	-	255	157691633	-	BPUM_0851	-	ABC transporter ATP-binding protein
836	 44.13	0	931291..931503	-	70	157691634	-	BPUM_0852	-	hypothetical protein
837	 33.33	-2	931870..932019	+	49	157691635	-	BPUM_0853	-	hypothetical protein
838	 42.75	0	932269..933564	+	431	157691636	-	BPUM_0854	-	O-acetylhomoserine aminocarboxypropyltransferase
839	 42.53	0	935128..935214	-	28	157691637	-	BPUM_0855	-	hypothetical protein
840	 40.82	0	935465..937360	+	631	157691638	prkA	BPUM_0856	-	inner spore coat serine protein kinase
841	 40.03	0	937501..938664	+	387	157691639	yhbH	BPUM_0857	-	hypothetical protein
842	 37.12	-1	939028..939660	+	210	157691640	yhbJ	BPUM_0858	-	hypothetical protein
843	 43.02	0	939700..941319	+	539	157691641	yhcA	BPUM_0859	-	major facilitator transporter
844	 44.19	0	941337..941861	+	174	157691642	yhcB	BPUM_0860	-	hypothetical protein
845	 45.83	+1	941875..942234	+	119	157691643	yhcC	BPUM_0861	-	hypothetical protein
846	 39.58	0	942349..942588	-	79	157691644	cspB	BPUM_0862	-	major cold shock protein
847	 36.74	-1	942767..943852	-	361	157691645	yhcK	BPUM_0863	-	ABC transporter ATP-binding protein
848	 37.34	-1	943933..944331	+	132	157691646	-	BPUM_0864	-	hypothetical protein
849	 42.61	0	944366..944764	-	132	157691647	yhcM	BPUM_0865	-	spore protein YhcM
850	 40.59	0	944913..945422	+	169	157691648	yhcN	BPUM_0866	-	hypothetical protein
851	 39.58	0	945558..946454	+	298	157691649	yhcP	BPUM_0867	-	hypothetical protein
852	 42.79	0	946480..947124	-	214	157691650	yhcQ	BPUM_0868	-	hypothetical protein
853	 40.79	0	947269..950649	+	1126	157691651	-	BPUM_0869	-	sensor histidine kinase
854	 42.63	0	950736..953627	+	963	157691652	yhcR	BPUM_0870	-	endonuclease
855	 44.44	0	953674..954240	+	188	157691653	yhcS2	BPUM_0871	-	C60A subfamily peptidase
856	 42.46	0	954276..955184	-	302	157691654	rluA1	BPUM_0872	-	pseudouridylate synthase
857	 43.30	0	955294..955644	+	116	157691655	yhcU	BPUM_0873	-	hypothetical protein
858	 42.48	0	955717..955869	-	50	157691656	-	BPUM_0874	-	hypothetical protein
859	 42.79	0	955953..956618	+	221	157691657	yhcW	BPUM_0875	-	HAD family phosphatase
860	 40.29	0	956634..958172	+	512	157691658	yhcX	BPUM_0876	-	amidohydrolase
861	 41.76	0	958172..958717	+	181	157691659	-	BPUM_0877	-	hypothetical protein
862	 41.50	0	958805..959722	+	305	157691660	-	BPUM_0878	-	malonate efflux carrier
863	 41.75	0	959755..961347	+	530	157691661	-	BPUM_0879	-	hypothetical protein
864	 45.79	+1	961592..962932	+	446	157691662	bioA	BPUM_0880	-	aminotransferase
865	 41.40	0	963104..963661	+	185	157691663	glpP	BPUM_0881	-	glycerol-3-phosphate responsive antiterminator
866	 43.75	0	963875..964690	+	271	157691664	glpF	BPUM_0882	-	MIP family major intrinsic protein channel protein
867	 42.28	0	964706..966202	+	498	157691665	glpK	BPUM_0883	-	glycerol kinase
868	 42.78	0	966342..968003	+	553	157691666	glpD	BPUM_0884	-	glycerol-3-phosphate dehydrogenase
869	 43.59	0	968337..970082	+	581	157691667	-	BPUM_0885	-	phosphoglucomutase
870	 41.49	0	970216..971379	+	387	157691668	yhcY	BPUM_0886	-	spore sensor histidine kinase
871	 41.63	0	971376..972026	+	216	157691669	yhcZ	BPUM_0887	-	transcriptional regulator
872	 34.55	-1	972115..972279	-	54	157691670	-	BPUM_0888	-	hypothetical protein
873	 39.10	0	972296..973162	+	288	157691671	-	BPUM_0889	-	hypothetical protein
874	 40.07	0	973198..973479	-	93	157691672	yhdB	BPUM_0890	-	hypothetical protein
875	 42.45	0	973575..973958	+	127	157691673	yhdC	BPUM_0891	-	hypothetical protein
876	 41.53	0	974102..975577	-	491	157691674	katX2	BPUM_0892	-	catalase KatX2
877	 37.96	0	975738..976169	-	143	157691675	yhdE	BPUM_0893	-	transcriptional regulator
878	 41.25	0	976353..977552	+	399	157691676	hmp	BPUM_0894	-	nitric oxide dioxygenase
879	 39.23	0	977620..979044	+	474	157691677	spoVR	BPUM_0895	-	stage V sporulation protein R
880	 41.83	0	979087..980451	-	454	157691678	phoA	BPUM_0896	-	alkaline phosphatase A
881	 38.13	0	980806..981639	+	277	157691679	lytE	BPUM_0897	-	vegetative cell wall hydrolase
882	 35.80	-1	981746..982069	+	107	157691680	orfX	BPUM_0898	-	transposase
883	 38.64	0	982117..982926	+	269	157691681	-	BPUM_0899	-	integrase
884	 38.49	0	983079..983369	-	96	157691682	yhdK	BPUM_0900	-	hypothetical protein
885	 39.08	0	983357..984418	-	353	157691683	yhdL	BPUM_0901	-	hypothetical protein
886	 36.18	-1	984408..984899	-	163	157691684	sigM	BPUM_0902	-	RNA polymerase sigma factor SigM
887	 39.30	0	985271..985873	+	200	157691685	plsC	BPUM_0903	-	1-acylglycerol-3-phosphate O-acyltransferase
888	 39.26	0	985913..987244	-	443	157691686	yhdP	BPUM_0904	-	TlyC family hemolysin
889	 39.46	0	987303..987743	-	146	157691687	cueR	BPUM_0905	-	MerR family transcriptional regulator
41.07	MEAN

3.65	STD DEV
