IslandPathversion 1.0

IslandPath Analysis: Bacillus pumilus SAFR-032

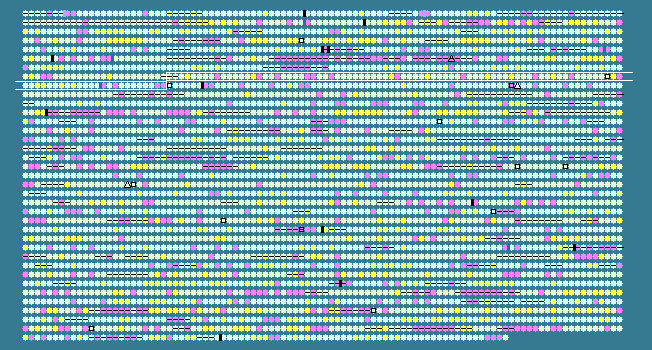

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.07 STD DEV: 3.65
Bacillus pumilus SAFR-032, complete genome - 1..3704465
3681 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
725	 43.15	0	822192..823373	-	393	157691523	yfkF	BPUM_0739	-	major facilitator transporter
726	 41.53	0	823449..823826	+	125	157691524	-	BPUM_0740	-	hypothetical protein
727	 43.66	0	823891..824955	+	354	157691525	yfkE	BPUM_0741	-	Ca2+ antiporter
728	 46.23	+1	825023..825805	+	260	157691526	yfkD	BPUM_0742	-	sporulation protein YfkD
729	 42.50	0	826318..827037	-	239	157691527	yeeI	BPUM_0743	-	hypothetical protein
730	 39.05	0	827169..827570	-	133	157691528	-	BPUM_0744	-	hypothetical protein
731	 40.74	0	827673..828509	-	278	157691529	-	BPUM_0745	-	MscS family small conductance mechanosenstive ion channel protein
732	 44.39	0	828517..829638	-	373	157691530	yfkA	BPUM_0746	-	thioredoxin
733	 37.50	0	829785..829976	+	63	157691531	yfjT	BPUM_0747	-	hypothetical protein
734	 43.18	0	830079..830870	+	263	157691532	yfjS	BPUM_0748	-	poylsaccharide deacetylase
735	 41.46	0	830906..831397	-	163	157691533	-	BPUM_0749	-	hypothetical protein
736	 40.21	0	831430..832389	-	319	157691534	corA	BPUM_0750	-	MIT family metal ion transporter CorA
737	 42.30	0	832523..833035	-	170	157691535	-	BPUM_0751	-	hypothetical protein
738	 42.02	0	833336..834337	+	333	157691536	alkA	BPUM_0752	-	DNA-3-methyladenine glycosylase II
739	 45.60	+1	834436..835821	+	461	157691537	trmA	BPUM_0753	-	tRNA (uracil-5-)-methyltransferase
740	 33.68	-2	835953..836537	+	194	157691538	-	BPUM_0754	-	TetR family transcriptional regulator
741	 38.95	0	836595..838481	+	628	157691539	-	BPUM_0755	-	bifunctional nucleotide sugar epimerase/hydrolase
742	 41.20	0	838554..838985	+	143	157691540	-	BPUM_0756	-	hypothetical protein
743	 29.82	-2	838975..839487	+	170	157691541	-	BPUM_0757	-	hypothetical protein
744	 40.10	0	839627..840454	+	275	157691542	-	BPUM_0758	-	transcriptional regulator
745	 42.26	0	840481..841668	+	395	157691543	ybcL	BPUM_0759	-	major facilitator transporter
746	 39.32	0	841924..843108	+	394	157691544	-	BPUM_0760	-	hypothetical protein
747	 40.84	0	843710..845641	+	643	157691545	thrZ	BPUM_0761	-	threonyl-tRNA synthetase
748	 36.54	-1	845680..845835	+	51	157691546	-	BPUM_0762	-	hypothetical protein
749	 32.45	-2	845817..846383	+	188	157691547	-	BPUM_0763	-	hypothetical protein
750	 40.06	0	846410..847687	+	425	157691548	-	BPUM_0764	-	hypothetical protein
751	 38.83	0	848010..848282	+	90	157691549	-	BPUM_0765	-	hypothetical protein
752	 35.98	-1	848332..849840	-	502	157691550	-	BPUM_0766	-	transcriptional regulator
753	 38.95	0	850553..856696	+	2047	157691551	-	BPUM_0767	-	collagen adhesion protein
754	 40.80	0	856718..857320	+	200	157691552	-	BPUM_0769	-	C60A subfamily peptidase
755	 39.14	0	857313..857639	+	108	157691553	-	BPUM_0770	-	hypothetical protein
756	 43.49	0	857693..858007	-	104	157691554	-	BPUM_0771	-	DMT superfamily drug/metabolite transporter
757	 43.77	0	858008..858352	-	114	157691555	-	BPUM_0772	-	DMT superfamily drug/metabolite transporter
758	 40.63	0	858433..859158	-	241	157691556	-	BPUM_0773	-	transcriptional regulator
759	 37.89	0	859185..859733	+	182	157691557	vanZ	BPUM_0774	-	teicoplanin resistance protein VanZ
760	 43.01	0	859730..860194	+	154	157691558	yfjM	BPUM_0775	-	hypothetical protein
761	 43.49	0	860345..860974	+	209	157691559	yesY	BPUM_0776	-	rhamnogalacturan acetylesterase
762	 45.73	+1	861128..862168	+	346	157691560	ycgT	BPUM_0777	-	thioredoxin-disulfide reductase
763	 35.04	-1	862576..862809	-	77	157691561	-	BPUM_0779	-	hypothetical protein
764	 41.09	0	862909..863475	+	188	157691562	-	BPUM_0780	-	DNA-directed RNA polymerase sigma subunit
765	 43.78	0	863472..864218	+	248	157691563	-	BPUM_0781	-	hypothetical protein
766	 37.85	0	864414..864989	+	191	157691564	-	BPUM_0782	-	hypothetical protein
767	 43.96	0	865078..866103	+	341	157691565	-	BPUM_0783	-	NADPH:quinone reductase
768	 46.59	+1	866100..866627	+	175	157691566	yfiT	BPUM_0784	-	metal-dependent hydrolase
769	 37.80	0	866640..866930	+	96	157691567	-	BPUM_0785	-	hypothetical protein
770	 41.67	0	866953..867432	-	159	157691568	yfiV	BPUM_0786	-	transcriptional regulator
771	 41.93	0	867601..870171	+	856	157691569	-	BPUM_0787	-	hypothetical protein
772	 39.53	0	870263..870811	+	182	157691570	-	BPUM_0788	-	hypothetical protein
773	 40.17	0	871148..871615	+	155	157691571	-	BPUM_0789	-	hypothetical protein
774	 37.47	0	871652..872908	-	418	157691572	-	BPUM_0790	-	transcriptional activator
775	 43.54	0	873180..873767	+	195	157691573	yfhC	BPUM_0791	-	nitroreductase family protein
776	 43.59	0	874013..874168	-	51	157691574	yfhD	BPUM_0792	-	sporulation protein YfhD
777	 39.62	0	874123..874281	+	52	157691575	-	BPUM_0793	-	hypothetical protein
778	 45.60	+1	874393..875289	-	298	157691576	yfhF	BPUM_0794	-	nucleoside diphosphate sugar epimerase
779	 40.28	0	875384..876175	+	263	157691577	recX	BPUM_0795	-	recombination regulator RecX
780	 40.63	0	876179..876493	+	104	157691578	yfhH	BPUM_0796	-	hypothetical protein
781	 44.25	0	876516..876689	-	57	157691579	-	BPUM_0797	-	hypothetical protein
782	 46.67	+1	876715..876864	-	49	157691580	sspK	BPUM_0798	-	acid-soluble spore protein K
783	 39.19	0	876981..877253	+	90	157691581	yfhJ	BPUM_0799	-	hypothetical protein
784	 40.65	0	877544..878527	+	327	157691582	csbB	BPUM_0800	-	stress response protein
785	 43.04	0	878615..881209	+	864	157691583	yfhO	BPUM_0801	-	hypothetical protein
786	 36.16	-1	881232..882365	-	377	157691584	-	BPUM_0802	-	monooxygenase
787	 44.15	0	882587..883039	+	150	157691585	-	BPUM_0803	-	hypothetical protein
788	 40.19	0	883044..883466	-	140	157691586	yvrL	BPUM_0804	-	hypothetical protein
789	 45.19	+1	883535..884698	-	387	157691587	oxdC	BPUM_0805	-	oxalate decarboxylase
790	 41.82	0	884793..884957	-	54	157691588	-	BPUM_0806	-	hypothetical protein
791	 40.30	0	885124..885726	+	200	157691589	yvrI	BPUM_0807	-	DNA-directed RNA polymerase sigma subunit FliA
792	 37.04	-1	885680..885895	+	71	157691590	yvrH	BPUM_0808	-	response regulator
793	 43.43	0	885923..886903	-	326	157691591	yfhP	BPUM_0809	-	membrane bound metal dependent hydrolase
794	 43.87	0	887095..888195	+	366	157691592	mutY	BPUM_0810	-	adenine glycosylase
795	 42.22	0	888182..888406	-	74	157691593	yfhS	BPUM_0811	-	hypothetical protein
796	 43.56	0	888488..889240	+	250	157691594	fabL	BPUM_0812	-	enoyl-(acyl carrier protein) reductase
797	 38.79	0	889301..889465	+	54	157691595	sspE	BPUM_0813	-	small acid-soluble spore protein E
798	 38.05	0	889585..890940	-	451	157691596	-	BPUM_0814	-	transposase
799	 47.39	+1	891080..891328	-	82	157691597	-	BPUM_0815	-	hypothetical protein
800	 36.78	-1	891378..891638	+	86	157691598	-	BPUM_0816	-	hypothetical protein
801	 39.17	0	891786..892316	+	176	157691599	-	BPUM_0817	-	hypothetical protein
802	 41.88	0	892411..894153	+	580	157691600	-	BPUM_0818	-	ABC transporter ATP-binding protein
803	 44.67	0	894266..895288	+	340	157691601	appDC	BPUM_0819	-	oligopeptide ABC transporter ATP-binding protein
804	 44.58	0	895257..896234	+	325	157691602	appFC	BPUM_0820	-	oligopeptide ABC transporter ATP-binding protein
805	 42.91	0	896209..897795	+	528	157691603	-	BPUM_0821	-	peptide ABC transporter ATP-binding protein
806	 43.17	0	897812..898858	+	348	157691604	appBC	BPUM_0822	-	peptide ABC transporter membrane protein
807	 45.48	+1	898876..899772	+	298	157691605	appCC	BPUM_0823	-	oligopeptide ABC transporter membrane protein
808	 38.73	0	899802..900875	-	357	157691606	ygaE	BPUM_0824	-	hypothetical protein
809	 44.83	+1	901122..902417	-	431	157691607	gsaB	BPUM_0825	-	glutamate-1-semialdehyde aminotransferase
810	 39.96	0	902547..903014	+	155	157691608	ygaF	BPUM_0826	-	peroxiredoxin YgaF
811	 41.78	0	903173..903610	+	145	157691609	perR	BPUM_0827	-	Fur family transcriptional regulator PerR
812	 42.24	0	903645..903992	-	115	157691610	ygzB	BPUM_0828	-	hypothetical protein
813	 38.11	0	904182..905060	+	292	157691611	ygxA	BPUM_0829	-	hypothetical protein
814	 30.26	-2	911983..912438	+	151	157691612	-	BPUM_0830	-	hypothetical protein
815	 38.64	0	912848..913657	+	269	157691613	-	BPUM_0831	-	aminoglycoside phosphotransferase
816	 32.41	-2	913802..914236	+	144	157691614	-	BPUM_0832	-	hypothetical protein
817	 41.06	0	914307..915005	+	232	157691615	-	BPUM_0833	-	hypothetical protein
818	 41.76	0	915024..915581	-	185	157691616	-	BPUM_0834	-	fructose-2,6-bisphosphate 2-phosphatase
819	 43.23	0	915637..915828	-	63	157691617	-	BPUM_0835	-	hypothetical protein
820	 37.65	0	915951..916274	-	107	157691618	-	BPUM_0836	-	hypothetical protein
821	 40.58	0	916286..916975	-	229	157691619	-	BPUM_0837	-	hypothetical protein
822	 42.29	0	916994..917797	-	267	157691620	-	BPUM_0838	-	hypothetical protein
823	 36.94	-1	918331..920271	+	646	157691621	yfnI	BPUM_0839	-	phosphoglycerol transferase
824	 37.32	-1	920323..921000	+	225	157691622	sipP	BPUM_0840	-	signal peptidase 1
41.07	MEAN

3.65	STD DEV
