IslandPathversion 1.0

IslandPath Analysis: Bacillus pumilus SAFR-032

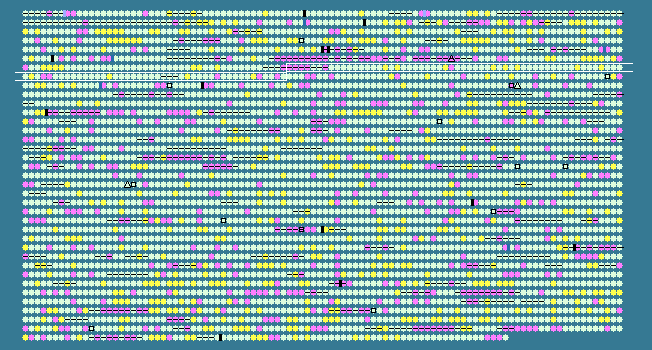

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.07 STD DEV: 3.65
Bacillus pumilus SAFR-032, complete genome - 1..3704465
3681 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
645	 33.08	-2	729297..732107	+	936	157691443	-	BPUM_0653	-	endonuclease
646	 28.96	-2	732089..733117	+	342	157691444	-	BPUM_0654	-	hypothetical protein
647	 32.32	-2	733114..734883	+	589	157691445	-	BPUM_0655	-	hypothetical protein
648	 31.33	-2	734880..736526	-	548	157691446	-	BPUM_0656	-	DNA (cytosine-5-)-methyltransferase
649	 44.00	0	736808..737782	+	324	157691447	yfjN	BPUM_0657	-	tRNA-dihydrouridine synthase
650	 40.62	0	737890..738342	+	150	157691448	-	BPUM_0658	-	hypothetical protein
651	 35.56	-1	738474..739238	-	254	157691449	glvR	BPUM_0659	-	transcriptional regulator
652	 40.29	0	739387..740967	+	526	157691450	malP	BPUM_0660	-	PTS family porter component IIBC
653	 39.43	0	740994..742322	+	442	157691451	glvA	BPUM_0661	-	maltose-6'-phosphate glucosidase
654	 42.20	0	742435..742806	-	123	157691452	-	BPUM_0662	-	hypothetical protein
655	 38.58	0	742990..743427	+	145	157691453	-	BPUM_0663	-	transcriptional regulator
656	 43.72	0	743493..744407	+	304	157691454	-	BPUM_0664	-	thioredoxin-disulfide reductase
657	 39.80	0	744417..744617	-	66	157691455	-	BPUM_0665	-	hypothetical protein
658	 41.67	0	744731..745378	+	215	157691456	-	BPUM_0666	-	hypothetical protein
659	 43.64	0	745412..746740	-	442	157691457	licH1	BPUM_0667	-	6-phospho-beta-glucosidase
660	 38.52	0	746940..747671	+	243	157691458	-	BPUM_0668	-	transcriptional regulator
661	 45.42	+1	749039..749518	+	159	157691459	-	BPUM_0671	-	prolyl-tRNA synthetase
662	 43.40	0	749549..750502	-	317	157691460	cisL	BPUM_0672	-	LysR family transcriptional regulator
663	 45.17	+1	750561..751760	+	399	157691461	-	BPUM_0673	-	major facilitator transporter
664	 38.70	0	751825..752904	-	359	157691462	yetN	BPUM_0674	-	hypothetical protein
665	 38.00	0	753103..753252	-	49	157691463	-	BPUM_0675	-	hypothetical protein
666	 43.14	0	753608..754372	+	254	157691464	yfnH	BPUM_0676	-	glucose-1-phosphate cytidylyltransferase
667	 43.58	0	754344..755348	+	334	157691465	yfnG	BPUM_0677	-	NAD-dependent epimerase/dehydratase
668	 44.52	0	755361..756272	+	303	157691466	yfnF	BPUM_0678	-	glycosyltransferase
669	 41.81	0	756269..757459	+	396	157691467	yfnE	BPUM_0679	-	glycosyltransferase
670	 38.92	0	757460..758389	+	309	157691468	yfnD	BPUM_0680	-	glycosyltransferase
671	 44.87	+1	758425..759663	-	412	157691469	-	BPUM_0681	-	major facilitator superfamily fosmidomycin:cation antiporter
672	 30.13	-2	759663..759818	+	51	157691470	-	BPUM_0682	-	hypothetical protein
673	 42.45	0	759997..762036	-	679	157691471	-	BPUM_0683	-	penicillin-binding protein
674	 43.43	0	762298..763713	+	471	157691472	-	BPUM_0684	-	DASS family divalent anion:sodium (Na+) symporter
675	 44.35	0	763719..764072	-	117	157691473	yocL	BPUM_0685	-	hypothetical protein
676	 43.96	0	764364..764843	-	159	157691474	yocM	BPUM_0686	-	heat shock protein
677	 39.53	0	764909..765166	+	85	157691475	yozN	BPUM_0687	-	hypothetical protein
678	 41.88	0	765173..765406	+	77	157691476	yocN	BPUM_0688	-	hypothetical protein
679	 46.48	+1	765443..766834	-	463	157691477	yfnA	BPUM_0689	-	APC family amino acid-polyamine-organocation transporter
680	 43.48	0	767015..768088	-	357	157691478	-	BPUM_0690	-	glycosyltransferase
681	 44.75	+1	768222..770105	+	627	157691479	yfmR	BPUM_0691	-	ABC transporter ATP-binding protein
682	 40.85	0	770266..770691	+	141	157691480	yfmP	BPUM_0692	-	transcriptional regulator
683	 45.00	+1	770748..771938	+	396	157691481	yfmO	BPUM_0693	-	major facilitator superfamily multidrug:cation symporter
684	 42.28	0	771984..773537	-	517	157691482	yfmM	BPUM_0694	-	ABC transporter ATP-binding protein
685	 42.17	0	773690..774832	+	380	157691483	yfmL	BPUM_0695	-	ATP-dependent RNA helicase
686	 41.89	0	775066..776070	-	334	157691484	yfmJ	BPUM_0696	-	NADP-dependent dehydrogenase
687	 41.03	0	776179..776568	-	129	157691485	yfmB	BPUM_0697	-	hypothetical protein
688	 38.51	0	776790..777137	+	115	157691486	-	BPUM_0698	-	general stress protein
689	 41.55	0	778107..778763	+	218	157691487	-	BPUM_0699	-	hypothetical protein
690	 43.11	0	779044..779769	+	241	157691488	-	BPUM_0700	-	GTP cyclohydrolase II
691	 41.87	0	780611..782368	+	585	157691489	-	BPUM_0702	-	WD-40 repeat-containing protein
692	 42.82	0	782645..783730	+	361	157691490	ribD2	BPUM_0703	-	bifunctional 5-amino-6-(5-phosphoribosylamino)uracil reductase/diaminohydroxyphosphoribosylaminopyrimidine deaminase
693	 50.30	+2	786048..786719	+	223	157691491	-	BPUM_0706	-	hypothetical protein
694	 43.00	0	786826..788460	+	544	157691492	citS	BPUM_0707	-	sensor histidine kinase
695	 43.59	0	788461..789162	+	233	157691493	citT	BPUM_0708	-	response regulator
696	 42.20	0	789166..790146	+	326	157691494	yflP	BPUM_0709	-	TTT family tricarboxylate  membrane protein
697	 44.65	0	790338..791636	+	432	157691495	citM	BPUM_0710	-	CitMHS family citrate-magnesium (Mg2+):citrate symporter
698	 43.63	0	791817..793448	+	543	157691496	-	BPUM_0711	-	M14 family carboxypeptidase
699	 40.12	0	793521..794006	-	161	157691497	padC	BPUM_0712	-	phenolic acid decarboxylase
700	 42.65	0	794119..794676	+	185	157691498	padR	BPUM_0713	-	transcriptional regulator
701	 43.81	0	794781..795887	+	368	157691499	nos	BPUM_0714	-	nitric oxide synthase
702	 46.60	+1	795974..796282	-	102	157691500	-	BPUM_0715	-	acylphosphatase
703	 42.88	0	796361..797020	+	219	157691501	yflK	BPUM_0716	-	hypothetical protein
704	 36.96	-1	797063..797200	-	45	157691502	-	BPUM_0717	-	hypothetical protein
705	 36.42	-1	797335..797496	-	53	157691503	yflI	BPUM_0718	-	hypothetical protein
706	 40.13	0	797620..798369	-	249	157691504	yflG	BPUM_0719	-	methionine aminopeptidase
707	 41.06	0	798551..799921	+	456	157691505	nagP	BPUM_0720	-	PTS family glucose/glucoside (glc) porter component IIBC
708	 41.63	0	799940..800698	-	252	157691506	-	BPUM_0721	-	hypothetical protein
709	 41.27	0	800893..801396	+	167	157691507	-	BPUM_0722	-	hypothetical protein
710	 41.67	0	801441..802028	-	195	157691508	yjgB	BPUM_0723	-	hypothetical protein
711	 38.89	0	802129..804108	-	659	157691509	yflE	BPUM_0724	-	sulfatase
712	 42.98	0	804688..806346	+	552	157691510	-	BPUM_0725	-	diaminobutyrate decarboxylase
713	 40.87	0	806378..808102	+	574	157691511	-	BPUM_0726	-	sensor histidine kinase
714	 40.83	0	808345..808731	+	128	157691512	-	BPUM_0727	-	hypothetical protein
715	 45.51	+1	808895..810331	+	478	157691513	treP	BPUM_0728	-	PTS family trehalose porter component IIBC
716	 43.27	0	810347..812047	+	566	157691514	treA	BPUM_0729	-	alpha,alpha-phosphotrehalase
717	 42.11	0	812067..812795	+	242	157691515	treR	BPUM_0730	-	GntR family transcriptional regulator
718	 43.01	0	813339..817565	-	1408	157691516	yfkN	BPUM_0732	-	2',3'-cyclic nucleotide 2'-phosphodiesterase/3'-nucleotidase bifunctional periplasmic precursor protein
719	 42.39	0	817883..818401	+	172	157691517	yfkM	BPUM_0733	-	C56 family peptidase
720	 37.96	0	818499..818714	-	71	157691518	yfkK	BPUM_0734	-	hypothetical protein
721	 44.03	0	818792..820147	-	451	157691519	yflA	BPUM_0735	-	AGCS family alanine or glycine:sodium (Na+) or proton (H+) symporter
722	 42.68	0	820322..820792	+	156	157691520	yfkJ	BPUM_0736	-	protein-tyrosine-phosphatase
723	 40.24	0	820813..821145	+	110	157691521	yfkI	BPUM_0737	-	hypothetical protein
724	 41.64	0	821164..821982	+	272	157691522	yfkH	BPUM_0738	-	hypothetical protein
725	 43.15	0	822192..823373	-	393	157691523	yfkF	BPUM_0739	-	major facilitator transporter
726	 41.53	0	823449..823826	+	125	157691524	-	BPUM_0740	-	hypothetical protein
727	 43.66	0	823891..824955	+	354	157691525	yfkE	BPUM_0741	-	Ca2+ antiporter
728	 46.23	+1	825023..825805	+	260	157691526	yfkD	BPUM_0742	-	sporulation protein YfkD
729	 42.50	0	826318..827037	-	239	157691527	yeeI	BPUM_0743	-	hypothetical protein
730	 39.05	0	827169..827570	-	133	157691528	-	BPUM_0744	-	hypothetical protein
731	 40.74	0	827673..828509	-	278	157691529	-	BPUM_0745	-	MscS family small conductance mechanosenstive ion channel protein
732	 44.39	0	828517..829638	-	373	157691530	yfkA	BPUM_0746	-	thioredoxin
733	 37.50	0	829785..829976	+	63	157691531	yfjT	BPUM_0747	-	hypothetical protein
734	 43.18	0	830079..830870	+	263	157691532	yfjS	BPUM_0748	-	poylsaccharide deacetylase
735	 41.46	0	830906..831397	-	163	157691533	-	BPUM_0749	-	hypothetical protein
736	 40.21	0	831430..832389	-	319	157691534	corA	BPUM_0750	-	MIT family metal ion transporter CorA
737	 42.30	0	832523..833035	-	170	157691535	-	BPUM_0751	-	hypothetical protein
738	 42.02	0	833336..834337	+	333	157691536	alkA	BPUM_0752	-	DNA-3-methyladenine glycosylase II
739	 45.60	+1	834436..835821	+	461	157691537	trmA	BPUM_0753	-	tRNA (uracil-5-)-methyltransferase
740	 33.68	-2	835953..836537	+	194	157691538	-	BPUM_0754	-	TetR family transcriptional regulator
741	 38.95	0	836595..838481	+	628	157691539	-	BPUM_0755	-	bifunctional nucleotide sugar epimerase/hydrolase
742	 41.20	0	838554..838985	+	143	157691540	-	BPUM_0756	-	hypothetical protein
743	 29.82	-2	838975..839487	+	170	157691541	-	BPUM_0757	-	hypothetical protein
744	 40.10	0	839627..840454	+	275	157691542	-	BPUM_0758	-	transcriptional regulator
41.07	MEAN

3.65	STD DEV
