IslandPath Analysis: Bacillus pumilus SAFR-032

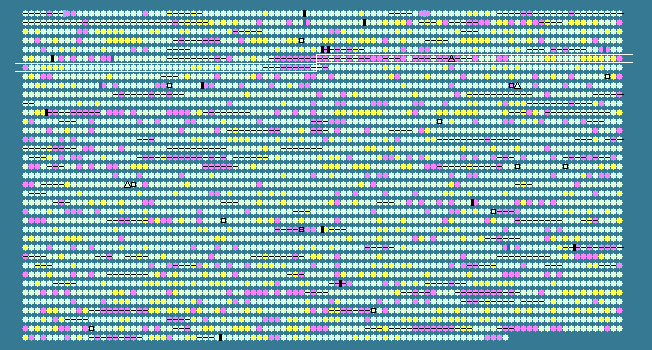

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.07 STD DEV: 3.65
Bacillus pumilus SAFR-032, complete genome - 1..3704465
3681 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
550	 32.97	-2	596179..596457	+	92	157691348	yddA	BPUM_0557	-	hypothetical protein
551	 37.17	-1	596536..597186	+	216	157691349	-	BPUM_0558	-	hypothetical protein
552	 37.74	0	597247..599790	+	847	157691350	-	BPUM_0559	-	hypothetical protein
553	 26.06	-2	600179..601003	-	274	157691351	-	BPUM_0560	-	hypothetical protein
554	 42.24	0	601232..602017	+	261	157691352	ydiP	BPUM_0561	-	DNA (cytosine-5-)-methyltransferase
555	 35.69	-1	602089..602385	+	98	157691353	-	BPUM_0562	-	hypothetical protein
556	 39.01	0	602375..602656	+	93	157691354	-	BPUM_0563	-	hypothetical protein
557	 34.86	-1	602685..603077	+	130	157691355	-	BPUM_0564	-	hypothetical protein
558	 36.91	-1	603074..604303	+	409	157691356	-	BPUM_0565	-	type II/IV secretion system protein
559	 33.21	-2	604290..605102	+	270	157691357	-	BPUM_0566	-	hypothetical protein
560	 36.35	-1	605107..605868	+	253	157691358	-	BPUM_0567	-	hypothetical protein
561	 33.33	-2	605875..606234	+	119	157691359	-	BPUM_0568	-	hypothetical protein
562	 40.48	0	606407..606574	+	55	157691360	-	BPUM_0569	-	hypothetical protein
563	 32.93	-2	606833..607081	+	82	157691361	-	BPUM_0570	-	hypothetical protein
564	 34.44	-1	607062..608057	+	331	157691362	yddB	BPUM_0571	-	hypothetical protein
565	 39.08	0	608069..608329	+	86	157691363	yddC	BPUM_0572	-	hypothetical protein
566	 31.84	-2	608341..608808	+	155	157691364	yddD	BPUM_0573	-	hypothetical protein
567	 36.22	-1	608786..611242	+	818	157691365	yddE	BPUM_0574	-	hypothetical protein
568	 36.48	-1	612013..614394	+	793	157691366	yddG	BPUM_0575	-	hypothetical protein
569	 40.18	0	614391..615368	+	325	157691367	yddH	BPUM_0576	-	C40 family peptidase
570	 35.16	-1	615378..615869	+	163	157691368	yddI	BPUM_0577	-	hypothetical protein
571	 35.24	-1	615897..616106	+	69	157691369	-	BPUM_0578	-	hypothetical protein
572	 34.27	-1	616312..617589	+	425	157691370	int	BPUM_0580	-	integrase
573	 31.07	-2	617863..618921	-	352	157691371	-	BPUM_0581	-	AraC family transcription regulator
574	 38.51	0	618922..620583	-	553	157691372	-	BPUM_0582	-	2-isopropylmalate synthase
575	 38.74	0	621147..622034	-	295	157691373	ybfP	BPUM_0583	-	AraC family transcription regulator
576	 34.59	-1	622244..623116	+	290	157691374	ydeE	BPUM_0584	-	transcriptional regulator
577	 38.19	0	623130..623705	+	191	157691375	-	BPUM_0585	-	acetyltransferase
578	 39.86	0	623842..624408	-	188	157691376	-	BPUM_0586	-	acetyltransferase
579	 41.40	0	624413..624598	-	61	157691377	-	BPUM_0587	-	hypothetical protein
580	 36.45	-1	624778..625323	+	181	157691378	-	BPUM_0588	-	ECF family DNA-directed RNA polymerase sigma factor
581	 36.99	-1	625292..626740	+	482	157691379	-	BPUM_0589	-	hypothetical protein
582	 43.18	0	626759..627946	-	395	157691380	-	BPUM_0590	-	major facilitator transporter
583	 43.59	0	628047..628943	+	298	157691381	lysR	BPUM_0591	-	LysR family transcriptional regulator
584	 42.99	0	629305..630630	+	441	157691382	pbuG	BPUM_0592	-	NCS2 family nucleobase:cation symporter-2
585	 43.45	0	631012..631812	+	266	157691383	yebC	BPUM_0593	-	hypothetical protein
586	 39.39	0	631947..632573	+	208	157691384	yebE	BPUM_0594	-	hypothetical protein
587	 42.79	0	632570..632770	+	66	157691385	yebG	BPUM_0595	-	hypothetical protein
588	 46.01	+1	633121..633609	+	162	157691386	purE	BPUM_0596	-	phosphoribosylaminoimidazole carboxylase catalytic subunit
589	 47.07	+1	633602..634744	+	380	157691387	purK	BPUM_0597	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
590	 43.52	0	634741..636036	+	431	157691388	purB	BPUM_0598	-	adenylosuccinate lyase
591	 40.53	0	636109..636831	+	240	157691389	purC	BPUM_0599	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
592	 42.75	0	636824..637078	+	84	157691390	purS	BPUM_0600	-	phosphoribosylformylglycinamidine synthase subunit PurS
593	 44.30	0	637075..637758	+	227	157691391	purQ	BPUM_0601	-	phosphoribosylformylglycinamidine synthase subunit I
594	 45.47	+1	637742..639973	+	743	157691392	purL	BPUM_0602	-	phosphoribosylformylglycinamidine synthase II
595	 46.61	+1	639949..641379	+	476	157691393	purF	BPUM_0603	-	amidophosphoribosyltransferase
596	 44.67	0	641475..642515	+	346	157691394	purM	BPUM_0604	-	phosphoribosylaminoimidazole synthetase
597	 45.26	+1	642512..643081	+	189	157691395	purN	BPUM_0605	-	phosphoribosylglycinamide formyltransferase
598	 44.25	0	643097..644635	+	512	157691396	purH	BPUM_0606	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
599	 47.37	+1	644648..645922	+	424	157691397	purD	BPUM_0607	-	phosphoribosylamine--glycine ligase
600	 28.58	-2	646194..649241	+	1015	157691398	-	BPUM_0608	-	helicase
601	 27.69	-2	649392..649586	+	64	157691399	-	BPUM_0609	-	hypothetical protein
602	 40.78	0	649608..650453	+	281	157691400	-	BPUM_0610	-	acetyltransferase
603	 43.88	0	650448..652106	-	552	157691401	-	BPUM_0611	-	hypothetical protein
604	 48.28	+1	652297..653661	+	454	157691402	yodT	BPUM_0612	-	hypothetical protein
605	 46.14	+1	653674..654360	+	228	157691403	atoD	BPUM_0613	-	acetate CoA-transferase alpha subunit
606	 48.35	+1	654336..655001	+	221	157691404	yodR	BPUM_0614	-	aetate CoA-transferase beta subunit
607	 48.74	+2	655016..656287	+	423	157691405	yodQ	BPUM_0615	-	acetylornithine deacetylase
608	 44.14	0	656372..656593	-	73	157691406	-	BPUM_0616	-	hypothetical protein
609	 41.88	0	656718..658460	+	580	157691407	yerA	BPUM_0617	-	adenine deaminase
610	 39.78	0	658728..658913	-	61	157691408	-	BPUM_0618	-	hypothetical protein
611	 41.27	0	659010..659324	+	104	157691409	yerC	BPUM_0619	-	sporulation protein YerC
612	 40.54	0	659384..659605	+	73	157691410	-	BPUM_0620	-	hypothetical protein
613	 43.96	0	659623..661203	-	526	157691411	yerD	BPUM_0621	-	glutamate synthase (ferredoxin)
614	 41.99	0	661343..661573	+	76	157691412	ybyB	BPUM_0622	-	hypothetical protein
615	 39.13	0	661554..661967	-	137	157691413	-	BPUM_0623	-	hypothetical protein
616	 41.48	0	662123..662932	+	269	157691414	pcrB	BPUM_0624	-	geranylgeranylglyceryl phosphate synthase-like protein
617	 42.65	0	662990..665212	+	740	157691415	pcrA	BPUM_0625	-	ATP-dependent DNA helicase
618	 44.25	0	665257..667263	+	668	157691416	ligA	BPUM_0626	-	NAD-dependent DNA ligase LigA
619	 40.40	0	667279..668466	+	395	157691417	yerH	BPUM_0627	-	hypothetical protein
620	 38.04	0	668567..669799	+	410	157691418	yfmI	BPUM_0628	-	major facilitator superfamily macrolide:cation transporter
621	 40.68	0	669948..674360	+	1470	157691419	-	BPUM_0629	-	nonribosomal peptide synthetase subunit
622	 41.63	0	674357..675898	+	513	157691420	pbpX	BPUM_0630	-	beta-lactamase
623	 41.77	0	676838..677548	+	236	157691421	bacT	BPUM_0631	-	thioesterase
624	 42.31	0	677545..678402	+	285	157691422	-	BPUM_0632	-	3-hydroxybutyryl-CoA dehydrogenase
625	 40.91	0	678417..679472	+	351	157691423	-	BPUM_0633	-	methoxymalonyl-ACP biosynthesis protein
626	 38.15	0	679500..679769	+	89	157691424	-	BPUM_0634	-	hypothetical protein
627	 43.57	0	679756..680898	+	380	157691425	-	BPUM_0635	-	acyl-CoA dehydrogenase (NADP(+))
628	 43.18	0	690025..692694	+	889	157691426	-	BPUM_0636	-	nonribosomal peptide synthetase subunit
629	 44.90	+1	692687..697192	+	1501	157691427	-	BPUM_0637	-	polyketide synthase subunit
630	 44.97	+1	697193..704443	+	2416	157691428	-	BPUM_0638	-	polyketide synthase subunit
631	 43.52	0	704436..710846	+	2136	157691429	-	BPUM_0639	-	polyketide synthase subunit
632	 42.76	0	710839..711846	+	335	157691430	yerI	BPUM_0640	-	homoserine kinase type II
633	 44.56	0	711888..713294	-	468	157691431	phoB	BPUM_0641	-	alkaline phosphatase
634	 43.29	0	713408..714100	-	230	157691432	sapB	BPUM_0642	-	membrane protein SapB
635	 39.88	0	714264..715745	-	493	157691433	opuE	BPUM_0643	-	SSS family proline/sodium (Na+) symporter OpuE
636	 39.18	0	716144..716434	+	96	157691434	gatC	BPUM_0644	-	aspartyl/glutamyl-tRNA amidotransferase subunit C
637	 42.66	0	716449..717906	+	485	157691435	gatA	BPUM_0645	-	aspartyl/glutamyl-tRNA amidotransferase subunit A
638	 43.61	0	717920..719350	+	476	157691436	gatB	BPUM_0646	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
639	 38.65	0	719533..720378	-	281	157691437	yerO	BPUM_0647	-	transcriptional regulator
640	 41.43	0	720510..723734	+	1074	157691438	swrC	BPUM_0648	-	resistance-nodulation-cell division acriflavin:proton (H+) antiporter
641	 42.87	0	723766..724719	-	317	157691439	-	BPUM_0649	-	purine nucleosidase
642	 42.24	0	724901..725809	+	302	157691440	yerQ	BPUM_0650	-	putative lipid kinase
643	 44.42	0	725867..727264	+	465	157691441	yefA	BPUM_0651	-	TrmA family RNA methyltransferase
644	 31.99	-2	727814..729304	+	496	157691442	-	BPUM_0652	-	ATP-binding protein
645	 33.08	-2	729297..732107	+	936	157691443	-	BPUM_0653	-	endonuclease
646	 28.96	-2	732089..733117	+	342	157691444	-	BPUM_0654	-	hypothetical protein
647	 32.32	-2	733114..734883	+	589	157691445	-	BPUM_0655	-	hypothetical protein
648	 31.33	-2	734880..736526	-	548	157691446	-	BPUM_0656	-	DNA (cytosine-5-)-methyltransferase
649	 44.00	0	736808..737782	+	324	157691447	yfjN	BPUM_0657	-	tRNA-dihydrouridine synthase
41.07	MEAN

3.65	STD DEV
