IslandPathversion 1.0

IslandPath Analysis: Bacillus pumilus SAFR-032

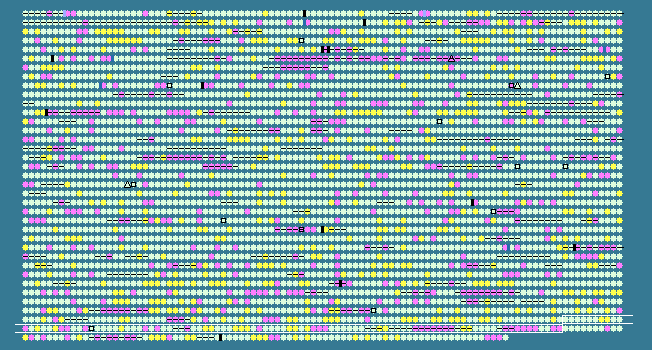

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.07 STD DEV: 3.65
Bacillus pumilus SAFR-032, complete genome - 1..3704465
3681 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3491	 42.83	0	3509587..3511008	-	473	157694289	ansB2	BPUM_3547	-	aspartate ammonia-lyase
3492	 40.30	0	3511037..3512026	-	329	157694290	ansA	BPUM_3548	-	asparaginase
3493	 42.53	0	3512234..3512581	+	115	157694291	ansR	BPUM_3549	-	transcriptional regulator
3494	 42.74	0	3512635..3513102	-	155	157694292	-	BPUM_3550	-	DNA-binding protein
3495	 40.15	0	3513201..3513728	-	175	157694293	yfjD	BPUM_3551	-	hypothetical protein
3496	 42.42	0	3513750..3514508	-	252	157694294	yfjC	BPUM_3552	-	hypothetical protein
3497	 44.70	0	3514521..3515717	-	398	157694295	yfjB	BPUM_3553	-	hypothetical protein
3498	 46.85	+1	3515722..3516054	-	110	157694296	yfjA	BPUM_3554	-	hypothetical protein
3499	 41.77	0	3516272..3517504	+	410	157694297	pepT	BPUM_3555	-	peptidase T
3500	 41.03	0	3517778..3517972	+	64	157694298	-	BPUM_3556	-	hypothetical protein
3501	 35.35	-1	3518057..3518749	-	230	157694299	-	BPUM_3557	-	hypothetical protein
3502	 40.88	0	3518896..3519756	+	286	157694300	-	BPUM_3558	-	transcriptional regulator
3503	 46.31	+1	3519955..3520848	+	297	157694301	-	BPUM_3559	-	tartronate semialdehyde reductase
3504	 41.53	0	3520850..3522277	+	475	157694302	-	BPUM_3560	-	hypothetical protein
3505	 44.55	0	3522329..3523648	+	439	157694303	-	BPUM_3561	-	GntP family gluconate:proton (H+) symporter
3506	 45.28	+1	3523929..3525050	+	373	157694304	-	BPUM_3562	-	hypothetical protein
3507	 33.42	-2	3525317..3526432	-	371	157694305	-	BPUM_3563	-	hypothetical protein
3508	 35.78	-1	3526429..3527082	-	217	157694306	mglA	BPUM_3564	-	ABC transporter ATP-binding protein
3509	 40.78	0	3527444..3528880	-	478	157694307	bglH	BPUM_3565	-	beta-glucosidase
3510	 42.03	0	3528834..3530741	-	635	157694308	-	BPUM_3566	-	PTS family glucose/glucoside (glc) porter component IIABC
3511	 34.89	-1	3531069..3531902	-	277	157694309	licT1	BPUM_3567	-	transcription antiterminator
3512	 37.98	0	3532189..3533544	+	451	157694310	-	BPUM_3568	-	transposase
3513	 39.83	0	3533664..3534479	-	271	157694311	ywqG	BPUM_3569	-	hypothetical protein
3514	 40.60	0	3534653..3535492	-	279	157694312	-	BPUM_3570	-	chemotaxis sensory transducer
3515	 41.50	0	3535645..3536379	-	244	157694313	ykoC	BPUM_3571	-	cobalt ABC transporter
3516	 42.71	0	3536369..3537967	-	532	157694314	-	BPUM_3572	-	ABC transporter ATP-binding protein
3517	 45.33	+1	3537942..3538541	-	199	157694315	ykoE	BPUM_3573	-	ABC transporter ATP-binding protein
3518	 44.54	0	3538538..3539224	-	228	157694316	-	BPUM_3574	-	thiaminase
3519	 40.25	0	3539472..3540599	-	375	157694317	-	BPUM_3575	-	hypothetical protein
3520	 40.64	0	3540741..3541397	-	218	157694318	yraA	BPUM_3576	-	C56 family peptidase
3521	 37.58	0	3541652..3541816	+	54	157694319	-	BPUM_3577	-	hypothetical protein
3522	 39.25	0	3541851..3542222	-	123	157694320	-	BPUM_3578	-	hypothetical protein
3523	 35.69	-1	3542228..3542482	-	84	157694321	-	BPUM_3579	-	hypothetical protein
3524	 42.40	0	3542690..3545071	-	793	157694322	-	BPUM_3580	-	M6 family metalloendopeptidase
3525	 41.16	0	3545261..3545554	-	97	157694323	ycnE	BPUM_3581	-	hypothetical protein
3526	 40.85	0	3545580..3546218	-	212	157694324	ydgI	BPUM_3582	-	NAD(P)H nitroreductase
3527	 41.22	0	3546233..3546676	-	147	157694325	ydgJ	BPUM_3583	-	MarR family transcriptional regulator
3528	 33.97	-1	3546704..3546859	+	51	157694326	-	BPUM_3584	-	hypothetical protein
3529	 44.47	0	3546884..3548185	-	433	157694327	pdp	BPUM_3585	-	pyrimidine-nucleoside phosphorylase
3530	 41.12	0	3548211..3549392	-	393	157694328	nupC	BPUM_3586	-	CNT family concentrative nucleoside transporter
3531	 44.94	+1	3549559..3550230	-	223	157694329	deoC	BPUM_3587	-	deoxyribose-phosphate aldolase
3532	 45.29	+1	3550314..3551258	-	314	157694330	deoR	BPUM_3588	-	DeoR family transcriptional regulator
3533	 41.84	0	3551319..3552329	-	336	157694331	-	BPUM_3589	-	aldose 1-epimerase
3534	 43.59	0	3552436..3554259	+	607	157694332	yrhL	BPUM_3590	-	acyltransferase
3535	 41.59	0	3554398..3555669	-	423	157694333	ydeG	BPUM_3591	-	major facilitator transporter
3536	 45.90	+1	3555914..3557011	-	365	157694334	-	BPUM_3592	-	hypothetical protein
3537	 46.47	+1	3557008..3557715	-	235	157694335	-	BPUM_3593	-	SAM-dependent methyltransferase
3538	 45.93	+1	3557845..3558852	+	335	157694336	-	BPUM_3594	-	LuxR family transcriptional regulator
3539	 41.94	0	3559094..3559906	-	270	157694337	yxeH	BPUM_3595	-	HAD family hydrolase
3540	 35.28	-1	3560216..3560575	+	119	157694338	yyaN	BPUM_3596	-	transcriptional regulator
3541	 40.61	0	3560685..3561701	+	338	157694339	-	BPUM_3597	-	dehydrogenase
3542	 42.18	0	3561744..3563258	-	504	157694340	-	BPUM_3598	-	sensor histidine kinase
3543	 40.96	0	3563578..3564915	+	445	157694341	-	BPUM_3599	-	amino acid APC transporter
3544	 43.90	0	3564949..3566055	-	368	157694342	yhaZ	BPUM_3600	-	DNA alkylation repair protein
3545	 44.85	+1	3566146..3567474	-	442	157694343	-	BPUM_3601	-	GntP family gluconate:proton (H+) symporter
3546	 45.05	+1	3567499..3569043	-	514	157694344	gntK	BPUM_3602	-	gluconokinase
3547	 40.91	0	3569228..3570085	-	285	157694345	ybbH	BPUM_3603	-	transcriptional regulator
3548	 45.09	+1	3570177..3571112	-	311	157694346	-	BPUM_3604	-	purine nucleosidase
3549	 31.06	-2	3571207..3571689	-	160	157694347	-	BPUM_3605	-	hypothetical protein
3550	 33.13	-2	3571772..3572254	-	160	157694348	-	BPUM_3606	-	hypothetical protein
3551	 34.74	-1	3572338..3572835	-	165	157694349	-	BPUM_3607	-	hypothetical protein
3552	 40.38	0	3572960..3574450	+	496	157694350	-	BPUM_3608	-	hypothetical protein
3553	 40.88	0	3574463..3574873	+	136	157694351	-	BPUM_3609	-	hypothetical protein
3554	 43.05	0	3574956..3576632	+	558	157694352	-	BPUM_3610	-	hypothetical protein
3555	 43.00	0	3576648..3577547	-	299	157694353	ywfK	BPUM_3611	-	LysR family transcriptional regulator
3556	 41.16	0	3577720..3578715	+	331	157694354	lacR	BPUM_3612	-	LacI family transcriptional regulator LacR
3557	 42.42	0	3578886..3580151	+	421	157694355	cycB	BPUM_3613	-	cyclodextrin ABC transporter binding protein
3558	 42.62	0	3580290..3581528	+	412	157694356	yvfL	BPUM_3614	-	cyclodextrin ABC transporter membrane protein
3559	 42.47	0	3581530..3582372	+	280	157694357	yvfM	BPUM_3615	-	cyclodextrin ABC transporter membrane protein
3560	 45.00	+1	3582384..3583592	+	402	157694358	yvfO	BPUM_3616	-	arabinogalactan endo-1,4-beta-galactosidase
3561	 46.30	+1	3583616..3585682	+	688	157694359	lacA	BPUM_3617	-	beta-galactosidase
3562	 43.34	0	3585981..3587309	+	442	157694360	-	BPUM_3618	-	CitMHS family citrate-divalent cation:proton (H+) symporter
3563	 38.46	0	3587351..3587779	-	142	157694361	-	BPUM_3619	-	hypothetical protein
3564	 37.63	0	3587807..3588760	-	317	157694362	yhcI	BPUM_3620	-	ABC transporter ATP-binding protein
3565	 42.15	0	3588757..3589686	-	309	157694363	yhcH	BPUM_3621	-	ABC transporter ATP-binding protein
3566	 22.91	-2	3589877..3590797	-	306	157694364	-	BPUM_3622	-	ABC transporter ATP-binding protein
3567	 29.08	-2	3590800..3591693	-	297	157694365	-	BPUM_3623	-	ABC transporter ATP-binding protein
3568	 25.64	-2	3591686..3592036	-	116	157694366	-	BPUM_3624	-	response regulator
3569	 26.82	-2	3592046..3592567	-	173	157694367	-	BPUM_3625	-	hypothetical protein
3570	 22.86	-2	3592570..3593094	-	174	157694368	-	BPUM_3626	-	hypothetical protein
3571	 32.43	-2	3593113..3593334	-	73	157694369	-	BPUM_3627	-	hypothetical protein
3572	 35.09	-1	3593574..3593858	+	94	157694370	-	BPUM_3628	-	hypothetical protein
3573	 38.94	0	3594054..3594392	-	112	157694371	phnA	BPUM_3629	-	alkylphosphonate uptake protein
3574	 46.49	+1	3594485..3595624	-	379	157694372	glxK	BPUM_3630	-	glycerate kinase
3575	 46.00	+1	3595656..3596942	-	428	157694373	yojA	BPUM_3631	-	GntP family gluconate:proton (H+) symporter
3576	 42.59	0	3597045..3598157	-	370	157694374	ysfB	BPUM_3632	-	sugar diacid utilization regulator
3577	 40.09	0	3598319..3598969	+	216	157694375	ydgC	BPUM_3633	-	TetR family transcriptional regulator
3578	 41.49	0	3599030..3600292	+	420	157694376	-	BPUM_3634	-	major facilitator superfamily macrolide:cation symporter (or antiporter or uniporter)
3579	 38.79	0	3600289..3602616	+	775	157694377	-	BPUM_3635	-	ABC transporter ATP-binding protein
3580	 38.52	0	3602621..3603391	+	256	157694378	-	BPUM_3636	-	ABC transporter ATP-binding protein
3581	 32.39	-2	3603423..3603635	-	70	157694379	-	BPUM_3637	-	hypothetical protein
3582	 22.05	-2	3604335..3604529	+	64	157694380	-	BPUM_3638	-	hypothetical protein
3583	 29.17	-2	3604540..3605283	+	247	157694381	-	BPUM_3639	-	hypothetical protein
3584	 35.45	-1	3605471..3605659	-	62	157694382	-	BPUM_3640	-	hypothetical protein
3585	 35.79	-1	3606160..3607338	+	392	157694383	rapK	BPUM_3641	-	aspartate phosphatase response regulator K
3586	 34.98	-1	3607438..3608286	-	282	157694384	licT2	BPUM_3642	-	transcription antiterminator
3587	 39.47	0	3608317..3609783	-	488	157694385	-	BPUM_3643	-	beta-glucosidase
3588	 42.10	0	3609788..3611647	-	619	157694386	-	BPUM_3644	-	PTS family beta-glucoside (glc) porter component IIBCA
3589	 36.44	-1	3611995..3612960	-	321	157694387	-	BPUM_3645	-	hypothetical protein
3590	 37.47	0	3612989..3613882	-	297	157694388	-	BPUM_3646	-	hypothetical protein
41.07	MEAN

3.65	STD DEV
