IslandPath Analysis: Bacillus pumilus SAFR-032

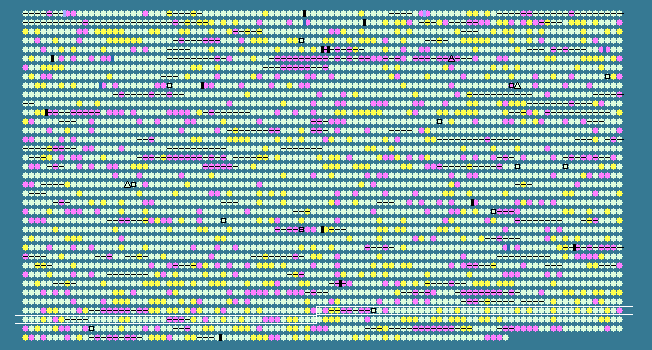

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.07 STD DEV: 3.65
Bacillus pumilus SAFR-032, complete genome - 1..3704465
3681 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3350	 41.59	0	3371487..3373763	-	758	157694148	-	BPUM_3398	-	glycosyltransferase
3351	 36.33	-1	3373883..3374416	-	177	157694149	-	BPUM_3399	-	hypothetical protein
3352	 45.86	+1	3374397..3375242	-	281	157694150	-	BPUM_3400	-	lipoate--protein ligase
3353	 45.48	+1	3375399..3375785	-	128	157694151	-	BPUM_3401	-	hypothetical protein
3354	 28.62	-2	3376046..3376363	-	105	157694152	-	BPUM_3402	-	hypothetical protein
3355	 34.78	-1	3376385..3376660	-	91	157694153	-	BPUM_3403	-	hypothetical protein
3356	 38.17	0	3376641..3376826	-	61	157694154	-	BPUM_3404	-	hypothetical protein
3357	 31.31	-2	3377115..3377510	-	131	157694155	-	BPUM_3405	-	hypothetical protein
3358	 31.19	-2	3377799..3378125	-	108	157694156	-	BPUM_3406	-	hypothetical protein
3359	 38.39	0	3378141..3379664	-	507	157694157	-	BPUM_3407	-	transposase
3360	 40.14	0	3379676..3379954	-	92	157694158	-	BPUM_3408	-	hypothetical protein
3361	 36.70	-1	3380532..3380798	-	88	157694159	-	BPUM_3410	-	hypothetical protein
3362	 44.04	0	3380812..3382146	-	444	157694160	-	BPUM_3411	-	TRAP-T family tripartite ATP-independent periplasmic  membrane protein
3363	 40.07	0	3382188..3383063	-	291	157694161	-	BPUM_3412	-	3-hydroxyisobutyrate dehydrogenase
3364	 43.75	0	3383076..3383747	-	223	157694162	-	BPUM_3413	-	dimethylmenaquinone methyltransferase
3365	 40.96	0	3383892..3384743	-	283	157694163	-	BPUM_3414	-	transcriptional regulator
3366	 42.49	0	3384859..3385830	-	323	157694164	pta	BPUM_3415	-	phosphotransacetylase
3367	 44.36	0	3386071..3386841	+	256	157694165	ywfI	BPUM_3416	-	putative heme peroxidase
3368	 44.36	0	3386908..3388068	+	386	157694166	-	BPUM_3417	-	major facilitator transporter
3369	 41.58	0	3388082..3388627	-	181	157694167	-	BPUM_3418	-	Lrp/Asn family transcriptional regulator
3370	 46.15	+1	3388707..3389939	+	410	157694168	ywfA	BPUM_3419	-	major facilitator transporter
3371	 41.13	0	3390089..3390691	+	200	157694169	bacA	BPUM_3420	-	bacilysin biosynthesis protein BacA
3372	 43.22	0	3390693..3391400	+	235	157694170	bacB	BPUM_3421	-	bacilysin biosynthesis protein BacB
3373	 45.67	+1	3391397..3392158	+	253	157694171	bacC	BPUM_3422	-	bacilysin biosynthesis protein BacC
3374	 43.53	0	3392174..3393595	+	473	157694172	bacD	BPUM_3423	-	bacilysin biosynthesis protein BacD
3375	 44.28	0	3393611..3394807	+	398	157694173	ywfG	BPUM_3424	-	transaminase
3376	 42.65	0	3394822..3395658	-	278	157694174	ywfH	BPUM_3425	-	short chain dehydrogenase
3377	 43.86	0	3395715..3396170	-	151	157694175	spsL	BPUM_3426	-	spore coat polysaccharide biosynthesis protein SpsL
3378	 45.26	+1	3396163..3397017	-	284	157694176	spsK	BPUM_3427	-	spore coat polysaccharide biosynthesis protein SpsK
3379	 42.65	0	3397021..3397986	-	321	157694177	spsJ	BPUM_3428	-	spore coat polysaccharide biosynthesis protein SpsJ
3380	 40.76	0	3397983..3398723	-	246	157694178	spsI	BPUM_3429	-	spore coat polysaccharide biosynthesis protein SpsI
3381	 42.57	0	3398726..3399754	-	342	157694179	spsG	BPUM_3430	-	spore coat polysaccharide biosynthesis protein SpsG
3382	 42.78	0	3399751..3400491	-	246	157694180	spsF	BPUM_3431	-	spore coat polysaccharide biosynthesis protein SpsF
3383	 46.31	+1	3400481..3401605	-	374	157694181	spsE	BPUM_3432	-	spore coat polysaccharide biosynthesis protein SpsE
3384	 43.84	0	3401607..3402482	-	291	157694182	spsD	BPUM_3433	-	spore coat polysaccharide biosynthesis protein SpsD
3385	 45.38	+1	3402479..3403657	-	392	157694183	spsC	BPUM_3434	-	spore coat polysaccharide biosynthesis protein SpsC
3386	 43.38	0	3403679..3405091	-	470	157694184	spsB	BPUM_3435	-	spore coat polysaccharide biosynthesis protein SpsB
3387	 41.92	0	3405098..3405877	-	259	157694185	spsA	BPUM_3436	-	spore coat polysaccharide biosynthesis protein SpsA
3388	 40.74	0	3406044..3406718	+	224	157694186	-	BPUM_3437	-	hypothetical protein
3389	 45.12	+1	3406942..3407484	+	180	157694187	gerQ	BPUM_3438	-	spore coat protein GerQ
3390	 43.53	0	3407614..3408231	+	205	157694188	-	BPUM_3439	-	hypothetical protein
3391	 42.74	0	3408272..3408643	-	123	157694189	ywdK	BPUM_3440	-	hypothetical protein
3392	 43.73	0	3408714..3410021	-	435	157694190	ywdJ	BPUM_3441	-	NCS2 family nucleobase:cation symporter-2
3393	 47.15	+1	3410055..3410387	-	110	157694191	ywdI	BPUM_3442	-	hypothetical protein
3394	 44.35	0	3411951..3412631	-	226	157694192	ung	BPUM_3444	-	uracil-DNA glycosylase
3395	 45.89	+1	3412628..3413455	-	275	157694193	ywdF	BPUM_3445	-	glycosyltransferase
3396	 41.67	0	3413584..3413763	+	59	157694194	-	BPUM_3446	-	hypothetical protein
3397	 43.64	0	3413760..3413924	+	54	157694195	-	BPUM_3447	-	hypothetical protein
3398	 46.54	+1	3414051..3414860	+	269	157694196	thiD	BPUM_3448	-	pyridoxal kinase
3399	 40.67	0	3414906..3415982	-	358	157694197	-	BPUM_3449	-	peptidase
3400	 35.99	-1	3416131..3416469	-	112	157694198	ywdA	BPUM_3450	-	hypothetical protein
3401	 43.20	0	3416575..3418044	-	489	157694199	sacA	BPUM_3451	-	beta-fructofuranosidase
3402	 43.34	0	3418052..3419440	-	462	157694200	sacP	BPUM_3452	-	PTS family sucrose (suc) porter component IIBC
3403	 40.89	0	3419695..3420528	-	277	157694201	sacT	BPUM_3453	-	transcriptional antiterminator
3404	 44.80	+1	3420581..3420859	-	92	157694202	-	BPUM_3454	-	hypothetical protein
3405	 43.92	0	3421360..3423786	+	808	157694203	vpr	BPUM_3455	-	endopeptidase
3406	 36.31	-1	3423774..3423941	-	55	157694204	-	BPUM_3456	-	hypothetical protein
3407	 46.51	+1	3424111..3425112	-	333	157694205	ywcH	BPUM_3457	-	flavin utilizing monoxygenase
3408	 43.33	0	3425168..3425917	-	249	157694206	nfrA	BPUM_3458	-	flavin reductase
3409	 40.43	0	3426028..3427239	-	403	157694207	rodA	BPUM_3459	-	cell wall protein
3410	 39.33	0	3427716..3427982	+	88	157694208	ywcE	BPUM_3460	-	spore morphogenesis and germination protein YwcE
3411	 42.78	0	3428061..3428441	-	126	157694209	qoxD	BPUM_3461	-	cytochrome aa3 quinol oxidase subunit IV
3412	 41.91	0	3428443..3429060	-	205	157694210	qoxC	BPUM_3462	-	cytochrome aa3 quinol oxidase subunit III
3413	 42.42	0	3429060..3431018	-	652	157694211	qoxB	BPUM_3463	-	cytochrome aa3 quinol oxidase subunit I
3414	 40.52	0	3431046..3432005	-	319	157694212	qoxA	BPUM_3464	-	cytochrome aa3 quinol oxidase subunit II
3415	 44.51	0	3432519..3433601	-	360	157694213	-	BPUM_3465	-	M24 family peptidase-like protein
3416	 44.25	0	3433606..3435126	-	506	157694214	galT	BPUM_3466	-	galactose-1-phosphate uridylyltransferase
3417	 46.22	+1	3435161..3436153	-	330	157694215	galE1	BPUM_3467	-	UDP-glucose 4-epimerase
3418	 44.56	0	3436153..3437337	-	394	157694216	galK	BPUM_3468	-	galactokinase
3419	 43.50	0	3437514..3438359	+	281	157694217	yesS	BPUM_3469	-	AraC family transcription regulator
3420	 41.47	0	3438395..3438652	-	85	157694218	-	BPUM_3470	-	hypothetical protein
3421	 39.06	0	3438680..3439063	-	127	157694219	ywcD	BPUM_3471	-	GtrA family integral membrane protein
3422	 43.33	0	3439959..3440648	+	229	157694220	-	BPUM_3472	-	O-antigen biosynthesis protein
3423	 43.20	0	3440641..3441309	+	222	157694221	-	BPUM_3473	-	streptomycin biosynthesis protein
3424	 40.24	0	3441589..3441834	-	81	157694222	-	BPUM_3474	-	hypothetical protein
3425	 34.57	-1	3441824..3442951	-	375	157694223	rapE	BPUM_3475	-	aspartate phosphatase response regulator
3426	 34.96	-1	3443413..3443658	-	81	157694224	-	BPUM_3476	-	hypothetical protein
3427	 37.37	-1	3443692..3444360	+	222	157694225	-	BPUM_3477	-	hypothetical protein
3428	 41.59	0	3444786..3445100	+	104	157694226	ywcB	BPUM_3478	-	hypothetical protein
3429	 46.56	+1	3445097..3446638	+	513	157694227	ywcA	BPUM_3479	-	SSS family solute/sodium (Na+) symporter
3430	 41.03	0	3446633..3446788	-	51	157694228	-	BPUM_3480	-	hypothetical protein
3431	 36.28	-1	3447130..3447468	+	112	157694229	-	BPUM_3481	-	hypothetical protein
3432	 40.53	0	3447494..3447868	-	124	157694230	-	BPUM_3482	-	hypothetical protein
3433	 42.90	0	3448003..3448671	-	222	157694231	thiE	BPUM_3483	-	thiamine-phosphate pyrophosphorylase
3434	 47.92	+1	3448668..3449483	-	271	157694232	thiM	BPUM_3484	-	hydroxyethylthiazole kinase
3435	 41.33	0	3449501..3450388	-	295	157694233	ywbI	BPUM_3485	-	transcriptional regulator
3436	 40.36	0	3450554..3450937	+	127	157694234	lrgA	BPUM_3486	-	holin-like protein
3437	 44.79	+1	3450931..3451611	+	226	157694235	lrgB	BPUM_3487	-	murein hydrolase LrgB
3438	 40.52	0	3451649..3452830	-	393	157694236	ywbD	BPUM_3488	-	S-adenosylmethionine (SAM)-dependent methyltransferase
3439	 38.54	0	3452948..3453331	+	127	157694237	ywbC	BPUM_3489	-	glyoxalase
3440	 42.52	0	3453411..3454139	-	242	157694238	-	BPUM_3490	-	glutamine ABC transporter ATP-binding protein
3441	 29.89	-2	3455774..3455947	-	57	157694239	-	BPUM_3493	-	hypothetical protein
3442	 36.00	-1	3456142..3457227	+	361	157694240	rapD2	BPUM_3494	-	aspartate phosphatase response regulator
3443	 35.23	-1	3457436..3458068	-	210	157694241	ywaC	BPUM_3495	-	hypothetical protein
3444	 43.39	0	3458163..3459176	-	337	157694242	-	BPUM_3496	-	sugar ABC transporter ATP-binding/membrane protein
3445	 45.22	+1	3459173..3460669	-	498	157694243	-	BPUM_3497	-	sugar ABC transporter ATP-binding protein
3446	 44.68	0	3460739..3461857	-	372	157694244	-	BPUM_3498	-	sugar ABC transporter ATP-binding protein
3447	 42.44	0	3462252..3463679	-	475	157694245	-	BPUM_3499	-	hypothetical protein
3448	 42.58	0	3464046..3465137	+	363	157694246	ywaA	BPUM_3500	-	branched-chain amino acid aminotransferase
3449	 38.10	0	3465242..3465430	+	62	157694247	-	BPUM_3501	-	hypothetical protein
41.07	MEAN

3.65	STD DEV
