IslandPathversion 1.0

IslandPath Analysis: Bacillus pumilus SAFR-032

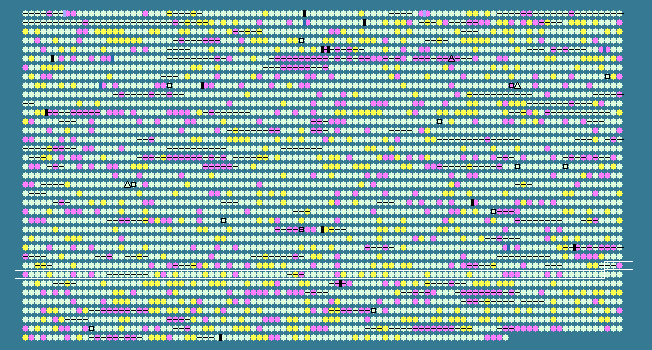

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.07 STD DEV: 3.65
Bacillus pumilus SAFR-032, complete genome - 1..3704465
3681 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2898	 41.37	0	2933223..2933471	+	82	157693696	-	BPUM_2944	-	hypothetical protein
2899	 41.09	0	2933484..2933831	+	115	157693697	-	BPUM_2945	-	hypothetical protein
2900	 30.90	-2	2934035..2934898	+	287	157693698	-	BPUM_2946	-	hypothetical protein
2901	 24.24	-2	2934917..2935180	+	87	157693699	-	BPUM_2947	-	hypothetical protein
2902	 40.00	0	2935225..2935479	-	84	157693700	-	BPUM_2948	-	hypothetical protein
2903	 44.16	0	2935552..2936382	-	276	157693701	-	BPUM_2949	-	iron ABC transporter
2904	 43.18	0	2936531..2936977	-	148	157693702	-	BPUM_2950	-	hypothetical protein
2905	 44.72	0	2937092..2937934	+	280	157693703	-	BPUM_2951	-	short chain dehydrogenase
2906	 42.74	0	2937981..2939351	-	456	157693704	-	BPUM_2952	-	peptidase
2907	 42.33	0	2939688..2940365	+	225	157693705	cssR	BPUM_2953	-	response regulator
2908	 39.94	0	2940362..2941693	+	443	157693706	cssS	BPUM_2954	-	sensor histidine kinase
2909	 35.76	-1	2941714..2941878	-	54	157693707	-	BPUM_2955	-	hypothetical protein
2910	 40.39	0	2942071..2942949	+	292	157693708	-	BPUM_2956	-	TetR family transcriptional regulator
2911	 41.72	0	2943029..2944423	-	464	157693709	fumC	BPUM_2957	-	fumarate hydratase
2912	 32.74	-2	2944513..2944680	-	55	157693710	-	BPUM_2958	-	hypothetical protein
2913	 41.40	0	2944795..2946219	+	474	157693711	gerAA	BPUM_2959	-	spore germination protein AA
2914	 40.55	0	2946206..2947300	+	364	157693712	gerAB	BPUM_2960	-	spore germination protein AB
2915	 39.84	0	2947297..2948418	+	373	157693713	gerAC	BPUM_2961	-	spore germination protein AC
2916	 44.17	0	2948456..2948824	+	122	157693714	-	BPUM_2962	-	hypothetical protein
2917	 40.57	0	2948872..2949507	-	211	157693715	-	BPUM_2963	-	response regulator
2918	 44.13	0	2949504..2950568	-	354	157693716	-	BPUM_2964	-	sensor histidine kinase
2919	 40.22	0	2950565..2951290	-	241	157693717	-	BPUM_2965	-	hypothetical protein
2920	 40.46	0	2951360..2952229	-	289	157693718	-	BPUM_2966	-	hypothetical protein
2921	 41.74	0	2952341..2953006	-	221	157693719	-	BPUM_2967	-	bacteriophage shock protein A
2922	 43.00	0	2953022..2953414	-	130	157693720	-	BPUM_2968	-	hypothetical protein
2923	 46.67	+1	2953749..2954318	-	189	157693721	-	BPUM_2969	-	cob(I)yrinic acid a,c-diamide adenosyltransferase
2924	 29.27	-2	2954367..2954489	+	40	157693722	-	BPUM_2970	-	hypothetical protein
2925	 43.37	0	2954508..2955254	+	248	157693723	-	BPUM_2971	-	3-oxoacyl-[acyl-carrier-protein] reductase
2926	 45.22	+1	2955272..2956297	-	341	157693724	pdxA	BPUM_2972	-	4-hydroxythreonine-4-phosphate dehydrogenase
2927	 43.90	0	2956273..2957616	-	447	157693725	-	BPUM_2973	-	hypothetical protein
2928	 41.13	0	2957642..2959423	-	593	157693726	-	BPUM_2974	-	transcriptional regulator
2929	 43.28	0	2959570..2960745	-	391	157693727	-	BPUM_2975	-	hypothetical protein
2930	 41.79	0	2960742..2962148	-	468	157693728	-	BPUM_2976	-	SSS family solute/sodium (Na+) symporter
2931	 44.84	+1	2962222..2963394	-	390	157693729	-	BPUM_2977	-	alcohol dehydrogenase
2932	 44.44	0	2963402..2964301	-	299	157693730	dapA3	BPUM_2978	-	dihydrodipicolinate synthase
2933	 44.55	0	2964483..2965766	-	427	157693731	-	BPUM_2979	-	iron ABC transporter ATP-binding protein
2934	 44.76	+1	2965763..2966821	-	352	157693732	-	BPUM_2980	-	iron ABC transporter membrane protein
2935	 40.59	0	2966787..2967737	-	316	157693733	-	BPUM_2981	-	iron ABC transporter binding protein
2936	 33.33	-2	2967814..2967906	-	30	157693734	-	BPUM_2982	-	hypothetical protein
2937	 43.89	0	2967912..2969303	-	463	157693735	-	BPUM_2983	-	glycoside hydrolase
2938	 40.63	0	2969324..2970817	-	497	157693736	uxaA	BPUM_2984	-	mannonate dehydratase
2939	 42.73	0	2970814..2972271	-	485	157693737	uxaB	BPUM_2985	-	altronate oxidoreductase
2940	 39.96	0	2972331..2973341	-	336	157693738	-	BPUM_2986	-	LacI family transcriptional regulator
2941	 40.99	0	2973410..2974846	-	478	157693739	uxaC	BPUM_2987	-	glucuronate isomerase
2942	 37.83	0	2974983..2976737	-	584	157693740	-	BPUM_2988	-	sensor histidine kinase
2943	 39.00	0	2976741..2977463	-	240	157693741	-	BPUM_2989	-	response regulator
2944	 43.26	0	2977640..2978455	-	271	157693742	fhuC	BPUM_2990	-	ferrichrome ABC transporter
2945	 42.82	0	2978475..2979497	-	340	157693743	fhuG	BPUM_2991	-	ferrichrome ABC transporter membrane protein
2946	 47.20	+1	2979498..2980550	-	350	157693744	fhuB	BPUM_2992	-	ferrichrome ABC transporter membrane protein
2947	 28.21	-2	2980625..2980702	-	25	157693745	-	BPUM_2993	-	hypothetical protein
2948	 40.89	0	2980810..2981748	+	312	157693746	-	BPUM_2994	-	ferrichrome ABC transporter
2949	 42.22	0	2981784..2983190	-	468	157693747	-	BPUM_2995	-	APC family amino acid-polyamine-organocation transporter
2950	 43.78	0	2983322..2983522	-	66	157693748	-	BPUM_2996	-	hypothetical protein
2951	 40.28	0	2983680..2983823	-	47	157693749	sspJ	BPUM_2997	-	small acid-soluble spore protein J
2952	 39.86	0	2983906..2984334	-	142	157693750	-	BPUM_2998	-	MarR family transcriptional regulator
2953	 33.33	-2	2984380..2984526	-	48	157693751	-	BPUM_2999	-	hypothetical protein
2954	 45.71	+1	2984507..2985007	+	166	157693752	-	BPUM_3000	-	hypothetical protein
2955	 39.01	0	2985124..2986974	+	616	157693753	-	BPUM_3001	-	sulfatase
2956	 40.75	0	2987108..2987902	+	264	157693754	-	BPUM_3002	-	molybdenum ABC transporter ATP-binding protein
2957	 46.91	+1	2987902..2988564	+	220	157693755	-	BPUM_3003	-	molybdenum ABC transporter membrane protein
2958	 41.96	0	2988605..2989450	-	281	157693756	-	BPUM_3004	-	aldo/keto reductase
2959	 46.55	+1	2989520..2990389	-	289	157693757	-	BPUM_3005	-	ROK family protein
2960	 42.56	0	2990453..2992468	-	671	157693758	-	BPUM_3006	-	CPA1 family monovalent cation:proton (H+) antiporter-1
2961	 45.59	+1	2992787..2993398	-	203	157693759	-	BPUM_3007	-	hypothetical protein
2962	 40.10	0	2993545..2993958	-	137	157693760	bdbC	BPUM_3008	-	disulfide dehydrogenase C
2963	 37.85	0	2993955..2994641	-	228	157693761	bdbD	BPUM_3009	-	disulfide dehydrogenase D
2964	 43.71	0	2994786..2996885	-	699	157693762	-	BPUM_3010	-	P-ATPase superfamily P-type ATPase metal transporter
2965	 43.15	0	2997311..2998054	+	247	157693763	mntB	BPUM_3011	-	metal cation ABC transporter ATP-binding protein
2966	 41.58	0	2998054..2998926	+	290	157693764	mntD	BPUM_3012	-	metal cation ABC transporter membrane protein
2967	 41.21	0	2998940..2999878	+	312	157693765	mntA	BPUM_3013	-	metal cation ABC transporter ATP-binding protein
2968	 46.45	+1	2999913..3000461	-	182	157693766	-	BPUM_3014	-	hypothetical protein
2969	 43.19	0	3000551..3001159	+	202	157693767	pksA	BPUM_3015	-	transcriptional regulator
2970	 41.16	0	3001175..3002107	-	310	157693768	-	BPUM_3016	-	response regulator
2971	 42.37	0	3002104..3003420	-	438	157693769	-	BPUM_3017	-	sensor histidine kinase
2972	 42.05	0	3003537..3004982	-	481	157693770	ansB1	BPUM_3018	-	aspartate ammonia-lyase
2973	 42.10	0	3004999..3006276	-	425	157693771	-	BPUM_3019	-	DAACS family dicarboxylate/amino acid:sodium or proton symporter
2974	 38.52	0	3006453..3006587	-	44	157693772	-	BPUM_3020	-	hypothetical protein
2975	 47.50	+1	3006584..3009019	-	811	157693773	-	BPUM_3021	-	P-ATPase superfamily P-type ATPase heavy metal transporter
2976	 43.96	0	3009296..3009502	-	68	157693774	merP	BPUM_3022	-	MerTP family mercury (Hg2+) permease, binding protein MerP
2977	 42.16	0	3009575..3009880	-	101	157693775	-	BPUM_3023	-	hypothetical protein
2978	 41.89	0	3009982..3010437	-	151	157693776	-	BPUM_3024	-	hypothetical protein
2979	 43.14	0	3010444..3010596	-	50	157693777	-	BPUM_3025	-	hypothetical protein
2980	 41.57	0	3010716..3012305	-	529	157693778	-	BPUM_3026	-	diguanylate cyclase
2981	 34.17	-1	3012550..3012789	+	79	157693779	-	BPUM_3027	-	hypothetical protein
2982	 32.79	-2	3012927..3013478	-	183	157693780	-	BPUM_3028	-	hypothetical protein
2983	 26.96	-2	3014188..3015018	+	276	157693781	-	BPUM_3029	-	hypothetical protein
2984	 40.55	0	3015643..3016113	-	156	157693782	smpB	BPUM_3030	-	SsrA-binding protein
2985	 43.70	0	3016253..3018595	-	780	157693783	rnr	BPUM_3031	-	ribonuclease R
2986	 40.83	0	3018615..3019361	-	248	157693784	bioH	BPUM_3032	-	carboxylesterase
2987	 40.60	0	3019486..3019719	-	77	157693785	secG	BPUM_3033	-	preprotein translocase subunit SecG
2988	 30.59	-2	3019714..3019932	+	72	157693786	-	BPUM_3034	-	hypothetical protein
2989	 37.80	0	3019906..3020196	-	96	157693787	abhA	BPUM_3035	-	transcriptional regulator
2990	 36.32	-1	3020223..3020456	-	77	157693788	yvzC	BPUM_3036	-	transcriptional regulator
2991	 39.26	0	3020610..3021014	+	134	157693789	-	BPUM_3037	-	transcriptional regulator
2992	 41.35	0	3021145..3021543	+	132	157693790	-	BPUM_3038	-	hypothetical protein
2993	 42.37	0	3021626..3021946	+	106	157693791	-	BPUM_3039	-	hypothetical protein
2994	 43.91	0	3022027..3022716	-	229	157693792	opuCD	BPUM_3040	-	glycine betaine/carnitine/choline ABC transporter membrane protein
2995	 41.07	0	3022738..3023655	-	305	157693793	opuCC	BPUM_3041	-	glycine betaine/carnitine/choline ABC transporter binding protein
2996	 42.05	0	3023669..3024322	-	217	157693794	opuCB	BPUM_3042	-	glycine betaine/carnitine/choline ABC transporter membrane protein
2997	 42.30	0	3024336..3025484	-	382	157693795	opuCA	BPUM_3043	-	glycine betaine/carnitine/choline ABC transporter ATP-binding protein
41.07	MEAN

3.65	STD DEV
