IslandPathversion 1.0

IslandPath Analysis: Bacillus pumilus SAFR-032

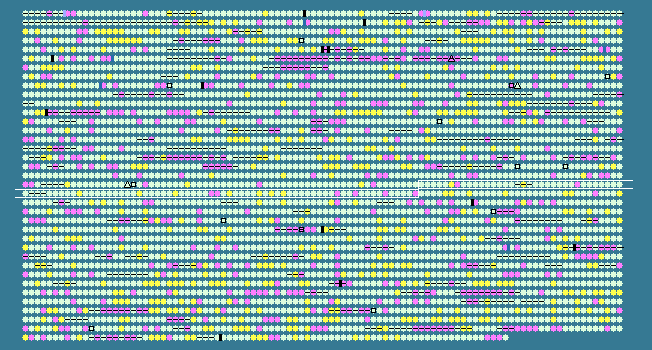

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.07 STD DEV: 3.65
Bacillus pumilus SAFR-032, complete genome - 1..3704465
3681 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1967	 38.51	0	2046041..2046793	-	250	157692765	trpC	BPUM_1997	-	indole-3-glycerol-phosphate synthase
1968	 43.60	0	2046786..2047808	-	340	157692766	trpD	BPUM_1998	-	anthranilate phosphoribosyltransferase
1969	 41.28	0	2047780..2049327	-	515	157692767	trpE	BPUM_1999	-	anthranilate synthase component I
1970	 42.71	0	2049560..2049943	-	127	157692768	aroH	BPUM_2000	-	chorismate mutase
1971	 43.68	0	2049940..2051031	-	363	157692769	aroB	BPUM_2001	-	3-dehydroquinate synthase
1972	 44.67	0	2051031..2052203	-	390	157692770	aroF	BPUM_2002	-	chorismate synthase
1973	 36.79	-1	2052277..2053056	-	259	157692771	cheR	BPUM_2003	-	protein-glutamate O-methyltransferase
1974	 39.15	0	2053201..2053647	-	148	157692772	ndk	BPUM_2004	-	nucleoside diphosphate kinase
1975	 40.39	0	2053778..2054740	-	320	157692773	hepT	BPUM_2005	-	heptaprenyl diphosphate synthase component II
1976	 42.27	0	2054765..2055469	-	234	157692774	menH	BPUM_2006	-	ubiquinone/menaquinone biosynthesis methyltransferase
1977	 38.15	0	2055473..2056240	-	255	157692775	hepS	BPUM_2007	-	trans-hexaprenyltranstransferase subunit 1
1978	 40.80	0	2056355..2056555	-	66	157692776	mtrB	BPUM_2008	-	transcription attenuation protein MtrB
1979	 42.81	0	2056610..2057179	-	189	157692777	folE	BPUM_2009	-	GTP cyclohydrolase I
1980	 40.50	0	2057370..2057648	-	92	157692778	hbs	BPUM_2010	-	non-specific DNA-binding protein HBsu
1981	 43.34	0	2058023..2059501	-	492	157692779	spoIVA	BPUM_2011	-	spore cortex-coat assembly protein
1982	 40.50	0	2059706..2060431	-	241	157692780	yphF	BPUM_2012	-	hypothetical protein
1983	 39.22	0	2060449..2060652	-	67	157692781	yphE	BPUM_2013	-	hypothetical protein
1984	 45.09	+1	2060918..2061955	-	345	157692782	gpsA	BPUM_2014	-	NAD(P)H-dependent glycerol-3-phosphate dehydrogenase
1985	 41.27	0	2061970..2063280	-	436	157692783	yphC	BPUM_2015	-	GTP-binding protein EngA
1986	 38.97	0	2063440..2063634	-	64	157692784	-	BPUM_2016	-	hypothetical protein
1987	 42.03	0	2063641..2064525	-	294	157692785	seaA	BPUM_2017	-	spore envelope protein
1988	 39.97	0	2064522..2065124	-	200	157692786	yphA	BPUM_2018	-	hypothetical protein
1989	 40.00	0	2065197..2065376	+	59	157692787	-	BPUM_2019	-	hypothetical protein
1990	 43.91	0	2065428..2066495	-	355	157692788	fni	BPUM_2020	-	isopentenyl pyrophosphate isomerase
1991	 41.49	0	2066510..2067661	-	383	157692789	rpsA	BPUM_2021	-	30S ribosomal protein S1
1992	 44.54	0	2067885..2068562	-	225	157692790	cmk	BPUM_2022	-	cytidylate kinase
1993	 37.16	-1	2068634..2068816	-	60	157692791	ypfB	BPUM_2023	-	hypothetical protein
1994	 40.59	0	2068880..2069527	-	215	157692792	ypfA	BPUM_2024	-	hypothetical protein
1995	 38.22	0	2069629..2070978	-	449	157692793	ypeB	BPUM_2025	-	hypothetical protein
1996	 42.65	0	2070995..2071906	-	303	157692794	sleB	BPUM_2026	-	spore cortex-lytic enzyme
1997	 39.73	0	2072035..2072691	-	218	157692795	ypdC	BPUM_2027	-	hypothetical protein
1998	 40.64	0	2072846..2073817	-	323	157692796	ypdA	BPUM_2028	-	thioredoxin reductase
1999	 42.82	0	2073940..2075214	-	424	157692797	gudB	BPUM_2029	-	glutamate dehydrogenase
2000	 39.86	0	2075409..2075990	-	193	157692798	ypbH	BPUM_2030	-	adaptor protein
2001	 41.95	0	2076156..2076944	-	262	157692799	ypbG	BPUM_2031	-	metallophosphoesterase
2002	 40.46	0	2077093..2077485	-	130	157692800	ypbF	BPUM_2032	-	hypothetical protein
2003	 39.76	0	2077550..2078311	-	253	157692801	ypbE	BPUM_2033	-	hypothetical protein
2004	 38.47	0	2078256..2078897	-	213	157692802	ypbD	BPUM_2034	-	hypothetical protein
2005	 42.48	0	2078894..2080402	-	502	157692803	recQ	BPUM_2035	-	ATP-dependent helicase RecQ
2006	 39.03	0	2080395..2081447	-	350	157692804	ypbB	BPUM_2036	-	hypothetical protein
2007	 42.57	0	2081715..2081963	+	82	157692805	fer	BPUM_2037	-	ferredoxin
2008	 37.63	0	2081998..2082579	-	193	157692806	ypaA	BPUM_2038	-	hypothetical protein
2009	 40.83	0	2083143..2084717	+	524	157692807	serA	BPUM_2039	-	D-3-phosphoglycerate dehydrogenase
2010	 44.81	+1	2084752..2085396	-	214	157692808	-	BPUM_2040	-	M23 family peptidase
2011	 40.33	0	2085497..2086540	-	347	157692809	rsiX	BPUM_2041	-	sigma X negative regulator
2012	 42.53	0	2086518..2087126	-	202	157692810	sigX	BPUM_2042	-	RNA polymerase sigma factor SigX
2013	 38.57	0	2087237..2087446	-	69	157692811	-	BPUM_2043	-	hypothetical protein
2014	 42.14	0	2087532..2089313	-	593	157692812	resE	BPUM_2044	-	sensor histidine kinase
2015	 41.77	0	2089310..2090032	-	240	157692813	resD	BPUM_2045	-	response regulator
2016	 42.66	0	2090120..2091298	-	392	157692814	resC	BPUM_2046	-	cytochrome c biogenesis protein ResC
2017	 41.31	0	2091282..2092961	-	559	157692815	resB	BPUM_2047	-	cytochrome c biogenesis protein ResB
2018	 40.49	0	2092963..2093493	-	176	157692816	resA	BPUM_2048	-	thiol-disulfide oxidoreductase
2019	 40.43	0	2093584..2094429	-	281	157692817	rluB	BPUM_2049	-	pseudouridylate synthase
2020	 45.62	+1	2094456..2094992	-	178	157692818	spmB	BPUM_2050	-	spore maturation protein B
2021	 44.39	0	2094997..2095584	-	195	157692819	spmA	BPUM_2051	-	spore maturation protein A
2022	 39.29	0	2095572..2096729	-	385	157692820	dacB	BPUM_2052	-	serine-type D-Ala-D-Ala carboxypeptidase
2023	 40.83	0	2096835..2097314	-	159	157692821	ypuI	BPUM_2053	-	hypothetical protein
2024	 41.75	0	2097428..2098021	-	197	157692822	scpB	BPUM_2054	-	segregation and condensation protein B
2025	 38.08	0	2098011..2098769	-	252	157692823	scpA	BPUM_2055	-	segregation and condensation protein A
2026	 47.31	+1	2098978..2099070	+	30	157692824	-	BPUM_2056	-	hypothetical protein
2027	 42.29	0	2099158..2099682	+	174	157692825	ypuF	BPUM_2057	-	hypothetical protein
2028	 41.81	0	2099707..2100060	-	117	157692826	ribT	BPUM_2058	-	reductase
2029	 41.51	0	2100174..2100638	-	154	157692827	ribH	BPUM_2059	-	riboflavin synthase subunit beta
2030	 44.18	0	2100666..2101292	-	208	157692828	ribA	BPUM_2060	-	bifunctional GTP cyclohydrolase II/3,4-dihydroxy-2-butanone 4-phosphate synthase
2031	 42.40	0	2101304..2101954	-	216	157692829	ribE	BPUM_2061	-	riboflavin synthase subunit alpha
2032	 31.59	-2	2102455..2102799	-	114	157692830	ypuD	BPUM_2062	-	lipoprotein
2033	 35.47	-1	2103024..2103257	-	77	157692831	-	BPUM_2063	-	hypothetical protein
2034	 38.49	0	2103470..2104051	-	193	157692832	yezE	BPUM_2064	-	TetR family transcriptional regulator
2035	 46.19	+1	2104292..2105551	+	419	157692833	-	BPUM_2065	-	major facilitator transporter
2036	 43.15	0	2105596..2106033	-	145	157692834	ppiB	BPUM_2066	-	peptidylprolyl isomerase
2037	 41.22	0	2106339..2107238	+	299	157692835	ypuA	BPUM_2067	-	hypothetical protein
2038	 42.72	0	2107278..2108609	-	443	157692836	lysA	BPUM_2068	-	diaminopimelate decarboxylase
2039	 41.68	0	2108719..2110191	-	490	157692837	spoVAF	BPUM_2069	-	stage V sporulation protein AF
2040	 45.81	+1	2110145..2110753	-	202	157692838	spoVAEA	BPUM_2070	-	stage V sporulation protein AEA
2041	 43.30	0	2110760..2111110	-	116	157692839	spoVAEB	BPUM_2071	-	stage V sporulation protein AEB
2042	 44.84	+1	2111110..2112126	-	338	157692840	spoVAD	BPUM_2072	-	stage V sporulation protein AD
2043	 42.60	0	2112139..2112591	-	150	157692841	spoVAC	BPUM_2073	-	stage V sporulation protein AC
2044	 45.56	+1	2112611..2113027	-	138	157692842	spoVAB	BPUM_2074	-	stage V sporulation protein AB
2045	 39.61	0	2113017..2113637	-	206	157692843	spoVAA	BPUM_2075	-	stage V sporulation protein AA
2046	 40.89	0	2113752..2114519	-	255	157692844	sigF	BPUM_2076	-	sporulation sigma factor SigF
2047	 42.63	0	2114533..2114973	-	146	157692845	spoIIAB	BPUM_2077	-	anti-sigma F factor
2048	 41.24	0	2114970..2115323	-	117	157692846	spoIIAA	BPUM_2078	-	stage II sporulation anti-anti-sigma factor
2049	 40.81	0	2115485..2116687	-	400	157692847	dacF	BPUM_2079	-	serine-type D-Ala-D-Ala carboxypeptidase
2050	 43.30	0	2116797..2117609	-	270	157692848	punA	BPUM_2080	-	purine-nucleoside phosphorylase
2051	 42.03	0	2117621..2118805	-	394	157692849	drm	BPUM_2081	-	phosphopentomutase
2052	 41.30	0	2118957..2119847	-	296	157692850	xerD	BPUM_2082	-	site-specific tyrosine recombinase XerD
2053	 36.29	-1	2119854..2120090	-	78	157692851	-	BPUM_2083	-	hypothetical protein
2054	 40.40	0	2120199..2120651	-	150	157692852	fur	BPUM_2084	-	Fur family transcriptional regulator Fur
2055	 37.81	0	2120770..2121417	-	215	157692853	spoIIM	BPUM_2085	-	stage II sporulation protein M
2056	 37.39	-1	2122774..2122995	-	73	157692854	yqkK	BPUM_2087	-	hypothetical protein
2057	 41.72	0	2123064..2123516	-	150	157692855	yybD	BPUM_2088	-	acetyltransferase
2058	 44.42	0	2123503..2124684	-	393	157692856	yqxK	BPUM_2089	-	hypothetical protein
2059	 40.14	0	2124681..2125238	-	185	157692857	nudF	BPUM_2090	-	ADP-ribose diphosphatase
2060	 40.58	0	2125406..2126329	+	307	157692858	yqkF	BPUM_2091	-	Tas family dehydrogenase
2061	 32.56	-2	2126487..2126876	-	129	157692859	-	BPUM_2092	-	hypothetical protein
2062	 39.33	0	2127048..2127197	-	49	157692860	-	BPUM_2093	-	hypothetical protein
2063	 40.67	0	2127249..2127398	+	49	157692861	-	BPUM_2094	-	hypothetical protein
2064	 40.41	0	2127395..2128327	+	310	157692862	yqkD	BPUM_2095	-	serine peptidase
2065	 39.11	0	2128354..2129616	-	420	157692863	rapA3	BPUM_2096	-	aspartate phosphatase response regulator
2066	 37.50	0	2129922..2130161	-	79	157692864	yqkC	BPUM_2097	-	hypothetical protein
41.07	MEAN

3.65	STD DEV
