IslandPathversion 1.0

IslandPath Analysis: Bacillus pumilus SAFR-032

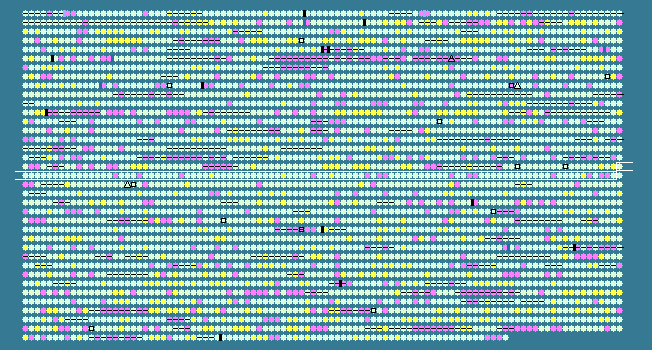

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.07 STD DEV: 3.65
Bacillus pumilus SAFR-032, complete genome - 1..3704465
3681 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1800	 42.30	0	1891128..1892465	-	445	157692598	xylA	BPUM_1829	-	xylose isomerase
1801	 42.72	0	1892679..1893839	+	386	157692599	xylR	BPUM_1830	-	transcriptional regulator
1802	 42.37	0	1893889..1895493	-	534	157692600	xynB	BPUM_1831	-	xylan 1,4-beta-xylosidase
1803	 40.80	0	1895517..1896908	-	463	157692601	xynP	BPUM_1832	-	GPH family glycoside-pentoside-hexuronide:cation symporter
1804	 42.34	0	1897423..1897755	-	110	157692602	csaA	BPUM_1833	-	secretion chaperone CsaA
1805	 40.00	0	1897985..1898464	+	159	157692603	ywmF	BPUM_1834	-	hypothetical protein
1806	 40.01	0	1898454..1900085	-	543	157692604	-	BPUM_1835	-	hypothetical protein
1807	 42.74	0	1900078..1900683	-	201	157692605	-	BPUM_1836	-	hypothetical protein
1808	 39.12	0	1900646..1901527	-	293	157692606	-	BPUM_1837	-	hypothetical protein
1809	 42.23	0	1901676..1902248	-	190	157692607	yobS	BPUM_1838	-	TetR family transcriptional regulator
1810	 43.89	0	1902252..1902971	-	239	157692608	-	BPUM_1839	-	zinc (Zn2+)-dependent hydrolase
1811	 40.51	0	1903009..1903482	-	157	157692609	-	BPUM_1840	-	hypothetical protein
1812	 41.59	0	1903537..1904469	-	310	157692610	yobV	BPUM_1841	-	transcriptional regulator
1813	 39.24	0	1904588..1905112	+	174	157692611	-	BPUM_1842	-	hypothetical protein
1814	 41.52	0	1905348..1905677	-	109	157692612	yozA	BPUM_1843	-	transcription regulator ArsR
1815	 41.18	0	1905864..1907189	+	441	157692613	-	BPUM_1844	-	APC family amino acid-polyamine-organocation transporter
1816	 37.25	-1	1907287..1907949	+	220	157692614	yocA	BPUM_1845	-	hypothetical protein
1817	 43.90	0	1908183..1909100	-	305	157692615	yqiQ	BPUM_1846	-	carboxyvinyl-carboxyphosphonate phosphorylmutase
1818	 44.19	0	1909113..1910549	-	478	157692616	prpD	BPUM_1847	-	2-methylcitrate dehydratase
1819	 42.69	0	1910552..1911694	-	380	157692617	mmgD	BPUM_1848	-	citrate synthase 3
1820	 36.48	-1	1911863..1912402	-	179	157692618	yozB	BPUM_1849	-	hypothetical protein
1821	 38.29	0	1912529..1913113	+	194	157692619	yocC	BPUM_1850	-	hypothetical protein
1822	 39.77	0	1913267..1914058	-	263	157692620	yocH	BPUM_1851	-	cell wall protein
1823	 40.01	0	1914315..1916096	-	593	157692621	yocI	BPUM_1852	-	ATP-dependent helicase
1824	 40.20	0	1916548..1916955	-	135	157692622	yocK	BPUM_1853	-	general stress protein
1825	 41.05	0	1917140..1917787	-	215	157692623	yhfK	BPUM_1854	-	hypothetical protein
1826	 38.35	0	1917965..1918303	-	112	157692624	yozO	BPUM_1855	-	hypothetical protein
1827	 37.09	-1	1918770..1918982	-	70	157692625	yozC	BPUM_1856	-	hypothetical protein
1828	 44.38	0	1919196..1920680	+	494	157692626	dhaS	BPUM_1857	-	aldehyde dehydrogenase (NAD(+))
1829	 42.56	0	1920783..1922657	+	624	157692627	sqhC	BPUM_1858	-	squalene-hopene cyclase
1830	 43.19	0	1922650..1923471	+	273	157692628	sodF	BPUM_1859	-	iron (Fe) superoxide dismutase
1831	 40.69	0	1923622..1924572	+	316	157692629	yocS	BPUM_1860	-	BASS family bile acid:sodium (Na+) symporter
1832	 45.58	+1	1924607..1925863	-	418	157692630	odhB	BPUM_1861	-	dihydrolipoamide acetyltransferase
1833	 41.73	0	1925878..1928712	-	944	157692631	odhA	BPUM_1862	-	alpha-ketoglutarate decarboxylase
1834	 41.05	0	1928938..1930854	-	638	157692632	yojO	BPUM_1863	-	regulator of nitric oxide reductase
1835	 43.12	0	1930866..1931744	-	292	157692633	-	BPUM_1864	-	nitric oxide reductase
1836	 44.28	0	1931834..1932454	-	206	157692634	yojM	BPUM_1865	-	copper/zinc (Cu/Zn) superoxide dismutase
1837	 39.67	0	1934235..1934849	-	204	157692635	-	BPUM_1867	-	hypothetical protein
1838	 42.66	0	1935113..1936474	+	453	157692636	-	BPUM_1868	-	multidrug efflux protein
1839	 42.34	0	1936520..1937185	-	221	157692637	-	BPUM_1869	-	hypothetical protein
1840	 42.45	0	1937204..1937554	-	116	157692638	-	BPUM_1870	-	hypothetical protein
1841	 39.72	0	1937551..1937832	-	93	157692639	-	BPUM_1871	-	hypothetical protein
1842	 39.07	0	1937911..1938816	-	301	157692640	rarD	BPUM_1872	-	DMT superfamily drug/metabolite transporter
1843	 39.45	0	1938912..1939385	+	157	157692641	yozR	BPUM_1873	-	hypothetical protein
1844	 50.23	+2	1939426..1939644	-	72	157692642	-	BPUM_1874	-	hypothetical protein
1845	 39.34	0	1939720..1940052	-	110	157692643	yodB	BPUM_1875	-	transcriptional regulator
1846	 39.32	0	1940192..1940809	+	205	157692644	-	BPUM_1876	-	nitroreductase
1847	 39.22	0	1941046..1941249	+	67	157692645	-	BPUM_1877	-	hypothetical protein
1848	 40.96	0	1941249..1942742	+	497	157692646	yodF	BPUM_1878	-	SSS family solute/sodium (Na+) symporter
1849	 32.13	-2	1942821..1943735	-	304	157692647	-	BPUM_1879	-	O-methyltransferase
1850	 40.76	0	1944081..1945466	-	461	157692648	ctpA	BPUM_1880	-	peptidase
1851	 43.78	0	1945618..1946316	+	232	157692649	-	BPUM_1881	-	hypothetical protein
1852	 48.02	+1	1946409..1946660	+	83	157692650	yodI	BPUM_1882	-	spore protein YodI
1853	 38.99	0	1946711..1947541	-	276	157692651	yodJ	BPUM_1883	-	serine-type D-Ala-D-Ala carboxypeptidase
1854	 41.95	0	1947610..1948305	-	231	157692652	deoD	BPUM_1884	-	purine-nucleoside phosphorylase
1855	 40.88	0	1948419..1948736	-	105	157692653	-	BPUM_1885	-	hypothetical protein
1856	 39.74	0	1948791..1949399	-	202	157692654	-	BPUM_1886	-	phosphatase
1857	 40.94	0	1949448..1949618	-	56	157692655	yozD	BPUM_1887	-	hypothetical protein
1858	 34.62	-1	1949639..1949872	+	77	157692656	-	BPUM_1888	-	hypothetical protein
1859	 38.77	0	1949869..1950549	-	226	157692657	yodN	BPUM_1889	-	hypothetical protein
1860	 36.00	-1	1950694..1950918	-	74	157692658	yozE	BPUM_1890	-	hypothetical protein
1861	 37.23	-1	1950997..1951278	-	93	157692659	-	BPUM_1891	-	hypothetical protein
1862	 42.97	0	1951281..1952681	-	466	157692660	kamA	BPUM_1892	-	lysine 2,3-aminomutase
1863	 41.54	0	1952799..1954175	-	458	157692661	-	BPUM_1893	-	transcriptional regulator
1864	 40.82	0	1954334..1955629	-	431	157692662	cgeD	BPUM_1894	-	spore maturation protein CgeD
1865	 39.25	0	1955647..1955967	-	106	157692663	cgeC	BPUM_1895	-	spore maturation protein CgeC
1866	 39.30	0	1956175..1956576	+	133	157692664	cgeA	BPUM_1896	-	spore maturation protein CgeA
1867	 41.23	0	1956592..1957554	+	320	157692665	cgeB	BPUM_1897	-	spore maturation protein CgeB
1868	 41.00	0	1957589..1958305	-	238	157692666	neuA	BPUM_1898	-	N-acylneuraminate cytidylyltransferase
1869	 41.11	0	1958549..1959577	+	342	157692667	capD	BPUM_1899	-	capsular polysaccharide biosynthesis protein D
1870	 42.36	0	1959628..1960059	-	143	157692668	msrB	BPUM_1900	-	methionine sulfoxide reductase B
1871	 40.97	0	1960056..1960592	-	178	157692669	msrA	BPUM_1901	-	methionine sulfoxide reductase A
1872	 37.27	-1	1960730..1961161	+	143	157692670	-	BPUM_1902	-	MarR family transcriptional regulator
1873	 42.15	0	1961216..1961476	+	86	157692671	-	BPUM_1903	-	hypothetical protein
1874	 42.49	0	1961597..1962262	+	221	157692672	-	BPUM_1904	-	hypothetical protein
1875	 32.83	-2	1962295..1962492	-	65	157692673	ypmT	BPUM_1905	-	hypothetical protein
1876	 37.57	0	1962515..1963081	-	188	157692674	ypmS	BPUM_1906	-	hypothetical protein
1877	 39.50	0	1963091..1963852	-	253	157692675	ypmR	BPUM_1907	-	lipase
1878	 38.92	0	1963922..1964512	-	196	157692676	ypmQ	BPUM_1908	-	electron transport protein
1879	 41.99	0	1964537..1965379	-	280	157692677	-	BPUM_1909	-	DegV family protein
1880	 42.06	0	1965567..1965818	-	83	157692678	ypmP	BPUM_1910	-	hypothetical protein
1881	 39.72	0	1965855..1967123	-	422	157692679	ilvA	BPUM_1911	-	threonine dehydratase
1882	 42.41	0	1967305..1968273	+	322	157692680	yplP	BPUM_1912	-	sigma L dependent transcriptional regulator
1883	 41.31	0	1968288..1968926	+	212	157692681	-	BPUM_1913	-	hemolysin III
1884	 40.54	0	1968961..1969584	-	207	157692682	ypkP	BPUM_1914	-	hypothetical protein
1885	 41.56	0	1969604..1970089	-	161	157692683	dfrA	BPUM_1915	-	dihydrofolate reductase
1886	 42.14	0	1970086..1970880	-	264	157692684	thyB	BPUM_1916	-	thymidylate synthase
1887	 39.63	0	1970984..1971523	-	179	157692685	-	BPUM_1917	-	phosphatidylglycerophosphatase A
1888	 42.23	0	1971530..1972147	-	205	157692686	ypjP	BPUM_1918	-	hypothetical protein
1889	 36.00	-1	1972301..1972375	+	24	157692687	-	BPUM_1919	-	hypothetical protein
1890	 43.73	0	1972579..1973367	-	262	157692688	ypiP	BPUM_1920	-	hypothetical protein
1891	 44.14	0	1973434..1973868	-	144	157692689	yphP	BPUM_1921	-	hypothetical protein
1892	 43.89	0	1973950..1975626	-	558	157692690	ilvD	BPUM_1922	-	dihydroxy-acid dehydratase
1893	 43.54	0	1975934..1977070	-	378	157692691	ypgR	BPUM_1923	-	hypothetical protein
1894	 46.90	+1	1977101..1977712	-	203	157692692	ypgQ	BPUM_1924	-	HD family metal dependent phosphohydrolase
1895	 37.06	-1	1977726..1978208	-	160	157692693	bsaA	BPUM_1925	-	glutathione peroxidase
1896	 42.78	0	1978283..1979965	-	560	157692694	fhs	BPUM_1926	-	formate--tetrahydrofolate ligase
1897	 36.85	-1	1980103..1981011	+	302	157692695	metA	BPUM_1927	-	homoserine O-succinyltransferase
1898	 35.59	-1	1981240..1982391	+	383	157692696	ugtP	BPUM_1928	-	diacylglycerol glucosyltransferase
1899	 40.88	0	1982425..1983126	-	233	157692697	-	BPUM_1929	-	hypothetical protein
41.07	MEAN

3.65	STD DEV
