IslandPath Analysis: Bacillus pumilus SAFR-032

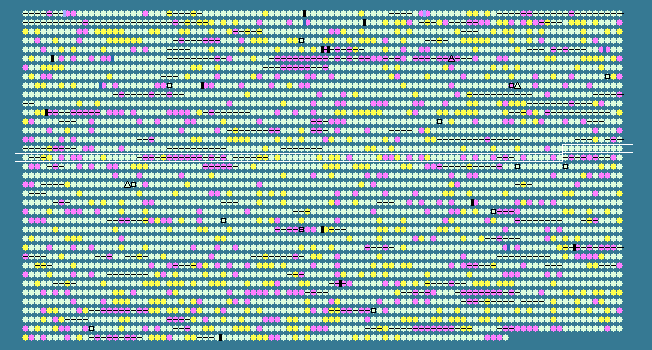

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.07 STD DEV: 3.65
Bacillus pumilus SAFR-032, complete genome - 1..3704465
3681 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1591	 43.59	0	1675528..1677429	+	633	157692389	mutL	BPUM_1609	-	DNA mismatch repair protein
1592	 44.19	0	1677505..1678038	-	177	157692390	yuaB	BPUM_1610	-	hypothetical protein
1593	 39.17	0	1678164..1678574	-	136	157692391	-	BPUM_1611	-	hypothetical protein
1594	 38.17	0	1678682..1678867	-	61	157692392	-	BPUM_1612	-	hypothetical protein
1595	 38.57	0	1679131..1679607	+	158	157692393	carD	BPUM_1613	-	transcription factor CarD
1596	 38.27	0	1679919..1680668	+	249	157692394	ymaC	BPUM_1614	-	phage-related protein YmaC
1597	 38.29	0	1680834..1681982	+	382	157692395	-	BPUM_1615	-	response regulator
1598	 43.44	0	1682075..1683400	-	441	157692396	aprX	BPUM_1616	-	protease
1599	 43.67	0	1683986..1684720	+	244	157692397	-	BPUM_1617	-	hypothetical protein
1600	 44.44	0	1684798..1685247	+	149	157692398	ymaD	BPUM_1618	-	osmotic stress regulator
1601	 40.65	0	1685294..1685662	-	122	157692399	ebrB	BPUM_1619	-	DMT superfamily drug/metabolite transporter
1602	 42.77	0	1685676..1685993	-	105	157692400	ebrA	BPUM_1620	-	DMT superfamily drug/metabolite transporter
1603	 41.21	0	1685993..1686538	-	181	157692401	-	BPUM_1621	-	TetR family transcriptional regulator
1604	 48.41	+2	1686651..1686902	-	83	157692402	ymaG	BPUM_1622	-	spore protein YmaG
1605	 45.52	+1	1687007..1687408	+	133	157692403	ymaF	BPUM_1623	-	hypothetical protein
1606	 41.67	0	1687439..1688434	+	331	157692404	miaA	BPUM_1624	-	tRNA delta(2)-isopentenylpyrophosphate transferase
1607	 36.49	-1	1688460..1688681	+	73	157692405	ymaH	BPUM_1625	-	RNA-binding protein Hfq
1608	 37.88	0	1688839..1689168	+	109	157692406	ymzC	BPUM_1626	-	hypothetical protein
1609	 37.09	-1	1689248..1689460	+	70	157692407	ymzA	BPUM_1627	-	hypothetical protein
1610	 37.34	-1	1689721..1690119	+	132	157692408	nrdI	BPUM_1628	-	ribonucleotide reductase stimulatory protein
1611	 39.37	0	1690079..1692181	+	700	157692409	nrdE	BPUM_1629	-	ribonucleotide-diphosphate reductase subunit alpha
1612	 37.82	0	1692199..1693179	+	326	157692410	nrdF	BPUM_1630	-	ribonucleotide-diphosphate reductase subunit beta
1613	 41.10	0	1693264..1693881	+	205	157692411	ymaB	BPUM_1631	-	MutT/NUDIX family hydrolase
1614	 45.06	+1	1693948..1694706	-	252	157692412	cwlC	BPUM_1632	-	N-acetylmuramoyl-L-alanine amidase
1615	 40.52	0	1695027..1695986	+	319	157692413	spoVK	BPUM_1633	-	stage V sporulation protein K
1616	 42.04	0	1696108..1697370	+	420	157692414	-	BPUM_1634	-	HflX family GTP-binding protein
1617	 43.40	0	1697389..1698669	+	426	157692415	ynbB	BPUM_1635	-	aluminum resistance protein
1618	 41.36	0	1698760..1699170	+	136	157692416	glnR	BPUM_1636	-	glutamine synthetase transcriptional repressor
1619	 42.02	0	1699230..1700564	+	444	157692417	glnA	BPUM_1637	-	glutamate--ammonia ligase
1620	 43.79	0	1701045..1701197	+	50	157692418	-	BPUM_1638	-	hypothetical protein
1621	 32.77	-2	1701404..1702471	+	355	157692419	-	BPUM_1639	-	patatin phospholipase
1622	 27.46	-2	1703198..1703776	+	192	157692420	-	BPUM_1640	-	hypothetical protein
1623	 40.20	0	1703943..1704146	+	67	157692421	-	BPUM_1641	-	hypothetical protein
1624	 44.87	+1	1704147..1704380	+	77	157692422	-	BPUM_1642	-	hypothetical protein
1625	 37.33	-1	1704344..1704493	+	49	157692423	-	BPUM_1643	-	hypothetical protein
1626	 32.09	-2	1705102..1705584	+	160	157692424	yjcP	BPUM_1645	-	hypothetical protein
1627	 31.88	-2	1705664..1705870	+	68	157692425	-	BPUM_1646	-	hypothetical protein
1628	 27.54	-2	1707586..1708482	+	298	157692426	yobJ	BPUM_1649	-	membrane protein
1629	 36.92	-1	1708517..1708795	+	92	157692427	-	BPUM_1650	-	hypothetical protein
1630	 34.22	-1	1709199..1710332	+	377	157692428	-	BPUM_1651	-	aspartate phosphatase response regulator
1631	 38.94	0	1710723..1712648	+	641	157692429	-	BPUM_1652	-	hypothetical protein
1632	 31.06	-2	1712654..1713136	+	160	157692430	-	BPUM_1653	-	hypothetical protein
1633	 39.56	0	1713310..1714032	+	240	157692431	-	BPUM_1654	-	hypothetical protein
1634	 30.38	-2	1714032..1714505	+	157	157692432	-	BPUM_1655	-	hypothetical protein
1635	 42.44	0	1714770..1715219	-	149	157692433	-	BPUM_1656	-	hypothetical protein
1636	 38.86	0	1715432..1715974	+	180	157692434	-	BPUM_1657	-	GNAT family acetyltransferase
1637	 41.41	0	1716115..1716696	+	193	157692435	-	BPUM_1658	-	phosphatidate phosphatase
1638	 39.52	0	1716749..1717120	-	123	157692436	ydhG	BPUM_1659	-	hypothetical protein
1639	 38.42	0	1717512..1718180	+	222	157692437	-	BPUM_1660	-	hypothetical protein
1640	 46.09	+1	1718255..1718599	+	114	157692438	-	BPUM_1661	-	hypothetical protein
1641	 52.02	+2	1718644..1719681	+	345	157692439	-	BPUM_1662	-	hypothetical protein
1642	 38.90	0	1719939..1721051	+	370	157692440	-	BPUM_1663	-	aspartate phosphatase response regulator
1643	 50.85	+2	1721511..1721744	+	77	157692441	-	BPUM_1664	-	hypothetical protein
1644	 42.67	0	1721785..1722480	-	231	157692442	yoaK	BPUM_1665	-	hypothetical protein
1645	 41.91	0	1722515..1724380	-	621	157692443	ykoU	BPUM_1666	-	ATP-dependent DNA ligase
1646	 38.63	0	1724497..1725345	+	282	157692444	ykoV	BPUM_1667	-	Ku-like DNA end-binding protein
1647	 43.24	0	1725369..1725812	-	147	157692445	ydaT	BPUM_1668	-	hypothetical protein
1648	 40.98	0	1725976..1726446	+	156	157692446	-	BPUM_1669	-	glutathione transferase
1649	 42.27	0	1726495..1726908	+	137	157692447	-	BPUM_1670	-	transcriptional regulator
1650	 45.07	+1	1727010..1727861	+	283	157692448	-	BPUM_1671	-	nucleoside diphosphate glycosyl epimerase
1651	 43.65	0	1728028..1728744	+	238	157692449	yvfV	BPUM_1672	-	(S)-2-hydroxy-acid oxidase
1652	 45.78	+1	1728766..1730187	+	473	157692450	yvfW	BPUM_1673	-	iron-sulfur cluster-binding protein
1653	 45.37	+1	1730187..1730909	+	240	157692451	-	BPUM_1674	-	hypothetical protein
1654	 40.26	0	1731056..1731964	+	302	157692452	-	BPUM_1675	-	DMT superfamily drug/metabolite transporter
1655	 35.42	-1	1731977..1732168	-	63	157692453	-	BPUM_1676	-	hypothetical protein
1656	 41.45	0	1732279..1734495	+	738	157692454	-	BPUM_1677	-	phosphoprotein phosphatase
1657	 40.07	0	1735497..1736075	+	192	157692455	yrhI	BPUM_1679	-	transcriptional regulator
1658	 42.49	0	1736097..1739240	+	1047	157692456	yrhJ	BPUM_1680	-	NADPH--hemoprotein reductase
1659	 41.12	0	1739432..1740343	+	303	157692457	mpr	BPUM_1681	-	glutamyl endopeptidase
1660	 45.45	+1	1740557..1740985	+	142	157692458	nucB	BPUM_1682	-	sporulation-specific nuclease
1661	 37.22	-1	1741124..1741972	+	282	157692459	yojH	BPUM_1683	-	hypothetical protein
1662	 34.62	-1	1742004..1742546	-	180	157692460	yoeB	BPUM_1684	-	hypothetical protein
1663	 45.75	+1	1742841..1743275	+	144	157692461	-	BPUM_1685	-	hypothetical protein
1664	 40.10	0	1743321..1743941	-	206	157692462	lexA	BPUM_1686	-	LexA repressor
1665	 36.86	-1	1744101..1744412	+	103	157692463	yneA	BPUM_1687	-	LysM family cell division regulator
1666	 41.20	0	1744430..1745077	+	215	157692464	yneB	BPUM_1688	-	recombinase
1667	 32.47	-2	1745147..1745377	+	76	157692465	ynzC	BPUM_1689	-	hypothetical protein
1668	 45.31	+1	1745565..1747568	+	667	157692466	tkt	BPUM_1690	-	transketolase
1669	 39.60	0	1747766..1748212	+	148	157692467	yneE	BPUM_1691	-	hypothetical protein
1670	 39.27	0	1748297..1748515	+	72	157692468	yneF	BPUM_1692	-	hypothetical protein
1671	 38.10	0	1748779..1748967	-	62	157692469	ynzD	BPUM_1693	-	hypothetical protein
1672	 40.96	0	1749161..1749868	+	235	157692470	ccdA	BPUM_1694	-	stage V sporulation cytochrome c-type biogenesis protein
1673	 37.89	0	1749963..1750445	+	160	157692471	yneJ	BPUM_1695	-	hypothetical protein
1674	 37.53	0	1750466..1750894	-	142	157692472	yneK	BPUM_1696	-	hypothetical protein
1675	 39.46	0	1751659..1751805	-	48	157692473	sspP	BPUM_1697	-	small acid-soluble spore protein P
1676	 35.37	-1	1751822..1751968	-	48	157692474	sspO	BPUM_1698	-	acid-soluble spore protein O
1677	 42.56	0	1752189..1754918	+	909	157692475	citB	BPUM_1699	-	aconitate hydratase
1678	 39.88	0	1754993..1755496	+	167	157692476	yneN	BPUM_1700	-	hypothetical protein
1679	 31.11	-2	1755559..1755693	+	44	157692477	-	BPUM_1701	-	hypothetical protein
1680	 40.14	0	1755742..1755888	+	48	157692478	sspN	BPUM_1702	-	acid-soluble spore protein N
1681	 36.63	-1	1755902..1756144	+	80	157692479	tlp	BPUM_1703	-	small acid-soluble spore protein Tlp
1682	 39.72	0	1756248..1756670	+	140	157692480	yneP	BPUM_1704	-	4-hydroxybenzoyl-CoA thioesterase
1683	 41.03	0	1756674..1756985	+	103	157692481	yneQ	BPUM_1705	-	hypothetical protein
1684	 36.46	-1	1757025..1757312	-	95	157692482	yneR	BPUM_1706	-	hypothetical protein
1685	 40.14	0	1757414..1758001	-	195	157692483	yneS	BPUM_1707	-	putative glycerol-3-phosphate acyltransferase PlsY
1686	 42.03	0	1758150..1758563	+	137	157692484	yneT	BPUM_1708	-	CoA-binding protein
1687	 42.63	0	1758954..1760921	+	655	157692485	parE	BPUM_1709	-	DNA topoisomerase IV subunit B
1688	 42.23	0	1760924..1763362	+	812	157692486	parC	BPUM_1710	-	DNA topoisomerase IV subunit A
1689	 36.51	-1	1763414..1763539	-	41	157692487	-	BPUM_1711	-	hypothetical protein
1690	 38.39	0	1763583..1763918	-	111	157692488	ynfC	BPUM_1712	-	hypothetical protein
41.07	MEAN

3.65	STD DEV
