IslandPathversion 1.0

IslandPath Analysis: Bacillus pumilus SAFR-032

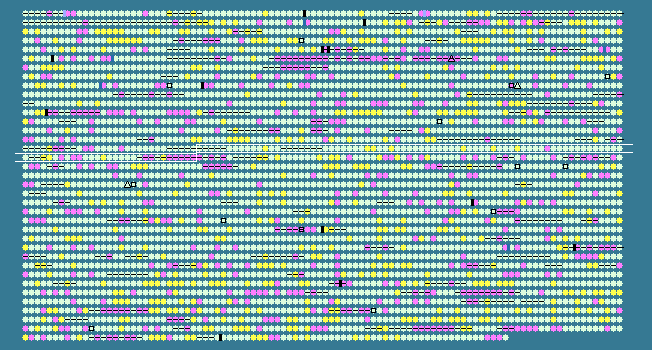

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.07 STD DEV: 3.65
Bacillus pumilus SAFR-032, complete genome - 1..3704465
3681 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1530	 41.11	0	1597604..1598143	+	179	157692328	ylxL	BPUM_1547	-	hypothetical protein
1531	 40.82	0	1599124..1600005	+	293	157692329	tsf	BPUM_1549	-	elongation factor Ts
1532	 42.81	0	1600210..1600863	+	217	157692330	pyrH	BPUM_1550	-	UMP kinase
1533	 37.99	0	1600865..1601422	+	185	157692331	frr	BPUM_1551	-	peptide chain release factor RF4
1534	 42.78	0	1601552..1602334	+	260	157692332	uppS	BPUM_1552	-	di-trans,poly-cis-decaprenylcistransferase
1535	 41.20	0	1602443..1603141	+	232	157692333	cdsA	BPUM_1553	-	phosphatidate cytidylyltransferase
1536	 41.84	0	1603180..1604331	+	383	157692334	dxr	BPUM_1554	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
1537	 41.15	0	1604338..1605603	+	421	157692335	yluC	BPUM_1555	-	M50 family peptidase
1538	 43.23	0	1605683..1607380	+	565	157692336	proS1	BPUM_1556	-	prolyl-tRNA synthetase
1539	 41.89	0	1607456..1611769	+	1437	157692337	polC	BPUM_1557	-	DNA polymerase III PolC
1540	 44.19	0	1612188..1614038	+	616	157692338	bglC	BPUM_1558	-	cellulase
1541	 44.87	+1	1614069..1616174	+	701	157692339	celB	BPUM_1559	-	cellulose 1,4-beta-cellobiosidase
1542	 41.22	0	1616259..1617488	+	409	157692340	-	BPUM_1560	-	glycoside hydrolase
1543	 43.21	0	1617507..1618640	+	377	157692341	-	BPUM_1561	-	mannan endo-1,4-beta-mannosidase
1544	 39.45	0	1618879..1619352	+	157	157692342	ylxS	BPUM_1562	-	hypothetical protein
1545	 41.31	0	1619385..1620500	+	371	157692343	nusA	BPUM_1563	-	transcription elongation factor NusA
1546	 40.00	0	1620507..1620806	+	99	157692344	ylxR	BPUM_1564	-	hypothetical protein
1547	 42.90	0	1620793..1621095	+	100	157692345	ylxQ	BPUM_1565	-	hypothetical protein
1548	 41.11	0	1621115..1623235	+	706	157692346	infB	BPUM_1566	-	translation initiation factor IF-2
1549	 41.22	0	1623232..1623510	+	92	157692347	-	BPUM_1567	-	hypothetical protein
1550	 42.17	0	1623528..1623878	+	116	157692348	rbfA	BPUM_1568	-	ribosome-binding factor A
1551	 41.61	0	1623947..1624876	+	309	157692349	truB	BPUM_1569	-	tRNA pseudouridine 55 synthase
1552	 42.55	0	1624895..1625860	+	321	157692350	ribC	BPUM_1570	-	bifunctional riboflavin kinase/FMN adenylyltransferase
1553	 38.52	0	1626001..1626270	+	89	157692351	rpsO	BPUM_1571	-	30S ribosomal protein S15
1554	 41.64	0	1626451..1628568	+	705	157692352	pnpA	BPUM_1572	-	polynucleotide phosphorylase/polyadenylase
1555	 39.52	0	1628683..1629636	+	317	157692353	ylxY	BPUM_1573	-	polysaccharide deacetylase
1556	 41.71	0	1629670..1630899	+	409	157692354	mlpA	BPUM_1574	-	M16B subfamily peptidase
1557	 40.69	0	1630973..1631896	+	307	157692355	aph	BPUM_1575	-	kanamycin kinase
1558	 46.15	+1	1631967..1632239	+	90	157692356	ymxH	BPUM_1576	-	hypothetical protein
1559	 45.63	+1	1632363..1633265	+	300	157692357	spoVFA	BPUM_1577	-	dipicolinate synthase subunit A
1560	 42.76	0	1633262..1633855	+	197	157692358	spoVFB	BPUM_1578	-	dipicolinate synthase subunit B
1561	 42.06	0	1633995..1635014	+	339	157692359	asd	BPUM_1579	-	aspartate-semialdehyde dehydrogenase
1562	 45.43	+1	1635107..1636321	+	404	157692360	dapG	BPUM_1580	-	aspartate kinase I
1563	 42.45	0	1636352..1637218	+	288	157692361	dapA2	BPUM_1581	-	dihydrodipicolinate synthase
1564	 40.65	0	1637390..1639057	+	555	157692362	-	BPUM_1582	-	metallo beta lactamase
1565	 43.07	0	1639161..1639910	+	249	157692363	clpP1	BPUM_1583	-	endopeptidase ClpP
1566	 40.51	0	1639907..1640143	+	78	157692364	-	BPUM_1584	-	hypothetical protein
1567	 43.45	0	1640254..1642626	+	790	157692365	spoIIIE	BPUM_1585	-	stage III sporulation DNA translocase E
1568	 40.77	0	1642792..1643517	+	241	157692366	ymfC	BPUM_1586	-	GntR family transcriptional regulator
1569	 38.34	0	1645167..1648283	+	1038	157692367	-	BPUM_1587	-	resistance-nodulation-cell division acriflavin:proton (H+) antiporter
1570	 41.37	0	1648429..1649709	+	426	157692368	-	BPUM_1588	-	M16 family metallopeptidase
1571	 38.90	0	1649706..1650998	+	430	157692369	-	BPUM_1589	-	M16C subfamily metallopeptidase
1572	 37.74	0	1651149..1651625	+	158	157692370	-	BPUM_1590	-	MarR family transcriptional regulator
1573	 39.36	0	1651603..1654722	+	1039	157692371	ydgH	BPUM_1591	-	resistance-nodulation-cell division acriflavin:proton (H+) antiporter
1574	 44.86	+1	1654754..1655482	+	242	157692372	ymfI	BPUM_1592	-	3-ketoacyl-(acyl-carrier-protein) reductase
1575	 39.92	0	1655556..1655813	+	85	157692373	ymfJ	BPUM_1593	-	hypothetical protein
1576	 39.77	0	1655945..1656736	+	263	157692374	-	BPUM_1594	-	hypothetical protein
1577	 41.59	0	1656751..1657671	+	306	157692375	ymfM	BPUM_1595	-	transcription regulation protein
1578	 42.78	0	1657747..1658328	+	193	157692376	pgsA	BPUM_1596	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase
1579	 45.08	+1	1658345..1659595	+	416	157692377	cinA	BPUM_1597	-	competence damage-inducible protein A
1580	 42.46	0	1659772..1660812	+	346	157692378	recA	BPUM_1598	-	recombination protein A
1581	 42.87	0	1661118..1662680	+	520	157692379	ymdA	BPUM_1599	-	phosphodiesterase
1582	 40.88	0	1662768..1663562	+	264	157692380	ymdB	BPUM_1600	-	hypothetical protein
1583	 45.98	+1	1663764..1664024	+	86	157692381	spoVS	BPUM_1601	-	stage V sporulation protein S
1584	 41.22	0	1664227..1667271	+	1014	157692382	yerP	BPUM_1602	-	resistance-nodulation-cell division acriflavin:proton (H+) antiporter
1585	 44.51	0	1667446..1668510	+	354	157692383	tdh	BPUM_1603	-	L-threonine 3-dehydrogenase
1586	 43.65	0	1668507..1669688	+	393	157692384	kbl	BPUM_1604	-	2-amino-3-ketobutyrate coenzyme A ligase
1587	 41.32	0	1669847..1671373	+	508	157692385	ymcB	BPUM_1605	-	tRNA 2-methylthioadenine synthetase
1588	 37.24	-1	1671375..1671809	+	144	157692386	ymcA	BPUM_1606	-	hypothetical protein
1589	 39.38	0	1672261..1672806	+	181	157692387	cotE	BPUM_1607	-	outer spore coat protein E
1590	 41.13	0	1672931..1675507	+	858	157692388	mutS1	BPUM_1608	-	DNA mismatch repair protein
1591	 43.59	0	1675528..1677429	+	633	157692389	mutL	BPUM_1609	-	DNA mismatch repair protein
1592	 44.19	0	1677505..1678038	-	177	157692390	yuaB	BPUM_1610	-	hypothetical protein
1593	 39.17	0	1678164..1678574	-	136	157692391	-	BPUM_1611	-	hypothetical protein
1594	 38.17	0	1678682..1678867	-	61	157692392	-	BPUM_1612	-	hypothetical protein
1595	 38.57	0	1679131..1679607	+	158	157692393	carD	BPUM_1613	-	transcription factor CarD
1596	 38.27	0	1679919..1680668	+	249	157692394	ymaC	BPUM_1614	-	phage-related protein YmaC
1597	 38.29	0	1680834..1681982	+	382	157692395	-	BPUM_1615	-	response regulator
1598	 43.44	0	1682075..1683400	-	441	157692396	aprX	BPUM_1616	-	protease
1599	 43.67	0	1683986..1684720	+	244	157692397	-	BPUM_1617	-	hypothetical protein
1600	 44.44	0	1684798..1685247	+	149	157692398	ymaD	BPUM_1618	-	osmotic stress regulator
1601	 40.65	0	1685294..1685662	-	122	157692399	ebrB	BPUM_1619	-	DMT superfamily drug/metabolite transporter
1602	 42.77	0	1685676..1685993	-	105	157692400	ebrA	BPUM_1620	-	DMT superfamily drug/metabolite transporter
1603	 41.21	0	1685993..1686538	-	181	157692401	-	BPUM_1621	-	TetR family transcriptional regulator
1604	 48.41	+2	1686651..1686902	-	83	157692402	ymaG	BPUM_1622	-	spore protein YmaG
1605	 45.52	+1	1687007..1687408	+	133	157692403	ymaF	BPUM_1623	-	hypothetical protein
1606	 41.67	0	1687439..1688434	+	331	157692404	miaA	BPUM_1624	-	tRNA delta(2)-isopentenylpyrophosphate transferase
1607	 36.49	-1	1688460..1688681	+	73	157692405	ymaH	BPUM_1625	-	RNA-binding protein Hfq
1608	 37.88	0	1688839..1689168	+	109	157692406	ymzC	BPUM_1626	-	hypothetical protein
1609	 37.09	-1	1689248..1689460	+	70	157692407	ymzA	BPUM_1627	-	hypothetical protein
1610	 37.34	-1	1689721..1690119	+	132	157692408	nrdI	BPUM_1628	-	ribonucleotide reductase stimulatory protein
1611	 39.37	0	1690079..1692181	+	700	157692409	nrdE	BPUM_1629	-	ribonucleotide-diphosphate reductase subunit alpha
1612	 37.82	0	1692199..1693179	+	326	157692410	nrdF	BPUM_1630	-	ribonucleotide-diphosphate reductase subunit beta
1613	 41.10	0	1693264..1693881	+	205	157692411	ymaB	BPUM_1631	-	MutT/NUDIX family hydrolase
1614	 45.06	+1	1693948..1694706	-	252	157692412	cwlC	BPUM_1632	-	N-acetylmuramoyl-L-alanine amidase
1615	 40.52	0	1695027..1695986	+	319	157692413	spoVK	BPUM_1633	-	stage V sporulation protein K
1616	 42.04	0	1696108..1697370	+	420	157692414	-	BPUM_1634	-	HflX family GTP-binding protein
1617	 43.40	0	1697389..1698669	+	426	157692415	ynbB	BPUM_1635	-	aluminum resistance protein
1618	 41.36	0	1698760..1699170	+	136	157692416	glnR	BPUM_1636	-	glutamine synthetase transcriptional repressor
1619	 42.02	0	1699230..1700564	+	444	157692417	glnA	BPUM_1637	-	glutamate--ammonia ligase
1620	 43.79	0	1701045..1701197	+	50	157692418	-	BPUM_1638	-	hypothetical protein
1621	 32.77	-2	1701404..1702471	+	355	157692419	-	BPUM_1639	-	patatin phospholipase
1622	 27.46	-2	1703198..1703776	+	192	157692420	-	BPUM_1640	-	hypothetical protein
1623	 40.20	0	1703943..1704146	+	67	157692421	-	BPUM_1641	-	hypothetical protein
1624	 44.87	+1	1704147..1704380	+	77	157692422	-	BPUM_1642	-	hypothetical protein
1625	 37.33	-1	1704344..1704493	+	49	157692423	-	BPUM_1643	-	hypothetical protein
1626	 32.09	-2	1705102..1705584	+	160	157692424	yjcP	BPUM_1645	-	hypothetical protein
1627	 31.88	-2	1705664..1705870	+	68	157692425	-	BPUM_1646	-	hypothetical protein
1628	 27.54	-2	1707586..1708482	+	298	157692426	yobJ	BPUM_1649	-	membrane protein
1629	 36.92	-1	1708517..1708795	+	92	157692427	-	BPUM_1650	-	hypothetical protein
41.07	MEAN

3.65	STD DEV
