IslandPath Analysis: Bacteroides fragilis YCH46

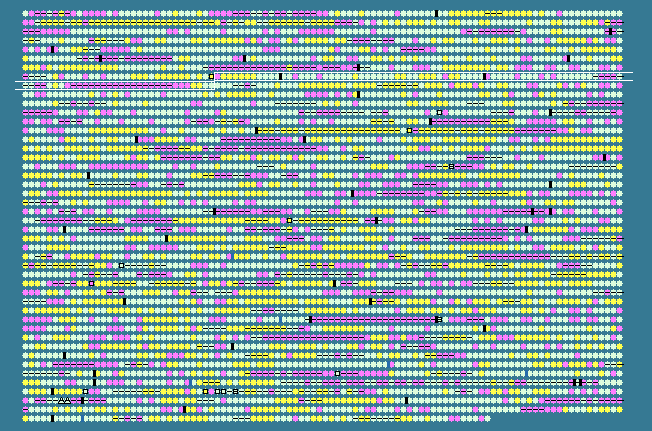

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 43.19   STD DEV: 5.60
Bacteroides fragilis YCH46, complete genome - 1..5277274
4578 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
733	 37.50	-1	860265..860432	+	55	53712024	-	BF0731.4	-	hypothetical protein
734	 49.72	+1	860651..863836	+	1061	53712025	-	BF0732	-	hypothetical protein
735	 48.96	+1	863850..865532	+	560	53712026	-	BF0733	-	hypothetical protein
736	 52.28	+1	865542..866507	+	321	53712027	-	BF0734	-	exo-alpha-sialidase
737	 50.21	+1	866536..867987	+	483	53712028	-	BF0735	-	hypothetical protein
738	 48.55	0	868105..871659	+	1184	53712029	-	BF0736	-	beta-galactosidase
739	 48.99	+1	871805..873037	-	410	53712030	-	BF0737	-	3-phosphoshikimate 1-carboxyvinyltransferase
740	 40.30	0	873322..874197	+	291	53712031	-	BF0738	-	hypothetical protein
741	 43.42	0	874210..875379	+	389	53712032	-	BF0739	-	putative two-component system sensor histidine kinase
742	 44.39	0	875657..877618	+	653	53712033	-	BF0740	-	beta-N-acetylhexosaminidase
743	 41.87	0	877854..878942	-	362	53712034	-	BF0741	-	hypothetical protein
744	 44.19	0	879652..880047	-	131	53712035	-	BF0742	-	hypothetical protein
745	 45.67	0	880060..881121	-	353	53712036	-	BF0743	-	3-dehydroquinate synthase
746	 34.07	-1	881258..881662	+	134	53712037	-	BF0744	-	hypothetical protein
747	 42.43	0	881735..884647	+	970	53712038	-	BF0745	-	hypothetical protein
748	 43.68	0	884810..886249	+	479	53712039	-	BF0746	-	putative cardiolipin synthetase
749	 40.64	0	886267..886800	-	177	53712040	-	BF0747	-	putative methyltransferase
750	 39.25	0	886791..887585	-	264	53712041	-	BF0748	-	hypothetical protein
751	 40.79	0	887593..888276	-	227	53712042	-	BF0749	-	hypothetical protein
752	 43.06	0	888373..889791	+	472	53712043	-	BF0750	-	ATP-dependent exoDNAse alpha subunit
753	 46.54	0	889887..891620	-	577	53712044	-	BF0751	-	hypothetical protein
754	 45.62	0	891643..895059	-	1138	53712045	-	BF0752	-	hypothetical protein
755	 45.79	0	895305..897575	-	756	53712046	-	BF0753	-	putative alpha-1,2-mannosidase
756	 47.27	0	897678..899945	-	755	53712047	-	BF0754	-	putative alpha-1,2-mannosidase
757	 44.64	0	899975..900973	-	332	53712048	-	BF0755	-	putative anti-sigma factor
758	 46.31	0	901026..901580	-	184	53712049	-	BF0756	-	RNA polymerase ECF-type sigma factor
759	 45.87	0	901619..903835	-	738	53712050	-	BF0757	-	putative alpha-1,2-mannosidase
760	 40.65	0	903958..904203	-	81	53712051	-	BF0758	-	hypothetical protein
761	 46.15	0	904334..905527	-	397	53712052	-	BF0759	-	putative bicyclomycin resistance protein
762	 41.17	0	905677..906531	+	284	53712053	-	BF0760	-	transcriptional regulator
763	 47.46	0	906778..909396	-	872	53712054	alaS	BF0761	-	alanyl-tRNA synthetase
764	 47.68	0	909500..910468	+	322	53712055	-	BF0762	-	putative peptidase
765	 45.36	0	910483..910848	+	121	53712056	-	BF0763	-	transcriptional regulator
766	 46.08	0	910903..913146	-	747	53712057	-	BF0764	-	GTP pyrophosphokinase
767	 46.96	0	913215..914513	-	432	53712058	-	BF0765	-	membrane-bound lytic murein transglycosylase D presursor
768	 48.56	0	914538..915404	-	288	53712059	-	BF0766	-	hypothetical protein
769	 47.92	0	915405..916295	-	296	53712060	-	BF0767	-	putative chromosome partitioning protein ParB
770	 45.05	0	916304..917071	-	255	53712061	-	BF0768	-	ParA family ATPase
771	 32.89	-1	917334..917558	+	74	53712062	-	BF0769	-	hypothetical protein
772	 48.18	0	917576..918343	+	255	53712063	surE	BF0770	-	stationary phase survival protein SurE
773	 47.18	0	918340..919473	+	377	53712064	-	BF0771	-	lipid-A-disaccharide synthase
774	 44.62	0	919561..920304	+	247	53712065	-	BF0772	-	hypothetical protein
775	 44.40	0	920419..921258	-	279	53712066	-	BF0773	-	phosphatidate cytidylyltransferase
776	 46.62	0	921274..923268	-	664	53712067	-	BF0774	-	metalloprotease FtsH
777	 40.83	0	923317..923676	-	119	53712068	-	BF0775	-	hypothetical protein
778	 38.90	0	924341..926191	-	616	53712069	-	BF0776	-	hypothetical protein
779	 43.77	0	926310..927650	-	446	53712070	-	BF0777	-	putative Mg2+ transporter MgtE
780	 42.61	0	927751..928569	-	272	53712071	ksgA	BF0778	-	dimethyladenosine transferase
781	 40.72	0	928619..929620	+	333	53712072	-	BF0779	-	putative dolichol-P-glucose synthetase
782	 42.39	0	929787..931244	+	485	53712073	-	BF0780	-	aminoacyl-histidine dipeptidase
783	 30.72	-2	931712..931864	-	50	53712074	-	BF0781	-	hypothetical protein
784	 40.88	0	931898..933580	-	560	53712075	-	BF0782	-	hypothetical protein
785	 41.58	0	933602..934753	-	383	53712076	-	BF0783	-	hypothetical protein
786	 41.55	0	934758..937508	-	916	53712077	-	BF0784	-	hypothetical protein
787	 37.52	-1	937505..938245	-	246	53712078	-	BF0785	-	hypothetical protein
788	 43.26	0	938468..944248	+	1926	53712079	-	BF0786	-	hypothetical protein
789	 37.91	0	944342..944494	+	50	53712080	-	BF0787	-	hypothetical protein
790	 42.52	0	944515..945603	+	362	53712081	-	BF0788	-	hypothetical protein
791	 44.69	0	945612..946703	+	363	53712082	-	BF0789	-	arginine/ornithine transport system ATPase
792	 43.34	0	946735..947643	-	302	53712083	-	BF0790	-	hypothetical protein
793	 42.27	0	947737..948564	+	275	53712084	-	BF0791	-	putative ABC transporter ATP-binding protein
794	 40.41	0	948586..949602	+	338	53712085	-	BF0792	-	putative ABC transporter ATP-binding protein
795	 42.71	0	949574..950821	+	415	53712086	-	BF0793	-	putative membrane transport protein
796	 41.28	0	950863..951756	+	297	53712087	-	BF0794	-	putative transcriptional regulator
797	 35.73	-1	951759..952550	-	263	53712088	-	BF0795	-	hypothetical protein
798	 38.18	0	952658..952987	-	109	53712089	-	BF0796	-	hypothetical protein
799	 29.58	-2	952984..953196	-	70	53712090	-	BF0797	-	putative transcriptional regulator
800	 44.64	0	953609..953776	-	55	53712091	-	BF0798	-	hypothetical protein
801	 45.48	0	953686..954558	-	290	53712092	-	BF0799	-	hypothetical protein
802	 46.55	0	954701..955048	-	115	53712093	-	BF0800	-	hypothetical protein
803	 35.06	-1	955148..955378	-	76	53712094	-	BF0801	-	hypothetical protein
804	 29.17	-2	955392..955583	+	63	53712095	-	BF0802	-	hypothetical protein
805	 43.20	0	956096..956632	+	178	53712096	-	BF0803	-	putative transcriptional regulator UpxY-like protein
806	 49.69	+1	956652..957140	+	162	53712097	-	BF0804	-	hypothetical protein
807	 40.54	0	957305..958192	+	295	53712098	-	BF0805	-	glucose-1-phosphate thymidyltransferase
808	 33.86	-1	958195..958764	+	189	53712099	-	BF0806	-	dTDP-4-dehydrorhamnose 3,5-epimerase
809	 36.88	-1	958766..959836	+	356	53712100	-	BF0807	-	dTDP-glucose 4,6-dehydratase
810	 34.37	-1	959844..961292	+	482	53712101	-	BF0808	-	O-antigen repeat-containing transporter
811	 34.71	-1	961299..962681	+	460	53712102	-	BF0809	-	putative dNDP-4-keto-6-deoxy-glucose-2,3- dehydratase
812	 37.92	0	962686..963666	+	326	53712103	-	BF0810	-	NDP-hexose-3-ketoreductase
813	 37.12	-1	963653..964735	+	360	53712104	-	BF0811	-	aminotransferase
814	 32.38	-1	964749..965903	+	384	53712105	-	BF0812	-	hypothetical protein
815	 30.32	-2	965916..966779	+	287	53712106	-	BF0813	-	glycosyltransferase
816	 33.33	-1	966781..967797	+	338	53712107	-	BF0814	-	glycosyltransferase
817	 32.06	-1	967801..968898	+	365	53712108	-	BF0815	-	putative polysaccharide polymerase
818	 32.80	-1	968902..970023	+	373	53712109	-	BF0816	-	putative glycosyltransferase
819	 37.27	-1	970013..970621	+	202	53712110	-	BF0817	-	putative undecaprenyl-phosphate glycosyl-1-phosphate transferase
820	 32.71	-1	970625..971266	+	213	53712111	-	BF0818	-	serine O-acetyltransferase
821	 31.17	-2	971279..971509	+	76	53712112	-	BF0819	-	putative acyl carrier protein
822	 37.31	-1	971509..972564	+	351	53712113	-	BF0820	-	3-oxoacyl-[acyl carrier protein] synthase
823	 36.92	-1	972570..973322	+	250	53712114	-	BF0821	-	3-oxoacyl-[acyl-carrier-protein] reductase
824	 37.39	-1	973365..974375	+	336	53712115	-	BF0822	-	3-oxoacyl-[acyl-carrier-protein] synthase
825	 35.32	-1	974379..974780	+	133	53712116	-	BF0823	-	putative lactoylglutathione lyase
826	 35.16	-1	974791..976380	+	529	53712117	-	BF0824	-	hypothetical protein
827	 36.57	-1	976382..976597	+	71	53712118	-	BF0825	-	acyl carrier protein
828	 34.83	-1	976598..977197	+	199	53712119	-	BF0826	-	hypothetical protein
829	 48.77	0	977284..978417	+	377	53712120	-	BF0827	-	putative aminotransferase
830	 50.62	+1	978801..979280	+	159	53712121	-	BF0828	-	putative non-specific DNA binding protein
831	 42.94	0	979286..979462	-	58	53712122	-	BF0829	-	hypothetical protein
832	 41.21	0	979542..981089	+	515	53712123	-	BF0830	-	hypothetical protein
43.19	MEAN

5.60	STD DEV
