IslandPath Analysis: Bacteroides fragilis YCH46

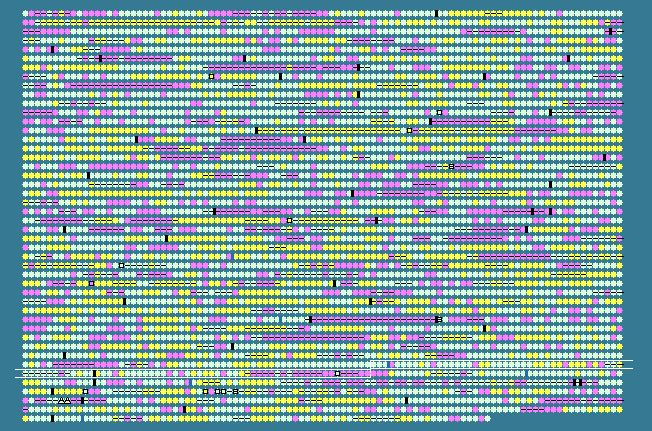

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 43.19 STD DEV: 5.60
Bacteroides fragilis YCH46, complete genome - 1..5277274
4578 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3959	 43.29	0	4520656..4521378	-	240	53715250	-	BF3966	-	putative biopolymer transport protein ExbB
3960	 45.66	0	4521378..4522091	-	237	53715251	-	BF3967	-	pyridoxal phosphate biosynthetic protein PdxJ
3961	 42.27	0	4522224..4523096	+	290	53715252	ppnK	BF3968	-	inorganic polyphosphate/ATP-NAD kinase
3962	 37.74	0	4530582..4531148	+	188	53715253	-	BF3969	-	RNA polymerase ECF-type sigma factor
3963	 40.56	0	4531222..4532190	+	322	53715254	-	BF3970	-	putative anti-sigma factor
3964	 46.09	0	4532377..4535817	+	1146	53715255	-	BF3971	-	hypothetical protein
3965	 45.25	0	4535840..4537459	+	539	53715256	-	BF3972	-	hypothetical protein
3966	 43.20	0	4537497..4537871	+	124	53715257	-	BF3973	-	hypothetical protein
3967	 46.74	0	4537879..4539915	+	678	53715258	-	BF3974	-	hypothetical protein
3968	 42.36	0	4540011..4542203	-	730	53715259	-	BF3975	-	putative transcriptional regulator
3969	 37.87	0	4542207..4542581	-	124	53715260	-	BF3976	-	putative transcriptional regulator
3970	 44.01	0	4542796..4546083	-	1095	53715261	-	BF3977	-	putative Tricorn-like protease
3971	 44.06	0	4546190..4547131	-	313	53715262	-	BF3978	-	malate dehydrogenase
3972	 42.84	0	4547318..4548190	+	290	53715263	-	BF3979	-	hypothetical protein
3973	 43.42	0	4548313..4549254	-	313	53715264	-	BF3980	-	putative anti-sigma factor
3974	 45.41	0	4549235..4549789	-	184	53715265	-	BF3981	-	RNA polymerase ECF-type sigma factor
3975	 40.54	0	4549829..4552396	-	855	53715266	-	BF3982	-	hypothetical protein
3976	 29.01	-2	4552752..4552913	+	53	53715267	-	BF3983	-	hypothetical protein
3977	 46.80	0	4552977..4554431	+	484	53715268	-	BF3984	-	putative alkaline protease AprF
3978	 48.44	0	4554509..4555501	+	330	53715269	-	BF3985	-	hypothetical protein
3979	 46.36	0	4555498..4556679	+	393	53715270	-	BF3986	-	hypothetical protein
3980	 44.28	0	4556679..4557929	+	416	53715271	-	BF3987	-	hypothetical protein
3981	 44.62	0	4558106..4560055	+	649	53715272	-	BF3988	-	putative alpha-glucosidase
3982	 43.93	0	4560178..4560885	+	235	53715273	-	BF3989	-	hypothetical protein
3983	 44.67	0	4560906..4561655	+	249	53715274	-	BF3990	-	hypothetical protein
3984	 40.71	0	4561856..4562221	+	121	53715275	-	BF3991	-	transcriptional regulator
3985	 46.25	0	4562242..4563975	+	577	53715276	-	BF3992	-	TonB
3986	 46.74	0	4564018..4565919	+	633	53715277	-	BF3993	-	putative thiol:disulfide interchange protein DsbE
3987	 49.50	+1	4566010..4567116	-	368	53715278	-	BF3994	-	Mrp/Nbp35 family ATP-binding protein
3988	 43.87	0	4567125..4567883	-	252	53715279	trmB	BF3995	-	tRNA (guanine-N(7))-methyltransferase
3989	 48.70	0	4567893..4568699	-	268	53715280	-	BF3996	-	putative metallo-beta-lactamase
3990	 47.84	0	4568711..4569730	-	339	53715281	-	BF3997	-	branched-chain amino acid aminotransferase
3991	 39.44	0	4569776..4569988	-	70	53715282	-	BF3998	-	hypothetical protein
3992	 54.58	+2	4570084..4571316	-	410	53715283	xseA	BF3999	-	exodeoxyribonuclease VII large subunit
3993	 52.06	+1	4571320..4572675	-	451	53715284	-	BF4000	-	subtilisin-like serine protease
3994	 52.89	+1	4572703..4573791	-	362	53715285	-	BF4001	-	putative tRNA (5-methylaminomethyl-2-thiouridylate) methyltransferase
3995	 38.70	0	4574542..4574802	+	86	53715286	-	BF4002	-	hypothetical protein
3996	 49.36	+1	4574739..4575599	+	286	53715287	-	BF4003	-	hypothetical protein
3997	 33.81	-1	4575671..4576516	-	281	53715288	-	BF4004	-	hypothetical protein
3998	 40.44	0	4576739..4577329	+	196	53715289	-	BF4005	-	hypothetical protein
3999	 45.00	0	4577469..4577948	-	159	53715290	-	BF4006	-	2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
4000	 46.99	0	4577987..4578601	-	204	53715291	-	BF4007	-	2-hydroxyhepta-2,4-diene-1,7-dioate isomerase
4001	 45.36	0	4578605..4579261	-	218	53715292	-	BF4008	-	redox-sensing transcriptional repressor Rex
4002	 45.30	0	4579444..4579794	+	116	53715293	-	BF4009	-	putative translation initiation factor SUI1
4003	 43.40	0	4579984..4580976	-	330	53715294	tsf	BF4010	-	elongation factor Ts
4004	 42.05	0	4581100..4581936	-	278	53715295	rpsB	BF4011	-	30S ribosomal protein S2
4005	 43.93	0	4582057..4582443	-	128	53715296	rpsI	BF4012	-	30S ribosomal protein S9
4006	 40.48	0	4582450..4582911	-	153	53715297	rplM	BF4013	-	50S ribosomal protein L13
4007	 38.83	0	4582930..4583238	+	102	53715298	-	BF4014	-	hypothetical protein
4008	 40.08	0	4583245..4583733	-	162	53715299	-	BF4015	-	hypothetical protein
4009	 44.59	0	4583891..4585294	-	467	53715300	asnC	BF4016	-	asparaginyl-tRNA synthetase
4010	 47.75	0	4585401..4586801	-	466	53715301	-	BF4017	-	ribosomal large subunit pseudouridine synthase B
4011	 43.36	0	4586883..4588229	-	448	53715302	-	BF4018	-	adenylosuccinate lyase
4012	 42.61	0	4588451..4590337	-	628	53715303	-	BF4019	-	beta-galactosidase precursor
4013	 47.64	0	4591005..4591556	-	183	53715304	-	BF4020	-	putative maltose O-acetyltransferase
4014	 44.87	0	4591563..4592342	-	259	53715305	-	BF4021	-	hypothetical protein
4015	 46.31	0	4592458..4594677	+	739	53715306	-	BF4022	-	hyaluronoglucosaminidase precursor
4016	 39.58	0	4594876..4595259	-	127	53715307	-	BF4023	-	hypothetical protein
4017	 47.44	0	4595274..4596932	-	552	53715308	-	BF4024	-	hypothetical protein
4018	 43.00	0	4596967..4599594	-	875	53715309	-	BF4025	-	hypothetical protein
4019	 45.04	0	4599557..4601350	-	597	53715310	-	BF4026	-	hypothetical protein
4020	 46.36	0	4601307..4602020	-	237	53715311	-	BF4027	-	hypothetical protein
4021	 45.71	0	4602044..4603894	-	616	53715312	-	BF4028	-	hypothetical protein
4022	 41.37	0	4603919..4604515	-	198	53715313	-	BF4029	-	hypothetical protein
4023	 42.76	0	4604545..4605456	-	303	53715314	-	BF4030	-	hypothetical protein
4024	 44.34	0	4605567..4606820	-	417	53715315	-	BF4031	-	hypothetical protein
4025	 35.06	-1	4606840..4607013	-	57	53715316	-	BF4032	-	hypothetical protein
4026	 42.43	0	4607214..4608158	-	314	53715317	-	BF4033	-	tyrosine type site-specific recombinase
4027	 39.16	0	4608374..4608802	-	142	53715318	-	BF4034	-	hypothetical protein
4028	 45.59	0	4609002..4612223	-	1073	53715319	-	BF4035	-	glutamine-dependent carbamyl phosphate synthetase
4029	 47.99	0	4612547..4613638	+	363	53715320	-	BF4036	-	tryptophanyl-tRNA synthetase II
4030	 45.88	0	4613744..4614931	-	395	53715321	-	BF4037	-	major outer membrane protein OmpA
4031	 49.55	+1	4615101..4616420	-	439	53715322	-	BF4038	-	putative hemolysin secretion protein
4032	 47.17	0	4616423..4618633	-	736	53715323	-	BF4039	-	ABC transporter ATP-binding protein
4033	 42.33	0	4618669..4619268	-	199	53715324	-	BF4040	-	hypothetical protein
4034	 38.89	0	4619281..4619946	-	221	53715325	-	BF4041	-	hypothetical protein
4035	 45.26	0	4620014..4621120	-	368	53715326	-	BF4042	-	putative glycosyltransferase
4036	 42.65	0	4621006..4621896	-	296	53715327	-	BF4043	-	putative alpha-1,3-fucosyltransferase
4037	 47.64	0	4621946..4624420	-	824	53715328	-	BF4044	-	hypothetical protein
4038	 47.62	0	4624432..4625103	-	223	53715329	-	BF4045	-	putative CMP-N-acetylneuraminic acid synthetase
4039	 31.40	-2	4625117..4626358	-	413	53715330	-	BF4046	-	hypothetical protein
4040	 32.05	-1	4626372..4627619	-	415	53715331	-	BF4047	-	putative Fe-S oxidoreductase
4041	 31.06	-2	4627623..4628942	-	439	53715332	-	BF4048	-	putative transcriptional regulator
4042	 33.49	-1	4628973..4630229	-	418	53715333	-	BF4049	-	hypothetical protein
4043	 42.63	0	4630352..4630663	-	103	53715334	-	BF4050	-	hypothetical protein
4044	 32.04	-1	4630807..4632045	-	412	53715335	-	BF4051	-	hypothetical protein
4045	 41.50	0	4632109..4632402	-	97	53715336	-	BF4052	-	hypothetical protein
4046	 32.20	-1	4632681..4633910	-	409	53715337	-	BF4053	-	glycosyltransferase
4047	 35.06	-1	4633907..4634602	-	231	53715338	-	BF4054	-	hypothetical protein
4048	 35.94	-1	4634571..4635338	-	255	53715339	-	BF4055	-	hypothetical protein
4049	 36.47	-1	4635335..4635940	-	201	53715340	-	BF4056	-	hypothetical protein
4050	 36.90	-1	4635955..4636431	-	158	53715341	-	BF4057	-	hypothetical protein
4051	 37.82	0	4636523..4638307	-	594	53715342	-	BF4058	-	hypothetical protein
4052	 29.41	-2	4638384..4638536	-	50	53715343	-	BF4059	-	hypothetical protein
4053	 40.85	0	4638688..4639206	+	172	53715344	-	BF4060	-	transposase
4054	 28.62	-2	4639330..4639626	+	98	53715345	-	BF4061	-	hypothetical protein
4055	 38.10	0	4639795..4641012	-	405	53715346	-	BF4062	-	hypothetical protein
4056	 36.78	-1	4641240..4642514	-	424	53715347	-	BF4063	-	hypothetical protein
4057	 38.71	0	4642628..4643872	-	414	53715348	-	BF4064	-	hypothetical protein
4058	 36.49	-1	4643897..4645162	-	421	53715349	-	BF4065	-	hypothetical protein
43.19	MEAN

5.60	STD DEV
