IslandPathversion 1.0

IslandPath Analysis: Bacteroides fragilis YCH46

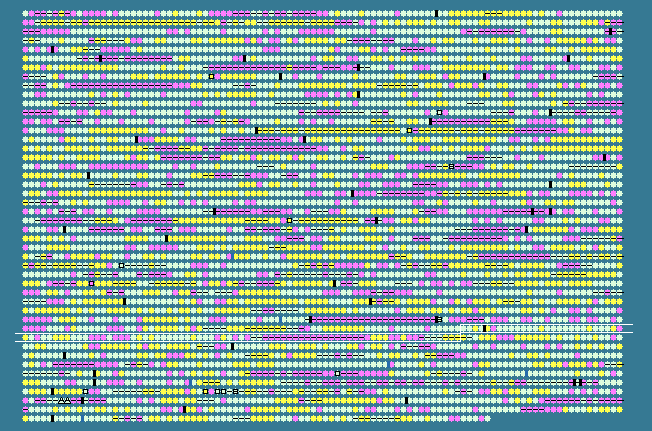

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 43.19 STD DEV: 5.60
Bacteroides fragilis YCH46, complete genome - 1..5277274
4578 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3574	 40.96	0	4093444..4094151	-	235	53714865	-	BF3580	-	hypothetical protein
3575	 40.40	0	4094194..4094391	+	65	53714866	-	BF3581	-	hypothetical protein
3576	 47.44	0	4094360..4094848	+	162	53714867	-	BF3582	-	hypothetical protein
3577	 41.81	0	4094851..4095204	+	117	53714868	-	BF3583	-	arsenate reductase
3578	 46.92	0	4095393..4096562	-	389	53714869	-	BF3584	-	hypothetical protein
3579	 38.72	0	4096559..4097134	-	191	53714870	-	BF3585	-	RNA polymerase ECF-type sigma factor
3580	 40.77	0	4097135..4097806	-	223	53714871	-	BF3586	-	putative acyltransferase
3581	 44.51	0	4097816..4098772	-	318	53714872	-	BF3587	-	phosphatidate cytidylyltransferase
3582	 45.36	0	4098769..4099425	-	218	53714873	-	BF3588	-	CDP-diacylglycerol-glycerol-3-phosphate 3-phosphatidyltransferase-related protein
3583	 44.35	0	4099616..4101448	+	610	53714874	-	BF3589	-	putative outer membrane protein
3584	 42.86	0	4101651..4101965	+	104	53714875	-	BF3590	-	hypothetical protein
3585	 46.05	0	4102166..4103038	-	290	53714876	-	BF3591	-	pyridoxamine kinase
3586	 44.39	0	4103109..4103687	-	192	53714877	-	BF3592	-	hypothetical protein
3587	 46.75	0	4103684..4105069	-	461	53714878	-	BF3593	-	putative electron transport protein
3588	 44.94	0	4105066..4105806	-	246	53714879	-	BF3594	-	putative glycolate oxidase
3589	 42.86	0	4105939..4106484	-	181	53714880	-	BF3595	-	hypothetical protein
3590	 43.24	0	4106471..4106803	-	110	53714881	-	BF3596	-	6-pyruvoyl-tetrahydropterin synthase
3591	 43.53	0	4106920..4107282	+	120	53714882	-	BF3597	-	hypothetical protein
3592	 44.97	0	4107249..4107815	-	188	53714883	-	BF3598	-	putative MTA/SAH nucleosidase
3593	 43.16	0	4107968..4109137	+	389	53714884	-	BF3599	-	hypothetical protein
3594	 45.13	0	4109215..4109697	-	160	53714885	-	BF3600	-	hypothetical protein
3595	 49.21	+1	4109807..4110562	-	251	53714886	-	BF3601	-	Cu2+ homeostasis protein CutC
3596	 46.42	0	4110653..4112188	-	511	53714887	-	BF3602	-	phosphodiesterase
3597	 42.86	0	4112297..4112590	-	97	53714888	-	BF3603	-	hypothetical protein
3598	 41.50	0	4112606..4112899	-	97	53714889	-	BF3604	-	hypothetical protein
3599	 49.45	+1	4113239..4115527	+	762	53714890	-	BF3605	-	malic enzyme
3600	 36.16	-1	4115524..4115700	+	58	53714891	-	BF3606	-	hypothetical protein
3601	 48.09	0	4115865..4117199	+	444	53714892	-	BF3607	-	glutamate dehydrogenase
3602	 46.30	0	4117344..4117505	+	53	53714893	-	BF3608	-	hypothetical protein
3603	 39.26	0	4117851..4118390	+	179	53714894	-	BF3609	-	RNA polymerase ECF-type sigma factor
3604	 46.46	0	4118437..4119426	+	329	53714895	-	BF3610	-	putative anti-sigma factor
3605	 46.64	0	4119607..4122876	+	1089	53714896	-	BF3611	-	hypothetical protein
3606	 49.85	+1	4122897..4124525	+	542	53714897	-	BF3612	-	hypothetical protein
3607	 47.09	0	4124551..4125597	+	348	53714898	-	BF3613	-	putative endo-beta-N-acetylglucosaminidase
3608	 48.82	+1	4125621..4126802	+	393	53714899	-	BF3614	-	hypothetical protein
3609	 42.44	0	4126815..4127846	+	343	53714900	-	BF3615	-	hypothetical protein
3610	 42.06	0	4128015..4128335	-	106	53714901	-	BF3616	-	hypothetical protein
3611	 42.27	0	4128535..4128993	+	152	53714902	-	BF3617	-	putative transcriptional regulator
3612	 35.44	-1	4129252..4129536	+	94	53714903	-	BF3618	-	hypothetical protein
3613	 36.97	-1	4129757..4130113	+	118	53714904	-	BF3619	-	hypothetical protein
3614	 34.36	-1	4130123..4130317	-	64	53714905	-	BF3620	-	hypothetical protein
3615	 42.59	0	4130367..4130528	+	53	53714906	-	BF3621	-	hypothetical protein
3616	 38.31	0	4130748..4130948	+	66	53714907	-	BF3622	-	hypothetical protein
3617	 36.29	-1	4131011..4131517	-	168	53714908	-	BF3623	-	hypothetical protein
3618	 39.15	0	4131524..4132744	-	406	53714909	-	BF3624	-	hypothetical protein
3619	 40.52	0	4132998..4133150	-	50	53714910	-	BF3625	-	hypothetical protein
3620	 48.23	0	4133255..4133932	-	225	53714911	-	BF3626	-	hypothetical protein
3621	 43.41	0	4133935..4136067	-	710	53714912	-	BF3627	-	hypothetical protein
3622	 47.49	0	4136079..4137689	-	536	53714913	-	BF3628	-	hypothetical protein
3623	 44.08	0	4137710..4138435	-	241	53714914	-	BF3629	-	hypothetical protein
3624	 42.55	0	4138446..4140236	-	596	53714915	-	BF3630	-	hypothetical protein
3625	 42.06	0	4140249..4141577	-	442	53714916	-	BF3631	-	hypothetical protein
3626	 44.07	0	4141598..4142407	-	269	53714917	-	BF3632	-	hypothetical protein
3627	 45.15	0	4142631..4145600	-	989	53714918	-	BF3633	-	phosphoenolpyruvate synthase
3628	 41.07	0	4145698..4145865	+	55	53714919	-	BF3634	-	hypothetical protein
3629	 46.79	0	4146015..4147352	+	445	53714920	-	BF3635	-	glutamate dehydrogenase
3630	 45.53	0	4147523..4148686	+	387	53714921	-	BF3636	-	putative Xaa-Pro dipeptidase
3631	 45.53	0	4148848..4151610	-	920	53714922	-	BF3637	-	hypothetical protein
3632	 43.22	0	4151614..4153707	-	697	53714923	-	BF3638	-	hypothetical protein
3633	 30.85	-2	4153741..4153941	-	66	53714924	-	BF3639	-	hypothetical protein
3634	 47.10	0	4153981..4155426	-	481	53714925	-	BF3640	-	tRNA nucleotidyltransferase
3635	 45.91	0	4155599..4156441	+	280	53714926	-	BF3641	-	hypothetical protein
3636	 37.35	-1	4156704..4157897	+	397	53714927	-	BF3642	-	hypothetical protein
3637	 44.44	0	4158531..4158971	-	146	53714928	-	BF3643	-	putative DNA-binding protein
3638	 36.32	-1	4159452..4160321	-	289	53714929	-	BF3644	-	hypothetical protein
3639	 41.05	0	4160312..4160881	-	189	53714930	-	BF3645	-	hypothetical protein
3640	 45.05	0	4161194..4161910	-	238	53714931	-	BF3646	-	putative capsular polysaccharide biosynthesis protein
3641	 37.07	-1	4161918..4162907	-	329	53714932	-	BF3647	-	putative UDP-galactose 4-epimerase
3642	 32.17	-1	4162904..4163677	-	257	53714933	-	BF3648	-	putative glycosyltransferase
3643	 31.48	-2	4163664..4164686	-	340	53714934	-	BF3649	-	putative glycosyltransferase
3644	 28.37	-2	4164745..4165590	-	281	53714935	-	BF3650	-	glycosyltransferase
3645	 26.85	-2	4165593..4166672	-	359	53714936	-	BF3651	-	putative O-antigen polymerase
3646	 32.36	-1	4166669..4167385	-	238	53714937	-	BF3652	-	putative glycosyltransferase
3647	 32.70	-1	4167382..4168008	-	208	53714938	-	BF3653	-	putative O-acetyltransferase
3648	 30.01	-2	4168005..4169057	-	350	53714939	-	BF3654	-	putative glycosyltransferase
3649	 34.31	-1	4169137..4170366	-	409	53714940	-	BF3655	-	putative glycosyltransferase
3650	 35.58	-1	4170314..4171468	-	384	53714941	-	BF3656	-	UDP-GlcNAc 2-epimerase
3651	 27.52	-2	4171493..4172473	-	326	53714942	-	BF3657	-	putative glycosyltransferase
3652	 31.77	-2	4172494..4173963	-	489	53714943	-	BF3658	-	putative flippase
3653	 35.25	-1	4174009..4175106	-	365	53714944	-	BF3659	-	putative aminotransferase
3654	 30.92	-2	4175091..4176293	-	400	53714945	-	BF3660	-	hypothetical protein
3655	 35.62	-1	4176265..4176702	-	145	53714946	-	BF3661	-	hypothetical protein
3656	 36.08	-1	4176702..4177247	-	181	53714947	-	BF3662	-	hypothetical protein
3657	 33.09	-1	4177249..4177656	-	135	53714948	-	BF3663	-	hypothetical protein
3658	 39.26	0	4177646..4178539	-	297	53714949	-	BF3664	-	glucose-1-phosphate thymidylyltransferase
3659	 49.73	+1	4178541..4179638	-	365	53714950	-	BF3665	-	undecaprenyl-phosphate alpha-N-acetylglucosaminyltransferase
3660	 51.44	+1	4179690..4180175	-	161	53714951	-	BF3666	-	hypothetical protein
3661	 51.67	+1	4180220..4180846	-	208	53714952	-	BF3667	-	putative transcriptional regulator UpxY-like protein
3662	 27.78	-2	4181345..4181506	-	53	53714953	-	BF3668	-	hypothetical protein
3663	 38.58	0	4181505..4181885	+	126	53714954	-	BF3669	-	hypothetical protein
3664	 51.99	+1	4181951..4184110	+	719	53714955	-	BF3670	-	hypothetical protein
3665	 35.56	-1	4184064..4184288	-	74	53714956	-	BF3671	-	hypothetical protein
3666	 34.53	-1	4184413..4185165	+	250	53714957	-	BF3672	-	hypothetical protein
3667	 36.89	-1	4185512..4185820	-	102	53714958	-	BF3673	-	hypothetical protein
3668	 44.57	0	4185817..4186074	-	85	53714959	-	BF3674	-	hypothetical protein
3669	 45.93	0	4186472..4186717	-	81	53714960	-	BF3675	-	hypothetical protein
3670	 45.22	0	4186985..4187455	+	156	53714961	-	BF3676	-	putative non-specific DNA binding protein
3671	 47.72	0	4187669..4188370	-	233	53714962	-	BF3677	-	putative ribose 5-phosphate isomerase
3672	 48.37	0	4188400..4188552	-	50	53714963	-	BF3678	-	hypothetical protein
3673	 47.26	0	4188521..4189525	-	334	53714964	-	BF3679	-	hypothetical protein
43.19	MEAN

5.60	STD DEV
