IslandPath Analysis: Bacteroides fragilis YCH46

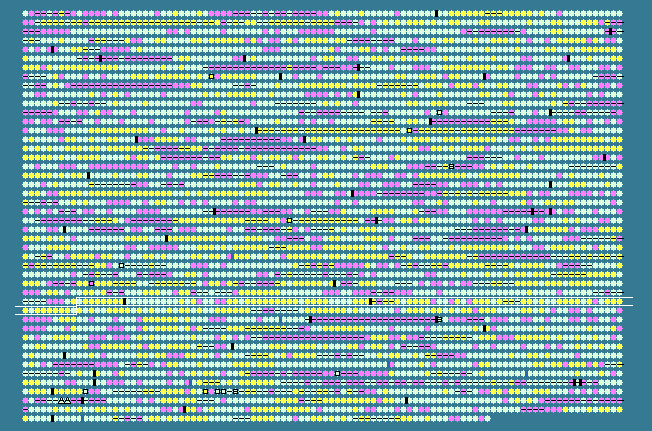

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 43.19   STD DEV: 5.60
Bacteroides fragilis YCH46, complete genome - 1..5277274
4578 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3210	 46.62	0	3643109..3644959	+	616	53714501	-	BF3214	-	putative two-component system sensor histidine kinase
3211	 46.93	0	3644956..3646911	+	651	53714502	-	BF3215	-	putative two-component system sensor histidine kinase
3212	 49.58	+1	3646986..3648308	+	440	53714503	-	BF3216	-	multidrug efflux pump BexA
3213	 51.06	+1	3648460..3649779	+	439	53714504	-	BF3217	-	putative signal recognition protein
3214	 47.61	0	3650184..3651269	+	361	53714505	-	BF3218	-	thiol:disulfide interchange protein
3215	 50.57	+1	3651289..3652170	+	293	53714506	-	BF3219	-	methylenetetrahydrofolate dehydrogenase
3216	 48.28	0	3652238..3653869	+	543	53714507	-	BF3220	-	thiol:disulfide interchange protein
3217	 48.35	0	3653882..3655000	+	372	53714508	-	BF3221	-	capsule biosynthesis protein
3218	 42.66	0	3655345..3656373	-	342	53714509	-	BF3222	-	hypothetical protein
3219	 43.01	0	3656406..3657077	-	223	53714510	-	BF3223	-	hypothetical protein
3220	 42.57	0	3657103..3657990	-	295	53714511	-	BF3224	-	ABC transporter ATP-binding protein
3221	 42.71	0	3658018..3658593	-	191	53714512	-	BF3225	-	hypothetical protein
3222	 44.44	0	3658577..3659161	-	194	53714513	-	BF3226	-	hypothetical protein
3223	 44.89	0	3659183..3660757	-	524	53714514	-	BF3227	-	hypothetical protein
3224	 40.33	0	3660772..3661986	-	404	53714515	-	BF3228	-	putative lipoprotein
3225	 43.08	0	3662013..3664751	-	912	53714516	-	BF3229	-	putative outer membrane receptor protein
3226	 43.83	0	3665120..3666100	-	326	53714517	-	BF3230	-	hypothetical protein
3227	 47.26	0	3666202..3668046	-	614	53714518	-	BF3231	-	DNA polymerase III subunit gamma/tau
3228	 46.47	0	3668204..3668515	-	103	53714519	-	BF3232	-	hypothetical protein
3229	 48.41	0	3668494..3668838	+	114	53714520	-	BF3233	-	hypothetical protein
3230	 39.68	0	3668907..3669347	-	146	53714521	-	BF3234	-	hypothetical protein
3231	 44.93	0	3669328..3671370	-	680	53714522	-	BF3235	-	outer membrane receptor protein
3232	 42.89	0	3671374..3672273	-	299	53714523	-	BF3236	-	hypothetical protein
3233	 39.06	0	3672418..3673011	-	197	53714524	-	BF3237	-	hypothetical protein
3234	 38.89	0	3673048..3673281	-	77	53714525	-	BF3238	-	hypothetical protein
3235	 48.06	0	3673443..3674909	+	488	53714526	-	BF3239	-	aminoacyl-histidine dipeptidase
3236	 47.25	0	3675050..3676084	+	344	53714527	-	BF3240	-	hypothetical protein
3237	 42.65	0	3676069..3677238	-	389	53714528	-	BF3241	-	hypothetical protein
3238	 47.34	0	3677377..3678033	-	218	53714529	-	BF3242	-	putative translaldolase
3239	 50.77	+1	3678099..3679916	-	605	53714530	-	BF3243	-	hypothetical protein
3240	 49.56	+1	3679966..3683028	-	1020	53714531	-	BF3244	-	beta-galactosidase
3241	 50.60	+1	3683106..3685421	-	771	53714532	-	BF3246	-	beta-hexosaminidase precursor
3242	 48.27	0	3685466..3687052	-	528	53714533	-	BF3247	-	putative sulfatase
3243	 47.85	0	3687464..3688930	+	488	53714534	-	BF3248	-	arylsulfatase precursor
3244	 46.91	0	3689067..3690716	-	549	53714535	-	BF3249	-	beta-hexosaminidase precursor
3245	 49.57	+1	3690893..3693817	+	974	53714536	-	BF3250	-	two-component system sensor histidine kinase/response regulator hybrid
3246	 47.58	0	3693893..3694945	-	350	53714537	-	BF3251	-	fructose-bisphosphate aldolase
3247	 45.52	0	3695104..3695850	-	248	53714538	-	BF3252	-	phosphoglyceromutase
3248	 50.66	+1	3696007..3698349	+	780	53714539	-	BF3253	-	hypothetical protein
3249	 49.28	+1	3698490..3699944	-	484	53714540	-	BF3254	-	putative molybdenum transport ATP-binding protein
3250	 48.32	0	3700086..3701600	-	504	53714541	-	BF3255	-	N-acetylgalactosamine-6-sulfatase precursor
3251	 48.17	0	3701616..3703172	-	518	53714542	-	BF3256	-	beta-hexosaminidase precursor
3252	 45.39	0	3703273..3705138	-	621	53714543	-	BF3257	-	hypothetical protein
3253	 43.37	0	3705153..3708590	-	1145	53714544	-	BF3258	-	hypothetical protein
3254	 41.94	0	3708728..3709726	-	332	53714545	-	BF3259	-	putative anti-sigma factor
3255	 41.71	0	3709817..3710377	-	186	53714546	-	BF3260	-	RNA polymerase ECF-type sigma factor
3256	 48.08	0	3710618..3712618	-	666	53714547	-	BF3261	-	pullulanase precursor
3257	 48.15	0	3712677..3713243	-	188	161936263	ruvC	BF3262	-	Holliday junction resolvase
3258	 47.19	0	3713240..3713542	-	100	53714549	-	BF3263	-	hypothetical protein
3259	 51.01	+1	3713895..3715235	-	446	53714550	-	BF3264	-	hypothetical protein
3260	 39.52	0	3715560..3715769	-	69	53714551	-	BF3265	-	hypothetical protein
3261	 50.29	+1	3715858..3716877	+	339	53714552	pheS	BF3266	-	phenylalanyl-tRNA synthetase subunit alpha
3262	 51.29	+1	3716944..3718185	+	413	53714553	-	BF3267	-	putative transmembrane transport protein
3263	 49.12	+1	3718182..3718859	+	225	53714554	-	BF3268	-	endonuclease III
3264	 46.59	0	3718949..3720208	+	419	53714555	pgk	BF3269	-	phosphoglycerate kinase
3265	 47.64	0	3720393..3721238	+	281	53714556	-	BF3270	-	putative thiamine biosynthesis protein
3266	 48.17	0	3721255..3722292	+	345	53714557	-	BF3271	-	hypothetical protein
3267	 47.27	0	3722316..3723506	+	396	53714558	-	BF3272	-	putative membrane-associated protein
3268	 46.84	0	3723510..3725708	+	732	53714559	-	BF3273	-	hypothetical protein
3269	 38.24	0	3725954..3726463	+	169	53714560	-	BF3274	-	hypothetical protein
3270	 42.74	0	3726788..3727627	-	279	53714561	-	BF3275	-	beta-glucanase precursor
3271	 46.29	0	3727995..3729515	+	506	53714562	-	BF3276	-	putative peptide synthetase
3272	 37.45	-1	3729530..3729772	+	80	53714563	-	BF3277	-	acyl carrier protein
3273	 46.85	0	3729776..3731158	+	460	53714564	-	BF3278	-	membrane-bound O-acyltransferase
3274	 45.59	0	3731177..3732277	+	366	53714565	-	BF3279	-	hypothetical protein
3275	 35.62	-1	3732321..3732713	+	130	53714566	-	BF3280	-	hypothetical protein
3276	 47.42	0	3732906..3733487	-	193	53714567	maf	BF3281	-	Maf-like protein
3277	 51.15	+1	3733519..3734040	-	173	53714568	-	BF3282	-	putative hydrolase
3278	 49.75	+1	3734061..3734852	-	263	53714569	-	BF3283	-	hypothetical protein
3279	 43.24	0	3734849..3735181	-	110	53714570	-	BF3284	-	hypothetical protein
3280	 47.11	0	3735184..3735720	-	178	53714571	-	BF3285	-	putative NAD(P)H nitroreductase
3281	 47.51	0	3735887..3736429	-	180	53714572	-	BF3286	-	putative carbonic anhydrase
3282	 50.00	+1	3736547..3737530	+	327	53714573	-	BF3287	-	hypothetical protein
3283	 44.94	0	3737763..3738167	+	134	53714574	-	BF3288	-	lactoylglutathione lyase and related protein
3284	 49.42	+1	3738293..3739846	+	517	53714575	-	BF3289	-	propionyl-CoA carboxylase beta chain
3285	 47.43	0	3739867..3740781	+	304	53714576	-	BF3290	-	hypothetical protein
3286	 43.52	0	3740807..3741238	+	143	53714577	-	BF3291	-	biotin carboxyl carrier protein
3287	 49.70	+1	3741241..3742401	+	386	53714578	-	BF3292	-	oxaloacetate decarboxylase beta chain
3288	 46.25	0	3742549..3743880	+	443	53714579	-	BF3293	-	hypothetical protein
3289	 46.14	0	3743811..3745184	+	457	53714580	-	BF3294	-	hypothetical protein
3290	 48.46	0	3745754..3747604	+	616	53714581	-	BF3295	-	alpha-amylase
3291	 51.02	+1	3747762..3748202	+	146	53714582	-	BF3296	-	MarR family transcriptional regulator
3292	 51.40	+1	3748215..3749282	+	355	53714583	-	BF3297	-	putative multidrug resistance protein
3293	 49.19	+1	3749287..3750882	+	531	53714584	-	BF3298	-	putative transport protein
3294	 44.88	0	3750977..3751981	-	334	53714585	-	BF3299	-	fructose-bisphosphate aldolase
3295	 48.37	0	3752162..3753298	-	378	53714586	-	BF3300	-	hypothetical protein
3296	 38.89	0	3753562..3753813	+	83	53714587	rpmE2	BF3301	-	50S ribosomal protein L31 type B
3297	 42.63	0	3753782..3754093	-	103	53714588	-	BF3302	-	hypothetical protein
3298	 49.44	+1	3754210..3755736	+	508	53714589	-	BF3303	-	hypothetical protein
3299	 48.15	0	3755847..3758708	-	953	53714590	-	BF3304	-	putative alpha-amylase
3300	 47.22	0	3758813..3760411	-	532	53714591	-	BF3305	-	hypothetical protein
3301	 49.01	+1	3760447..3762066	-	539	53714592	-	BF3306	-	hypothetical protein
3302	 46.06	0	3762077..3765085	-	1002	53714593	-	BF3307	-	hypothetical protein
3303	 53.02	+1	3765401..3766411	+	336	53714594	-	BF3308	-	LacI family transcriptional regulator
3304	 53.68	+1	3766432..3767748	+	438	53714595	-	BF3309	-	sugar transporter
3305	 50.39	+1	3768099..3770414	+	771	53714596	-	BF3310	-	trehalose/maltose hydrolase
3306	 50.71	+1	3770766..3771818	+	350	53714597	-	BF3311	-	putative multidrug resistance protein
3307	 51.38	+1	3771961..3774996	+	1011	53714598	-	BF3312	-	AcrB/AcrD/AcrF family transporter
3308	 50.43	+1	3775024..3776298	+	424	53714599	-	BF3313	-	outer membrane efflux protein
3309	 45.94	0	3776541..3777833	+	430	53714600	-	BF3314	-	hypothetical protein
43.19	MEAN

5.60	STD DEV
