IslandPath Analysis: Bacteroides fragilis YCH46

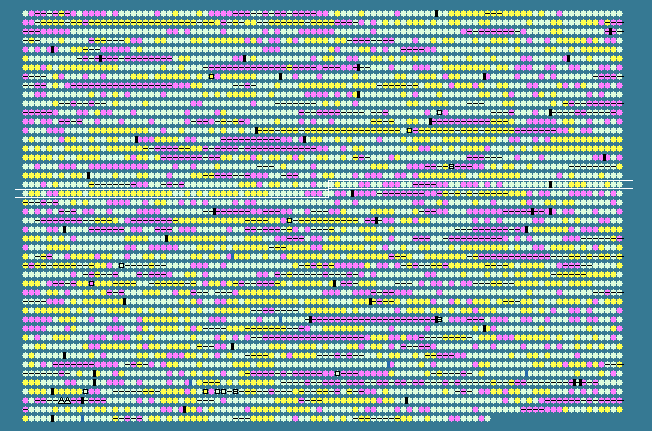

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 43.19   STD DEV: 5.60
Bacteroides fragilis YCH46, complete genome - 1..5277274
4578 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1952	 40.09	0	2294357..2294785	-	142	53713243	-	BF1953	-	hypothetical protein
1953	 48.39	0	2294801..2297284	-	827	53713244	-	BF1954	-	endopeptidase Clp ATP-binding chain B
1954	 44.78	0	2297297..2298676	-	459	53713245	-	BF1955	-	hypothetical protein
1955	 42.00	0	2298692..2299141	-	149	53713246	-	BF1956	-	hypothetical protein
1956	 44.10	0	2299231..2299620	-	129	53713247	-	BF1957	-	hypothetical protein
1957	 34.14	-1	2300061..2300804	-	247	53713248	-	BF1958	-	putative transcriptional regulator
1958	 23.73	-2	2300964..2301140	+	58	53713249	-	BF1959	-	hypothetical protein
1959	 40.41	0	2301149..2302420	+	423	53713250	-	BF1960	-	8-amino-7-oxononanoate synthase
1960	 40.40	0	2302645..2305716	-	1023	53713251	-	BF1961	-	hypothetical protein
1961	 37.10	-1	2305745..2305930	-	61	53713252	-	BF1962	-	probabale oxalocrotonate tautomerase
1962	 36.36	-1	2306101..2306265	+	54	53713253	-	BF1963	-	hypothetical protein
1963	 32.67	-1	2306262..2306561	+	99	53713254	-	BF1964	-	hypothetical protein
1964	 42.51	0	2307094..2307714	+	206	53713255	-	BF1965	-	transcriptional regulator
1965	 42.41	0	2307873..2308853	+	326	53713256	-	BF1966	-	tyrosine type site-specific recombinase
1966	 29.93	-2	2309087..2309674	+	195	53713257	-	BF1967	-	hypothetical protein
1967	 27.70	-2	2309773..2310216	+	147	53713258	-	BF1968	-	hypothetical protein
1968	 31.50	-2	2310283..2310774	+	163	53713259	-	BF1969	-	hypothetical protein
1969	 34.35	-1	2310834..2311226	+	130	53713260	-	BF1970	-	hypothetical protein
1970	 32.08	-1	2311321..2312199	+	292	53713261	-	BF1971	-	hypothetical protein
1971	 31.71	-2	2312218..2312649	+	143	53713262	-	BF1972	-	hypothetical protein
1972	 40.18	0	2312873..2313325	+	150	53713263	-	BF1973	-	hypothetical protein
1973	 46.39	0	2313416..2314204	+	262	53713264	-	BF1974	-	hypothetical protein
1974	 32.52	-1	2314266..2314511	+	81	53713265	-	BF1975	-	hypothetical protein
1975	 38.54	0	2314508..2314699	+	63	53713266	-	BF1976	-	hypothetical protein
1976	 38.63	0	2315133..2316170	-	345	53713267	-	BF1977	-	hypothetical protein
1977	 42.46	0	2316252..2316503	-	83	53713268	-	BF1978	-	hypothetical protein
1978	 31.29	-2	2316580..2319417	-	945	53713269	-	BF1979	-	putative ATPase involved in DNA repair
1979	 40.15	0	2319418..2324319	-	1633	53713270	-	BF1980	-	helicase domain-containing protein
1980	 35.27	-1	2324324..2324530	-	68	53713271	-	BF1981	-	hypothetical protein
1981	 45.54	0	2324850..2325365	-	171	53713272	-	BF1982	-	hypothetical protein
1982	 44.56	0	2325751..2326035	+	94	53713273	-	BF1983	-	hypothetical protein
1983	 45.58	0	2326032..2326325	+	97	53713274	-	BF1984	-	hypothetical protein
1984	 41.94	0	2326359..2326718	+	119	53713275	-	BF1985	-	hypothetical protein
1985	 41.03	0	2326701..2327012	-	103	53713276	-	BF1986	-	hypothetical protein
1986	 44.57	0	2327018..2328325	-	435	53713277	-	BF1987	-	tyrosine type site-specific recombinase
1987	 46.42	0	2328331..2329560	-	409	53713278	-	BF1988	-	tyrosine type site-specific recombinase
1988	 43.27	0	2329642..2329812	-	56	53713279	-	BF1989	-	hypothetical protein
1989	 46.65	0	2330233..2331921	+	562	53713280	-	BF1990	-	putative ABC transporter ATP-binding protein
1990	 44.37	0	2332117..2334906	+	929	53713281	-	BF1991	-	putative TonB-dependent outer membrane protein
1991	 42.56	0	2334930..2336825	+	631	53713282	-	BF1992	-	hypothetical protein
1992	 48.25	0	2336940..2338025	-	361	53713283	-	BF1993	-	hypothetical protein
1993	 50.59	+1	2338166..2340865	-	899	53713284	-	BF1994	-	two-component system sensor histidine kinase
1994	 53.76	+1	2340878..2342086	-	402	53713285	-	BF1995	-	putative glycosyltransferase
1995	 43.14	0	2342095..2343552	-	485	53713286	-	BF1996	-	hypothetical protein
1996	 44.56	0	2343614..2344468	-	284	53713287	-	BF1997	-	glycosyltransferase involved in cell wall biogenesis
1997	 42.92	0	2344452..2345609	-	385	53713288	-	BF1998	-	putative glycosyltransferase
1998	 47.70	0	2345615..2346526	-	303	53713289	-	BF1999	-	glycosyltransferase
1999	 45.49	0	2346548..2347666	-	372	53713290	-	BF2000	-	hypothetical protein
2000	 45.91	0	2347695..2349173	-	492	53713291	-	BF2001	-	putative flippase
2001	 41.39	0	2349166..2350344	-	392	53713292	-	BF2002	-	putative glycosyltransferase
2002	 53.40	+1	2350937..2352157	-	406	53713293	-	BF2003	-	putative glycosyltransferase
2003	 52.30	+1	2352382..2353272	-	296	53713294	-	BF2005	-	putative glycosyltransferase
2004	 43.46	0	2353311..2354663	-	450	53713295	-	BF2006	-	hypothetical protein
2005	 39.07	0	2354650..2356863	-	737	53713296	-	BF2007	-	hypothetical protein
2006	 39.33	0	2356878..2357627	-	249	53713297	-	BF2008	-	hypothetical protein
2007	 52.31	+1	2357762..2359015	-	417	53713298	-	BF2009	-	hypothetical protein
2008	 50.14	+1	2359179..2360576	+	465	53713299	-	BF2010	-	putative aminopeptidase C
2009	 50.85	+1	2361141..2362493	+	450	53713300	-	BF2011	-	Na(+)-translocating NADH-quinone reductase subunit A
2010	 50.38	+1	2362525..2363703	+	392	53713301	-	BF2012	-	Na(+)-translocating NADH-quinone reductase subunit B
2011	 43.36	0	2363718..2364395	+	225	53713302	-	BF2013	-	Na(+)-translocating NADH-quinone reductase subunit C
2012	 47.55	0	2364412..2365044	+	210	53713303	-	BF2014	-	Na(+)-translocating NADH-quinone reductase subunit D
2013	 48.64	0	2365073..2365699	+	208	53713304	-	BF2015	-	Na(+)-translocating NADH-quinone reductase subunit E
2014	 50.63	+1	2365722..2366993	+	423	53713305	-	BF2016	-	Na(+)-translocating NADH-quinone reductase subunit F
2015	 50.08	+1	2367090..2368409	+	439	53713306	-	BF2017	-	ATP-independent RNA helicase
2016	 48.31	0	2368923..2369990	+	355	53713307	-	BF2018	-	phosphoserine aminotransferase
2017	 46.91	0	2370104..2371024	+	306	53713308	-	BF2019	-	D-3-phosphoglycerate dehydrogenase
2018	 48.64	0	2371037..2372284	+	415	53713309	-	BF2020	-	hypothetical protein
2019	 47.01	0	2372532..2372933	+	133	53713310	-	BF2021	-	peptidyl-prolyl cis-trans isomerase
2020	 50.16	+1	2372960..2373577	+	205	53713311	-	BF2022	-	hypothetical protein
2021	 49.49	+1	2373655..2374743	+	362	53713312	-	BF2023	-	type II restriction enzyme HpaII
2022	 49.12	+1	2374768..2375337	+	189	53713313	-	BF2024	-	putative NAD(P)H nitroreductase
2023	 50.84	+1	2375480..2378329	-	949	53713314	-	BF2025	-	glycine dehydrogenase
2024	 49.30	+1	2378372..2379010	-	212	53713315	-	BF2026	-	putative metallo-beta-lactamase
2025	 48.74	0	2379030..2379704	-	224	53713316	gidB	BF2027	-	glucose-inhibited division protein B
2026	 44.21	0	2379744..2380598	-	284	53713317	-	BF2028	-	hypothetical protein
2027	 46.46	0	2380737..2381132	+	131	53713318	-	BF2029	-	hypothetical protein
2028	 49.80	+1	2381312..2383528	+	738	53713319	-	BF2030	-	putative TonB-dependent outer membrane receptor protein
2029	 41.99	0	2383579..2383890	+	103	53713320	-	BF2031	-	putative heavy-metal binding protein
2030	 51.79	+1	2383942..2386152	+	736	53713321	-	BF2032	-	cation-transporting ATPase
2031	 45.12	0	2386329..2387168	-	279	53713322	-	BF2033	-	AraC-type transcription regulator
2032	 50.00	+1	2387234..2387899	+	221	53713323	-	BF2034	-	lipoate-protein ligase B
2033	 47.98	0	2388220..2388417	+	65	53713324	-	BF2035	-	hypothetical protein
2034	 49.16	+1	2388472..2389248	-	258	53713325	-	BF2036	-	putative xylanase
2035	 53.01	+1	2389286..2390149	-	287	53713326	-	BF2037	-	putative xylanase
2036	 52.54	+1	2390146..2392134	-	662	53713327	-	BF2038	-	putative oligopeptide transporter
2037	 44.44	0	2392265..2392660	-	131	53713328	-	BF2039	-	hypothetical protein
2038	 50.45	+1	2392844..2394163	-	439	53713329	-	BF2040	-	putative two-component system sensor histidine kinase
2039	 50.69	+1	2394183..2395553	-	456	53713330	-	BF2041	-	two-component system response regulator
2040	 47.61	0	2395742..2397100	+	452	53713331	-	BF2042	-	hypothetical protein
2041	 47.57	0	2397282..2397857	+	191	53713332	-	BF2043	-	hypothetical protein
2042	 44.96	0	2397817..2398650	+	277	53713333	-	BF2044	-	hypothetical protein
2043	 44.73	0	2398664..2401075	+	803	53713334	-	BF2045	-	putative ABC transporter permease
2044	 44.74	0	2401092..2401766	+	224	53713335	-	BF2046	-	putative ABC transporter ATP-binding protein
2045	 45.33	0	2401819..2402418	-	199	53713336	-	BF2047	-	hypothetical protein
2046	 44.06	0	2402434..2403039	-	201	53713337	-	BF2048	-	GTPase EngB
2047	 44.51	0	2403054..2404511	-	485	53713338	-	BF2049	-	Na+/solute symporter
2048	 37.02	-1	2405008..2405523	-	171	53713339	-	BF2050	-	hypothetical protein
2049	 34.00	-1	2405510..2405809	+	99	53713340	-	BF2051	-	hypothetical protein
2050	 38.20	0	2405804..2406214	-	136	53713341	-	BF2052	-	hypothetical protein
2051	 46.44	0	2406491..2407108	+	205	53713342	-	BF2053	-	recombination protein RecR
43.19	MEAN

5.60	STD DEV
