IslandPath Analysis: Bacteroides fragilis YCH46

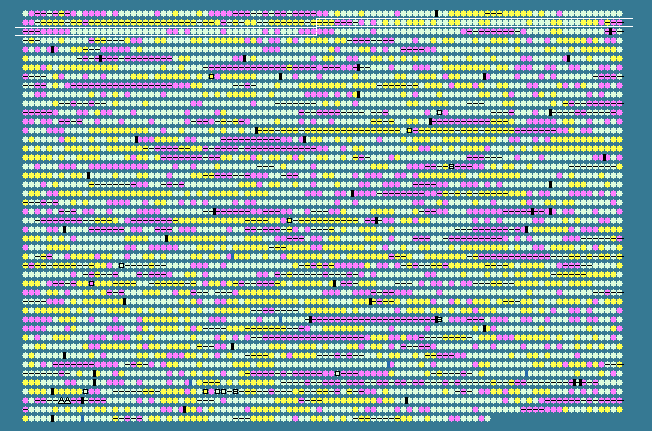

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 43.19   STD DEV: 5.60
Bacteroides fragilis YCH46, complete genome - 1..5277274
4578 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
150	 57.52	+2	161501..161806	+	101	53711441	-	BF0150	-	hypothetical protein
151	 55.10	+2	161884..162246	-	120	53711442	-	BF0151	-	hypothetical protein
152	 54.21	+1	162258..163493	-	411	53711443	-	BF0152	-	tyrosine type site-specific recombinase
153	 32.76	-1	163848..164198	+	116	53711444	-	BF0153	-	hypothetical protein
154	 34.48	-1	164234..165457	+	407	53711445	-	BF0154	-	putative pyrogenic exotoxin B
155	 33.60	-1	165475..165855	+	126	53711446	-	BF0155	-	hypothetical protein
156	 41.43	0	166147..166566	-	139	53711447	-	BF0156	-	hypothetical protein
157	 32.24	-1	166871..167053	+	60	53711448	-	BF0157	-	hypothetical protein
158	 40.38	0	167016..167441	+	141	53711449	-	BF0158	-	hypothetical protein
159	 38.10	0	167606..168487	+	293	53711450	-	BF0159	-	hypothetical protein
160	 46.62	0	169155..170780	-	541	53711451	-	BF0160	-	hypothetical protein
161	 47.28	0	171402..172634	-	410	53711452	-	BF0161	-	hypothetical protein
162	 46.49	0	172741..173439	+	232	53711453	-	BF0162	-	hypothetical protein
163	 50.24	+1	173768..174796	+	342	53711454	ruvB	BF0163	-	Holliday junction DNA helicase B
164	 45.47	0	174789..176321	+	510	53711455	-	BF0164	-	polysaccharide biosynthesis protein
165	 47.73	0	176324..177691	+	455	53711456	-	BF0165	-	putative integral membrane protein
166	 48.58	0	177743..179920	+	725	53711457	-	BF0166	-	hypothetical protein
167	 48.38	0	179970..180833	-	287	53711458	-	BF0167	-	hypothetical protein
168	 44.29	0	180917..181336	-	139	53711459	-	BF0168	-	hypothetical protein
169	 49.50	+1	181580..183490	-	636	53711460	-	BF0169	-	ATP-dependent RNA helicase
170	 46.02	0	183585..184640	-	351	53711461	-	BF0170	-	hypothetical protein
171	 46.58	0	184825..185745	-	306	53711462	-	BF0171	-	fructokinase
172	 46.70	0	185733..186338	-	201	53711463	-	BF0172	-	putative sugar isomerase
173	 48.40	0	186338..186868	-	176	53711464	-	BF0173	-	lysine decarboxylase
174	 45.99	0	186970..188217	+	415	53711465	-	BF0174	-	putative zinc protease YmxG
175	 43.73	0	188383..188757	-	124	53711466	-	BF0175	-	hypothetical protein
176	 44.44	0	188981..189511	+	176	53711467	-	BF0176	-	hypothetical protein
177	 47.64	0	189658..190866	-	402	53711468	-	BF0177	-	mannonate dehydratase
178	 49.32	+1	190963..191775	-	270	53711469	-	BF0178	-	D-mannonate oxidoreductase
179	 43.72	0	191904..192548	-	214	53711470	-	BF0179	-	hypothetical protein
180	 45.73	0	192612..193547	-	311	53711471	-	BF0180	-	signal peptidase I
181	 45.12	0	193555..195039	-	494	53711472	-	BF0181	-	signal peptidase I
182	 45.40	0	195044..195772	-	242	53711473	-	BF0182	-	dihydrodipicolinate reductase
183	 46.34	0	195868..197136	+	422	53711474	-	BF0183	-	hypothetical protein
184	 44.70	0	197261..197788	+	175	53711475	-	BF0184	-	hypothetical protein
185	 48.45	0	197982..198914	-	310	53711476	-	BF0185	-	nifR3 family TIM-barrel protein
186	 45.95	0	198921..200141	-	406	53711477	-	BF0186	-	hypothetical protein
187	 45.79	0	200372..201013	+	213	53711478	-	BF0187	-	hypothetical protein
188	 44.10	0	201115..201885	-	256	53711479	-	BF0188	-	UDP-N-acetylglucosamine acyltransferase
189	 48.28	0	201905..203296	-	463	53711480	-	BF0189	-	outer membrane protein oprM precursor
190	 47.78	0	203313..206516	-	1067	53711481	-	BF0190	-	AcrB/AcrD family multidrug resistance protein
191	 45.63	0	206541..207695	-	384	53711482	-	BF0191	-	AcrA/AcrE family multidrug resistance protein
192	 45.25	0	208004..211108	-	1034	53711483	-	BF0192	-	beta-galactosidase
193	 44.90	0	211214..213133	+	639	53711484	-	BF0193	-	hypothetical protein
194	 46.99	0	213072..213950	+	292	53711485	-	BF0194	-	hypothetical protein
195	 49.38	+1	213940..214344	-	134	53711486	-	BF0195	-	putative phenylacetic acid degradation protein
196	 48.44	0	214455..215930	-	491	53711487	cysS	BF0196	-	cysteinyl-tRNA synthetase
197	 39.39	0	216164..216328	-	54	53711488	-	BF0197	-	hypothetical protein
198	 47.19	0	216485..217321	-	278	53711489	-	BF0198	-	haloacid dehalogenase-like hydrolase
199	 34.96	-1	217385..218062	-	225	53711490	-	BF0199	-	two-component system response regulator
200	 33.11	-1	218072..219424	-	450	53711491	-	BF0200	-	two-component system sensor histidine kinase
201	 28.52	-2	219782..221173	+	463	53711492	-	BF0201	-	arylsulfatase regulator (Fe-S oxidoreductase)
202	 24.22	-2	221166..221516	+	116	53711493	-	BF0202	-	hypothetical protein
203	 27.08	-2	221513..222184	+	223	53711494	-	BF0203	-	hypothetical protein
204	 38.14	0	222190..222480	+	96	53711495	-	BF0204	-	hypothetical protein
205	 36.31	-1	222539..223846	+	435	53711496	-	BF0205	-	hypothetical protein
206	 33.33	-1	223871..224176	+	101	53711497	-	BF0206	-	hypothetical protein
207	 39.58	0	224358..224885	+	175	53711498	-	BF0207	-	hypothetical protein
208	 34.43	-1	225098..226378	+	426	53711499	-	BF0208	-	hypothetical protein
209	 46.58	0	226735..227421	+	228	53711500	-	BF0209	-	two-component system response regulator
210	 45.61	0	227418..228785	+	455	53711501	-	BF0210	-	two-component system sensor histidine kinase
211	 46.64	0	228945..231596	+	883	53711502	-	BF0211	-	Mg2+ transport ATPase protein B
212	 45.67	0	231661..232746	+	361	53711503	-	BF0212	-	hypothetical protein
213	 40.85	0	232967..233764	+	265	53711504	-	BF0213	-	hypothetical protein
214	 44.15	0	233811..236861	-	1016	53711505	-	BF0214	-	Snf2 family helicase
215	 42.56	0	236913..238007	+	364	53711506	-	BF0215	-	tRNA (5-methylaminomethyl-2-thiouridylate)- methyltransferase
216	 43.65	0	238067..239578	-	503	53711507	-	BF0216	-	putative auxin-regulated protein
217	 45.50	0	239748..240758	+	336	53711508	pfkA	BF0217	-	6-phosphofructokinase
218	 41.81	0	240777..241649	-	290	53711509	-	BF0218	-	ribonuclease III
219	 45.53	0	241654..242916	-	420	53711510	-	BF0219	-	3-oxoacyl-[acyl-carrier-protein] synthase II
220	 40.51	0	242932..243168	-	78	53711511	-	BF0220	-	acyl carrier protein
221	 42.76	0	243318..243890	+	190	53711512	-	BF0221	-	phosphoribosylglycinamide formyltransferase
222	 44.70	0	243928..244974	-	348	53711513	-	BF0222	-	erythronate-4-phosphate dehydrogenase
223	 41.70	0	245107..245823	+	238	53711514	-	BF0223	-	hypothetical protein
224	 40.90	0	245828..246541	+	237	53711515	-	BF0224	-	hypothetical protein
225	 37.61	0	246510..247445	-	311	53711516	-	BF0225	-	lipopolysaccharide 1,2-glucosyltransferase
226	 39.69	0	247473..248495	-	340	53711517	-	BF0226	-	lipopolysaccharide core biosynthesis protein LpsA
227	 40.05	0	248498..249301	-	267	53711518	-	BF0227	-	glycosyltransferase
228	 35.95	-1	249422..250492	-	356	53711519	-	BF0228	-	putative glycosyltransferase
229	 41.83	0	250913..252748	+	611	53711520	-	BF0229	-	ABC transporter ATP-binding protein
230	 42.58	0	252751..253983	+	410	53711521	-	BF0230	-	hypothetical protein
231	 45.24	0	253987..254616	-	209	53711522	-	BF0231	-	ribonuclease H-related protein
232	 44.78	0	254736..255338	+	200	53711523	-	BF0232	-	nitroreductase
233	 41.53	0	255331..255513	-	60	53711524	-	BF0233	-	hypothetical protein
234	 36.27	-1	255967..256170	+	67	53711525	-	BF0234	-	hypothetical protein
235	 45.19	0	256298..256837	+	179	53711526	-	BF0235	-	shikimate kinase
236	 45.78	0	256984..259482	+	832	53711527	-	BF0236	-	hypothetical protein
237	 43.18	0	259490..261256	+	588	53711528	-	BF0237	-	heat shock protein HtpG
238	 40.74	0	261265..262344	+	359	53711529	-	BF0238	-	hypothetical protein
239	 44.06	0	262402..264294	+	630	53711530	-	BF0239	-	arginine decarboxylase
240	 44.02	0	264422..265207	+	261	53711531	-	BF0240	-	putative acetylglutamate kinase
241	 39.61	0	265269..265778	+	169	53711532	-	BF0241	-	RNA polymerase ECF-type sigma factor
242	 42.25	0	265762..266277	+	171	53711533	-	BF0242	-	hypothetical protein
243	 39.62	0	266282..266758	+	158	53711534	-	BF0243	-	hypothetical protein
244	 40.13	0	266946..267725	-	259	53711535	-	BF0244	-	hypothetical protein
245	 40.41	0	267745..268479	-	244	53711536	-	BF0245	-	hypothetical protein
246	 44.21	0	268600..269298	+	232	53711537	-	BF0246	-	putative zinc protease
247	 38.60	0	269460..269858	-	132	53711538	-	BF0247	-	hypothetical protein
248	 34.80	-1	269860..271020	+	386	53711539	-	BF0248	-	hypothetical protein
249	 36.84	-1	271181..271408	+	75	53711540	-	BF0249	-	hypothetical protein
43.19	MEAN

5.60	STD DEV
