IslandPath Analysis: Bacteroides fragilis YCH46

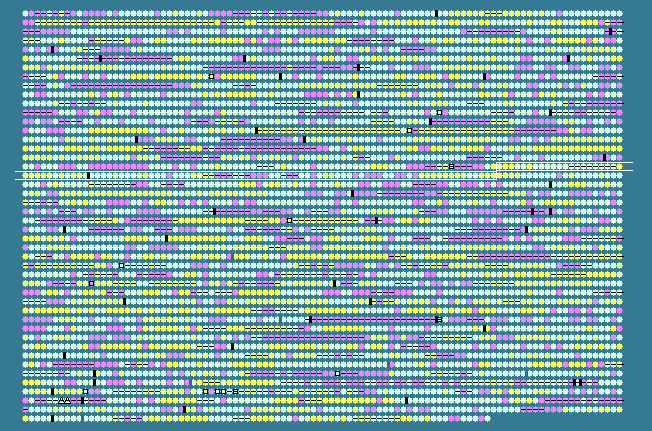

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 43.19 STD DEV: 5.60
Bacteroides fragilis YCH46, complete genome - 1..5277274
4578 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1780	 44.80	0	2097745..2098311	+	188	53713071	-	BF1782	-	hypothetical protein
1781	 48.25	0	2098328..2099440	+	370	53713072	-	BF1783	-	hypothetical protein
1782	 46.97	0	2099445..2100581	+	378	53713073	-	BF1784	-	clostripain-related protein
1783	 44.06	0	2100819..2102468	+	549	53713074	-	BF1785	-	hypothetical protein
1784	 42.21	0	2102564..2103487	+	307	53713075	-	BF1786	-	hypothetical protein
1785	 46.69	0	2103514..2105085	+	523	53713076	-	BF1787	-	hypothetical protein
1786	 44.47	0	2105104..2106216	+	370	53713077	-	BF1788	-	hypothetical protein
1787	 45.20	0	2106243..2107211	+	322	53713078	-	BF1789	-	hypothetical protein
1788	 45.71	0	2107232..2108209	+	325	53713079	-	BF1790	-	hypothetical protein
1789	 42.07	0	2108237..2109175	+	312	53713080	-	BF1791	-	hypothetical protein
1790	 45.41	0	2109192..2110193	+	333	53713081	-	BF1792	-	hypothetical protein
1791	 42.72	0	2110197..2111165	+	322	53713082	-	BF1793	-	hypothetical protein
1792	 41.59	0	2111190..2112182	+	330	53713083	-	BF1794	-	hypothetical protein
1793	 44.51	0	2112196..2113260	+	354	53713084	-	BF1795	-	hypothetical protein
1794	 43.80	0	2113276..2114202	+	308	53713085	-	BF1796	-	hypothetical protein
1795	 44.97	0	2114221..2115792	+	523	53713086	-	BF1797	-	hypothetical protein
1796	 44.44	0	2115836..2116906	+	356	53713087	-	BF1798	-	hypothetical protein
1797	 43.68	0	2116903..2117859	+	318	53713088	-	BF1799	-	hypothetical protein
1798	 44.67	0	2117801..2119432	+	543	53713089	-	BF1800	-	hypothetical protein
1799	 43.65	0	2119433..2120392	+	319	53713090	-	BF1801	-	hypothetical protein
1800	 54.51	+2	2120487..2121671	+	394	53713091	-	BF1802	-	hypothetical protein
1801	 53.22	+1	2121808..2123808	+	666	53713092	-	BF1803	-	hypothetical protein
1802	 50.14	+1	2123814..2124182	+	122	53713093	-	BF1804	-	hypothetical protein
1803	 50.41	+1	2124224..2125207	+	327	53713094	-	BF1805	-	hypothetical protein
1804	 53.91	+1	2125341..2127464	-	707	53713095	-	BF1806	-	RNA-binding protein
1805	 49.32	+1	2127576..2129495	+	639	53713096	-	BF1807	-	two-component system sensor histidine kinase
1806	 46.49	0	2129612..2131351	+	579	53713097	-	BF1808	-	2',3'-cyclic-nucleotide 2'-phosphodiesterase precursor
1807	 48.31	0	2131358..2131831	+	157	53713098	-	BF1809	-	GAF domain-containing protein
1808	 45.43	0	2131869..2132207	+	112	53713099	-	BF1810	-	hypothetical protein
1809	 48.04	0	2132413..2134704	+	763	53713100	-	BF1811	-	TonB-dependent outer membrane receptor
1810	 47.77	0	2134764..2135525	+	253	53713101	-	BF1812	-	putative amidase
1811	 45.19	0	2135698..2136279	-	193	53713102	-	BF1813	-	hypothetical protein
1812	 46.11	0	2136852..2138213	+	453	53713103	-	BF1814	-	cation efflux pump
1813	 42.31	0	2138358..2138513	+	51	53713104	-	BF1815	-	hypothetical protein
1814	 42.51	0	2138859..2139305	+	148	53713105	-	BF1816	-	hypothetical protein
1815	 46.27	0	2139417..2140769	+	450	53713106	-	BF1817	-	Na+ driven multidrug efflux pump
1816	 49.46	+1	2140855..2142516	+	553	53713107	-	BF1818	-	hypothetical protein
1817	 44.51	0	2142565..2144559	+	664	53713108	-	BF1819	-	fructose-1,6-bisphosphatase
1818	 46.46	0	2144651..2145808	-	385	53713109	-	BF1820	-	hypothetical protein
1819	 45.27	0	2145917..2147575	-	552	53713110	-	BF1821	-	putative long-chain-fatty-acid-CoA ligase
1820	 47.74	0	2147769..2148851	-	360	53713111	-	BF1822	-	GDP-4-keto-6-deoxy-D-mannose-3, 5-epimerase-4-reductase
1821	 48.79	0	2148844..2149917	-	357	53713112	-	BF1823	-	GDP-mannose 4,6-dehydratase
1822	 44.42	0	2150131..2151402	+	423	53713113	-	BF1824	-	putative ATPase
1823	 43.16	0	2151696..2152499	-	267	53713114	-	BF1825	-	hypothetical protein
1824	 41.09	0	2152549..2152896	-	115	53713115	-	BF1826	-	hypothetical protein
1825	 39.23	0	2153036..2153374	-	112	53713116	-	BF1827	-	hypothetical protein
1826	 40.38	0	2153896..2154420	+	174	53713117	-	BF1828	-	putative transcriptional regulatory protein UpxY-like protein
1827	 40.95	0	2154424..2154909	+	161	53713118	-	BF1829	-	hypothetical protein
1828	 42.99	0	2154906..2156189	+	427	53713119	-	BF1830	-	hypothetical protein
1829	 49.86	+1	2156182..2156901	+	239	53713120	-	BF1831	-	putative glucose-1-P-cytidylyltransferase
1830	 50.61	+1	2156840..2158222	+	460	53713121	-	BF1832	-	putative phosphoenolpyruvate phosphomutase
1831	 51.36	+1	2158234..2159370	+	378	53713122	-	BF1833	-	putative phosphoenolpyruvate decarboxylase
1832	 47.05	0	2159367..2160467	+	366	53713123	-	BF1834	-	putative 2-aminoethylphosphonate pyruvate aminotransferase
1833	 25.90	-2	2160487..2161980	+	497	53713124	-	BF1835	-	putative flippase
1834	 30.02	-2	2161984..2163129	+	381	53713125	-	BF1836	-	hypothetical protein
1835	 31.95	-2	2163126..2163995	+	289	53713126	-	BF1837	-	putative alpha-1,2-fucosyltransferase
1836	 41.88	0	2164003..2165055	+	350	53713127	-	BF1838	-	putative UDP-glucuronic acid epimerase
1837	 42.10	0	2165058..2166380	+	440	53713128	-	BF1839	-	putative UDP-glucose dehydrogenase
1838	 27.66	-2	2166664..2167686	+	340	53713129	-	BF1840	-	putative glycosyltransferase
1839	 29.70	-2	2167716..2168762	+	348	53713130	-	BF1841	-	putative glycosyltransferase
1840	 27.14	-2	2168759..2169889	+	376	53713131	-	BF1842	-	putative polymerase
1841	 27.42	-2	2169861..2170976	+	371	53713132	-	BF1843	-	putative glycosyltransferase
1842	 42.08	0	2170969..2171985	+	338	53713133	-	BF1844	-	putative dehydratase
1843	 40.76	0	2171973..2173103	+	376	53713134	-	BF1844.1	-	putative epimerase
1844	 41.90	0	2173124..2173987	+	287	53713135	-	BF1845	-	putative reductase
1845	 34.49	-1	2173984..2175195	+	403	53713136	-	BF1846	-	putative glycosyltransferase
1846	 38.69	0	2175218..2176225	+	335	53713137	-	BF1847	-	putative dehydratase
1847	 41.01	0	2176229..2177179	+	316	53713138	-	BF1848	-	putative UndPP-QuiNAc-P-transferase
1848	 40.10	0	2177339..2177530	-	63	53713139	-	BF1849	-	hypothetical protein
1849	 38.27	0	2177514..2177756	-	80	53713140	-	BF1850	-	hypothetical protein
1850	 46.62	0	2178167..2178640	+	157	53713141	-	BF1851	-	putative non-specific DNA binding protein
1851	 47.33	0	2178831..2180009	-	392	53713142	-	BF1852	-	Na+/H+-dicarboxylate symporter
1852	 47.63	0	2180142..2181617	+	491	53713143	-	BF1853	-	6-phosphogluconate dehydrogenase
1853	 46.63	0	2181632..2183128	+	498	53713144	-	BF1854	-	glucose-6-phosphate 1-dehydrogenase
1854	 45.05	0	2183074..2183841	+	255	53713145	-	BF1855	-	6-phosphogluconolactonase
1855	 41.33	0	2184198..2184422	+	74	53713146	-	BF1856	-	hypothetical protein
1856	 37.46	-1	2184668..2184982	+	104	53713147	-	BF1857	-	hypothetical protein
1857	 42.91	0	2185265..2187331	+	688	53713148	-	BF1858	-	hypothetical protein
1858	 39.28	0	2187537..2188343	+	268	53713149	-	BF1859	-	urea transport protein
1859	 37.58	-1	2188715..2189962	+	415	53713150	-	BF1860	-	hypothetical protein
1860	 34.09	-1	2190069..2190863	+	264	53713151	-	BF1861	-	hypothetical protein
1861	 42.68	0	2190977..2192260	-	427	53713152	-	BF1862	-	SOS mutagenesis and repair protein UmuC-like protein
1862	 42.79	0	2192260..2192703	-	147	53713153	-	BF1863	-	error-prone repair: SOS-response transcriptional repressor UmuD-like protein
1863	 39.19	0	2193087..2194316	+	409	53713154	-	BF1864	-	hypothetical protein
1864	 36.41	-1	2194327..2194749	+	140	53713155	-	BF1865	-	hypothetical protein
1865	 42.48	0	2194812..2194964	+	50	53713156	-	BF1866	-	hypothetical protein
1866	 32.95	-1	2195070..2195330	-	86	53713157	-	BF1867	-	hypothetical protein
1867	 47.07	0	2195739..2196437	-	232	53713158	-	BF1868	-	two-component system response regulator
1868	 47.58	0	2196440..2197492	-	350	53713159	-	BF1869	-	two-component system sensor
1869	 52.33	+1	2197625..2198845	-	406	53713160	-	BF1870	-	ABC transporter permease protein
1870	 52.42	+1	2198859..2199602	-	247	53713161	-	BF1871	-	putative ABC transporter ATP-binding protein
1871	 52.21	+1	2199605..2200828	-	407	53713162	-	BF1872	-	periplasmic component of efflux system
1872	 51.35	+1	2200865..2202268	-	467	53713163	-	BF1873	-	outer membrane efflux protein
1873	 46.76	0	2202719..2202934	+	71	53713164	-	BF1874	-	hypothetical protein
1874	 47.43	0	2202967..2204520	+	517	53713165	-	BF1875	-	cytochrome D ubiquinol oxidase subunit I
1875	 46.48	0	2204546..2205694	+	382	53713166	-	BF1876	-	cytochrome D ubiquinol oxidase subunit II
1876	 45.45	0	2205818..2206882	+	354	53713167	-	BF1877	-	hypothetical protein
1877	 49.36	+1	2206887..2207897	+	336	53713168	-	BF1878	-	putative periplasmic protein
1878	 48.94	+1	2207884..2208735	+	283	53713169	-	BF1879	-	putative membrane-associated metal-dependent hydrolase
1879	 48.87	+1	2208732..2210012	+	426	53713170	-	BF1880	-	coproporphyrinogen III oxidase
43.19	MEAN

5.60	STD DEV
