IslandPathversion 1.0

IslandPath Analysis: Bacteroides fragilis YCH46

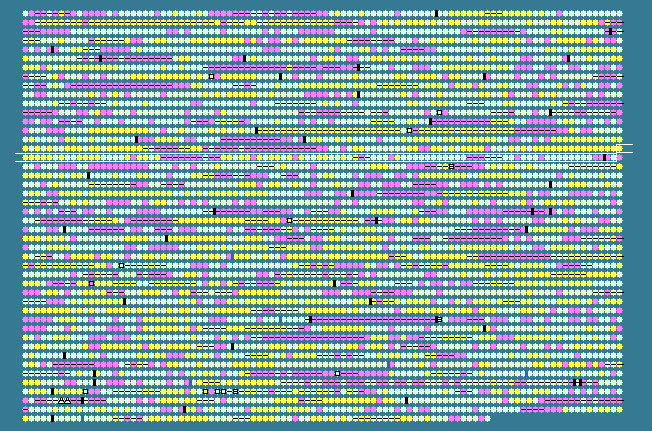

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 43.19 STD DEV: 5.60
Bacteroides fragilis YCH46, complete genome - 1..5277274
4578 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1600	 51.40	+1	1861535..1862176	-	213	53712891	bioD	BF1600	-	dithiobiotin synthetase
1601	 50.14	+1	1862211..1863686	-	491	53712892	-	BF1601	-	putative biotin synthesis protein BioC
1602	 49.08	+1	1863694..1864887	-	397	53712893	-	BF1602	-	8-amino-7-oxononanoate synthase
1603	 52.87	+1	1865026..1867272	-	748	53712894	-	BF1603	-	adenosylmethionine-8-amino-7-oxononanoate aminotransferase
1604	 48.01	0	1867269..1867670	-	133	53712895	-	BF1604	-	hypothetical protein
1605	 48.13	0	1867997..1871125	+	1042	53712896	-	BF1605	-	hypothetical protein
1606	 45.95	0	1871161..1872825	+	554	53712897	-	BF1606	-	hypothetical protein
1607	 46.93	0	1872961..1874460	-	499	53712898	-	BF1608	-	L-lactate permease
1608	 45.41	0	1874665..1876113	-	482	53712899	-	BF1609	-	hypothetical protein
1609	 46.26	0	1876165..1876752	-	195	53712900	-	BF1610	-	hypothetical protein
1610	 50.03	+1	1877020..1878564	+	514	53712901	-	BF1611	-	propionyl-CoA carboxylase beta chain
1611	 48.21	0	1878583..1880094	+	503	53712902	-	BF1612	-	biotin carboxylase
1612	 46.86	0	1880108..1880632	+	174	53712903	-	BF1613	-	biotin carboxyl carrier protein
1613	 47.82	0	1880738..1882000	-	420	53712904	-	BF1614	-	hypothetical protein
1614	 45.43	0	1882447..1884108	+	553	53712905	-	BF1615	-	hypothetical protein
1615	 44.95	0	1884130..1885722	+	530	53712906	-	BF1616	-	hypothetical protein
1616	 41.55	0	1885903..1886109	-	68	53712907	-	BF1617	-	hypothetical protein
1617	 46.67	0	1886674..1888023	+	449	53712908	-	BF1618	-	dihydrolipoamide dehydrogenase
1618	 47.01	0	1888023..1888724	+	233	53712909	-	BF1619	-	lipoate-protein ligase A
1619	 35.68	-1	1888911..1889123	-	70	53712910	-	BF1620	-	hypothetical protein
1620	 49.71	+1	1889232..1890599	+	455	53712911	-	BF1621	-	lipoamide acyltransferase component of branched-chain alpha-keto acid dehydrogenase complex
1621	 49.63	+1	1890743..1892779	+	678	53712912	-	BF1622	-	2-oxoisovalerate dehydrogenase beta subunit
1622	 44.77	0	1892798..1893304	+	168	53712913	-	BF1623	-	flavodoxin FldA
1623	 47.33	0	1893381..1894223	-	280	53712914	prmA	BF1624	-	ribosomal protein L11 methyltransferase
1624	 39.09	0	1894865..1895194	+	109	53712915	-	BF1625	-	hypothetical protein
1625	 33.33	-1	1895449..1895610	+	53	53712916	-	BF1626	-	hypothetical protein
1626	 34.59	-1	1895720..1895878	-	52	53712917	-	BF1627	-	hypothetical protein
1627	 33.61	-1	1896213..1897670	+	485	53712918	-	BF1628	-	hypothetical protein
1628	 30.71	-2	1897678..1898211	+	177	53712919	-	BF1629	-	hypothetical protein
1629	 37.99	0	1898396..1898932	+	178	53712920	-	BF1630	-	hypothetical protein
1630	 33.70	-1	1899064..1899339	-	91	53712921	-	BF1631	-	hypothetical protein
1631	 45.88	0	1899595..1900917	+	440	53712922	-	BF1632	-	hypothetical protein
1632	 33.90	-1	1900954..1902537	+	527	53712923	-	BF1633	-	putative hemin receptor
1633	 34.50	-1	1902939..1904057	+	372	53712924	-	BF1634	-	hypothetical protein
1634	 47.44	0	1904135..1904602	-	155	53712925	-	BF1635	-	cytidine/deoxycytidylate deaminase
1635	 47.99	0	1904770..1905663	-	297	53712926	-	BF1636	-	hypothetical protein
1636	 44.22	0	1905677..1906126	-	149	53712927	-	BF1637	-	hypothetical protein
1637	 47.54	0	1906155..1906682	-	175	53712928	-	BF1638	-	hypothetical protein
1638	 48.85	+1	1906577..1907098	-	173	53712929	-	BF1639	-	putative RNA polymerase ECF-type sigma factor
1639	 38.65	0	1907043..1907249	-	68	53712930	-	BF1640	-	hypothetical protein
1640	 48.83	+1	1907252..1908238	-	328	53712931	-	BF1641	-	putative oxidoreductase
1641	 44.44	0	1908291..1908542	+	83	53712932	-	BF1642	-	hypothetical protein
1642	 48.85	+1	1908477..1909301	-	274	53712933	-	BF1643	-	glutamine ABC transporter glutamine-binding protein
1643	 46.74	0	1909310..1911352	-	680	53712934	-	BF1644	-	hypothetical protein
1644	 46.22	0	1911475..1912017	-	180	53712935	-	BF1645	-	ketoisovalerate oxidoreductase subunit VorA
1645	 47.51	0	1912036..1912797	-	253	53712936	-	BF1646	-	ketoisovalerate oxidoreductase subunit VorA
1646	 39.08	0	1912894..1913067	-	57	53712937	-	BF1647	-	hypothetical protein
1647	 49.31	+1	1913078..1914160	-	360	53712938	-	BF1648	-	2-ketoisovalerate ferredoxin reductase
1648	 44.30	0	1914172..1914399	-	75	53712939	-	BF1649	-	hypothetical protein
1649	 40.58	0	1914418..1914693	-	91	53712940	-	BF1650	-	hypothetical protein
1650	 48.05	0	1915003..1915437	-	144	53712941	-	BF1651	-	ribose 5-phosphate isomerase B
1651	 49.00	+1	1915520..1917529	-	669	53712942	-	BF1652	-	transketolase
1652	 45.19	0	1917684..1918838	-	384	53712943	-	BF1653	-	galactokinase
1653	 45.40	0	1918874..1920199	-	441	53712944	-	BF1654	-	glucose/galactose transporter
1654	 46.81	0	1920250..1921347	-	365	53712945	-	BF1655	-	aldose 1-epimerase precursor
1655	 43.11	0	1921611..1922582	+	323	53712946	-	BF1656	-	mannose-6-phosphate isomerase
1656	 48.11	0	1922648..1922911	-	87	53712947	-	BF1657	-	hypothetical protein
1657	 36.89	-1	1922916..1923281	-	121	53712948	-	BF1658	-	hypothetical protein
1658	 41.43	0	1923308..1923517	-	69	53712949	-	BF1659	-	hypothetical protein
1659	 45.09	0	1923815..1925098	-	427	53712950	-	BF1660	-	ATP-dependent RNA helicase DeaD
1660	 45.40	0	1925289..1926059	+	256	53712951	-	BF1661	-	putative short-chain dehydrogenase
1661	 42.37	0	1926174..1926671	+	165	53712952	-	BF1662	-	hypothetical protein
1662	 39.36	0	1926989..1927801	+	270	53712953	-	BF1663	-	hypothetical protein
1663	 47.20	0	1928054..1930729	-	891	53712954	-	BF1664	-	beta-galactosidase
1664	 46.15	0	1931364..1932182	+	272	53712955	-	BF1665	-	sulfite synthesis pathway protein CysQ
1665	 43.35	0	1932203..1933759	+	518	53712956	-	BF1666	-	putative Na+/sulfate symporter
1666	 45.98	0	1933788..1934396	+	202	53712957	-	BF1667	-	putative adenylylsulfate kinase
1667	 44.85	0	1934424..1935335	+	303	53712958	-	BF1668	-	sulfate adenylyltransferase subunit 2
1668	 43.47	0	1935347..1936777	+	476	53712959	cysN	BF1669	-	sulfate adenylyltransferase subunit 1
1669	 41.37	0	1936848..1937954	+	368	53712960	-	BF1670	-	hypothetical protein
1670	 44.24	0	1937970..1938932	+	320	53712961	-	BF1671	-	hypothetical protein
1671	 41.10	0	1939201..1939599	-	132	53712962	-	BF1672	-	hypothetical protein
1672	 45.19	0	1939823..1940944	-	373	53712963	-	BF1673	-	outer membrane porin F precursor
1673	 41.30	0	1940946..1941761	-	271	53712964	-	BF1674	-	hypothetical protein
1674	 41.55	0	1941813..1944026	-	737	53712965	-	BF1675	-	hypothetical protein
1675	 36.83	-1	1944043..1944987	-	314	53712966	-	BF1676	-	hypothetical protein
1676	 35.38	-1	1945290..1946510	+	406	53712967	-	BF1677	-	tyrosine type site-specific recombinase
1677	 38.22	0	1947230..1948477	+	415	53712968	-	BF1679	-	hypothetical protein
1678	 40.58	0	1948488..1949564	+	358	53712969	-	BF1680	-	hypothetical protein
1679	 43.07	0	1949632..1950381	+	249	53712970	-	BF1681	-	hypothetical protein
1680	 44.24	0	1950443..1951561	+	372	53712971	-	BF1682	-	major outer membrane protein OmpA
1681	 41.01	0	1951683..1952099	+	138	53712972	-	BF1683	-	Holliday junction resolvase-like protein
1682	 40.90	0	1952135..1952689	+	184	53712973	def	BF1684	-	peptide deformylase
1683	 38.67	0	1952808..1954025	-	405	53712974	-	BF1685	-	hypothetical protein
1684	 42.65	0	1954328..1956376	+	682	53712975	-	BF1686	-	hypothetical protein
1685	 44.00	0	1956457..1958397	+	646	53712976	-	BF1687	-	threonyl-tRNA synthetase
1686	 39.87	0	1958516..1959127	+	203	53712977	infC	BF1688	-	translation initiation factor IF-3
1687	 36.36	-1	1959193..1959390	+	65	53712978	rpmI	BF1689	-	50S ribosomal protein L35
1688	 41.88	0	1959491..1959841	+	116	53712979	rplT	BF1690	-	50S ribosomal protein L20
1689	 42.68	0	1960270..1961061	+	263	53712980	-	BF1691	-	hypothetical protein
1690	 40.35	0	1961136..1961705	-	189	53712981	-	BF1692	-	xanthine phosphoribosyltransferase
1691	 44.27	0	1961791..1963098	-	435	53712982	-	BF1693	-	phenylacetate-coenzyme A ligase
1692	 42.39	0	1963202..1963786	-	194	53712983	-	BF1694	-	indolepyruvate oxidoreductase subunit B
1693	 45.07	0	1963790..1965382	-	530	53712984	-	BF1695	-	indolepyruvate oxidoreductase subunit IorA
1694	 41.14	0	1965466..1966503	-	345	53712985	-	BF1696	-	hypothetical protein
1695	 40.73	0	1966661..1967539	-	292	53712986	-	BF1697	-	putative endonuclease
1696	 38.84	0	1968134..1969696	-	520	53712987	-	BF1698	-	putative cell surface antigen
1697	 30.30	-2	1969855..1970019	-	54	53712988	-	BF1699	-	hypothetical protein
1698	 38.01	0	1970389..1972293	+	634	53712989	-	BF1700	-	capsular polysaccharide biosynthesis protein CapD
1699	 40.56	0	1972408..1974966	+	852	53712990	-	BF1701	-	putative capsule polysaccharide export protein
43.19	MEAN

5.60	STD DEV
