IslandPath Analysis: Bacteroides fragilis YCH46

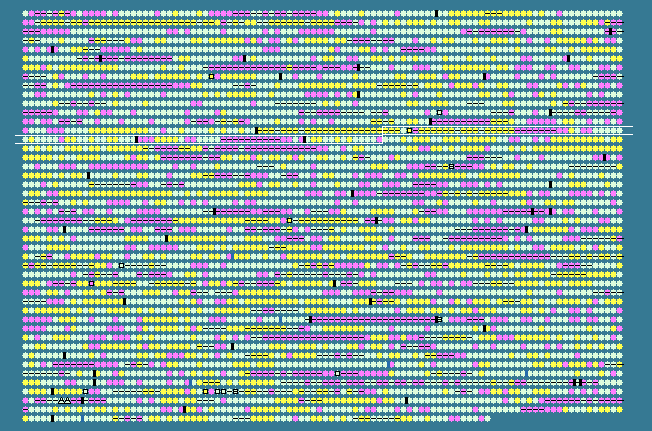

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 43.19 STD DEV: 5.60
Bacteroides fragilis YCH46, complete genome - 1..5277274
4578 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1361	 51.99	+1	1600344..1600745	-	133	53712652	-	BF1363	-	protein found in conjugate transposon TraB
1362	 52.36	+1	1600747..1601529	-	260	53712653	-	BF1364	-	protein found in conjugate transposon
1363	 48.46	0	1601712..1602068	+	118	53712654	-	BF1364.1	-	hypothetical protein
1364	 43.72	0	1602072..1602437	+	121	53712655	-	BF1364.2	-	hypothetical protein
1365	 50.00	+1	1602513..1604186	+	557	53712656	-	BF1364.3	-	IS66 family transposase
1366	 37.50	-1	1604262..1604429	+	55	53712657	-	BF1364.4	-	hypothetical protein
1367	 50.00	+1	1604713..1604922	+	69	53712658	-	BF1365	-	hypothetical protein
1368	 54.37	+1	1605059..1605481	+	140	53712659	-	BF1366	-	hypothetical protein
1369	 55.32	+2	1605466..1606734	+	422	53712660	-	BF1367	-	hypothetical protein
1370	 47.76	0	1606754..1608763	+	669	53712661	-	BF1368	-	putative mobilization protein
1371	 46.80	0	1608807..1609823	-	338	53712662	-	BF1369	-	hypothetical protein
1372	 50.14	+1	1609833..1610534	-	233	53712663	-	BF1370	-	hypothetical protein
1373	 45.96	0	1610868..1611065	+	65	53712664	-	BF1371	-	hypothetical protein
1374	 57.75	+2	1611080..1612402	+	440	53712665	-	BF1372	-	hypothetical protein
1375	 56.51	+2	1612428..1614515	+	695	53712666	-	BF1373	-	DNA topoisomerase I
1376	 56.45	+2	1614613..1615131	-	172	53712667	-	BF1374	-	hypothetical protein
1377	 42.32	0	1615270..1615536	-	88	53712668	-	BF1375	-	hypothetical protein
1378	 54.41	+2	1615541..1617613	-	690	53712669	-	BF1376	-	hypothetical protein
1379	 48.06	0	1617576..1617935	-	119	53712670	-	BF1377	-	hypothetical protein
1380	 50.39	+1	1618040..1618942	-	300	53712671	-	BF1378	-	putative regulatory protein RteC-like protein
1381	 55.28	+2	1618974..1619816	-	280	53712672	-	BF1379	-	transcriptional regulator
1382	 48.73	0	1619847..1620398	-	183	53712673	-	BF1380	-	hypothetical protein
1383	 30.30	-2	1620612..1620809	-	65	53712674	-	BF1381	-	hypothetical protein
1384	 28.11	-2	1620885..1621286	-	133	53712675	-	BF1382	-	hypothetical protein
1385	 33.85	-1	1621357..1621941	-	194	53712676	-	BF1383	-	hypothetical protein
1386	 33.63	-1	1622015..1622350	-	111	53712677	-	BF1384	-	hypothetical protein
1387	 38.68	0	1622401..1623036	-	211	53712678	-	BF1385	-	hypothetical protein
1388	 33.33	-1	1623071..1623433	-	120	53712679	-	BF1386	-	hypothetical protein
1389	 33.33	-1	1623607..1624338	-	243	53712680	-	BF1387	-	hypothetical protein
1390	 34.29	-1	1624367..1624786	-	139	53712681	-	BF1388	-	hypothetical protein
1391	 29.87	-2	1624825..1625373	-	182	53712682	-	BF1389	-	hypothetical protein
1392	 48.09	0	1625449..1626600	-	383	53712683	-	BF1390	-	tyrosine type site-specific recombinase
1393	 45.04	0	1626652..1627266	-	204	53712684	-	BF1391	-	putative transcriptional regulator
1394	 37.50	-1	1627407..1627574	-	55	53712685	-	BF1392	-	hypothetical protein
1395	 36.52	-1	1627635..1627916	-	93	53712686	-	BF1393	-	hypothetical protein
1396	 39.96	0	1628392..1628859	+	155	53712687	-	BF1394	-	hypothetical protein
1397	 41.34	0	1629044..1631617	-	857	53712688	-	BF1395	-	hypothetical protein
1398	 40.10	0	1631670..1632068	-	132	53712689	-	BF1396	-	hypothetical protein
1399	 43.24	0	1632383..1634038	+	551	53712690	-	BF1397	-	hypothetical protein
1400	 45.32	0	1634124..1634582	-	152	53712691	-	BF1398	-	hypothetical protein
1401	 44.42	0	1634634..1635923	-	429	53712692	-	BF1399	-	putative hemolysin
1402	 47.07	0	1636080..1636880	-	266	53712693	-	BF1400	-	peptidase
1403	 46.40	0	1636922..1639294	-	790	53712694	-	BF1401	-	putative ferric aerobactin receptor
1404	 45.21	0	1639401..1639838	+	145	53712695	-	BF1402	-	hypothetical protein
1405	 43.96	0	1639870..1640688	+	272	53712696	-	BF1403	-	acetyl esterase
1406	 44.36	0	1640905..1641729	-	274	53712697	-	BF1404	-	hypothetical protein
1407	 31.90	-2	1641686..1641895	+	69	53712698	-	BF1405	-	hypothetical protein
1408	 49.26	+1	1641899..1643185	+	428	53712699	-	BF1406	-	O-acetylhomoserine (thiol)-lyase
1409	 46.80	0	1643190..1644251	+	353	53712700	trmU	BF1407	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
1410	 43.51	0	1644376..1645053	-	225	53712701	-	BF1408	-	transcriptional regulator
1411	 46.53	0	1645159..1645749	-	196	53712702	-	BF1409	-	hypothetical protein
1412	 47.24	0	1645818..1647248	-	476	53712703	-	BF1410	-	Na+/H+ antiporter
1413	 44.10	0	1647273..1648145	-	290	53712704	-	BF1411	-	hypothetical protein
1414	 43.82	0	1648480..1648908	-	142	53712705	-	BF1412	-	hypothetical protein
1415	 47.79	0	1648941..1650116	-	391	53712706	-	BF1413	-	putative permease
1416	 49.32	+1	1650141..1652480	-	779	53712707	-	BF1414	-	penicillin-binding protein 1C
1417	 44.56	0	1652489..1658083	-	1864	53712708	-	BF1415	-	hypothetical protein
1418	 41.82	0	1658342..1659649	-	435	53712709	-	BF1416	-	putative cell-cycle protein
1419	 43.88	0	1659774..1662257	+	827	53712710	-	BF1417	-	putative ferrous iron transport protein
1420	 34.14	-1	1663320..1664063	+	247	53712711	-	BF1418	-	hypothetical protein
1421	 31.70	-2	1664692..1665426	+	244	53712712	-	BF1419	-	hypothetical protein
1422	 36.78	-1	1665497..1665670	-	57	53712713	-	BF1420	-	hypothetical protein
1423	 50.79	+1	1665815..1668844	-	1009	53712714	-	BF1421	-	hypothetical protein
1424	 48.22	0	1669064..1670158	+	364	53712715	-	BF1422	-	hypothetical protein
1425	 51.08	+1	1670155..1671168	+	337	53712716	-	BF1423	-	hypothetical protein
1426	 49.75	+1	1671288..1672292	+	334	53712717	-	BF1424	-	hypothetical protein
1427	 39.80	0	1672369..1672569	-	66	53712718	-	BF1425	-	hypothetical protein
1428	 30.41	-2	1672627..1672797	-	56	53712719	-	BF1426	-	hypothetical protein
1429	 38.01	0	1673129..1673299	-	56	53712720	-	BF1427	-	hypothetical protein
1430	 41.23	0	1673613..1674131	+	172	53712721	-	BF1428	-	putative transcriptional regulatory protein UpxY-like protein
1431	 41.98	0	1674151..1674624	+	157	53712722	-	BF1429	-	hypothetical protein
1432	 41.77	0	1674655..1675863	+	402	53712723	-	BF1430	-	nucleoside-diphosphate sugar epimerase
1433	 44.44	0	1675875..1677017	+	380	53712724	-	BF1431	-	putative aminotransferase
1434	 28.83	-2	1677023..1677244	+	73	53712725	-	BF1432	-	putative acyl carrier protein
1435	 31.69	-2	1677246..1678463	+	405	53712726	-	BF1433	-	hypothetical protein
1436	 33.47	-1	1678460..1679182	+	240	53712727	-	BF1434	-	3-oxoacyl-[acyl-carrier-protein] reductase
1437	 31.93	-2	1679185..1679826	+	213	53712728	-	BF1435	-	putative acetyl transferase
1438	 31.33	-2	1679841..1680890	+	349	53712729	-	BF1436	-	mannose-1-phosphate guanyltransferase
1439	 27.91	-2	1680906..1682084	+	392	53712730	-	BF1437	-	hypothetical protein
1440	 28.50	-2	1682152..1683579	+	475	53712731	-	BF1438	-	hypothetical protein
1441	 28.32	-2	1683566..1684822	+	418	53712732	-	BF1439	-	oligosaccharide repeat-containing polymerase
1442	 27.65	-2	1684829..1685866	+	345	53712733	-	BF1440	-	putative capsular polysaccharide polymerase
1443	 33.81	-1	1685877..1687133	+	418	53712734	-	BF1441	-	putative UDP-glucose-6 dehydrogenase
1444	 31.58	-2	1687141..1688112	+	323	53712735	-	BF1442	-	glycosyltransferase
1445	 34.70	-1	1688122..1688928	+	268	53712736	-	BF1443	-	putative glycosyltransferase
1446	 44.53	0	1688957..1690180	+	407	53712737	-	BF1444	-	aminotransferase
1447	 39.12	0	1690212..1690799	+	195	53712738	-	BF1445	-	putative undecaprenyl-phosphate galactose phosphotransferase
1448	 46.06	0	1691165..1691761	+	198	53712739	-	BF1446	-	putative protein disulfide isomerase
1449	 47.80	0	1691821..1693686	+	621	53712740	-	BF1447	-	putative transporter
1450	 49.10	+1	1693729..1694508	-	259	53712741	-	BF1448	-	putative methyltransferase
1451	 41.38	0	1694567..1694740	-	57	53712742	-	BF1449	-	hypothetical protein
1452	 42.52	0	1694825..1695205	-	126	53712743	-	BF1450	-	lactoylglutathione lyase
1453	 47.45	0	1695327..1696403	-	358	53712744	-	BF1451	-	hypothetical protein
1454	 45.32	0	1696423..1697148	-	241	53712745	-	BF1452	-	putative metal dependent hydrolase
1455	 52.97	+1	1697220..1697927	-	235	53712746	-	BF1453	-	pyridoxamine 5'-phosphate oxidase
1456	 45.67	0	1697945..1698649	-	234	53712747	-	BF1454	-	hypothetical protein
1457	 42.57	0	1698902..1700719	+	605	53712748	-	BF1455	-	transcriptional regulator
1458	 41.21	0	1700733..1700897	-	54	53712749	-	BF1456	-	hypothetical protein
1459	 45.30	0	1700956..1701498	+	180	53712750	-	BF1457	-	hypothetical protein
1460	 38.66	0	1701561..1701992	+	143	53712751	-	BF1458	-	hypothetical protein
43.19	MEAN

5.60	STD DEV
