IslandPathversion 1.0

IslandPath Analysis: Bartonella bacilliformis KC583

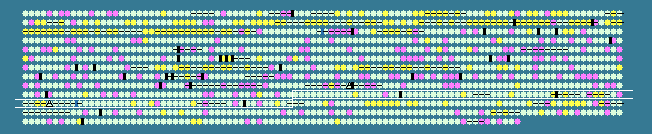

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.00 STD DEV: 4.11
Bartonella bacilliformis KC583, complete genome - 1..1445021
1283 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
946	 39.05	0	1041651..1042682	+	343	121602311	-	BARBAKC583_1007	-	AAA family ATPase
947	 41.12	0	1042682..1043593	+	303	121601795	-	BARBAKC583_1008	-	hypothetical protein
948	 39.01	0	1043590..1046388	+	932	121602704	-	BARBAKC583_1009	-	hypothetical protein
949	 40.57	0	1046388..1048475	+	695	121601969	-	BARBAKC583_1010	-	hypothetical protein
950	 39.07	0	1048542..1049099	-	185	121602912	-	BARBAKC583_1011	-	acetyltransferase, GNAT family protein
951	 38.98	0	1049371..1050255	+	294	121602306	-	BARBAKC583_1012	-	Ser/Thr protein phosphatase family protein
952	 39.71	0	1050443..1051351	-	302	121601731	czrB	BARBAKC583_1013	-	metal cation efflux protein CzrB
953	 37.61	0	1051693..1051809	-	38	121602537	-	BARBAKC583_1014	-	hypothetical protein
954	 39.46	0	1052206..1053021	+	271	121601762	-	BARBAKC583_1015	-	RNA methyltransferase
955	 42.43	0	1053119..1054294	-	391	121602707	trmU	BARBAKC583_1016	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
956	 42.75	0	1054547..1054822	+	91	121601953	-	BARBAKC583_1017	-	hypothetical protein
957	 36.69	0	1054953..1055339	-	128	121602846	-	BARBAKC583_1018	-	hypothetical protein
958	 38.89	0	1055898..1056599	+	233	121601947	ctrA	BARBAKC583_1019	-	cell cycle transcriptional regulator CtrA
959	 36.46	0	1056794..1057432	-	212	121602758	-	BARBAKC583_1020	-	hypothetical protein
960	 38.22	0	1057627..1058220	+	197	121601988	-	BARBAKC583_1021	-	hypothetical protein
961	 34.42	-1	1058310..1058585	+	91	121602863	-	BARBAKC583_1022	-	hypothetical protein
962	 37.98	0	1058779..1059897	-	372	121602150	-	BARBAKC583_1023	-	DegT/DnrJ/EryC1/StrS family aminotransferase
963	 41.40	0	1059948..1060901	-	317	121602897	-	BARBAKC583_1024	-	Gfo/Idh/MocA family oxidoreductase
964	 37.42	0	1061750..1062532	-	260	121602180	-	BARBAKC583_1026	-	dipeptide ABC transporter, ATP-binding protein
965	 39.84	0	1062529..1063404	-	291	121602431	-	BARBAKC583_1027	-	dipeptide ABC transporter, ATP-binding protein
966	 41.08	0	1063397..1064326	-	309	121601895	-	BARBAKC583_1028	-	dipeptide ABC transporter, permease protein
967	 38.18	0	1064329..1065402	-	357	121602582	-	BARBAKC583_1029	-	dipeptide ABC transporter, permease protein
968	 37.69	0	1065522..1067126	-	534	121602015	-	BARBAKC583_1030	-	dipeptide ABC transporter, periplasmic dipeptide-binding protein
969	 40.35	0	1067361..1067474	-	37	121602888	-	BARBAKC583_1031	-	hypothetical protein
970	 38.64	0	1069409..1070011	-	200	121602156	-	BARBAKC583_1033	-	putative DNA-3-methyladenine glycosylase I
971	 41.30	0	1070013..1071443	-	476	121601929	xseA	BARBAKC583_1034	-	exodeoxyribonuclease VII large subunit
972	 36.59	0	1071809..1072084	+	91	121602653	-	BARBAKC583_1035	-	hypothetical protein
973	 40.24	0	1073177..1073929	+	250	121602453	etfB	BARBAKC583_1037	-	electron transfer flavoprotein, beta subunit
974	 43.66	+1	1073976..1074905	+	309	121602250	etfA	BARBAKC583_1038	-	electron transfer flavoprotein, alpha subunit
975	 39.53	0	1074909..1076570	+	553	121602611	-	BARBAKC583_1039	-	electron transfer flavoprotein-ubiquinone dehydrogenase
976	 39.02	0	1076957..1078099	-	380	121601983	flaA	BARBAKC583_1040	-	flagellin A
977	 40.26	0	1078241..1079020	-	259	121601885	-	BARBAKC583_1041	-	pyrroline-5-carboxylate reductase
978	 41.19	0	1079209..1079577	-	122	121602174	-	BARBAKC583_1042	-	hypothetical protein
979	 39.51	0	1079584..1080489	-	301	121602718	-	BARBAKC583_1043	-	tetrapyrrole methylase family protein
980	 42.35	0	1080529..1081227	-	232	121601691	pyrF	BARBAKC583_1044	-	orotidine 5'-phosphate decarboxylase
981	 40.73	0	1081288..1082382	-	364	121602916	-	BARBAKC583_1045	-	hypothetical protein
982	 48.15	+2	1082926..1083060	+	44	121601647	rpmH	BARBAKC583_1046	-	ribosomal protein L34
983	 41.26	0	1083190..1083555	+	121	121602433	rnpA	BARBAKC583_1047	-	ribonuclease P
984	 37.03	0	1083572..1085410	+	612	121602508	-	BARBAKC583_1048	-	putative inner membrane protein translocase component YidC
985	 38.58	0	1085407..1086054	+	215	121602307	-	BARBAKC583_1049	-	GTPase EngB
986	 40.55	0	1086191..1086883	+	230	121602352	-	BARBAKC583_1050	-	glutathione S-transferase
987	 40.40	0	1087330..1088136	+	268	121601966	dapB	BARBAKC583_1051	-	dihydrodipicolinate reductase
988	 39.77	0	1088162..1088782	+	206	121602512	gpmA	BARBAKC583_1052	-	phosphoglyceromutase
989	 47.37	+2	1088896..1089009	+	37	121602113	-	BARBAKC583_1054	-	hypothetical protein
990	 39.59	0	1089585..1091438	+	617	121602097	-	BARBAKC583_1055	-	hypothetical protein
991	 43.59	+1	1092027..1092689	-	220	121602437	-	BARBAKC583_1057	-	lysozyme
992	 38.53	0	1093447..1093908	+	153	121601683	-	BARBAKC583_1059	-	hypothetical protein
993	 38.04	0	1093977..1094252	-	91	121602133	-	BARBAKC583_1060	-	hypothetical protein
994	 40.84	0	1094584..1094916	-	110	121602170	-	BARBAKC583_1061	-	hypothetical protein
995	 32.59	-1	1094930..1095064	+	44	121602638	-	BARBAKC583_1062	-	hypothetical protein
996	 42.86	0	1095109..1095402	-	97	121602054	-	BARBAKC583_1063	-	hypothetical protein
997	 46.46	+1	1095452..1095946	-	164	121601802	-	BARBAKC583_1064	-	hypothetical protein
998	 40.51	0	1095939..1096133	+	64	121601854	-	BARBAKC583_1065	-	hypothetical protein
999	 35.87	0	1096229..1096504	-	91	121602091	-	BARBAKC583_1066	-	hypothetical protein
1000	 33.01	-1	1097122..1097433	+	103	121602246	-	BARBAKC583_1068	-	hypothetical protein
1001	 38.17	0	1098065..1098808	+	247	121602212	-	BARBAKC583_1070	-	AntA/AntB family antirepressor
1002	 39.05	0	1100420..1100629	+	69	121601822	-	BARBAKC583_1073	-	hypothetical protein
1003	 43.40	+1	1100640..1100798	+	52	121602461	-	BARBAKC583_1075	-	hypothetical protein
1004	 45.61	+1	1100773..1100886	-	37	121602000	-	BARBAKC583_1074	-	hypothetical protein
1005	 37.32	0	1100936..1101688	+	250	121602161	int	BARBAKC583_1076	-	integrase
1006	 38.69	0	1101973..1103895	+	640	121602766	-	BARBAKC583_1077	-	hypothetical protein
1007	 40.36	0	1104356..1106290	+	644	121602331	-	BARBAKC583_1078	-	hypothetical protein
1008	 39.87	0	1106268..1106420	+	50	121601875	-	BARBAKC583_1079	-	hypothetical protein
1009	 40.26	0	1106662..1107051	-	129	121602870	-	BARBAKC583_1080	-	hypothetical protein
1010	 37.47	0	1114927..1115313	+	128	121601703	-	BARBAKC583_1087	-	putative transcriptional regulator
1011	 40.29	0	1115432..1116538	+	368	121602426	-	BARBAKC583_1088	-	MFP family transporter
1012	 37.83	0	1116549..1118126	+	525	121601825	-	BARBAKC583_1089	-	EmrB/QacA family drug resistance transporter
1013	 41.71	0	1118676..1119809	-	377	121602552	-	BARBAKC583_1090	-	pyridoxal-dependent decarboxylase
1014	 40.09	0	1120463..1121380	-	305	121602233	-	BARBAKC583_1091	-	rhodanese-like domain-containing protein
1015	 39.59	0	1121666..1122496	-	276	121602806	fpr	BARBAKC583_1092	-	ferredoxin---NADP reductase
1016	 41.98	0	1123120..1124241	+	373	121602454	alr	BARBAKC583_1093	-	alanine racemase
1017	 42.27	0	1124711..1127506	-	931	121602018	gcvP	BARBAKC583_1094	-	glycine dehydrogenase
1018	 40.11	0	1127512..1127880	-	122	121602585	gcvH	BARBAKC583_1095	-	glycine cleavage system protein H
1019	 42.78	0	1127887..1129008	-	373	121601850	gcvT	BARBAKC583_1096	-	glycine cleavage system aminomethyltransferase T
1020	 40.27	0	1129814..1130476	+	220	121602157	-	BARBAKC583_1097	-	ATP-dependent protease
1021	 40.68	0	1130490..1130666	+	58	121602896	-	BARBAKC583_1098	-	hypothetical protein
1022	 43.59	+1	1132553..1132708	+	51	121602226	-	BARBAKC583_1099	-	hypothetical protein
1023	 31.03	-1	1132722..1132895	+	57	121601774	-	BARBAKC583_1100	-	hypothetical protein
1024	 40.79	0	1135604..1136635	+	343	121602771	asd	BARBAKC583_1101	-	aspartate-semialdehyde dehydrogenase
1025	 38.34	0	1137343..1138161	+	272	121602075	metQ	BARBAKC583_1102	-	D-methionine ABC transporter, periplasmic methionine-binding protein
1026	 39.03	0	1138168..1139202	+	344	121601979	metN	BARBAKC583_1103	-	D-methionine ABC transporter, ATP-binding protein
1027	 41.36	0	1139195..1139854	+	219	121602709	metI	BARBAKC583_1104	-	D-methionine ABC transporter, permease protein
1028	 38.54	0	1139860..1140339	-	159	121602414	nodN	BARBAKC583_1105	-	nodulation protein N
1029	 42.91	0	1140509..1141834	+	441	121601844	-	BARBAKC583_1106	-	putative oxidoreductase, NAD-binding
1030	 37.63	0	1142137..1142880	+	247	121601642	-	BARBAKC583_1108	-	creatininase
1031	 29.86	-2	1142853..1142996	-	47	121602845	-	BARBAKC583_1107	-	hypothetical protein
1032	 40.12	0	1143225..1146806	-	1193	121602855	-	BARBAKC583_1109	-	outer membrane autotransporter
1033	 39.30	0	1146935..1148845	-	636	121602096	-	BARBAKC583_1110	-	hypothetical protein
1034	 40.04	0	1150047..1150970	+	307	121602561	-	BARBAKC583_1111	-	iron chelate ABC transporter, periplasmic iron-binding protein
1035	 40.65	0	1151069..1152025	+	318	121602643	-	BARBAKC583_1112	-	iron chelate ABC transporter, permease protein
1036	 34.81	-1	1152018..1152968	+	316	121602612	-	BARBAKC583_1113	-	iron chelate ABC transporter, permease protein
1037	 39.00	0	1152965..1153723	+	252	121601690	-	BARBAKC583_1114	-	iron chelate ABC transporter, ATP-binding protein
1038	 38.95	0	1154995..1155261	-	88	121602368	fliQ	BARBAKC583_1116	-	flagellar biosynthesis protein FliQ
1039	 40.31	0	1155258..1155830	-	190	121602800	flgD	BARBAKC583_1117	-	flagellar hook capping protein
1040	 32.61	-1	1155848..1156264	-	138	121602894	flbT	BARBAKC583_1118	-	flagellar biosynthesis repressor FlbT
1041	 38.48	0	1156311..1156679	-	122	121602017	flaF	BARBAKC583_1119	-	flagellar biosynthesis regulatory protein FlaF
1042	 39.24	0	1156699..1157781	-	360	121602544	flgL	BARBAKC583_1120	-	flagellar hook-associated protein FlgL
1043	 42.52	0	1157789..1159159	-	456	121601813	flgK	BARBAKC583_1121	-	flagellar hook-associated protein FlgK
1044	 40.33	0	1159187..1160401	-	404	121601827	flgE	BARBAKC583_1122	-	flagellar hook protein FlgE
1045	 40.90	0	1160642..1161328	-	228	121602724	-	BARBAKC583_1123	-	DNA-binding response regulator
39.00	MEAN

4.11	STD DEV
