IslandPathversion 1.0

IslandPath Analysis: Bartonella bacilliformis KC583

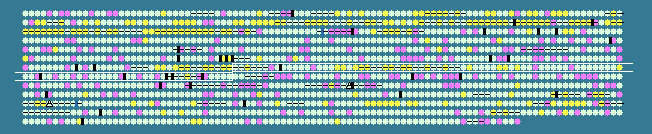

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.00 STD DEV: 4.11
Bartonella bacilliformis KC583, complete genome - 1..1445021
1283 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
636	 37.81	0	689833..690033	+	66	121602387	rpmC1	BARBAKC583_0674	-	50S ribosomal protein L29
637	 40.74	0	690045..690287	+	80	121602639	rpsQ	BARBAKC583_0675	-	30S ribosomal protein S17
638	 46.07	+1	690436..690804	+	122	121602071	rplN	BARBAKC583_0676	-	50S ribosomal protein L14
639	 39.68	0	690817..691131	+	104	121601949	rplX	BARBAKC583_0677	-	50S ribosomal protein L24
640	 39.63	0	691124..691504	+	126	121602514	rplE1	BARBAKC583_0678	-	ribosomal protein L5
641	 37.06	0	691542..692051	+	169	121602055	-	BARBAKC583_0679	-	hypothetical protein
642	 31.81	-1	692184..692708	+	174	121602681	-	BARBAKC583_0680	-	hypothetical protein
643	 38.80	0	692962..694881	-	639	121602256	-	BARBAKC583_0681	-	hypothetical protein
644	 39.70	0	696166..696840	+	224	121601738	-	BARBAKC583_0684	-	putative protein-L-isoaspartate O-methyltransferase
645	 40.39	0	696894..698111	+	405	121602288	-	BARBAKC583_0685	-	TolC family type I secretion outer membrane protein
646	 37.67	0	698294..698869	+	191	121601963	-	BARBAKC583_0686	-	hypothetical protein
647	 39.53	0	699033..701759	+	908	121602503	valS	BARBAKC583_0687	-	valyl-tRNA synthetase
648	 37.82	0	702327..703061	-	244	121602087	gltL2	BARBAKC583_0688	-	glutamate/aspartate ABC transporter, ATP-binding protein
649	 34.87	-1	703085..703801	-	238	121602648	gltK2	BARBAKC583_0689	-	glutamate/aspartate ABC transporter, permease protein GltK
650	 35.72	0	703803..704555	-	250	121602217	gltJ2	BARBAKC583_0690	-	glutamate/aspartate ABC transporter, permease protein GltJ
651	 35.86	0	704701..705609	-	302	121602769	gltI2	BARBAKC583_0691	-	glutamate/aspartate ABC transporter, periplasmic glutamate/aspartate-binding protein
652	 35.73	0	705727..706518	-	263	121602536	xth3	BARBAKC583_0692	-	exodeoxyribonuclease III
653	 45.97	+1	707000..707371	+	123	121601641	rpsL	BARBAKC583_0693	-	30S ribosomal protein S12
654	 45.01	+1	707403..707873	+	156	121602421	rpsG2	BARBAKC583_0694	-	30S ribosomal protein S7
655	 41.87	0	707903..709987	+	694	121602185	fusA2	BARBAKC583_0695	-	elongation factor G
656	 44.98	+1	710052..711227	+	391	121602898	tuf3	BARBAKC583_0696	-	elongation factor Tu
657	 46.28	+1	711296..711604	+	102	121602045	rpsJ2	BARBAKC583_0697	-	ribosomal protein S10
658	 43.86	+1	711632..712372	+	246	121601833	rplC	BARBAKC583_0698	-	50S ribosomal protein L3
659	 40.10	0	712372..712992	+	206	121602137	rplD	BARBAKC583_0699	-	50S ribosomal protein L4
660	 35.71	0	712989..713282	+	97	121602705	rplW	BARBAKC583_0700	-	50S ribosomal protein L23
661	 44.00	+1	713297..714130	+	277	121601972	rplB	BARBAKC583_0701	-	50S ribosomal protein L2
662	 43.37	+1	714146..714424	+	92	121602439	rpsS	BARBAKC583_0702	-	30S ribosomal protein S19
663	 41.28	0	714427..714816	+	129	121602710	rplV	BARBAKC583_0703	-	50S ribosomal protein L22
664	 44.02	+1	714816..715526	+	236	121602435	rpsC	BARBAKC583_0704	-	30S ribosomal protein S3
665	 46.62	+1	715563..715976	+	137	121601897	rplP	BARBAKC583_0705	-	50S ribosomal protein L16
666	 37.81	0	715989..716189	+	66	121602218	rpmC2	BARBAKC583_0706	-	50S ribosomal protein L29
667	 40.74	0	716201..716443	+	80	121602430	rpsQ	BARBAKC583_0707	-	30S ribosomal protein S17
668	 46.07	+1	716592..716960	+	122	121602061	rplN	BARBAKC583_0708	-	50S ribosomal protein L14
669	 39.68	0	716973..717287	+	104	121601924	rplX	BARBAKC583_0709	-	50S ribosomal protein L24
670	 39.07	0	717280..717837	+	185	121601971	rplE	BARBAKC583_0710	-	50S ribosomal protein L5
671	 45.42	+1	717862..718167	+	101	121602699	rpsN	BARBAKC583_0711	-	30S ribosomal protein S14
672	 38.60	0	718182..718580	+	132	121602134	rpsH	BARBAKC583_0712	-	30S ribosomal protein S8
673	 40.07	0	718619..719152	+	177	121602857	rplF	BARBAKC583_0713	-	50S ribosomal protein L6
674	 42.15	0	719165..719527	+	120	121601954	rplR	BARBAKC583_0714	-	50S ribosomal protein L18
675	 43.51	+1	719639..720208	+	189	121602355	rpsE	BARBAKC583_0715	-	30S ribosomal protein S5
676	 38.65	0	720241..720447	+	68	121602739	rpmD	BARBAKC583_0716	-	50S ribosomal protein L30
677	 38.92	0	720475..720939	+	154	121602515	rplO	BARBAKC583_0717	-	50S ribosomal protein L15
678	 36.82	0	721068..722414	+	448	121602796	secY	BARBAKC583_0718	-	preprotein translocase subunit SecY
679	 38.00	0	722411..722989	+	192	121602066	adk	BARBAKC583_0719	-	adenylate kinase
680	 45.80	+1	723176..723544	+	122	121602910	rpsM	BARBAKC583_0720	-	30S ribosomal protein S13
681	 47.18	+1	723667..724056	+	129	121602190	rpsK	BARBAKC583_0721	-	30S ribosomal protein S11
682	 37.97	0	724147..725160	+	337	121601834	rpoA	BARBAKC583_0722	-	DNA-directed RNA polymerase subunit alpha
683	 42.96	0	725185..725610	+	141	121601649	rplQ	BARBAKC583_0723	-	50S ribosomal protein L17
684	 36.27	0	725791..727185	+	464	121602357	-	BARBAKC583_0724	-	putative protease do
685	 40.98	0	727195..728514	+	439	121602885	-	BARBAKC583_0726	-	recombination factor protein RarA
686	 29.48	-2	728485..728847	-	120	121601773	-	BARBAKC583_0725	-	hypothetical protein
687	 40.42	0	728971..730014	+	347	121602844	recA	BARBAKC583_0727	-	recombinase A
688	 38.97	0	730206..732866	+	886	121601991	alaS	BARBAKC583_0728	-	alanyl-tRNA synthetase
689	 37.30	0	732964..734751	-	595	121602048	ndvA	BARBAKC583_0729	-	cyclic beta-1,2-glucan ABC transporter
690	 41.06	0	734949..735932	+	327	121602476	-	BARBAKC583_0730	-	RluA family pseudouridine synthase
691	 38.30	0	736321..737106	+	261	121602261	-	BARBAKC583_0731	-	ATP12 chaperone family protein
692	 31.50	-1	737136..737681	-	181	121602637	-	BARBAKC583_0732	-	hypothetical protein
693	 38.94	0	737835..739244	-	469	121602001	glnA	BARBAKC583_0733	-	glutamine synthetase, type I
694	 40.14	0	739902..742796	-	964	121602160	uvrA	BARBAKC583_0735	-	excinuclease ABC subunit A
695	 37.45	0	742995..743528	+	177	121601719	ssb	BARBAKC583_0736	-	single-stranded DNA-binding protein
696	 42.23	0	744012..746798	+	928	121602587	gyrA	BARBAKC583_0737	-	DNA gyrase subunit A
697	 39.61	0	746801..747310	+	169	121601709	coaD	BARBAKC583_0738	-	phosphopantetheine adenylyltransferase
698	 36.98	0	747325..747900	+	191	121602490	-	BARBAKC583_0739	-	peptidyl-prolyl cis-trans isomerase B
699	 38.40	0	747917..748429	+	170	121601934	-	BARBAKC583_0740	-	peptidyl-prolyl cis-trans isomerase, cyclophilin-type
700	 43.30	+1	748730..749863	+	377	121602338	tgt	BARBAKC583_0741	-	queuine tRNA-ribosyltransferase
701	 36.63	0	750669..752093	-	474	121602416	-	BARBAKC583_0742	-	major facilitator transporter
702	 37.94	0	752211..753425	-	404	121602400	-	BARBAKC583_0743	-	isocitrate dehydrogenase
703	 32.71	-1	753707..754348	+	213	121601707	-	BARBAKC583_0744	-	hypothetical protein
704	 42.12	0	755316..756305	+	329	121602602	glpX	BARBAKC583_0746	-	fructose 1,6-bisphosphatase II
705	 36.31	0	756404..757510	-	368	121602725	ilvE	BARBAKC583_0747	-	branched-chain amino acid aminotransferase
706	 33.41	-1	758037..760544	-	835	121602858	-	BARBAKC583_0748	-	sporulation and cell division repeat-containing protein
707	 36.69	0	760680..762437	-	585	121602184	argS	BARBAKC583_0749	-	arginyl-tRNA synthetase
708	 38.60	0	762468..763664	-	398	121602687	-	BARBAKC583_0750	-	deoxyguanosinetriphosphate triphosphohydrolase-like protein
709	 35.49	0	763771..764094	+	107	121601807	-	BARBAKC583_0751	-	iron-sulfur cluster assembly accessory protein
710	 36.86	0	764155..765117	+	320	121602335	-	BARBAKC583_0752	-	hypothetical protein
711	 34.13	-1	765167..765919	+	250	121601918	-	BARBAKC583_0753	-	putative cytochrome c-type biogenesis protein
712	 36.22	0	765970..767319	+	449	121601801	-	BARBAKC583_0754	-	putative UDP-N-acetylglucosamine pyrophosphorylase
713	 37.83	0	767497..769320	+	607	121602560	glmS	BARBAKC583_0755	-	D-fructose-6-phosphate amidotransferase
714	 40.49	0	769544..771652	-	702	121602903	recG	BARBAKC583_0756	-	ATP-dependent DNA helicase RecG
715	 36.74	0	771789..773549	-	586	121602208	-	BARBAKC583_0757	-	putative microcin immunity protein
716	 40.19	0	773945..775885	-	646	121601964	-	BARBAKC583_0758	-	hypothetical protein
717	 26.32	-2	776209..776322	+	37	121602450	-	BARBAKC583_0759	-	hypothetical protein
718	 39.67	0	776689..778029	-	446	121602177	accC	BARBAKC583_0761	-	acetyl-CoA carboxylase biotin carboxylase subunit
719	 39.54	0	778044..778526	-	160	121602597	accB	BARBAKC583_0762	-	acetyl-CoA carboxylase biotin carboxyl carrier protein subunit
720	 29.70	-2	778743..779540	-	265	121602002	-	BARBAKC583_0763	-	thioredoxin domain-containing protein
721	 36.93	0	779961..780572	-	203	121602889	purN	BARBAKC583_0764	-	phosphoribosylglycinamide formyltransferase
722	 39.04	0	780569..781654	-	361	121602342	purM	BARBAKC583_0765	-	phosphoribosylaminoimidazole synthetase
723	 34.98	0	781822..783036	+	404	121602761	-	BARBAKC583_0766	-	hypothetical protein
724	 35.80	0	783033..783722	+	229	121602210	-	BARBAKC583_0767	-	hypothetical protein
725	 38.89	0	784228..784533	+	101	121601871	-	BARBAKC583_0769	-	putative NADH dehydrogenase (quinone) subunit
726	 37.36	0	784918..785190	-	90	121602740	-	BARBAKC583_0771	-	hypothetical protein
727	 41.27	0	785717..785842	+	41	121601640	-	BARBAKC583_0772	-	hypothetical protein
728	 43.69	+1	785873..786094	+	73	121602760	-	BARBAKC583_0773	-	hypothetical protein
729	 39.33	0	786307..788241	-	644	121601751	-	BARBAKC583_0774	-	hypothetical protein
730	 30.08	-2	788548..788670	+	40	121602314	-	BARBAKC583_0775	-	hypothetical protein
731	 33.61	-1	789462..789827	+	121	121602445	nuoA	BARBAKC583_0778	-	NADH dehydrogenase subunit A
732	 41.75	0	789818..790399	+	193	121602032	nuoB	BARBAKC583_0779	-	NADH dehydrogenase subunit B
733	 38.03	0	790409..791026	+	205	121602302	nuoC	BARBAKC583_0780	-	NADH dehydrogenase subunit C
734	 40.89	0	791112..792302	+	396	121601914	nuoD	BARBAKC583_0781	-	NADH dehydrogenase subunit D
735	 36.87	0	792302..792979	+	225	121602159	nuoE	BARBAKC583_0782	-	NADH dehydrogenase subunit E
39.00	MEAN

4.11	STD DEV
