IslandPathversion 1.0

IslandPath Analysis: Bartonella bacilliformis KC583

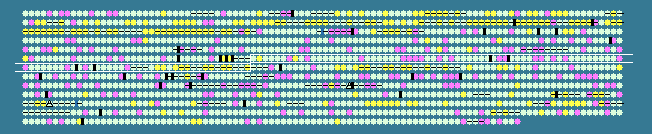

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.00 STD DEV: 4.11
Bartonella bacilliformis KC583, complete genome - 1..1445021
1283 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
539	 41.06	0	575557..576255	+	232	121601687	rplA	BARBAKC583_0568	-	50S ribosomal protein L1
540	 43.74	+1	576612..577130	+	172	121602049	rplJ	BARBAKC583_0569	-	50S ribosomal protein L10
541	 41.40	0	577236..577607	+	123	121601836	rplL	BARBAKC583_0570	-	50S ribosomal protein L7/L12
542	 40.39	0	577891..582042	+	1383	121602831	rpoB	BARBAKC583_0571	-	DNA-directed RNA polymerase subunit beta
543	 40.69	0	582204..586415	+	1403	121602241	rpoC	BARBAKC583_0572	-	DNA-directed RNA polymerase subunit beta'
544	 40.03	0	586776..587462	+	228	121601888	-	BARBAKC583_0573	-	nitroreductase family protein
545	 34.21	-1	587625..587738	+	37	121602883	-	BARBAKC583_0574	-	hypothetical protein
546	 42.64	0	589606..589734	+	42	121602025	-	BARBAKC583_0576	-	hypothetical protein
547	 37.79	0	589946..591292	-	448	121602290	-	BARBAKC583_0577	-	D-alanyl-D-alanine carboxypeptidase
548	 33.33	-1	591619..591897	+	92	121601730	clpS	BARBAKC583_0578	-	ATP-dependent Clp protease adaptor protein ClpS
549	 38.66	0	591904..594270	+	788	121602591	clpA	BARBAKC583_0580	-	ATP-dependent Clp protease ATP-binding subunit ClpA
550	 39.72	0	594267..594689	-	140	121602649	-	BARBAKC583_0579	-	histidine triad domain-containing protein
551	 38.06	0	594775..595239	-	154	121601997	-	BARBAKC583_0581	-	endoribonuclease L-PSP
552	 35.78	0	595376..596191	+	271	121602723	-	BARBAKC583_0582	-	hypothetical protein
553	 41.79	0	596350..597165	+	271	121602757	rpsB	BARBAKC583_0583	-	30S ribosomal protein S2
554	 41.67	0	597285..598208	+	307	121602519	tsf	BARBAKC583_0584	-	elongation factor Ts
555	 39.17	0	598348..599067	+	239	121601644	pyrH	BARBAKC583_0585	-	uridylate kinase
556	 40.29	0	599104..599664	+	186	121602369	frr	BARBAKC583_0586	-	ribosome recycling factor
557	 33.82	-1	600413..601231	+	272	121602084	cdsA	BARBAKC583_0587	-	phosphatidate cytidylyltransferase
558	 37.51	0	602564..604960	+	798	121602491	-	BARBAKC583_0589	-	OMP85 family outer membrane protein
559	 41.43	0	605027..606076	+	349	121601880	lpxD	BARBAKC583_0590	-	UDP-3-O-[3-hydroxymyristoyl] glucosamine N-acyltransferase
560	 36.13	0	606078..606542	+	154	121602572	fabZ	BARBAKC583_0591	-	(3R)-hydroxymyristoyl-ACP dehydratase
561	 39.15	0	606568..607392	+	274	121601970	lpxA	BARBAKC583_0592	-	UDP-N-acetylglucosamine acyltransferase
562	 38.72	0	607395..608267	+	290	121602728	-	BARBAKC583_0593	-	hypothetical protein
563	 36.96	0	608257..609441	+	394	121602145	lpxB	BARBAKC583_0594	-	lipid-A-disaccharide synthase
564	 35.00	0	609473..610252	-	259	121602878	-	BARBAKC583_0595	-	amino acid ABC transporter, ATP-binding protein
565	 33.47	-1	610332..611039	-	235	121602407	-	BARBAKC583_0596	-	amino acid ABC transporter, permease protein
566	 33.61	-1	611036..611758	-	240	121601743	-	BARBAKC583_0597	-	amino acid ABC transporter, permease protein
567	 32.16	-1	611817..612584	-	255	121602328	-	BARBAKC583_0598	-	amino acid ABC transporter, periplasmic amino acid-binding protein
568	 38.75	0	612955..614247	-	430	121602472	gltA	BARBAKC583_0599	-	type II citrate synthase
569	 40.11	0	614495..615925	-	476	121601941	gltX	BARBAKC583_0600	-	glutamyl-tRNA synthetase
570	 34.12	-1	616042..618315	+	757	121601648	-	BARBAKC583_0601	-	competence protein
571	 40.03	0	618674..619375	+	233	121602568	rpiA	BARBAKC583_0602	-	ribose-5-phosphate isomerase A
572	 35.17	0	619437..619979	+	180	121601821	-	BARBAKC583_0603	-	hypothetical protein
573	 38.10	0	620181..621566	+	461	121602043	gor	BARBAKC583_0604	-	glutathione reductase
574	 36.34	0	621641..623005	+	454	121602337	-	BARBAKC583_0605	-	3-deoxy-7-phosphoheptulonate synthase
575	 37.43	0	623117..624799	+	560	121601772	nadE	BARBAKC583_0606	-	NAD synthetase
576	 36.32	0	624810..626180	+	456	121602166	gltX2	BARBAKC583_0607	-	glutamyl-tRNA synthetase
577	 38.08	0	626256..627644	-	462	121602645	-	BARBAKC583_0608	-	DEAD/DEAH box helicase domain-containing protein
578	 38.50	0	627797..628570	-	257	121602714	ppnK	BARBAKC583_0609	-	inorganic polyphosphate/ATP-NAD kinase
579	 37.19	0	629441..629803	-	120	121602179	-	BARBAKC583_0612	-	response regulator
580	 26.32	-2	629983..630096	+	37	121602579	-	BARBAKC583_0613	-	hypothetical protein
581	 35.05	0	630537..631001	+	154	121602064	-	BARBAKC583_0614	-	Hsp20/alpha crystallin family protein
582	 38.61	0	631806..632165	+	119	121601819	-	BARBAKC583_0616	-	putative FeS assembly scaffold SufA
583	 35.54	0	632257..633162	-	301	121602578	-	BARBAKC583_0617	-	lipid A biosynthesis lauroyl acyltransferase
584	 39.75	0	633193..634221	-	342	121601660	-	BARBAKC583_0618	-	zinc-binding dehydrogenase family oxidoreductase
585	 39.41	0	634249..635547	-	432	121602379	-	BARBAKC583_0619	-	3-oxoacyl-(acyl carrier protein) synthase II
586	 35.09	0	635563..636132	-	189	121601943	-	BARBAKC583_0620	-	3-oxoacyl-(ACP) synthase III
587	 32.63	-1	636143..636427	-	94	121602700	-	BARBAKC583_0621	-	acyl carrier protein
588	 39.67	0	636621..638954	-	777	121601936	dme	BARBAKC583_0622	-	malic enzyme
589	 34.84	-1	639489..644120	-	1543	121602547	-	BARBAKC583_0623	-	hypothetical protein
590	 36.25	0	644989..645228	+	79	121601695	hfq	BARBAKC583_0624	-	RNA-binding protein Hfq
591	 35.08	0	645286..646659	+	457	121602372	hflX	BARBAKC583_0625	-	GTP-binding proten HflX
592	 37.23	0	647530..648606	+	358	121602840	-	BARBAKC583_0627	-	cytochrome oxidase assembly protein
593	 37.50	0	648627..649562	-	311	121602249	argC	BARBAKC583_0628	-	N-acetyl-gamma-glutamyl-phosphate reductase
594	 38.49	0	649870..651168	+	432	121602524	glyA	BARBAKC583_0629	-	serine hydroxymethyltransferase
595	 40.37	0	651194..651676	+	160	121602154	nrdR	BARBAKC583_0630	-	transcriptional regulator NrdR
596	 38.40	0	651669..652793	+	374	121602090	ribD	BARBAKC583_0631	-	riboflavin biosynthesis protein RibD
597	 36.89	0	652775..653392	+	205	121602297	ribE	BARBAKC583_0632	-	riboflavin synthase subunit alpha
598	 36.38	0	653477..653935	+	152	121601962	ribH	BARBAKC583_0633	-	riboflavin synthase subunit beta
599	 38.28	0	653939..654403	+	154	121602835	nusB	BARBAKC583_0634	-	transcription antitermination protein NusB
600	 33.33	-1	654480..654836	-	118	121602304	-	BARBAKC583_0635	-	SmpA/OmlA family outer membrane protein
601	 29.93	-2	655163..655720	+	185	121602659	-	BARBAKC583_0636	-	hypothetical protein
602	 37.54	0	655867..656937	+	356	121602272	plsX	BARBAKC583_0637	-	putative glycerol-3-phosphate acyltransferase PlsX
603	 39.90	0	656987..657961	+	324	121602417	fabH	BARBAKC583_0638	-	3-oxoacyl-(acyl carrier protein) synthase III
604	 40.38	0	658038..658349	+	103	121602866	ihfA	BARBAKC583_0639	-	integration host factor subunit alpha
605	 38.26	0	658534..659040	+	168	121602593	-	BARBAKC583_0640	-	MerR family transcriptional regulator
606	 38.75	0	659071..661047	-	658	121601812	thrS	BARBAKC583_0641	-	threonyl-tRNA synthetase
607	 40.40	0	661172..661525	-	117	121602223	-	BARBAKC583_0642	-	hypothetical protein
608	 33.79	-1	661518..661955	-	145	121602629	-	BARBAKC583_0643	-	hypothetical protein
609	 38.65	0	662083..662703	+	206	121601665	folE	BARBAKC583_0644	-	GTP cyclohydrolase I
610	 36.39	0	663087..664298	+	403	121602825	-	BARBAKC583_0646	-	putative lipoprotein
611	 31.81	-1	664431..664955	+	174	121601828	-	BARBAKC583_0647	-	hypothetical protein
612	 38.75	0	665209..667128	-	639	121602330	-	BARBAKC583_0648	-	hypothetical protein
613	 39.70	0	668413..669087	+	224	121601678	-	BARBAKC583_0651	-	putative protein-L-isoaspartate O-methyltransferase
614	 40.48	0	669141..670427	+	428	121602589	-	BARBAKC583_0652	-	TolC family type I secretion outer membrane protein
615	 37.67	0	670610..671185	+	191	121601868	-	BARBAKC583_0653	-	hypothetical protein
616	 39.53	0	671349..674075	+	908	121602738	valS	BARBAKC583_0654	-	valyl-tRNA synthetase
617	 37.82	0	674643..675377	-	244	121601830	gltL1	BARBAKC583_0655	-	glutamate/aspartate ABC transporter, ATP-binding protein
618	 34.87	-1	675401..676117	-	238	121602538	gltK1	BARBAKC583_0656	-	glutamate/aspartate ABC transporter, permease protein GltK
619	 35.72	0	676119..676871	-	250	121601784	gltJ1	BARBAKC583_0657	-	glutamate/aspartate ABC transporter, permease protein GltJ
620	 36.73	0	677017..678399	-	460	121602131	-	BARBAKC583_0658	-	putative glutamate/aspartate ABC transporter, permease protein/periplasmic glutamate/aspartate-binding protein
621	 35.86	0	678545..679453	-	302	121602735	gltI1	BARBAKC583_0659	-	glutamate/aspartate ABC transporter, periplasmic glutamate/aspartate-binding protein
622	 35.73	0	679571..680362	-	263	121602003	xth2	BARBAKC583_0660	-	exodeoxyribonuclease III
623	 45.97	+1	680844..681215	+	123	121602315	rpsL	BARBAKC583_0661	-	30S ribosomal protein S12
624	 45.01	+1	681247..681717	+	156	121601921	rpsG1	BARBAKC583_0662	-	30S ribosomal protein S7
625	 41.87	0	681747..683831	+	694	121602191	fusA1	BARBAKC583_0663	-	elongation factor G
626	 44.98	+1	683896..685071	+	391	121601791	tuf2	BARBAKC583_0664	-	elongation factor Tu
627	 46.28	+1	685140..685448	+	102	121602082	rpsJ1	BARBAKC583_0665	-	ribosomal protein S10
628	 43.86	+1	685476..686216	+	246	121602668	rplC	BARBAKC583_0666	-	50S ribosomal protein L3
629	 40.10	0	686216..686836	+	206	121602068	rplD	BARBAKC583_0667	-	50S ribosomal protein L4
630	 35.71	0	686833..687126	+	97	121602627	rplW	BARBAKC583_0668	-	50S ribosomal protein L23
631	 44.00	+1	687141..687974	+	277	121602559	rplB	BARBAKC583_0669	-	50S ribosomal protein L2
632	 43.37	+1	687990..688268	+	92	121601820	rpsS	BARBAKC583_0670	-	30S ribosomal protein S19
633	 41.28	0	688271..688660	+	129	121601656	rplV	BARBAKC583_0671	-	50S ribosomal protein L22
634	 44.02	+1	688660..689370	+	236	121602523	rpsC	BARBAKC583_0672	-	30S ribosomal protein S3
635	 46.62	+1	689407..689820	+	137	121602176	rplP	BARBAKC583_0673	-	50S ribosomal protein L16
636	 37.81	0	689833..690033	+	66	121602387	rpmC1	BARBAKC583_0674	-	50S ribosomal protein L29
637	 40.74	0	690045..690287	+	80	121602639	rpsQ	BARBAKC583_0675	-	30S ribosomal protein S17
638	 46.07	+1	690436..690804	+	122	121602071	rplN	BARBAKC583_0676	-	50S ribosomal protein L14
39.00	MEAN

4.11	STD DEV
