IslandPath Analysis: Bartonella bacilliformis KC583

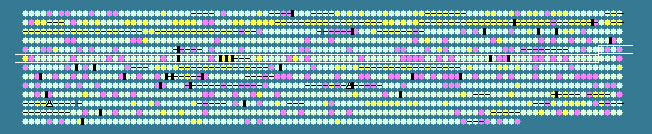

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.00 STD DEV: 4.11
Bartonella bacilliformis KC583, complete genome - 1..1445021
1283 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
497	 38.94	0	530587..531780	+	397	121602484	-	BARBAKC583_0521	-	LysM/M23 peptidase
498	 30.36	-2	532091..532258	+	55	121601668	-	BARBAKC583_0522	-	hypothetical protein
499	 40.86	0	532537..533001	+	154	121601937	yajC	BARBAKC583_0523	-	preprotein translocase, YajC subunit
500	 31.03	-1	533009..533182	-	57	121602236	-	BARBAKC583_0524	-	hypothetical protein
501	 43.15	+1	533391..533777	+	128	121601747	-	BARBAKC583_0525	-	hypothetical protein
502	 34.73	-1	533774..534634	+	286	121602819	-	BARBAKC583_0526	-	hypothetical protein
503	 36.88	0	534886..536775	-	629	121602029	-	BARBAKC583_0527	-	hypothetical protein
504	 41.83	0	536964..537728	+	254	121601667	tpiA	BARBAKC583_0528	-	triosephosphate isomerase
505	 39.33	0	537827..538276	+	149	121602235	secG	BARBAKC583_0529	-	preprotein translocase subunit SecG
506	 39.10	0	538394..540022	+	542	121602104	pyrG	BARBAKC583_0530	-	CTP synthetase
507	 38.16	0	540059..540907	+	282	121602682	kdsA	BARBAKC583_0531	-	2-dehydro-3-deoxyphosphooctonate aldolase
508	 39.78	0	540998..542269	+	423	121602117	eno	BARBAKC583_0532	-	phosphopyruvate hydratase
509	 34.85	-1	542600..542929	+	109	121602813	-	BARBAKC583_0533	-	septum formation initiator family protein
510	 42.07	0	543060..544112	+	350	121602213	pdhA	BARBAKC583_0534	-	pyruvate dehydrogenase E1 component, alpha subunit
511	 40.81	0	544129..545493	+	454	121602436	pdhB	BARBAKC583_0535	-	pyruvate dehydrogenase subunit beta
512	 39.82	0	545508..546833	+	441	121601717	pdhC	BARBAKC583_0536	-	branched-chain alpha-keto acid dehydrogenase subunit E2
513	 40.93	0	547049..548509	+	486	121602441	lpdA2	BARBAKC583_0537	-	dihydrolipoamide dehydrogenase
514	 40.04	0	548586..549539	+	317	121601839	lipA	BARBAKC583_0538	-	lipoyl synthase
515	 33.55	-1	549551..550012	+	153	121601706	-	BARBAKC583_0539	-	cyclase/dehydrase family protein
516	 39.87	0	550103..551296	-	397	121602276	ispDF	BARBAKC583_0540	-	IspD/IspF bifunctional enzyme
517	 30.30	-2	551809..551940	+	43	121602829	-	BARBAKC583_0541	-	hypothetical protein
518	 39.30	0	551962..554190	+	742	121601788	ntrY	BARBAKC583_0542	-	nitrogen regulation protein NtrY
519	 39.29	0	554218..555576	+	452	121602361	ntrX	BARBAKC583_0543	-	nitrogen assimilation regulatory protein NtrX
520	 39.51	0	555580..556956	+	458	121601925	trkA	BARBAKC583_0544	-	potassium transporter peripheral membrane component
521	 38.55	0	557915..558547	+	210	121602655	clpP	BARBAKC583_0546	-	ATP-dependent Clp protease proteolytic subunit
522	 39.92	0	558755..560029	+	424	121601766	clpX	BARBAKC583_0547	-	ATP-dependent protease ATP-binding subunit
523	 38.12	0	560206..562629	+	807	121602500	lon	BARBAKC583_0548	-	ATP-dependent protease La
524	 28.95	-2	562604..562717	+	37	121601975	-	BARBAKC583_0549	-	hypothetical protein
525	 41.58	0	562856..563134	+	92	121602375	hupB	BARBAKC583_0550	-	DNA-binding protein HU-beta
526	 38.06	0	563823..565217	-	464	121602120	gid	BARBAKC583_0551	-	tRNA (uracil-5-)-methyltransferase Gid
527	 35.72	0	565640..567064	+	474	121602650	tig	BARBAKC583_0553	-	trigger factor
528	 38.93	0	567236..568735	+	499	121602274	gatB	BARBAKC583_0554	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
529	 40.10	0	568930..569328	+	132	121602827	-	BARBAKC583_0555	-	NADH dehydrogenase
530	 37.59	0	569416..569814	+	132	121602347	-	BARBAKC583_0556	-	hypothetical protein
531	 36.51	0	569989..570492	+	167	121601680	-	BARBAKC583_0557	-	hypothetical protein
532	 33.75	-1	570600..571322	+	240	121601865	-	BARBAKC583_0559	-	S54 family peptidase
533	 40.91	0	571312..572142	-	276	121602409	-	BARBAKC583_0558	-	RNA methyltransferase
534	 44.68	+1	572465..572605	+	46	121601787	-	BARBAKC583_0562	-	hypothetical protein
535	 44.90	+1	572688..573863	+	391	121602575	tuf1	BARBAKC583_0563	-	elongation factor Tu
536	 38.73	0	574217..574420	+	67	121602263	secE	BARBAKC583_0565	-	preprotein translocase subunit SecE
537	 40.11	0	574441..574971	+	176	121602807	nusG	BARBAKC583_0566	-	transcription antitermination protein NusG
538	 41.49	0	575124..575552	+	142	121602562	rplK	BARBAKC583_0567	-	50S ribosomal protein L11
539	 41.06	0	575557..576255	+	232	121601687	rplA	BARBAKC583_0568	-	50S ribosomal protein L1
540	 43.74	+1	576612..577130	+	172	121602049	rplJ	BARBAKC583_0569	-	50S ribosomal protein L10
541	 41.40	0	577236..577607	+	123	121601836	rplL	BARBAKC583_0570	-	50S ribosomal protein L7/L12
542	 40.39	0	577891..582042	+	1383	121602831	rpoB	BARBAKC583_0571	-	DNA-directed RNA polymerase subunit beta
543	 40.69	0	582204..586415	+	1403	121602241	rpoC	BARBAKC583_0572	-	DNA-directed RNA polymerase subunit beta'
544	 40.03	0	586776..587462	+	228	121601888	-	BARBAKC583_0573	-	nitroreductase family protein
545	 34.21	-1	587625..587738	+	37	121602883	-	BARBAKC583_0574	-	hypothetical protein
546	 42.64	0	589606..589734	+	42	121602025	-	BARBAKC583_0576	-	hypothetical protein
547	 37.79	0	589946..591292	-	448	121602290	-	BARBAKC583_0577	-	D-alanyl-D-alanine carboxypeptidase
548	 33.33	-1	591619..591897	+	92	121601730	clpS	BARBAKC583_0578	-	ATP-dependent Clp protease adaptor protein ClpS
549	 38.66	0	591904..594270	+	788	121602591	clpA	BARBAKC583_0580	-	ATP-dependent Clp protease ATP-binding subunit ClpA
550	 39.72	0	594267..594689	-	140	121602649	-	BARBAKC583_0579	-	histidine triad domain-containing protein
551	 38.06	0	594775..595239	-	154	121601997	-	BARBAKC583_0581	-	endoribonuclease L-PSP
552	 35.78	0	595376..596191	+	271	121602723	-	BARBAKC583_0582	-	hypothetical protein
553	 41.79	0	596350..597165	+	271	121602757	rpsB	BARBAKC583_0583	-	30S ribosomal protein S2
554	 41.67	0	597285..598208	+	307	121602519	tsf	BARBAKC583_0584	-	elongation factor Ts
555	 39.17	0	598348..599067	+	239	121601644	pyrH	BARBAKC583_0585	-	uridylate kinase
556	 40.29	0	599104..599664	+	186	121602369	frr	BARBAKC583_0586	-	ribosome recycling factor
557	 33.82	-1	600413..601231	+	272	121602084	cdsA	BARBAKC583_0587	-	phosphatidate cytidylyltransferase
558	 37.51	0	602564..604960	+	798	121602491	-	BARBAKC583_0589	-	OMP85 family outer membrane protein
559	 41.43	0	605027..606076	+	349	121601880	lpxD	BARBAKC583_0590	-	UDP-3-O-[3-hydroxymyristoyl] glucosamine N-acyltransferase
560	 36.13	0	606078..606542	+	154	121602572	fabZ	BARBAKC583_0591	-	(3R)-hydroxymyristoyl-ACP dehydratase
561	 39.15	0	606568..607392	+	274	121601970	lpxA	BARBAKC583_0592	-	UDP-N-acetylglucosamine acyltransferase
562	 38.72	0	607395..608267	+	290	121602728	-	BARBAKC583_0593	-	hypothetical protein
563	 36.96	0	608257..609441	+	394	121602145	lpxB	BARBAKC583_0594	-	lipid-A-disaccharide synthase
564	 35.00	0	609473..610252	-	259	121602878	-	BARBAKC583_0595	-	amino acid ABC transporter, ATP-binding protein
565	 33.47	-1	610332..611039	-	235	121602407	-	BARBAKC583_0596	-	amino acid ABC transporter, permease protein
566	 33.61	-1	611036..611758	-	240	121601743	-	BARBAKC583_0597	-	amino acid ABC transporter, permease protein
567	 32.16	-1	611817..612584	-	255	121602328	-	BARBAKC583_0598	-	amino acid ABC transporter, periplasmic amino acid-binding protein
568	 38.75	0	612955..614247	-	430	121602472	gltA	BARBAKC583_0599	-	type II citrate synthase
569	 40.11	0	614495..615925	-	476	121601941	gltX	BARBAKC583_0600	-	glutamyl-tRNA synthetase
570	 34.12	-1	616042..618315	+	757	121601648	-	BARBAKC583_0601	-	competence protein
571	 40.03	0	618674..619375	+	233	121602568	rpiA	BARBAKC583_0602	-	ribose-5-phosphate isomerase A
572	 35.17	0	619437..619979	+	180	121601821	-	BARBAKC583_0603	-	hypothetical protein
573	 38.10	0	620181..621566	+	461	121602043	gor	BARBAKC583_0604	-	glutathione reductase
574	 36.34	0	621641..623005	+	454	121602337	-	BARBAKC583_0605	-	3-deoxy-7-phosphoheptulonate synthase
575	 37.43	0	623117..624799	+	560	121601772	nadE	BARBAKC583_0606	-	NAD synthetase
576	 36.32	0	624810..626180	+	456	121602166	gltX2	BARBAKC583_0607	-	glutamyl-tRNA synthetase
577	 38.08	0	626256..627644	-	462	121602645	-	BARBAKC583_0608	-	DEAD/DEAH box helicase domain-containing protein
578	 38.50	0	627797..628570	-	257	121602714	ppnK	BARBAKC583_0609	-	inorganic polyphosphate/ATP-NAD kinase
579	 37.19	0	629441..629803	-	120	121602179	-	BARBAKC583_0612	-	response regulator
580	 26.32	-2	629983..630096	+	37	121602579	-	BARBAKC583_0613	-	hypothetical protein
581	 35.05	0	630537..631001	+	154	121602064	-	BARBAKC583_0614	-	Hsp20/alpha crystallin family protein
582	 38.61	0	631806..632165	+	119	121601819	-	BARBAKC583_0616	-	putative FeS assembly scaffold SufA
583	 35.54	0	632257..633162	-	301	121602578	-	BARBAKC583_0617	-	lipid A biosynthesis lauroyl acyltransferase
584	 39.75	0	633193..634221	-	342	121601660	-	BARBAKC583_0618	-	zinc-binding dehydrogenase family oxidoreductase
585	 39.41	0	634249..635547	-	432	121602379	-	BARBAKC583_0619	-	3-oxoacyl-(acyl carrier protein) synthase II
586	 35.09	0	635563..636132	-	189	121601943	-	BARBAKC583_0620	-	3-oxoacyl-(ACP) synthase III
587	 32.63	-1	636143..636427	-	94	121602700	-	BARBAKC583_0621	-	acyl carrier protein
588	 39.67	0	636621..638954	-	777	121601936	dme	BARBAKC583_0622	-	malic enzyme
589	 34.84	-1	639489..644120	-	1543	121602547	-	BARBAKC583_0623	-	hypothetical protein
590	 36.25	0	644989..645228	+	79	121601695	hfq	BARBAKC583_0624	-	RNA-binding protein Hfq
591	 35.08	0	645286..646659	+	457	121602372	hflX	BARBAKC583_0625	-	GTP-binding proten HflX
592	 37.23	0	647530..648606	+	358	121602840	-	BARBAKC583_0627	-	cytochrome oxidase assembly protein
593	 37.50	0	648627..649562	-	311	121602249	argC	BARBAKC583_0628	-	N-acetyl-gamma-glutamyl-phosphate reductase
594	 38.49	0	649870..651168	+	432	121602524	glyA	BARBAKC583_0629	-	serine hydroxymethyltransferase
595	 40.37	0	651194..651676	+	160	121602154	nrdR	BARBAKC583_0630	-	transcriptional regulator NrdR
596	 38.40	0	651669..652793	+	374	121602090	ribD	BARBAKC583_0631	-	riboflavin biosynthesis protein RibD
39.00	MEAN

4.11	STD DEV
